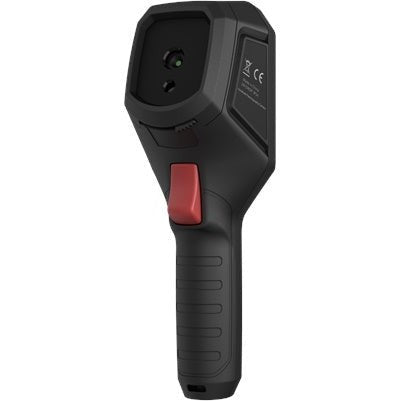

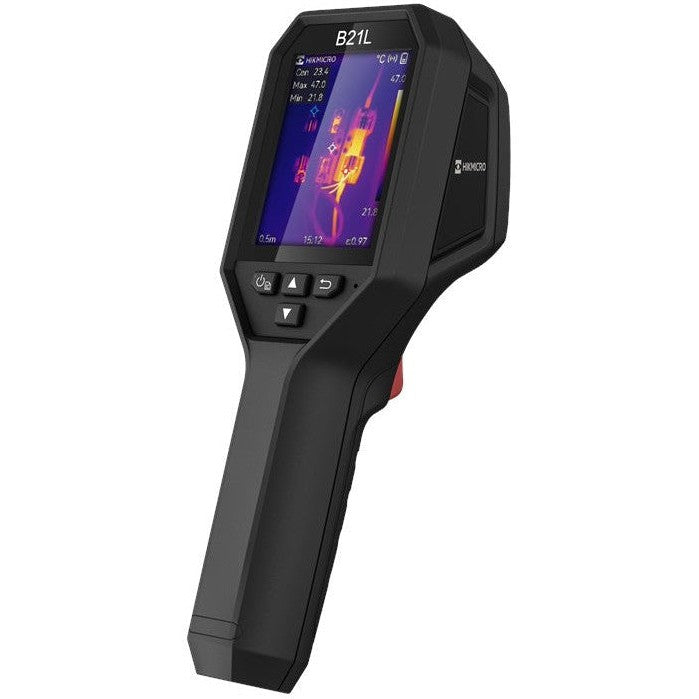

HIKMICRO B21L Handheld Wi-Fi Thermal Imaging Camera

SKU: HM-B21L

HIKMICRO B21L Handheld Wi-Fi Thermal Imaging Camera - Jacobs Digital
HIKMICRO B21L Handheld Wi-Fi Thermal Imaging Camera - Jacobs Digital

Our Price

$799.99

$799.99

Green truck Usually ships in 1-2 days An order for this can be placed with our supplier, and usually ships within the specified timeframe.



Loading

2000

79999

Shipping calculated at checkout

When will I receive it?

About this product

B SERIES

Compact easy to use thermal imaging camera for daily operation

Enhanced Thermal Clarity with SuperIR

Powered by HIKMICRO SuperIR image enhancement technology, it upscales the resolution of captured thermal images to 320 x 240 (76,800 Pixels). (B20, B11, B21L only, after firmware version V5.5.50)

High Image Quality

Features a highly sensitive (NETD < 40 mK) VOx detector, along with optimized image enhancement algorithms to provide clear thermal images.

4 Images Modes

Thermal, Fusion, PIP, and Optical modes to suit your preferred view. (B11 and B20 only)

Full-screen Precise and Wide Temperature Measurement

Supports capture of full-screen radiometric images and automatically tracks max/min/center spots to pinpoint temperature anomalies at a glance. Accurately measures temperatures from -20°C to 550°C ( -4°F to 1022°F) with a temperature accuracy up to +/-2°C (+/-3.6°F) or +/-2% of reading.

Wi-Fi Connectivity

Connect to mobile devices via built-in Wi-Fi and the HIKMICRO
Viewer App to quickly share your images.

Innovative Macro Mode

Using a clip-on macro lens, the B series cameras can see details as small as 500 microns and allow you to take accurate temperature readings on small objects, such as components on printed circuit boards or assemblies.

High Temperature Alarm

Built-in speaker and flash light give the operator audio and visual alerts to high temperatures.

Fast Image Frequency

25 Hz delivers smooth video and measurements while panning across scenes or viewing moving targets.

3.2" Color LCD

3.2" LCD provides a 75% larger screen than other products in the category.

B21L

256 × 192 (49,152 pixels)
Yes, on captured thermal images
< 40 mK (@ 25 °C, F#=1.0)
25 Hz
12 μm
7.5 to 14 μm
3.6 mm
F1.0
37.2° × 50.0°
3.3 mrad
240 × 320 Resolution, 3.2”LCD Screen
Thermal
White Hot, Black Hot, Rainbow, Ironbow
Above alarm

-20°C to 550°C (-4°F to 1022°F)
Max. (± 2°C/3.6°F, ± 2%), for ambient temperature 15°C to 35°C (59°F to 95°F) and object temperature above 0°C (32°F)
Center Spot, Hot Spot, Cold Spot
User-definable: 3 spots
Auto/Manual

Built-in 16 GB flash memory
Approx. 90,000 Images

802.11 b/g/n (2.4GHz)
USB Type-C

Yes, Class II
Rechargeable Li-ion battery
Approx. 6 hours
Approx. 3 hours fully charged
IP54
2 m (6.56 ft)
-10°C to 50°C (14°F to 122°F)
-20°C to 60°C (-4°F to 140°F)
< 95% non-condensing
Approx. 380 g (0.84 lb)
221.7 × 73.5 × 123.8mm (8.73 × 2.89 × 4.87 in)
UNC ¼”-20
