HIKMICRO Mini2 V2 Smartphone Thermal Imaging Camera For Android

SKU: HM-Mini2Plus

HIKMICRO Mini2 V2 Smartphone Thermal Imaging Camera For Android - Jacobs Digital
HIKMICRO Mini2 V2 Smartphone Thermal Imaging Camera For Android - Jacobs Digital
HIKMICRO Mini2 V2 Smartphone Thermal Imaging Camera For Android - Jacobs Digital
HIKMICRO Mini2 V2 Smartphone Thermal Imaging Camera For Android - Jacobs Digital
HIKMICRO Mini2 V2 Smartphone Thermal Imaging Camera For Android - Jacobs Digital

Our Price

$659.00

$659.00
Plus Free Shipping

Green truck Usually Ships in 2-3 Days An order for this can be placed with our supplier, and usually ships within the specified timeframe.



Loading

When will I receive it?

About this product

Premium Performance, Small Package - Explore your world in thermal with high accuracy







01. Super Clear Thermal Image

Mini2Plus features a highly sensitive (NETD < 40 mK) VOx detector with a resolution of 256 x 192 (49,152) pixels, along with optimized image enhancement algorithms to provide clear thermal images.

02. 25 Hz Smooth Video



03. Accurate Temperature Measurements

Mini2Plus accurately measures temperatures from -20°C (-4°F) to 350°C (662°F), with a temperature accuracy up to ±2°C (±3.6°F) / ± 2 %.

04. Mini Size

At just 26.6 × 26.6 × 25 mm (1.05 × 1.05 × 0.98 in) and weighing only 24 g (0.85 oz), it’ll fit in your pocket, tool bag, or anywhere convenient for quick and easy access.



Ready for any job or just for fun - Small, easy to carry, and ready 24/7 for almost anything



01. Plug and Play

Instantly attaches to your Android smartphone or tablet and is ready to go in seconds.



02. Battery-free

Mini2Plus is battery-free so you’ll never need to charge it up or find a charger cable. It’s powered by your phone, designed to run on very little power to maximize your mobile device run time, and ready whenever you are.



01. Manual Focus

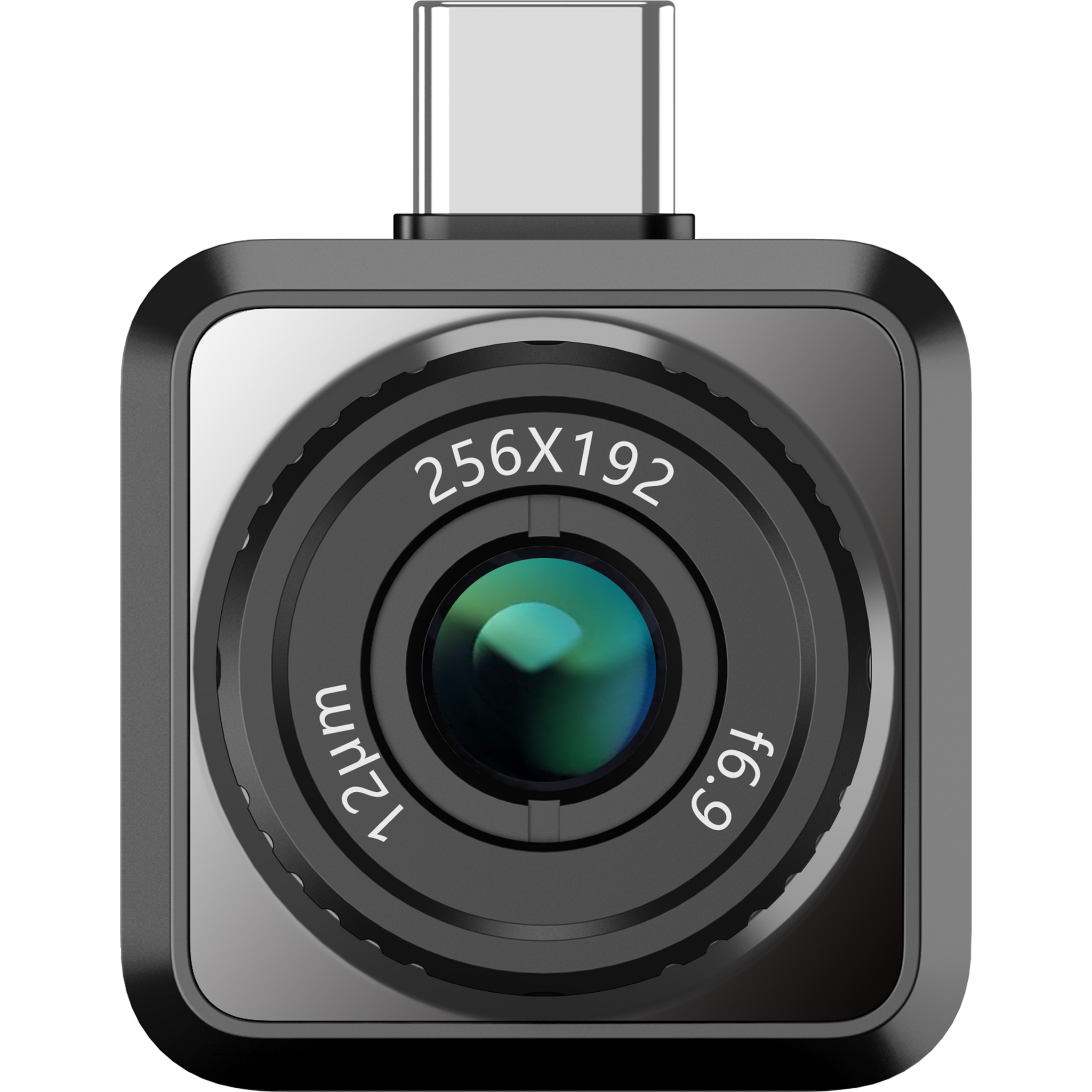

Equipped with a manual focus lens for inspection at various distances from 7 cm (0.23 ft) to 10 m (32.8ft). Viewing small objects like electronic components as small as 0.5 mm, or viewing more distant objects like electrical or mechanical equipment that require a safe distance.



Category Specification
Model Name Mini2Plus V2 (also referred to simply as Mini2 Plus)
Thermal Resolution 256 × 192 (49,152 pixels)
Detector Sensitivity (NETD) < 40 mK (@ 25 °C, F#=1.0)
Image Frequency 25 Hz
Spectral Range 7.5 – 14 µm
Focal Length / F-number 6.9 mm, F/1.0
Field of View 25° × 18.8°
Focus Mode Manual focus (range: 0.1 m / 0.33 ft to ~10 m)
Minimum Focus Distance 0.1 m (0.33 ft)
Temperature Range –20 °C to 400 °C (−4 °F to 752 °F)
Temperature Accuracy ±2 °C (−20 °C to 100 °C); ±2 % (above 100 °C); overall spec ±2 °C or ±2 %
Color Palettes 15 preset (White Hot, Black Hot, Rainbow, Ironbow, Sepia, Color, Ice Fire, Rain, Red Hot, Green Hot, Dark Blue, Combined, etc.)
Measurement Tools Center Spot, Hot Spot, Cold Spot; user-definable: 3 spots, 3 rectangles, 1 line; Level & Span (Auto/Manual)
Image Modes / Enhancement SuperIR (on live view & captured images), PIP, thermal & visual fusion
Power Consumption ~360 mW; battery-free – draws power directly from smartphone
Interface / Compatibility USB-C (Android/iOS) & Lightning via adapter — supports iOS 14+, Android 7+
Protection IP40 rated during use
Drop Resistance Survives 1 m (3.28 ft) drop test
Operating Temp. –10 °C to 50 °C (14 °F to 122 °F)
Storage Temp. –20 °C to 60 °C (−4 °F to 140 °F)
Weight ~24 g (0.053 lb)
Dimensions 26.6 × 26.6 × 25 mm (1.05 × 1.05 × 0.98 in)
Included Accessories Extending cord (~40 cm), 18 mm connector adapter for cases, protective storage case, Lightning-to-USB-C adapter
App Compatibility HIKMICRO Viewer (Android/iOS), HIKMICRO Analyzer (Windows)
Warranty 3-year warranty
