HIKMICRO HIKTac TC19L Compact Thermal Sight with LRF | 256 x 192 NETD <18mK 50Hz 900 Meter Range | LRF 1KM

SKU: TC19L

HIKMICRO HIKTac TC19L Compact Thermal Sight with LRF | 256 x 192 NETD <18mK 50Hz 900 Meter Range | LRF 1KM - Jacobs Digital
HIKMICRO HIKTac TC19L Compact Thermal Sight with LRF | 256 x 192 NETD <18mK 50Hz 900 Meter Range | LRF 1KM - Jacobs Digital
HIKMICRO HIKTac TC19L Compact Thermal Sight with LRF | 256 x 192 NETD <18mK 50Hz 900 Meter Range | LRF 1KM - Jacobs Digital
HIKMICRO HIKTac TC19L Compact Thermal Sight with LRF | 256 x 192 NETD <18mK 50Hz 900 Meter Range | LRF 1KM - Jacobs Digital
HIKMICRO HIKTac TC19L Compact Thermal Sight with LRF | 256 x 192 NETD <18mK 50Hz 900 Meter Range | LRF 1KM - Jacobs Digital
HIKMICRO HIKTac TC19L Compact Thermal Sight with LRF | 256 x 192 NETD <18mK 50Hz 900 Meter Range | LRF 1KM - Jacobs Digital
HIKMICRO HIKTac TC19L Compact Thermal Sight with LRF | 256 x 192 NETD <18mK 50Hz 900 Meter Range | LRF 1KM - Jacobs Digital

Our Price

$1,699.00

$1,699.00
Plus Free Shipping


Loading

500

169900

Shipping calculated at checkout

When will I receive it?

About this product

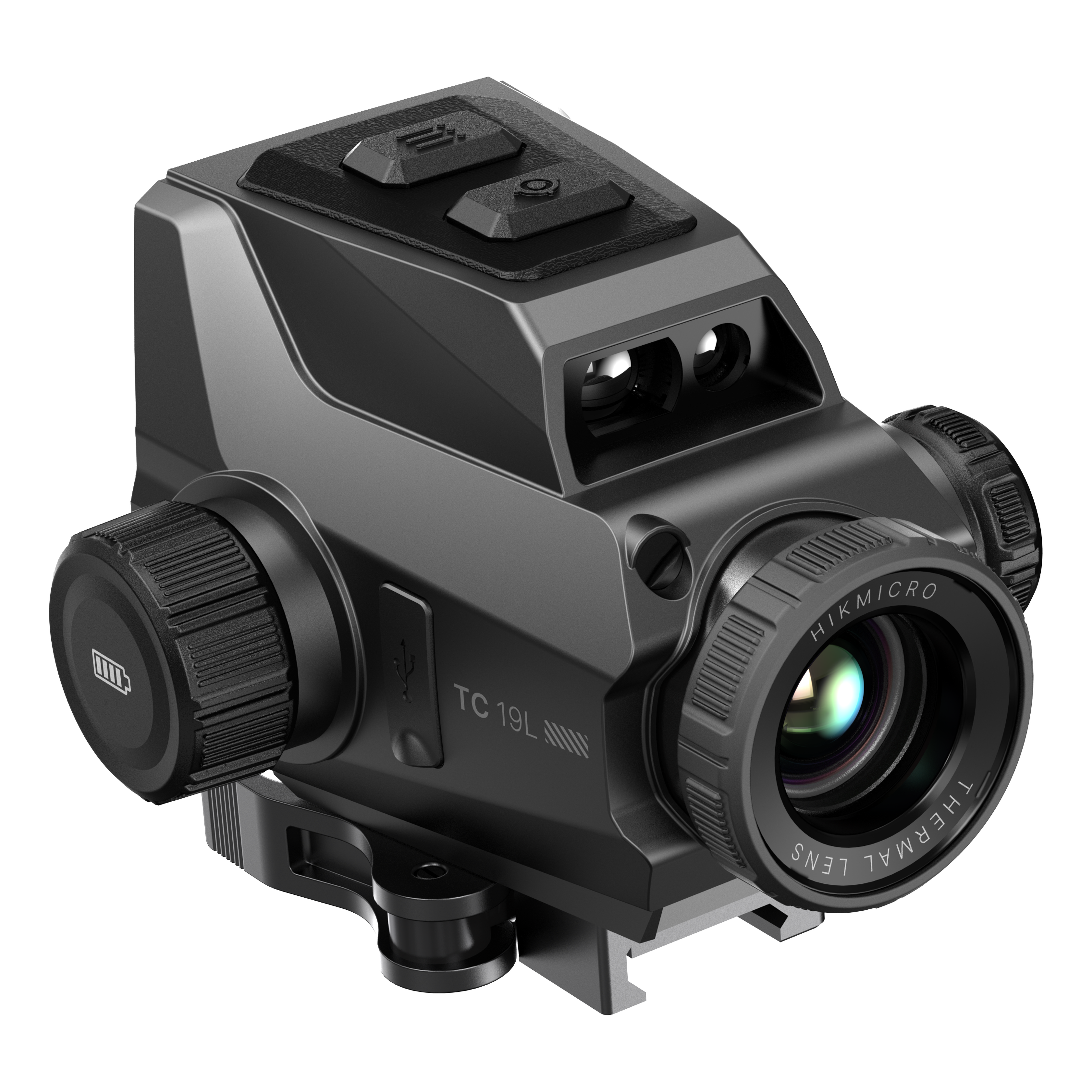

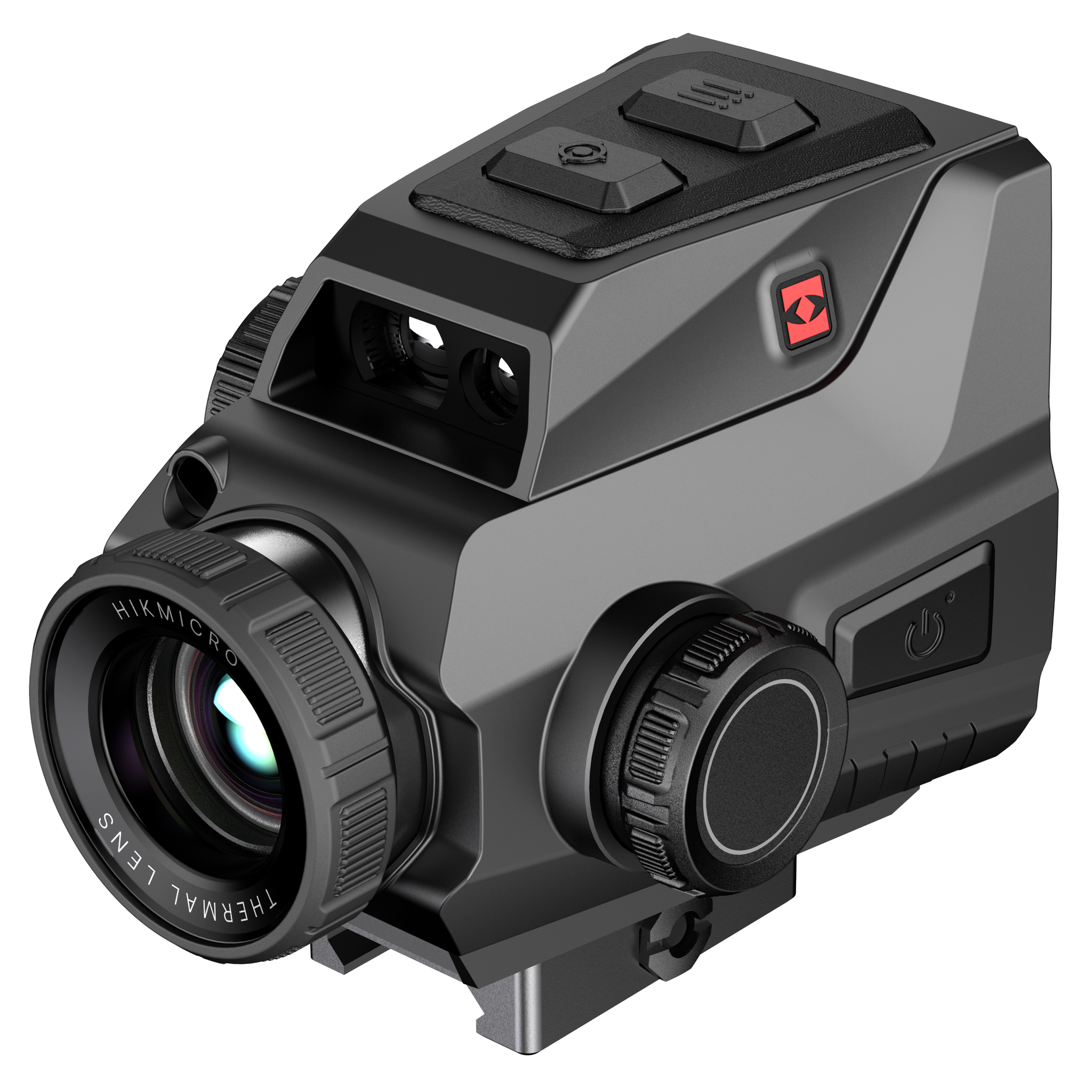

HIKMICRO HIKTac TC19L Compact Thermal Sight with LRF | 256 x 192 NETD <18mK 50Hz 900 Meter Range | LRF 1KM


The HIKMICRO HIKTac TC19L features a 256 × 192 thermal detector with an impressive sub-18mK NETD, delivering strong heat sensitivity and clear target separation in darkness, smoke, haze, and other low-visibility conditions. Paired with a 19mm F1.0 lens, 1.2× base magnification, a wide 9.2° × 6.9° field of view, and up to 900m detection range, it provides fast, practical thermal awareness in a compact platform designed for airsoft and close-to-medium-range observation.

The built-in 1000m laser rangefinder, ballistic calculation, Image Pro 3.0, Zoom Pro, HSIS shutterless imaging, and Sync Pro low-latency processing help maintain a smooth, detailed view while making distance measurement and target tracking easier. Its large 3.1-inch AMOLED display provides a comfortable, immersive viewing experience without a fixed eye-relief requirement, while the lightweight body, replaceable 18650 battery, integrated rail clamp, and included killflash lens protector make it well suited to extended field use. Compact, capable, and excellent value for its feature set, the TC19L is ideal for users wanting an accessible thermal sight with reliable imaging, integrated ranging, smart aiming tools, and straightforward app connectivity.

HIKMICRO HIKTac Series

TC19L Thermal Sight

Compact, direct-view thermal sight combining a 256 × 192 detector, <18mK thermal sensitivity, a large 3.1-inch AMOLED screen, integrated 1000m laser rangefinder, ballistic calculation and app connectivity.

<18mKThermal sensitivity
1000mLaser rangefinder
3.1-inchAMOLED display
50HzSmooth refresh rate
IP67Weather protection
Product Overview
Brand HIKMICRO
Series HIKTac
Model TC19L
Official Model Code HM-TR02-19S2G/WL-TC19L
Product Type Compact thermal sight with integrated laser rangefinder and ballistic calculation
Intended Positioning Designed and marketed for airsoft use, low-visibility target observation and fast situational awareness
LRF Version Yes. The “L” designation identifies the integrated laser-rangefinder model
Display Concept Large direct-view 3.1-inch AMOLED screen rather than a conventional small eyepiece display
Eye Relief No fixed eye-relief requirement / effectively unlimited viewing distance from the screen
Mobile App HIKMICRO Sight app
Thermal Detector
Detector Type VOx uncooled focal plane array
Thermal Resolution 256 × 192 pixels
Pixel Pitch 12µm
Thermal Sensitivity / NETD <18mK at 25°C, F# = 1.0
Frame Rate 50Hz
Spectral Response 8µm to 14µm
Detection Range Up to 900m
Image Character High thermal sensitivity is designed to reveal small temperature differences in darkness, haze, smoke and visually cluttered scenes

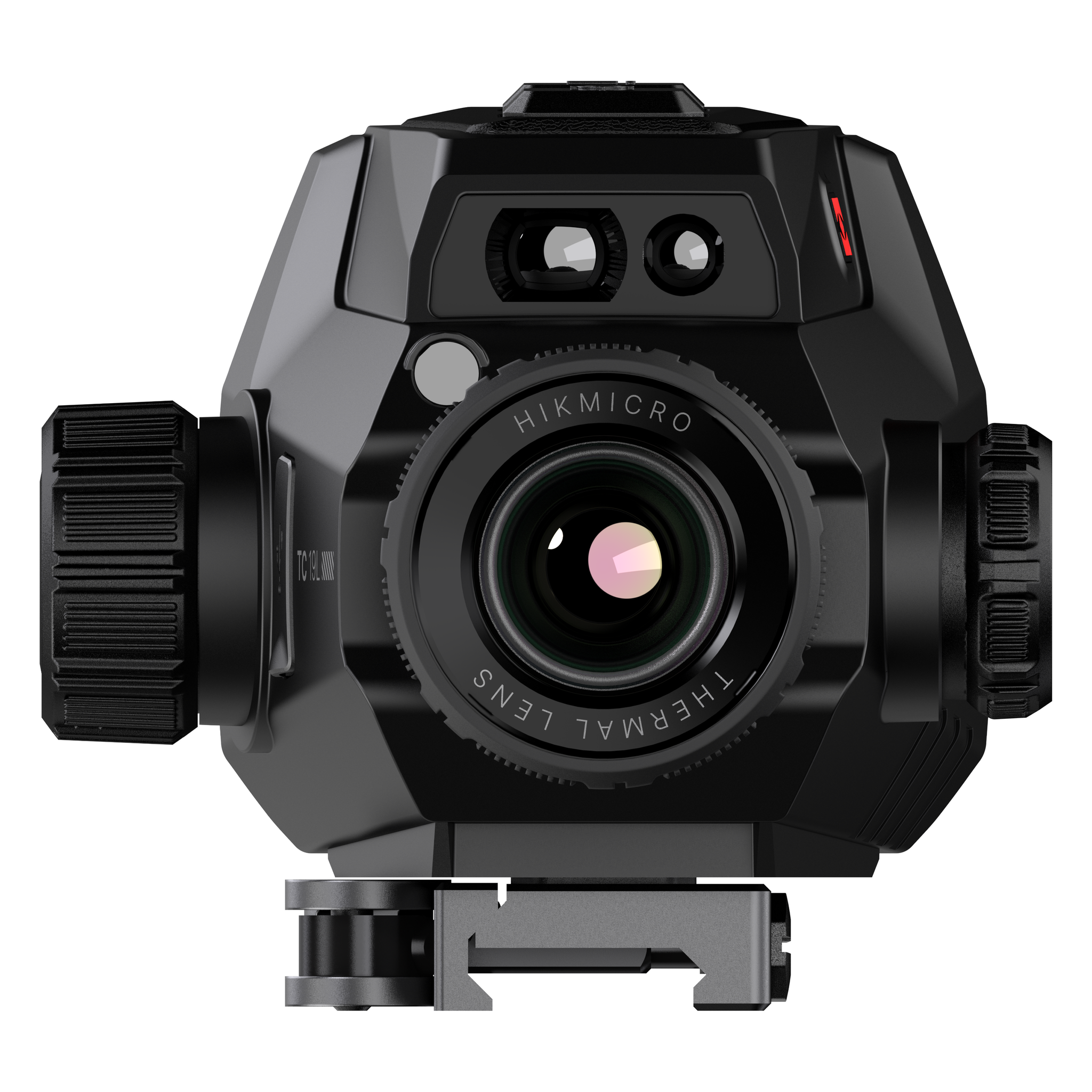

Optics, Focus & Magnification
Objective Lens 19mm
Aperture F1.0
Focus Method Manual focus ring
Minimum Focusing Distance 1m
Magnification Range 1.2× to 9.6×
Digital Zoom Control Rotate the control wheel in live view to change digital magnification
Field of View 9.2° × 6.9°
Field Coverage at 100m Approximately 16.1m × 12.1m, calculated from the published angular field of view
Close-Range Use The 1m minimum focus supports clear observation in confined and close-quarter environments

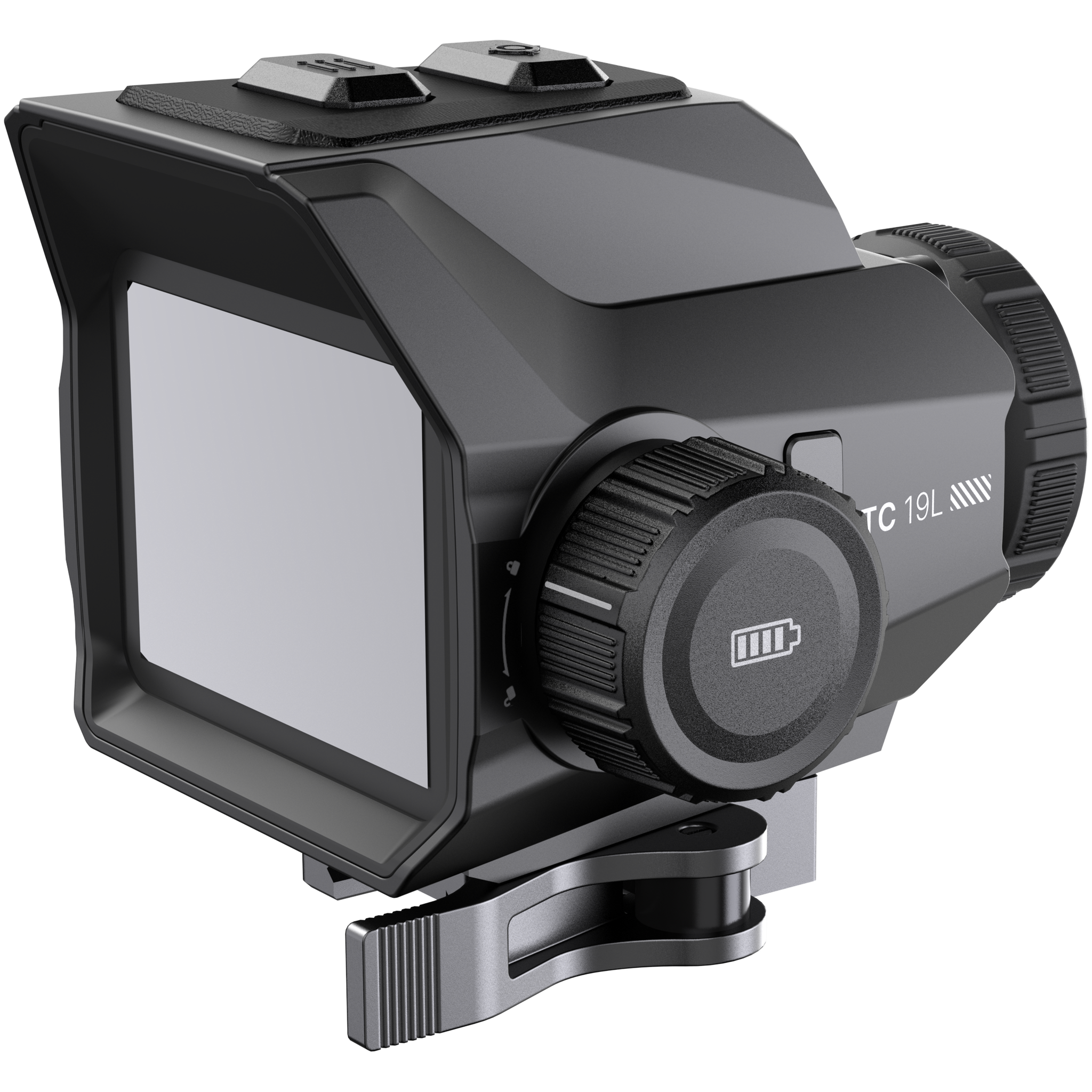

AMOLED Display & Viewing
Display Type 3.1-inch AMOLED
Display Resolution 600 × 450 pixels
Viewing Style Large rear-facing screen supports situational awareness without requiring the user to press an eye against an eyepiece
Brightness Adjustment Yes
Contrast Adjustment Yes
Tone Adjustment Cold or Warm
Instant Screen-Off / Standby Press the power key to enter standby and extinguish the screen; press again to wake the sight
Power-On Indicator Solid red while the sight is switched on
Thermal Image Processing Software
Image Pro 3.0 Enhances image detail and target definition while controlling background noise
Zoom Pro Processes digitally magnified images to preserve useful target detail as zoom increases
HSIS HIKMICRO Shutterless Image System provides continuous viewing without conventional shutter-calibration image freezes
Sync Pro Low-latency processing designed to reduce the delay between real movement and the displayed image
Scene Modes Selectable scene modes; hold the Mode key to switch between them
Image Palettes White Hot, Black Hot, Red Hot and IronBow
Palette Shortcut Press the Mode key in live view to cycle through palettes
Picture-in-Picture Supported. On the TC19L, the dedicated top key is assigned to laser ranging
Standby Mode Supported
Reticle, Zeroing & Aiming Software
Reticle Types 11 selectable reticle types
Zeroing Profiles 5 profiles for storing separate zero settings
Freeze Zeroing Yes. The image can be frozen while X/Y correction is applied
Zeroing Distance User-selectable target distance within the zeroing interface
Zeroing Magnification Digital zoom can be selected during zeroing for finer adjustment
X/Y Correction Horizontal and vertical coordinates are adjusted until the primary reticle aligns with the point of impact
Reticle Style Selectable through the device menu
Ballistic Calculation Built-in ballistic calculation uses configured zeroing and range information to support aiming correction
Distance Measurement Integration Measured range can be used alongside the aiming and ballistic functions
Laser Rangefinder
Integrated LRF Yes
Laser Safety Class Class 1
Wavelength 905nm
Minimum Measuring Distance 10m
Maximum Measuring Distance 1000m
Measurement Accuracy ±1m
Laser Control Press the Laser key to activate ranging; double-press to turn ranging off
Measurement Display Range information is shown in the on-screen interface
Safety Note Do not intentionally aim the laser at eyes, vehicles, aircraft or reflective hazards, even though the module is classified as Class 1
Recording, Snapshots & Storage
Snapshot Capture Supported
Video Recording Supported
Storage Type Built-in eMMC
Storage Capacity 4GB
Local Album Supported for reviewing media stored on the sight
Removable Memory Card No removable memory-card requirement is listed; recording is stored in the internal eMMC
Capture Resolution / File Format Not published in the current TC19L specification
USB File Transfer USB Type-C supports data transfer to a compatible computer
App Media Transfer Photos and videos can be browsed and saved to a connected phone through HIKMICRO Sight
Wi-Fi & HIKMICRO Sight App
Wireless Connection Local Wi-Fi hotspot
Wi-Fi Bands 2.4GHz and 5GHz
Hotspot Name HIKMICRO_ followed by the device serial number
Hotspot Password Displayed in the sight’s Hotspot menu
Live View View the sight interface on a connected phone
Remote Control Control supported sight functions from the app while connected
Media Browsing Browse and save captured photos and videos
Firmware Upgrade Firmware updates are supported through HIKMICRO Sight
How-To Content Access to operating videos and guidance
Service Information Repair records and warranty details can be viewed through the app
Internet Requirement A mobile-data or internet connection may be needed to download the app, firmware or support content, but normal sight-to-phone operation uses the local hotspot
Subscription Fees No subscription fee or cloud data plan is specified for normal TC19L operation
Physical Controls & Interface Behaviour
Mode Key — Press Cycle thermal colour palettes
Mode Key — Hold Switch scene mode
Laser Key — Press Activate laser ranging
Laser Key — Double-Press Turn laser ranging off
Control Wheel — Live View Hold to enter the menu; rotate to change digital zoom
Control Wheel — Menu Press to confirm or set a parameter; rotate to move up/down; hold to save and exit
Power Key — Press Enter standby or wake the device
Power Key — Hold Power the sight on or off
Focus Ring Manual optical focus adjustment
Rail Clamp Lever Locks or releases the integrated rail clamp
USB Type-C Port Charging, external power and data transfer
Battery, Charging & External Power
Battery Type One replaceable and rechargeable 18650 Li-ion battery
Included Battery Yes
Battery Size 19 × 70mm
Rated Voltage 3.635V
Battery Capacity 3300mAh
Published Operating Time Approximately 3.5 hours
USB-C Power Input 5V DC / 2A
Charging Interface USB Type-C
Recommended First Charge Approximately 4 hours before first use
Charging Temperature 0°C to 45°C / 32°F to 113°F
Charging Indicator — Red Charging
Charging Indicator — Green Fully charged
Charging Indicator — Flashing Red & Green Charging error
Long-Term Storage Remove the battery if the sight will not be used for an extended period
Construction, Protection & Mounting
Dimensions 106.9 × 94.8 × 86.7mm
Weight 290g without battery
Ingress Protection IP67
Operating Temperature -30°C to 45°C / -22°F to 113°F
Rail Mount Integrated lever-operated rail clamp
Host Rail A compatible host rail is required and is not included
Killflash Lens Protector Included mesh-style protector with O-ring
Killflash Function Helps disperse BB impact away from the objective lens and reduces visible lens reflections
Cleaning Use the supplied lint-free cloth on the sight and mounting surfaces
Package Contents
Thermal Sight HIKMICRO HIKTac TC19L
Battery 1 × rechargeable 18650 battery
Lens Protection 1 × killflash lens protector with O-ring
Cable 1 × USB Type-C cable
Cleaning Cloth 1 × lint-free cloth
Carry Bag 1 × bag
Documentation 1 × Quick Start Guide

Always follow local laws, field rules, laser-safety requirements and safe equipment-handling practices.
