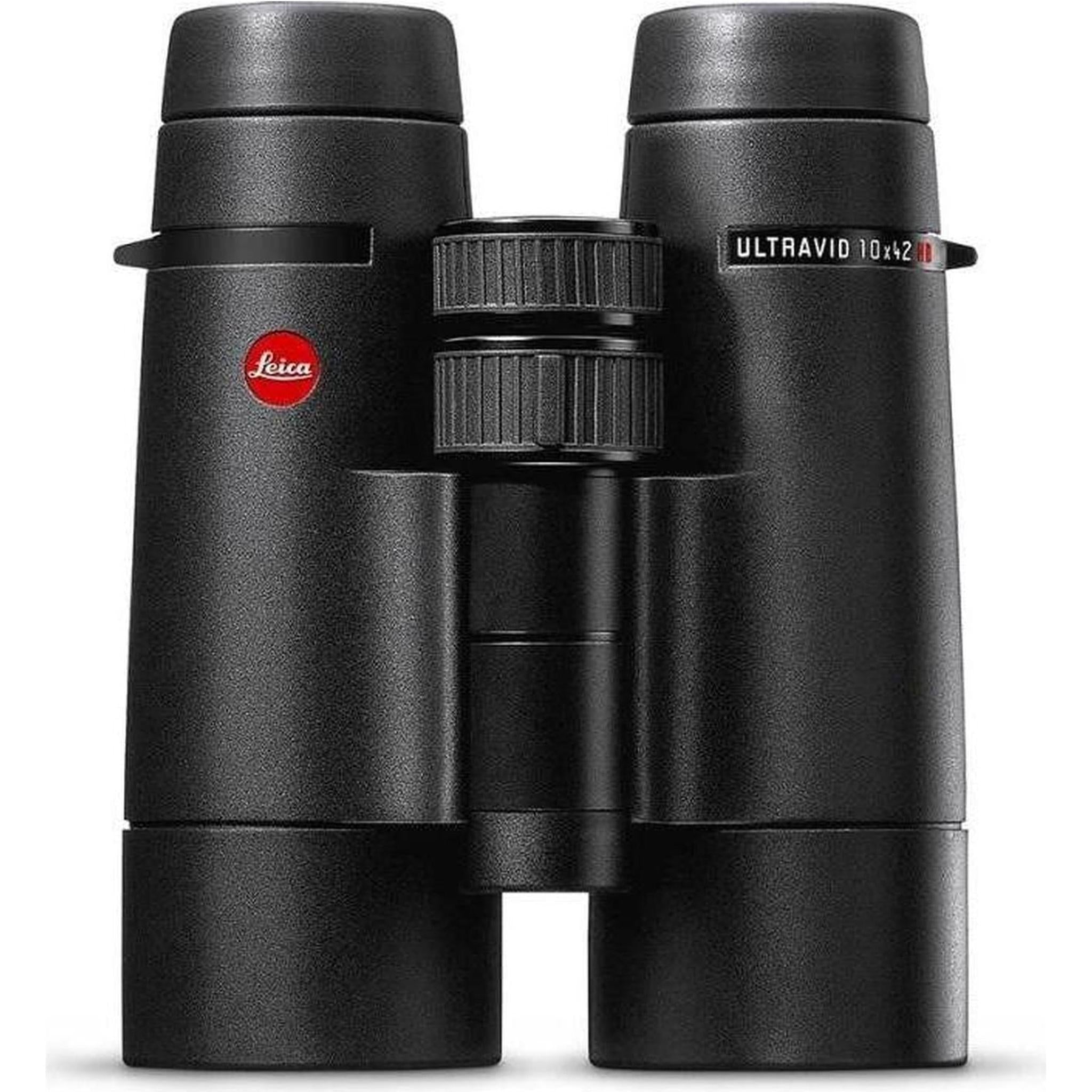

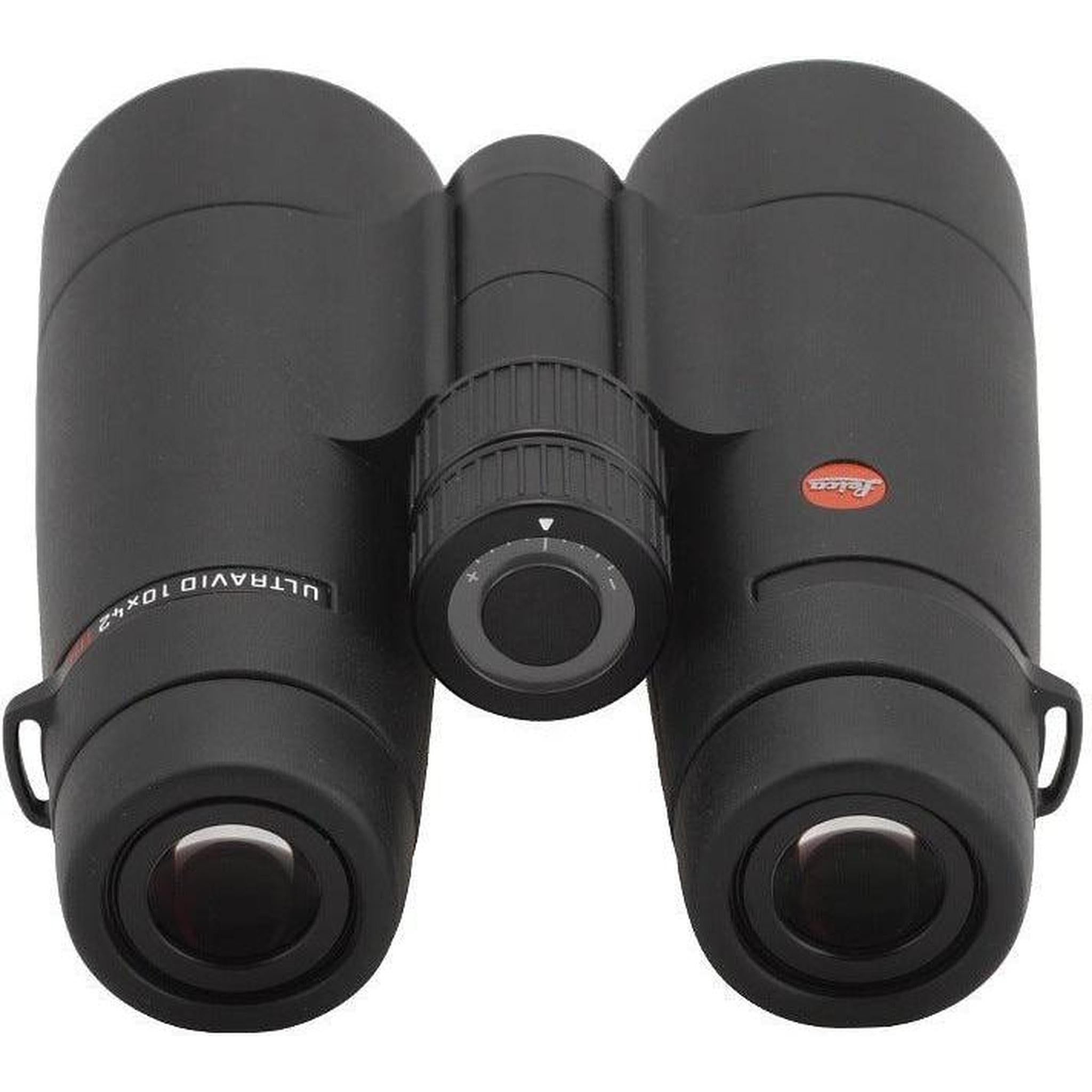

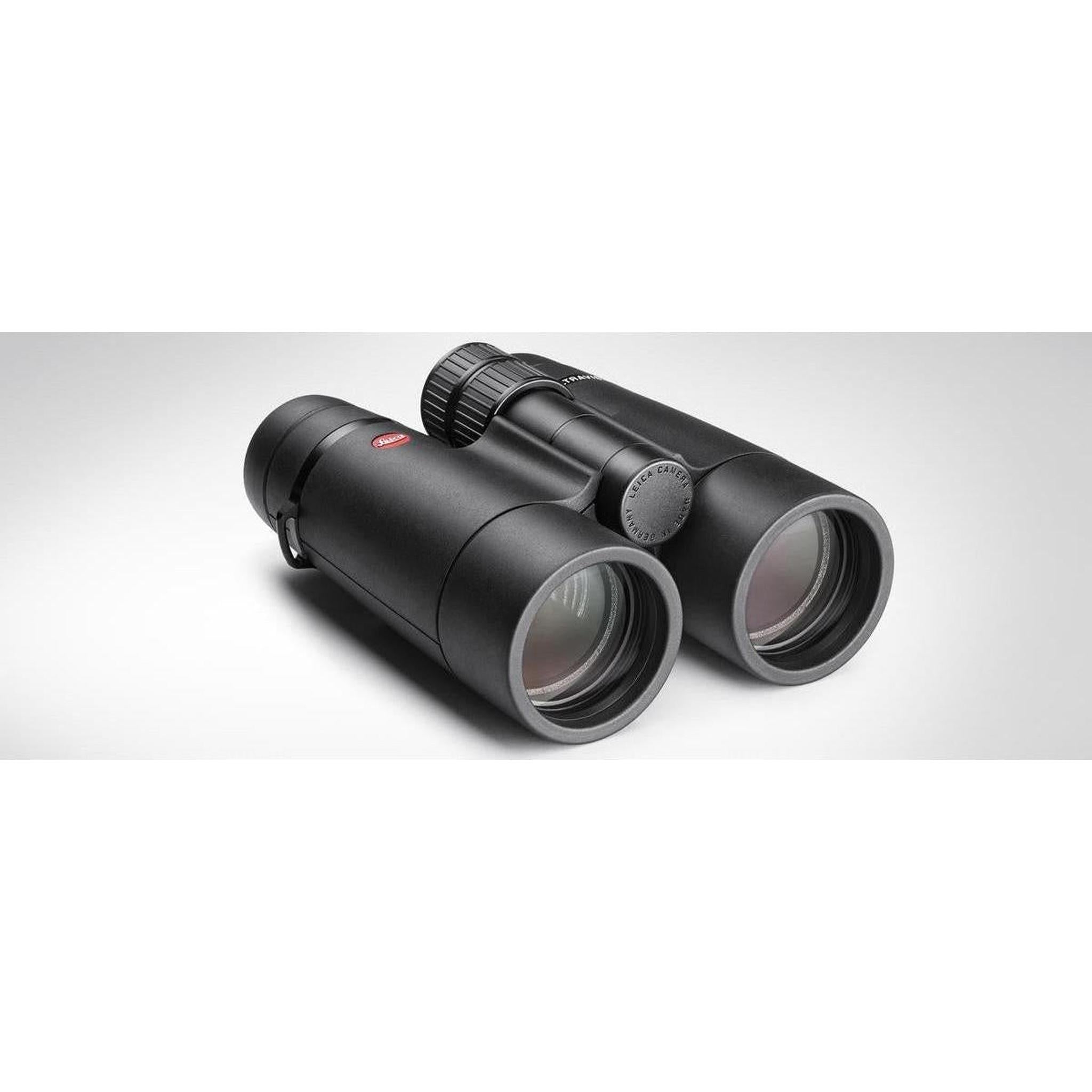

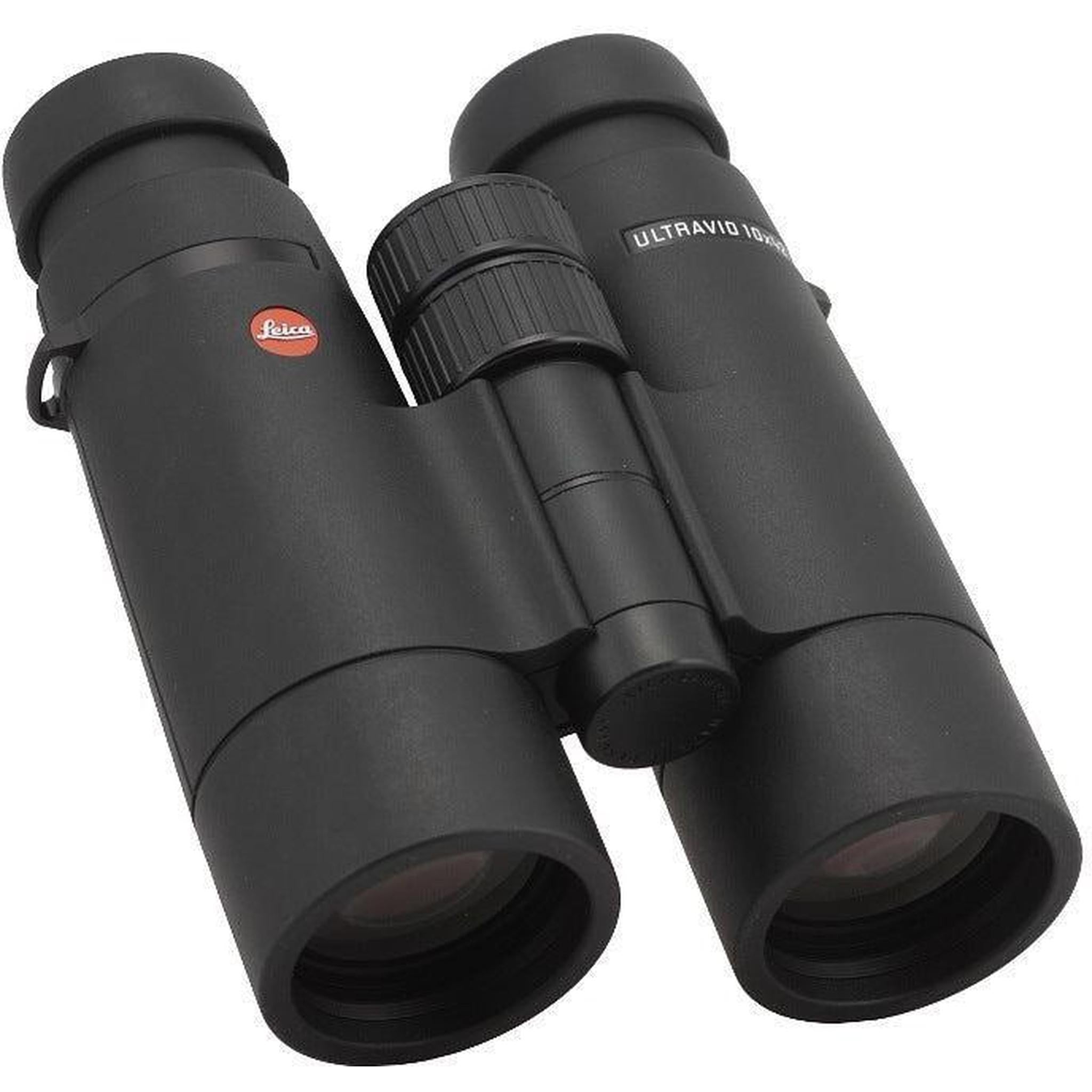

Leica Ultravid 10x42 HD-Plus Binocular

SKU:
Price: $3,565.00

The 42 HD-PLUS binoculars are almost as Compact, as the 32 mm models, allowing comfortable and ergonomic handling and a steady grip. Yet they provide light gathering capabilities close to the 50 mm model and thanks to new coating methods and special HT Glass from Schott they guarantee improved light transmission and therefore brighter images and an even wider spectrum of contrast. The Leica Ultravid 42 HD-Plus is available with a magnification factor of 7x, 8x or 10x.

Overview:

  • SCHOTT HT Glass
  • Phase-Corrected Roof Prisms
  • HDC and AquaDura Lens Coatings
  • 63° Wide Angle Viewing
  • Nitrogen-Filled, Water/Fogproof
  • Magnesium Alloy Chassis
  • Protective Rubber Armor
  • Center Focusing
  • Tripod Mountable
  • Twist-Up Click-Stop Eyecups

Optical Performance

  • 10x magnification
  • 42mm objective lens diameter
  • Compact, roof prism optical path
  • High-quality SCHOTT HT glass increases light transmission, especially in blue-violet band, improves color fidelity, and enhances low-light performance
  • P40 and the proprietary High Lux System (HLS) prism coatings
  • High temperature plasma lens coating depositing system for precise optical coating placement
  • Phase corrected prisms reduce chromatic aberration for enhanced color rendition
  • Scratch and abrasion-resistant High Durable Coating (HDC) and hydrophobic AquaDura coating on outer lens protects surfaces and causes water and oil to bead off lenses for easier cleaning and clearer vision in bad weather

Use and Handling

  • Lubricant free center focus system with PETP-Discs provides smooth movement throughout the operating temperature range
  • ±4 right-eye dioptric correction
  • Locking center diopter adjustment wheel
  • Twist-out 2-stage click-stop eyecups
  • Flip-down tethered objective lens caps
  • Tripod mountable with optional adapter

Construction Details

  • Light and durable magnesium chassis
  • Titanium center hinge axle
  • Slip-resistant protective rubber-armored body
  • Nitrogen-filled, fogproof and watertight to 16.5'/0.5 bar pressure
  • Broad -13 to 131°F operating temperature
  • Ergonomic thumb rests for added comfort and a better grip

Specifications:

Prism Type Roof
Magnification 10x
Objective Lens Diameter 42 mm
Angle of View 6.3° (actual)
Field-of-View 331.33' @ 1000 yd / 110 m @ 1000 m
Minimum Focus Distance 9.68' / 2.95 m
Exit Pupil Diameter 4.2  mm
Eye Relief 15.8  mm
Interpupillary Adjustment 56 - 74 mm / 2.20 - 2.91"
Dioptric Correction ±4
Focus Type Center
Tripod Mount Yes (Adapter Optional)
Dimensions 5.79 x 4.76 x 2.64" / 14.7 x 12.1 x 6.7  cm
Weight 26.98 oz / 765 g

Feel free to ask a question about Leica Ultravid 10x42 HD-Plus Binocular below or call us on +64 (9) 480-5903
