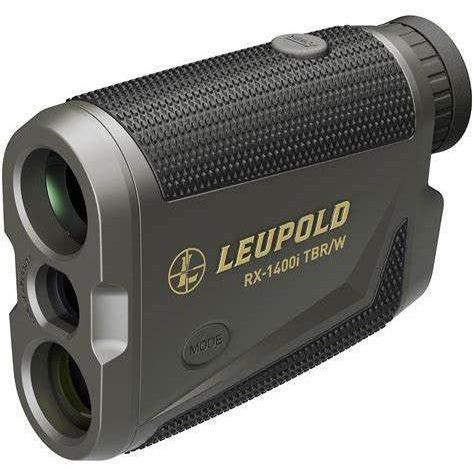

Leupold RX-1400i TBR/W w/Flightpath Gen 2 Monocular LRF

SKU: 183727

Leupold RX-1400i TBR/W w/Flightpath Gen 2 Monocular LRF - Jacobs Digital
Leupold RX-1400i TBR/W w/Flightpath Gen 2 Monocular LRF - Jacobs Digital
Leupold RX-1400i TBR/W w/Flightpath Gen 2 Monocular LRF - Jacobs Digital
Leupold RX-1400i TBR/W w/Flightpath Gen 2 Monocular LRF - Jacobs Digital

Our Price

$549.98

$549.98

Green truck Usually Ships in 1-3 Days An order for this can be placed with our supplier, and usually ships within the specified timeframe.



Loading

2000

54998

Shipping calculated at checkout

When will I receive it?

About this product

Leupold RX-1400i TBR/W Gen 2 rangefinder with Flightpath, part number 183727, UPC 030317036713. Compact 5x21mm digital laser rangefinder with DNA ranging engine, bright red TOLED display, True Ballistic Range Wind technology, Bow Mode, Flightpath, Last Target Mode, scan mode, selectable reticles, yards and meters, 25 rifle ballistics groups, 10 mph wind hold values, 1,400 yard reflective range, 1,200 yard tree range and 900 yard deer range. Includes RX-1400i TBR/W Gen 2 rangefinder, CR2 battery, soft case cover, lanyard, lens covers and lens cloth.
Leupold RX Series • Part #183727 • Gen 2 with Flightpath
RX-1400i TBR/W Gen 2 Rangefinder

A compact Leupold digital laser rangefinder for rifle and bow users, combining a 5x21mm monocular, bright red TOLED display, DNA ranging engine, TBR/W ballistics, Bow Mode, Flightpath, Last Target Mode and scan mode in a lightweight waterproof body.

1,400 yd Reflective Max Range
5x21 Monocular Format
25 Rifle Ballistics Groups
5.1 oz Approx. 145 g Weight
RX-1400i TBR/W Gen 2
Versatile, feature-rich ranging for rifle and bow

The RX-1400i TBR/W Gen 2 enters the market as one of the most versatile, feature-rich rangefinders in its class. Equipped with a bright red display and Leupold’s high-performance DNA® laser engine, this lightning-fast rangefinder is built to take hunting and shooting performance to the next level.

Its dead-on ranging engine delivers the speed and accuracy serious backcountry sportsmen demand, while ballistically calculated ranges for riflemen, plus Flightpath™ and trig solutions for archers, help simplify extreme uphill and downhill shots.

Adaptable and powerful, the RX-1400i TBR/W is a strong addition to any outdoorsman’s pack. It can calculate 10-MPH windage holds and display additional holdovers in MOA, MIL, inches and centimetres. Whether carrying a rifle or a bow this season, the RX-1400i TBR/W is designed to stay close at hand.

Easy to Use
Leupold RX-1400i TBR/W Gen 2 rangefinder in field use with specification graphic
Leupold RX-1400i TBR/W Gen 2 rangefinder with TBR/W and ranging distance graphic
Leupold True Ballistic Range Wind technology diagram for the RX-1400i TBR/W Gen 2
Leupold RX-1400i TBR/W Gen 2 rangefinder showing Last Target Mode and Flightpath technology graphic
Leupold RX-1400i TBR/W Gen 2 rangefinder red TOLED display, selectable reticles and DNA ranging engine graphic
Leupold RX-1400i TBR/W Gen 2 rangefinder with included battery, case and lanyard
Confirmed Field Features
01 DNA Ranging Engine Digitally eNhanced Accuracy processing is built in for fast, accurate rangefinding performance.
02 TBR/W Ballistics True Ballistic Range/Wind calculates ballistic ranges for steep-angle rifle shots and supports 10 mph full-value wind hold output.
03 Bow Mode + Flightpath Bow Mode provides angle-compensated archery ranging, while Flightpath shows arrow clearance after calibration.
04 Bright Red TOLED The red TOLED display uses bright red numbers and letters with selectable display intensity settings.
05 Last Target Mode Last Target Mode helps return the farthest target in the laser path when more than one object may be read.
06 Waterproof Field Body The RX-1400i TBR/W is listed as waterproof, with rugged lightweight housing and easy-grip rubber armour shown in supplied assets.
Software Features & Menu Options

The RX-1400i TBR/W Gen 2 uses a Quick Set Menu with confirmed digital modes, outputs and selectable options.

Software / Digital Feature Confirmed Specific Options / Output Available
Primary output modes Yes TBR, BOW, LOS
Rifle TBR/W settings Yes BAS, HOLD, MIL, MOA, TRIG
Rifle ballistics groups Yes 25 selectable rifle ballistics groups, numbered 1 to 25
Leupold Control App support Yes Used to quickly match ammo and rifle to the correct ballistics group
Wind hold output Yes Fixed 10 mph full-value wind; outputs in the same selected elevation format: MOA, MIL or inches/cm hold values
TBR/W maximum calculation distance Yes Up to 800 yards for TBR/W and wind output
Bow Mode Yes Equivalent horizontal range for arrows; BOW display applies to targets 175 yards / 160 metres or less
Flightpath Yes Flightpath On / Off, plus Flightpath Calibration when Flightpath is turned on
Flightpath calibration Yes FL-PATH CAL calibration using 20-yard and 60-yard sight references from the calibration sheet
Display intensity Yes Low, Medium, High
Unit output Yes Yards or Meters
Last Target Mode Yes On / Off
Selectable reticles Yes Plus Point, Horizon Reticle with Plus Point, Horizon Reticle without Plus Point
Scan Mode Yes Continuous ranging while holding the POWER button
Battery status indicator Yes Full, Half, Low, No Power
Factory reset Yes Button sequence with 10-second countdown timer
Technical Specifications
Specification Confirmed Detail
Brand Leupold
Product name RX-1400i TBR/W Gen 2 Rangefinder with Flightpath
Part / model number 183727
Item type Digital laser rangefinder
Optical format 5x21mm monocular
Magnification 5x
Objective diameter 21 mm
Display Bright red TOLED display
Inclinometer Yes
Rifle angle compensation TBR/W
Archery angle compensation Bow Mode
Line of Sight distance Yes
Typical maximum range: reflective target 1,400 yards / 1,280 metres
Typical maximum range: trees 1,200 yards / 1,097 metres
Typical maximum range: deer 900 yards / 823 metres
Minimum range 6 yards / approx. 5.5 metres
Ranging accuracy to 125 yards 0.5 yard
Ranging accuracy to 1,000 yards 2 yards
Ranging accuracy above 1,000 yards 0.5%
Measuring time Less than 1 second
Linear field of view 368 ft @ 1,000 yd
Angular field of view 7 degrees
Eye relief 18.3 mm
Diopter adjustment -3 dpt to +3 dpt
Battery type CR2
Battery life 3,000 actuations / at least 3,000 measurements
Laser classification IEC Class 3R
Tripod compatible No; official specification lists Tripod Compatible (1/4-20): No
Dimensions 4 in L x 1.4 in W x 3 in H / approx. 102 x 36 x 76 mm
Weight 5.1 oz / approx. 145 g
Waterproof Yes
Warranty 2 years for electronics
Note: metric dimensions and weight are approximate conversions where Leupold publishes the original value in imperial units.
Product Identifiers
Identifier Confirmed Detail
Brand name Leupold
Model number 183727
Manufacturer part number 183727
UPC 030317036713
GTIN 00030317036713
ASIN B0BTFMGY2L
Manufacturer Leupold
Sport type Hunting
Item type name Rangefinder
Unit count 1.0 count
Batteries included Yes
What's in the Box
  • Leupold RX-1400i TBR/W Gen 2 rangefinder
  • CR2 battery
  • Soft case cover
  • Lanyard and lanyard attachment
  • Lens covers
  • Lens cloth
Compact, fast and field-ready for rifle or bow.

The Leupold RX-1400i TBR/W Gen 2 brings together 1,400-yard reflective ranging, TBR/W ballistic outputs, Bow Mode, Flightpath, Last Target Mode, selectable reticles and a bright red TOLED display in a lightweight waterproof rangefinder.
