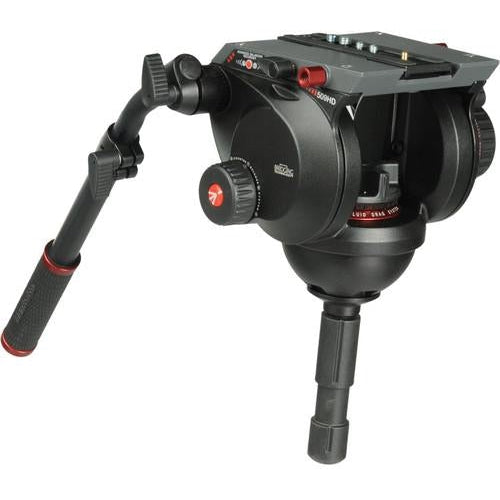

Manfrotto 509 Fluid Video Head With 100mvideo Heads


Manfrotto 509 Fluid Video Head With 100mvideo Heads

Our Price






Shipping Quote

When will I receive it?

About this product

A perfect balance of design and performance the Manfrotto 509 fluid video head with incorporated 100mm half ball puts you in control. Stability strength and speed to suit any condition. Variable Fluid Drag System on PAN and TILT for easy operation 4 step counterbalance system Sliding plate for fast camera connection and set up Inbuilt Ø100mm levelling half ball Illuminated levelling bubble for easy set up The head is made from durable aluminium. When you’re setting up a shot the Manfrotto head offers unrivalled stability thanks to variable fluid drag system in both pan and tilt movement which allows smooth shooting and a 4-step counterbalance system up to 12 8Kg at 55mm C.O.G or 8 5 kg at 125mm C.O.G. The head has a maximum payload of 13.5kg at 55mm C.O.G or 9Kg at 125mm C.O.G. Easy link 3/8 inch thread connections allow an external monitor or other accessory equipment to be fitted. The 509 features the ABR (Advanced Balancing Recorder) for precision when fixing equipment ensuring a perfect balancing position saving time and making this operation much more efficient accurate and fast. Levelling is simple thanks to the 100mm diameter half ball and backlit levelling bubble. Specifications Weight: 3.9 kg Safety Payload Uni/Pdr 105:2021: 13.5 kg Counterbalance Weight: 8.5 kg Material: Aluminium Bubble Spirit Level (No.): 1 Center Of Gravity: 125 mm Safety Payload Weight: 13.5 kg Powered By (Batteries): Lithium Certifications: WEEE; RoHS Top Attachment: 1/4? screw 3/8? screw Colour: Black Easy Link: Yes Front Tilt: -60° / +90° Ball Flat: 100 Ball Head Type: Video/Fluid Head Maximum Working Temperature: 60 °C Minimum Working Temperature: -20 °C Pan Bar Included: Yes Pan Drag: continuously adjustable from 0 to max level Panoramic Rotation: 360 ° Plate Type: 509PLONG Quick Release: Yes Tilt Drag: continuously adjustable from 0 to max level Working Height: 18 cm Accessory Compatibility: 502HLV; 509HLV
