Minelab EQUINOX 800 Metal Detector

SKU: 3720-0002

Minelab EQUINOX 800 Metal Detector-Metal Detector-Jacobs Photo and Digital

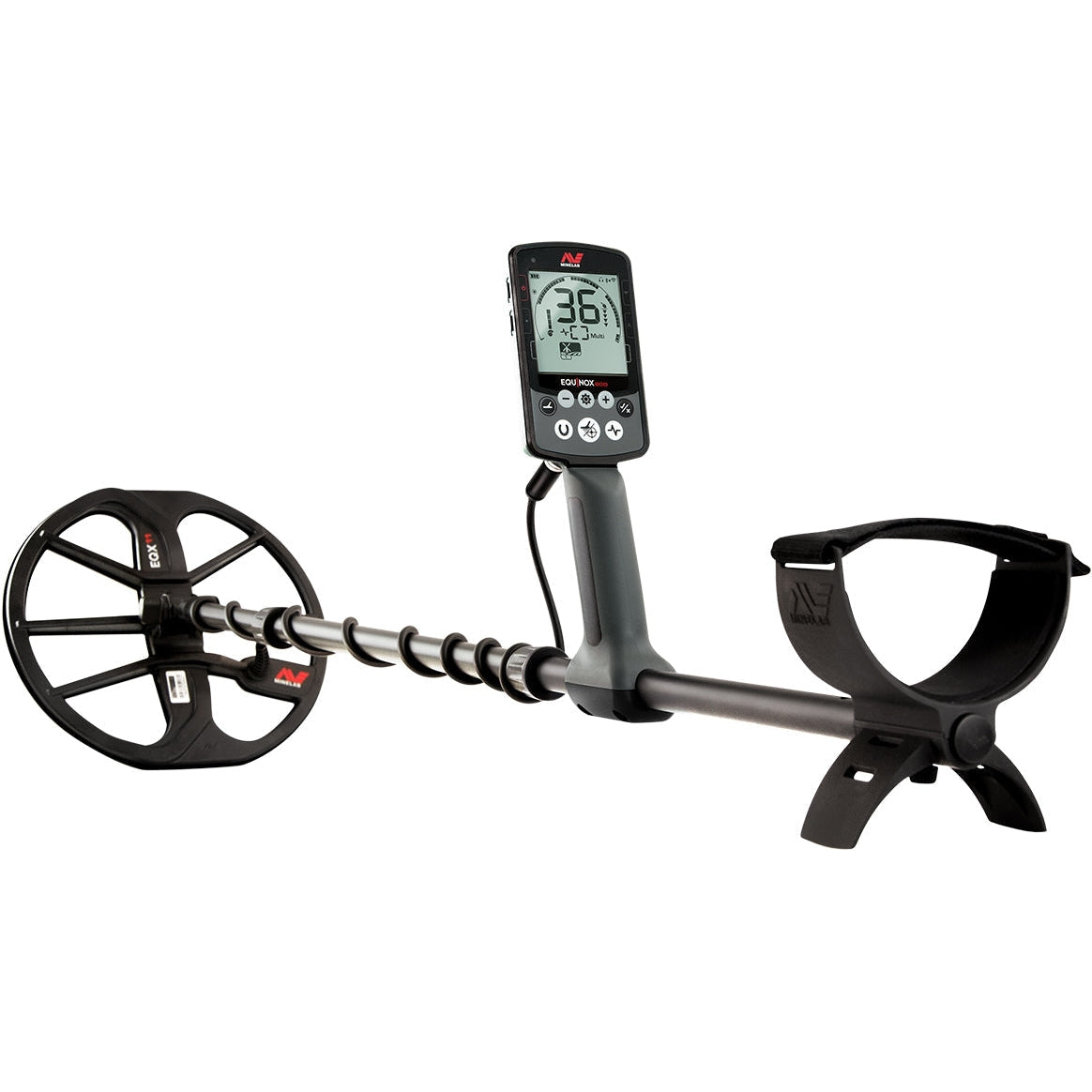

Minelab EQUINOX 800 Metal Detector

SKU: 3720-0002

Our Price

or 6 easy payments of $248.99


or 4 easy payments of $373.49



Pickups and Delivery

In-store pickup

We don't have this item in our store right now, please allow 2-10 days for it to be transferred to our retail store.

If you come to pick up your order please bring photo ID, if someone else is picking it up on your behalf please contact us prior to pickup.

Delivery estimates

Once your order has been picked up by the courier please allow 2 working days for North Island addresses, for the South Island allow 3 working days. Rural deliveries and extra-large items may take several additional days.

Shipping costs

Shipping costs are automatically calculated during checkout. The price of shipping varies based on the delivery location. Select items may be be eligible for free shipping.

Delivery of oversize items

Oversize items such as very large telescopes may only be available via pickup from a depot or a business address. For a list of available depots, click here


To ensure the safe delivery of your order we require a signature with all parcels. Some exceptions may be made if you give the courier company authority to leave parcels at your preferred address.

About this product

With innovative NEW multi-frequency technology, the EQUINOX Series redefines all-purpose detecting for the serious enthusiast. Equally adaptable for all target types and ground conditions, just set your detecting location and go!

With the added functionality of Gold Mode, High Frequency 20/40 Hz, Included Wireless audio headphones and Advanced settings, the EQUINOX 800 offers extra versatility.


  • Simultaneous Multi-Frequency
    True intelligent Simultaneous Multi-Frequency for maximum performance, plus a wide range of single frequencies.
  • 8 Custom Search Profiles
    Each Detect Mode features 2 custom Search Profiles so you can save your favourite settings in each mode.
  • Waterproof Design
    EQUINOX is fully submersible, ideal for detecting at the beach and in rivers, streams and lakes. (3m / 10-feet)
  • Fast & Accurate Target ID
    Fast recovery speed with accurate Target ID ensures you wont miss any valuable targets amongst the trash.
  • Sleek & Lightweight
    Rugged and lightweight construction allows you to enjoy long detecting sessions in any environment.
  • Advanced Settings
    Gain even more control of your detector audio with Advanced Settings; you decide how much target information you hear.
  • High-Speed Wireless Audio

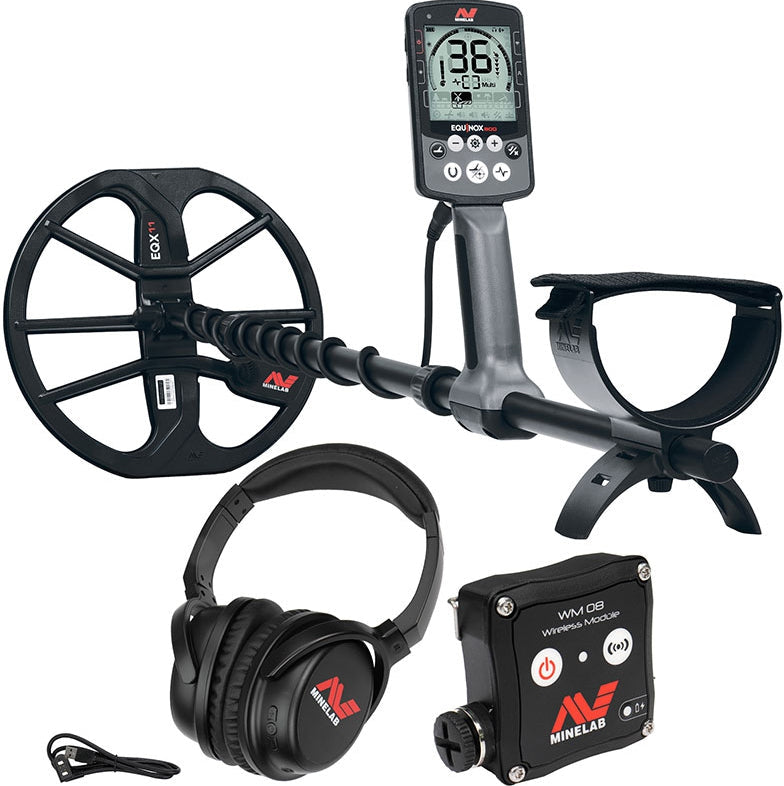

    Experience ultra-fast wireless audio with the WM 08, or use fast aptX Low Latency / Bluetooth headphones. Wireless headphones are included
  • Gold Detecting Mode
    Gold Mode operates the high single frequencies of either 20 kHz or 40 kHz to detect gold nuggets in mineralised soils.

Detect Modes:

  • Equally adaptable for all target types and ground conditions just select your detecting location and go! Great performance in high-trash recreational environments.
  • Using Multi in this mode is the most versatile for general coin and treasure detecting. Ideal for detecting fine jewellery and artefacts.
  • Using Multi in this mode helps the specialist find the widest range of target sizes. Excels in dry sand, wet sand, and underwater.
  • Beach mode operates in Multi only, and is designed for typical use in beach conditions.
  • Good for gold nugget prospecting. This mode operates high single frequencies of 20 or 40 kHz, optimum for gold nuggets.

The clear LCD features large Target ID numbers so you can see your target ID at a glance. All of the information you need when detecting is right there in front of you.

Detect Modes and operating frequency can be instantly changed at the push of a button for a dynamic and uninterrupted detecting experience.

Using the EQUINOX 800 user interface, you can:

  • Change the Detect Mode, Frequency and Sensitivity on the go.
  • Create your own notch discrimination patterns to ignore unwanted targets.
  • Activate All-Metal mode to temporarily disable the current discrimination pattern.
  • Activate Pinpoint mode to zero-in on a promising target so that you know exactly where to dig.
  • Adjust an array of essential and advanced detecting functions including Noise Cancel,Ground Balance, Volume Adjust,Threshold Level, Target Tone,Accept / Reject andRecovery Speed.
  • Customize Advanced Settings to change the way detection are heard, by selecting the number, pitch, and volume of your detection signals.
  • View the status of your battery and wireless audio device connections.

Plus more!

Built In Technology:

EQUINOX 800 offers 5 single frequencies of 5, 10, 15, 20and 40kHz, giving an expanded 8-times range of 5 to 40 kHz.

Maximum wireless audio compatibility - Connect conventional Bluetooth headphones, high-speed aptX Low Latency devices, or the ultra-fastWi-Stream enabled WM 08 audio module.
