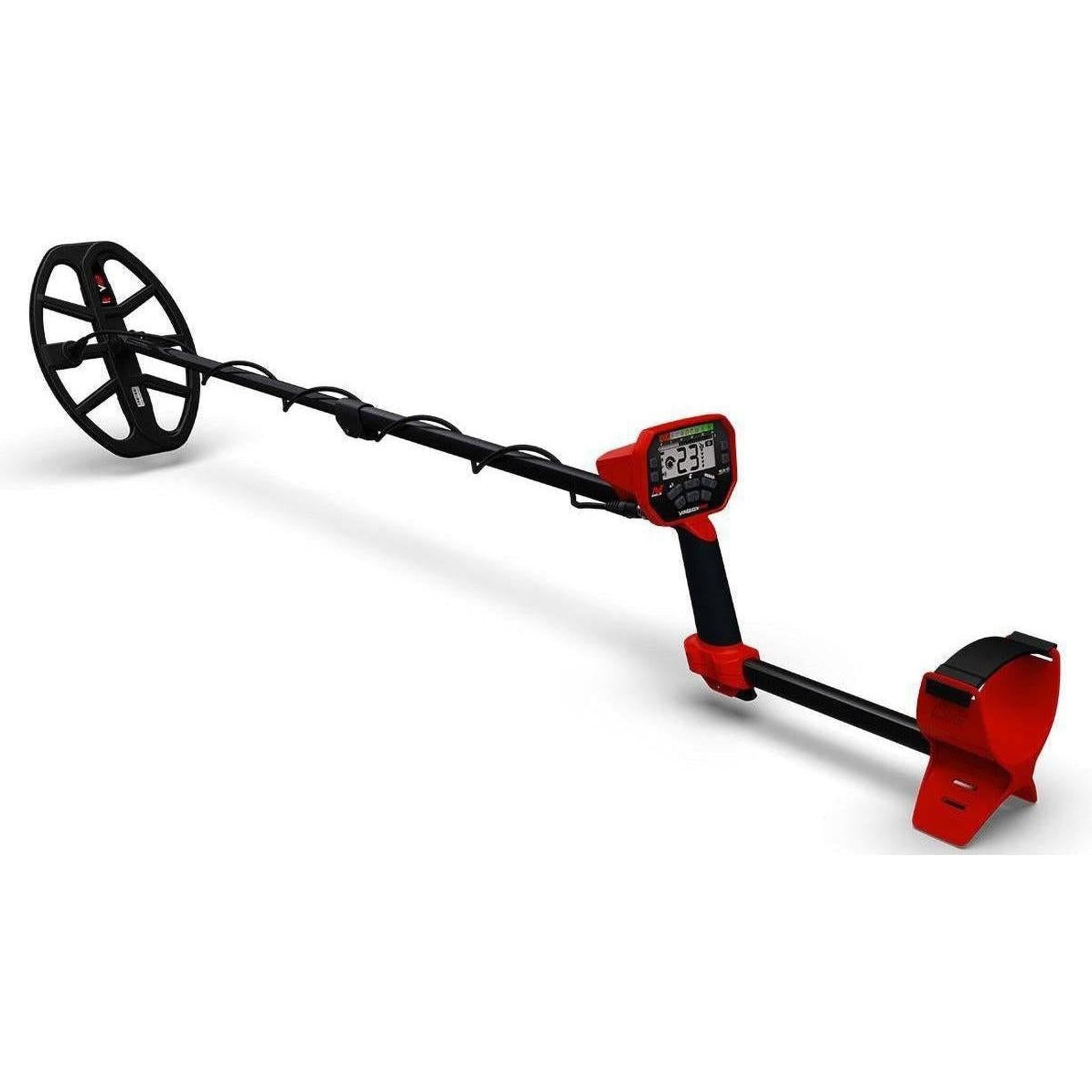

Minelab Vanquish 540 Pro Pack Metal Detector

SKU: 3820-0004

Minelab Vanquish 540 Pro Pack Metal Detector
Minelab Vanquish 540 Pro Pack Metal Detector

Click the image to enlarge

Minelab Vanquish 540 Pro Pack Metal Detector

SKU: 3820-0004

Our Price


Pickups and Delivery

In-store pickup

We don't have this item in our store right now, please allow 2-10 days for it to be transferred to our retail store.

If you come to pick up your order please bring photo ID, if someone else is picking it up on your behalf please contact us prior to pickup.

Delivery estimates

Once your order has been picked up by the courier please allow 2 working days for North Island addresses, for the South Island allow 3 working days. Rural deliveries and extra-large items may take several additional days.

Shipping costs

Shipping costs are automatically calculated during checkout. The price of shipping varies based on the delivery location. Select items may be be eligible for free shipping.

Delivery of oversize items

Oversize items such as very large telescopes may only be available via pickup from a depot or a business address. For a list of available depots, click here


To ensure the safe delivery of your order we require a signature with all parcels. Some exceptions may be made if you give the courier company authority to leave parcels at your preferred address.

About this product


VANQUISH 540 Pro-Pack: for the serious detectorist who’s always in control. As if Multi-IQ technology, audio control, and pinpoint weren’t enough the 540 also boasts iron-bias control, Bluetooth headphones, red LED backlight and rechargeable batteries. What’s more, it comes with waterproof 8” and 12” coils as standard for greater depth and precision. No matter where the hunt takes you, the 540 is the ultimate pack out for those who want it all.


Why Multi-IQ? Because with Minelab’s revolutionary Multi-IQ technology,
you’ve got the combined power of multiple detectors in one — all working for you at the same time. Simply turn on and go. Nothing goes undetected and no terrain is off-limits. Silver gold or jewellery. Park, field or beach. Unearth the power of VANQUISH with Multi-IQ.



No matter what you seek, VANQUISH has you covered. Simply select one of the three Find Modes — Coin, Relic or All Metal — then start swinging. Each mode is pre-programmed and optimised to give you the best performance, anytime and anywhere: park, field or beach.

VANQUISH welcomes tough terrain. It dominates at the beach in wet sand and salt water, outperforming other detectors that can’t compete. 4 discrimination segments deliver control over what metals you want to accept or reject.


1.2kg (2.6 lbs) light with a unique collapsible snap-lock system makes it easy to pack and go.


More treasure, less trash. Adjustable Iron Bias control lets you switch between High (default) and Low.


Cover more ground and search deeper or detect more accurately and in tight spaces with both a 12” and 8” coil included as standard.


Automatic noise cancelling, lag-free audio response and 10-volume settings put you in control, with included Bluetooth wireless headphones.


Waterproof coils up to 1 m (3.3 ft) and Water Resistant control pod (with included Rain Cover)


Included pinpoint mode to help you locate targets with extreme precision.


Red LED Backlight to help low-light vision.

Search Modes
Coin, Relic, Jewellery, Custom, All Metal
Custom User Search Profile
Operating Frequencies (kHz)
Noise Cancel
Auto (19 Channels)
Bluetooth Audio
Iron Bias
High (default), Low
10 levels
10 levels
Target Tones
5 tones
Discrimination Segments
25 segments
Target ID's
-9 to 40
Depth Indicator
5 levels
Extended: 1450mm (57")
Collapsed: 760mm (30")
Weight (incl. batteries)
2.9lbs (1.3kg)
Standard Coil
V12 12"x9" Double-D
V8 8"x5" Double-D
Audio Output
In-built loudspeaker
3.5mm (1/8") headphones
Bluetooth wireless headphones
Supplied Headphones
Bluetooth wireless headphones
Monochrome LCD with red backlight
Supplied Batteries
4 x AA NiMH rechargeable
Coil to 1m/3-feet
Operating Temperature Range
-10°C to +40°C (+14°F to +104°F)
Storage Temperature Range
-20°C to +70°C (-4°F to +158°F)
Key Technologies
Multi-IQ, Bluetooth, aptx™ Low Latency

Contact us

Customer Reviews

Customer Reviews
5 Based on 2 Reviews
Write a Review

Thank you for submitting a review!

Your input is very much appreciated. Share it with your friends so they can enjoy it too!

Filter Reviews:
Morne d.
New Zealand New Zealand

Minelab Vanquish 540 Pro Pack Metal Detector

I am completely new to the metal detecting hobby. After doing some online research I decided to buy the Vanquish 540 Pro Pack as reviews indicated that it performs well on the beach and comes with two coils. I was pleased with the response and information provided by Jacobs Digital, Delivery was within 3 working days. I found the setup and use of the Vanquish extremely easy, although it does not come standard with a detailed user guide, This however was available to download from Minelab's website. I have gone detecting only three times to my local beach and have found a few coins, a couple tent pens, kiddies toys and plenty of beer bottle caps. The only negative I have is that the control box is not waterproof, maybe something Minelab can consider for the future.

Paul F.
New Zealand New Zealand

Minelab 540 pro pack

Brilliant metal detector. A big step up from my other detectors I use.
