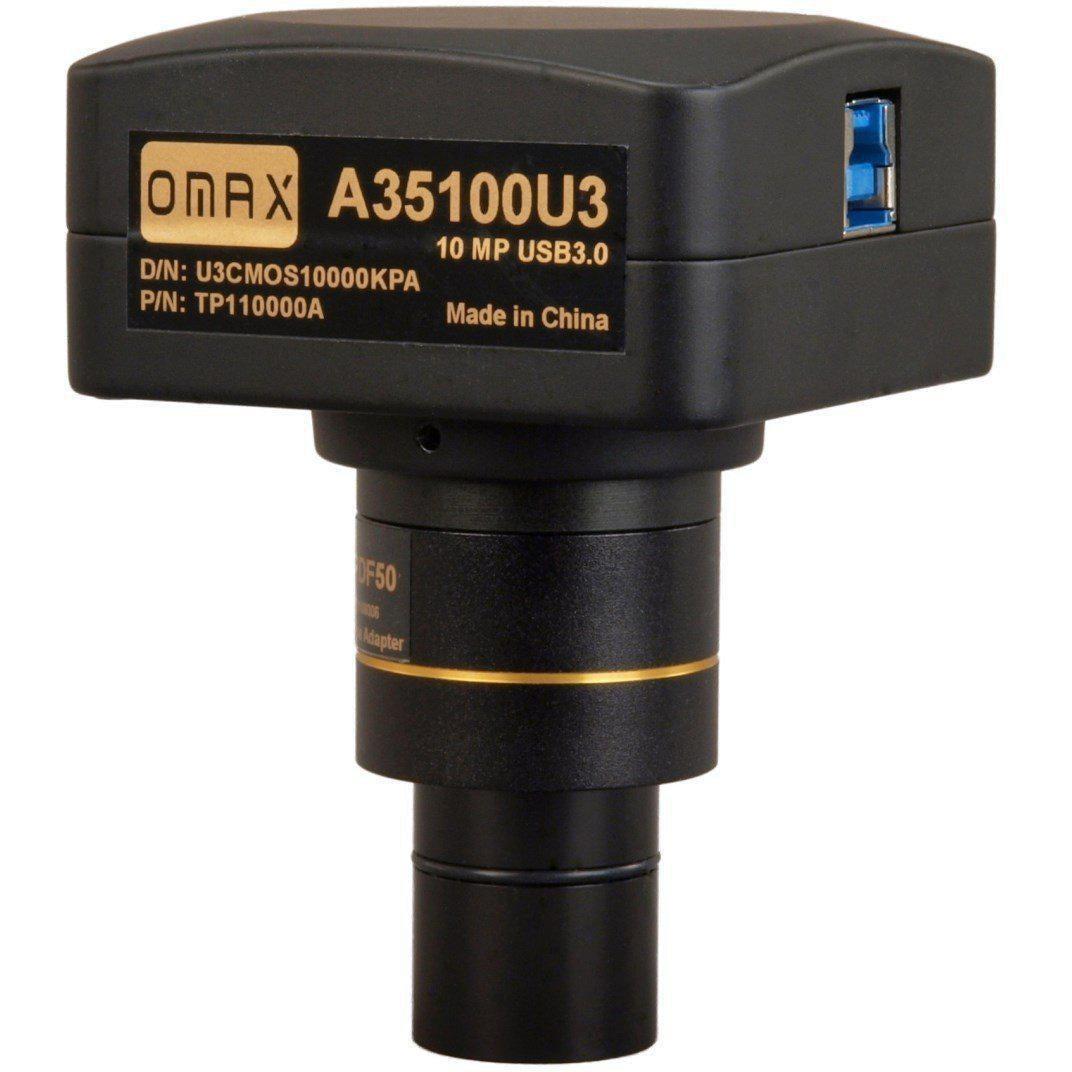

OMAX 10.0mp Camera For Microscopes (Windows/Mac/Linux)

SKU: A35100U3

OMAX 10.0MP USB3.0 Digital Camera For Microscope With 0.01mm Calibration Slide (Windows/Mac/Linux)-Microscope Camera-Jacobs Photo and Digital

OMAX 10.0mp Camera For Microscopes (Windows/Mac/Linux)

SKU: A35100U3

Our Price

or 6 easy payments of $124.83


or 4 easy payments of $187.25



Pickups and Delivery

In-store pickup

We don't have this item in our store right now. Please enquire for availability.

If you come to pick up your order please bring photo ID, if someone else is picking it up on your behalf please contact us prior to pickup.

Delivery estimates

Once your order has been picked up by the courier please allow 2 working days for North Island addresses, for the South Island allow 3 working days. Rural deliveries and extra-large items may take several additional days.

Shipping costs

Shipping costs are automatically calculated during checkout. The price of shipping varies based on the delivery location. Select items may be be eligible for free shipping.

Delivery of oversize items

Oversize items such as very large telescopes may only be available via pickup from a depot or a business address. For a list of available depots, click here


To ensure the safe delivery of your order we require a signature with all parcels. Some exceptions may be made if you give the courier company authority to leave parcels at your preferred address.

About this product

This super speed 10MP USB 3.0 microscope digital camera comes packed with a reduction lens, a USB cable, two adapters, and a 0.01mm calibration slide. The digital camera captures still microscopy images, streams live videos on your computers, and is compatible with Windows, Mac OS X, and Linux (see version information below).

The user-friendly software for Windows offers advanced features including Stitching, EDF (Extended Depth of Focus), video recording, and measurement functions. Live video and still image capture can be set in different resolutions simultaneously. The 0.5X reduction lens allows for a larger field of view. You can edit and process images in a manner similar to PhotoShop.

The Windows software included allows you to make notes, shapes, watermarks, and precise measurements with ease. You can analyze, present, and share images of samples and specimen by simply connecting the camera to your computer's USB port, and inserting the lense into your microscope's eye-tube or trinocular port.

Featuring built-in C-mount compatibility and 23.2mm reduction lens adapter, our camera can be attached to any instrument with a C-mount or a 23mm, a 30mm and a 30.5mm photo port. The camera is equipped with CMOS color sensor, and comes with a super speed USB 3.0 cable, four mounting sizes (23.2mm, 30mm, 30.5mm, and 25.4mm C-mount), and instructions.


  • High speed USB 3.0 port (compatible with USB 2.0)
  • 10MP (3584x2746 pixels) high resolution color digital camera
  • Advanced editing, processing and measuring software included
  • Compatible with Windows, Mac OS and Linux operating system
  • 0.5X reduction lens and 0.01mm calibration slide included



  • Model:A35100U3
  • Image sensor: Aptina 1/2.3" color CMOS
  • Resolution: 3584x2746 pixels (10M pixels)
  • Pixel size: 1.47um x 1.47 um
  • SNR: 35.5 dB
  • Dynamic Range: 65.2 dB
  • Frame speed: 7.2fps at 3584x2746, 25fps at 1792x1372
  • Interface: USB 3.0 (compatible with USB 2.0)
  • Reduction lens: 0.5X, fit to 23.2mm eyepiece tube
  • 0.01 mm calibration slide: 1mm/100 division
  • Adapters fit 30mm and 30.5mm eyepiece tubes
  • Dimensions: 68mm x 68mm x 45mm (no reduction lens on)
  • Operating Temperature: -10øC to 50øC
  • Power: Direct via USB port
  • Mounting: C-mount or eyepiece tube (23.2mm/30mm/30.5mm)
  • Gross weight: 0.68 kg

Packing List:

  • 10MP digital camera (USB3.0)
  • 0.5X reduction lens
  • 1 CD including Driver, software and user's instruction
  • 23.2mm to 30mm adapter
  • 23.2mm to 30.5mm adapter
  • 0.01mm calibration slide (stage micrometer)
  • USB 3.0 cable


Specification (software)
