SkyWatcher 14" Collapsible GoTo Dobsonian Telescope

SKU: SWDOB350CGT

SkyWatcher 14" Collapsible GoTo Dobsonian Telescope-Telescope-Jacobs Photo and Digital

Our Price

$5,999.99

$5,999.99

Green truck Special order. Usually ships in 6 Months An order for this can be placed with our supplier, and usually ships within the specified timeframe.



Loading

94000

599999

Shipping Quote

About this product

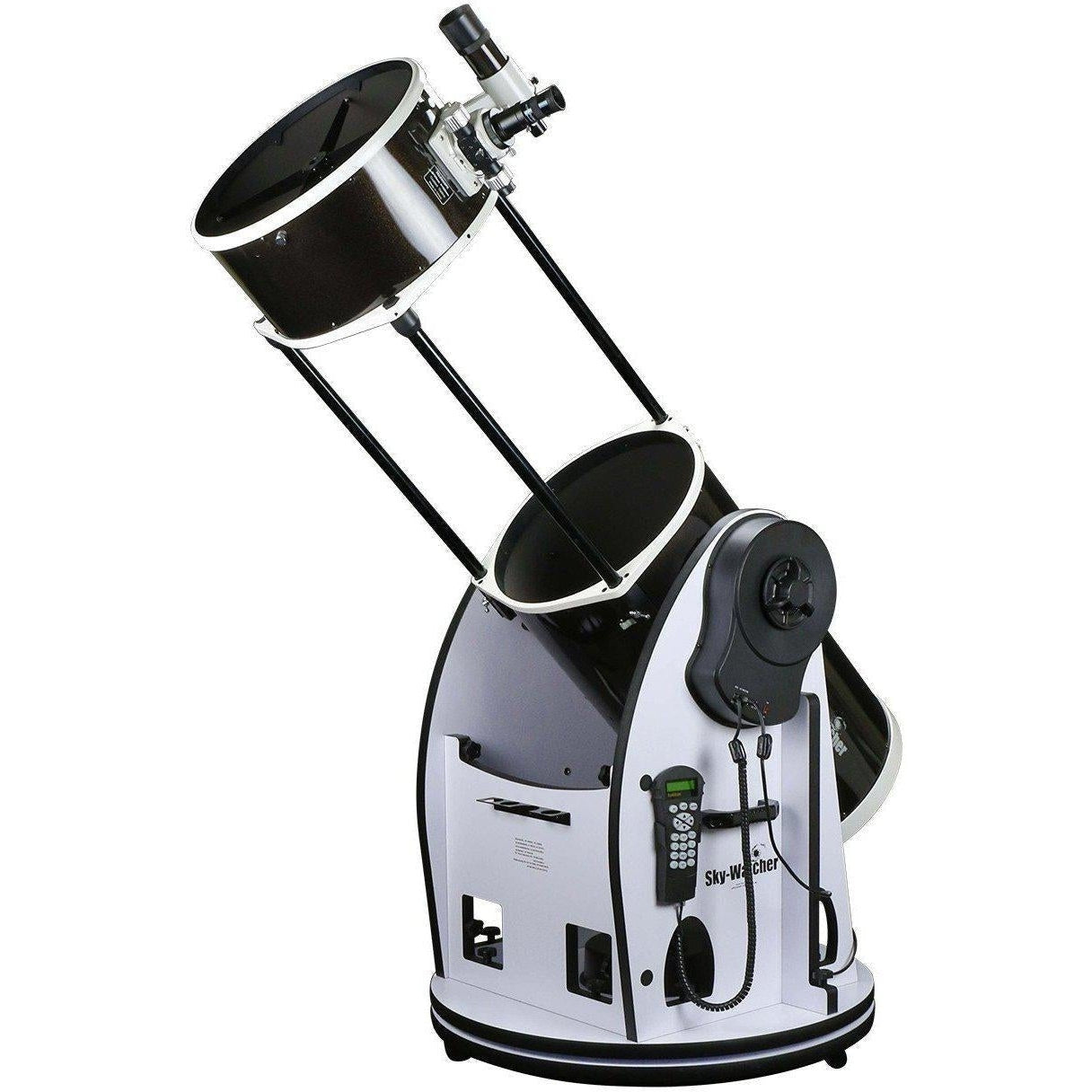

Sky-Watcher improves on the often unwieldy standard design of Dobsonians with their 14" f/4.9 Collapsible GoTo Dobsonian Telescope. It features a patented truss tube system that enables the front corrector plate/eyepiece assembly to be moved back and locked against the main rear tube to greatly reduce the size of the OTA for storage and transportation. This open OTA also has the benefit of reducing overall weight versus standard Dobs. To add another level of usability to the scope is a motorized ground-based rocker alt-az mount. Equipped with dual servo motors, they are controlled using the SynScan computer hand controller. This self-contained system features over 42,000 celestial objects with alignment assistance, guided tours and full go-to capabilities. Its dual encoders, coupled with the patented Tension Control Handle, enable users to manually move the scope without having to realign it.

It features an exceptionally large 14" aperture conical parabolic mirror to draw in copious amounts of light to make detailed observations of the Moon and planets, and still reach out past our solar system to discover dim deep-sky subjects that smaller scopes are unable to resolve. A conical mirror, as opposed to a standard parabolic, helps to reduce the mirror's weight while allowing it the ability to more evenly acclimate to the ambient temperature. Its f/4.6 focal ratio and two-speed Crayford focuser makes this an ideal choice for imaging. Its fast focal ratio enables devices to capture images in less time than slower scopes, while the unique focusing mechanism employed in the Crayford-style gives it the ability to achieve tack-sharp focusing with zero back-lash that rack-and-pinion focusers generally are unable to.

Optical Performance
  • 14" aperture
  • f/4.9 focal ratio
  • 1650mm focal length
  • Efficient, highly reflective mirrors increase image brightness
SynScan System
  • Motor type: DC Servo Motors
  • Resolution:
    • Motor encoder: 1,620,000 counts per revolution
    • Main axis encoder: 11,748 counts per revolution
  • Slew speeds: 1.0X, 2.0X, 8X, 16X, 32X, 200X, 400X, 600X, 800X, 1000X
  • Tracking Rates: Sidereal, Lunar, Solar
  • Tracking Mode: Dual Axes Tracking
  • Alignment Method: Brightest-Star Alignment, Two-Star Alignment
  • Database: 25 user defined objects. Complete M, NGC and IC catalog, partial SAO catalogues, total 42,900 objects
  • Go-To Pointing Accuracy: Up to 5 arc min
Focuser
  • Crayford-style, two-speed
  • Accepts 2" eyepieces and accessories
  • Coarse focus wheel for fast focusing
  • Fine smaller focus dial for precision focusing
  • Crayford focusers use a toothless friction system that allows for super-fine precision focusing without backlash
  • Includes 2-to-1.25" adapter
Mount
  • Alt-az rocker design
  • Teflon azimuth bearings
  • Teflon bearings and tension clutch on altitude axis
  • Tension control handle allows for smoother rotation to reduce vibrations and limit over-compensation

Accessories in the Box:

  • SynScan hand controller with cables
  • 12V power cable with lighter socket plug
  • Finderscope 9X50 straight version
  • Eyepiece 1.25″ Super Plossl 25mm (66x) – apparent filed of view 52°
  • Eyepiece 1.25″ Super Plossl 10mm (165x) – apparent filed of view 52°
  • Eyepiece adapter from 2″ to 1.25″ with M42 thread
  • 2″ tube extension
  • User Manual
