Sky Watcher 200/800 Quattro 200 PDX Photo Newtonian OTA Dual Speed Focuser

SKU: SW200QPDX-OTA

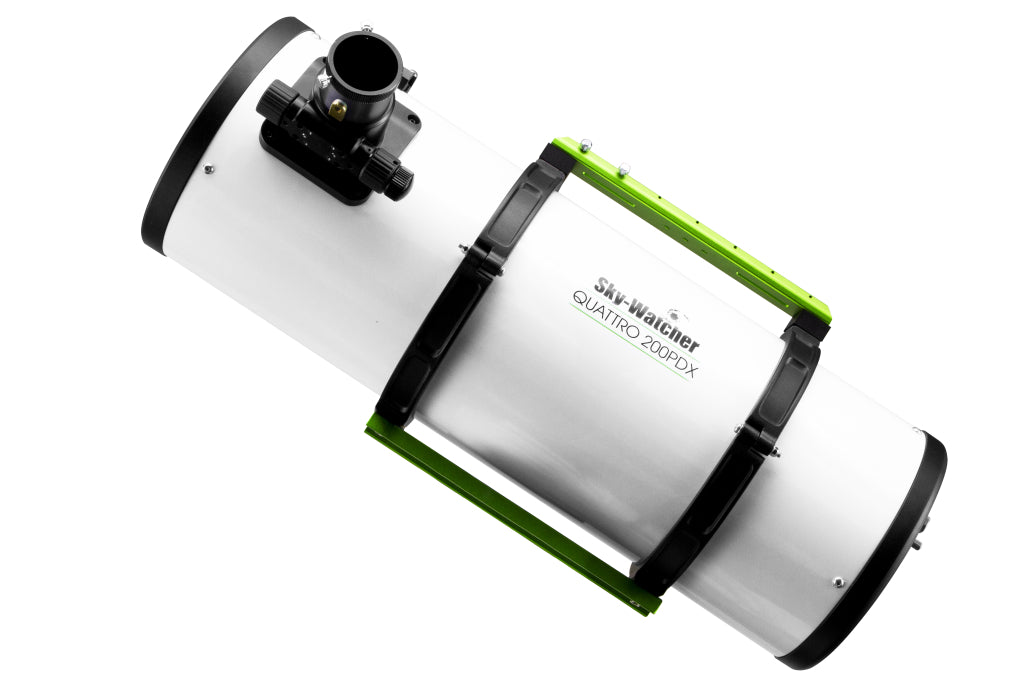

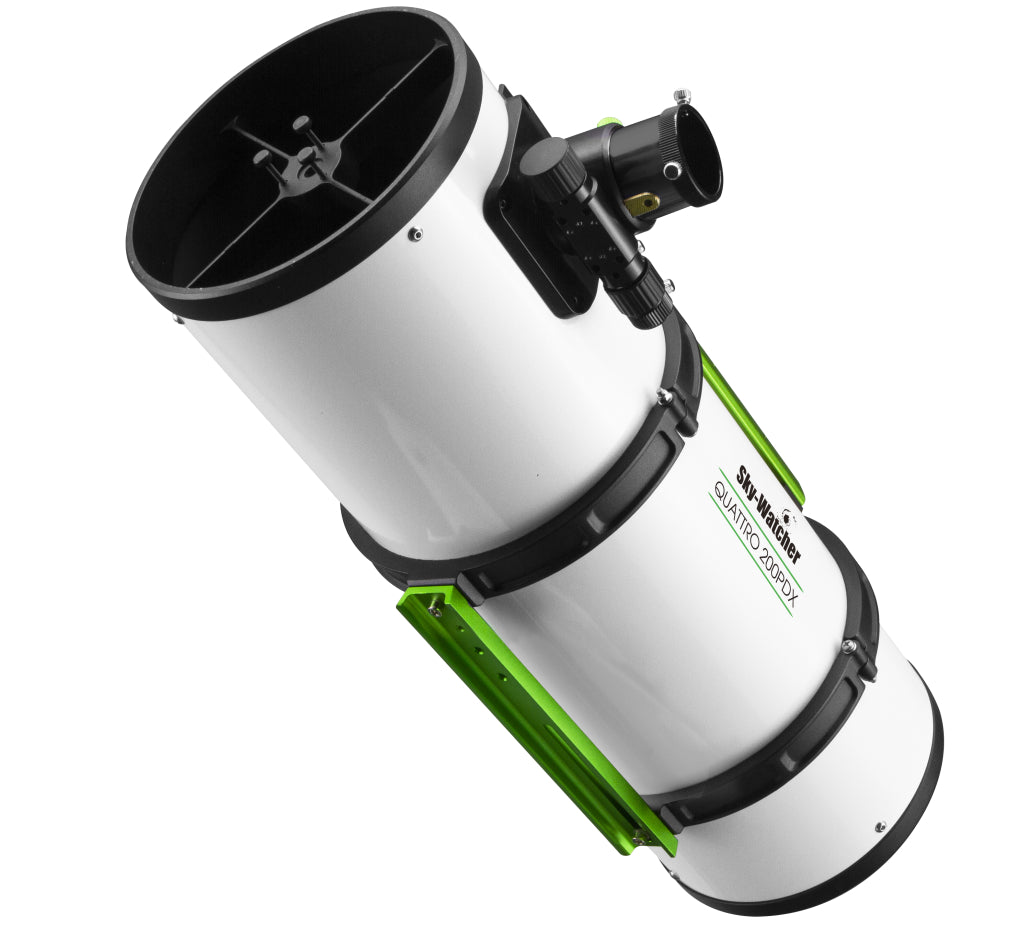

Sky Watcher 200/800 Quattro 200 PDX Photo Newtonian OTA Dual Speed Focuser
Sky Watcher 200/800 Quattro 200 PDX Photo Newtonian OTA Dual Speed Focuser

Our Price

$1,119.00

$1,119.00

Green truck Pre-order, ships from 15 Dec 2026 An order for this can be placed with our supplier, and usually ships within the specified timeframe.



Loading

12000

111900

Shipping calculated at checkout

About this product

Capture faint deep-sky structures with remarkable speed using the Sky-Watcher Quattro 200PDX Imaging Newtonian. Pairing a substantial 200mm aperture with a fast f/4 optical system, this purpose-built astrograph delivers high light gathering power and an 800mm focal length tailored for framing distant galaxies and compact nebulae. Engineered with mechanical rigidity in mind, it provides the precise focus and structural stability required for serious imaging sessions.

Fast f/4 Optics
Shorter exposures and rich light gathering
1:11 Dual-Speed
Pinpoint rack and pinion focus control
Reinforced Tube
Resists flexure under heavy imaging gear
Die-Cast Secondary
Maintains collimation across sessions

Fast Aperture for Deep-Sky Imaging

The Quattro 200PDX is designed to draw in substantial amounts of light, cutting down exposure times when working on faint deep-sky targets. Its 800mm focal length offers a balanced field of view that enables tighter framing on galaxies and compact emission nebulae than shorter imaging systems can achieve. When combined with an optional coma corrector, the fast f/4 optics produce sharp, round stars across your entire camera sensor.

Rigid Mechanics Built for Payloads

Astrophotography demands rock-solid mechanical integrity, and the 200PDX delivers with a thickened aluminium alloy optical tube built to counteract flexure. The secondary mirror is supported by an integral die-cast bracket designed to retain collimation between setups, saving valuable time under clear skies. Additionally, the included multifunctional carry handle makes mounting and transporting this 8.3kg optical tube straightforward and secure.

1:11 Dual-Speed Rack and Pinion Focuser
Achieve critical focus with confidence on demanding f/4 optics, using the fine-ratio reduction knob to make precise adjustments without image shift.

Key Features

  • 200mm Parabolic Primary Mirror – Delivers impressive light grasp for gathering faint details in distant astronomical objects.
  • Fast f/4 Focal Ratio – Minimises exposure durations while maximising signal capture during astrophotography sessions.
  • 1:11 Dual-Speed Focuser – Compact rack and pinion mechanism provides high-precision control required for critical focus.
  • Thickened Aluminium Alloy Tube – Enhances structural rigidity to eliminate tube flexure when loaded with heavy imaging trains.
  • Integral Die-Cast Secondary Bracket – Keeps the secondary mirror firmly aligned to ensure collimation stability over time.
  • Multifunctional Carry Handle – Provides a reliable grip for safe handling during assembly, balancing, and transport.

Specifications

Optical Design Newtonian reflector
Aperture 200mm
Focal Length 800mm
Focal Ratio f/4
Focuser 1:11 dual-speed rack and pinion
Secondary Mirror Support Integral die-cast mirror bracket
Tube Material Thickened aluminium alloy
Weight 8.3kg
Model / SKU SW200QPDX-OTA

What's in the Box

  • 200mm f/4 Optical Tube Assembly
  • 1:11 Dual-Speed Rack and Pinion Focuser
  • Tube Rings and Dovetail Bar
  • Multifunctional Carry Handle
