Sky Watcher EQ8 Pier Tripod

About this product

Transform your deep-sky astrophotography with the exceptional carrying power and rock-solid stability of the Sky-Watcher EQ8 Pier Tripod system. Designed to support heavy optical tubes up to 50 kg, this heavy-duty German equatorial platform provides whisper-quiet tracking, precision Go-To positioning, and minimal backlash for serious observational and imaging setups. Enjoy total peace of mind under dark skies with a rigid, adjustable pier foundation engineered to keep your framing steady throughout long-exposure runs.

Observatory-Grade Tracking and Accuracy

At the core of the EQ8 are responsive 0.9° hybrid stepper motors coupled with precision mechanics delivering whisper-quiet slewing speeds up to 3.3 degrees per second. Permanent Periodic Error Correction (PPEC) uses an index on the right ascension worm to continuously monitor worm position, retaining trained error corrections permanently in the motor controller to minimise tracking anomalies across all imaging sessions. Combined with minimal backlash and fine guiding speeds down to 0.125x, it guarantees round stars on extended exposures.

Automated Control and Effortless Manual Movement

Patented Freedom Find dual-encoder technology frees you to unclamp the clutches and re-point the telescope by hand whenever needed, retaining exact celestial coordinates the moment the clutches are locked again. Built-in home position sensors automatically return the mount to a consistent physical orientation on power-up for straightforward, reliable remote routines. An integrated SNAP port directly controls your DSLR or dedicated astro-camera shutter, enabling batch sequences of up to 8 exposure sets right from the SynScan hand controller.

Key Features

• Heavy-Duty 50 kg Payload – Carries massive visual reflectors and heavy astrograph imaging trains with unflinching rigidity.
• Permanent Periodic Error Correction – Stores tracking corrections directly within onboard memory to produce smooth, dependable long exposures.
• Dual-Encoder Freedom Find™ – Allows manual panning in both axes without disrupting electronic star alignment.
• Auto-Home Function – Automatically returns the axes to consistent mechanical home positions at initial startup.
• Integrated DSLR SNAP Port – Automates camera shutter sequences for up to eight distinct exposure groups via the controller.
• Multiple Tracking Rates – Select sidereal, solar, or lunar tracking modes to perfectly follow any celestial subject.

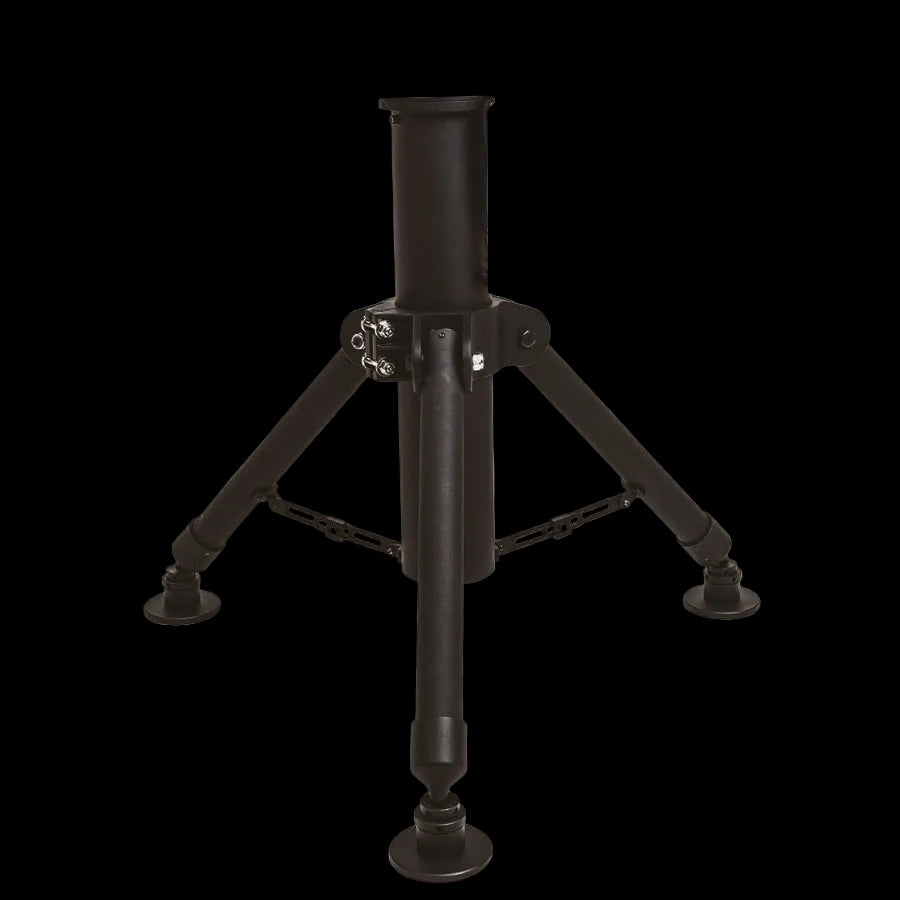

• Solid Pier Foundation – Height-adjustable pier tripod varying between 0.75 m and 1.00 m to ensure ideal working clearance.

Specifications

What's in the Box

• Sky-Watcher EQ8 Equatorial Mount
• Adjustable Pier Tripod
• SynScan Hand Controller
• 2 x 10 kg Counterweights
