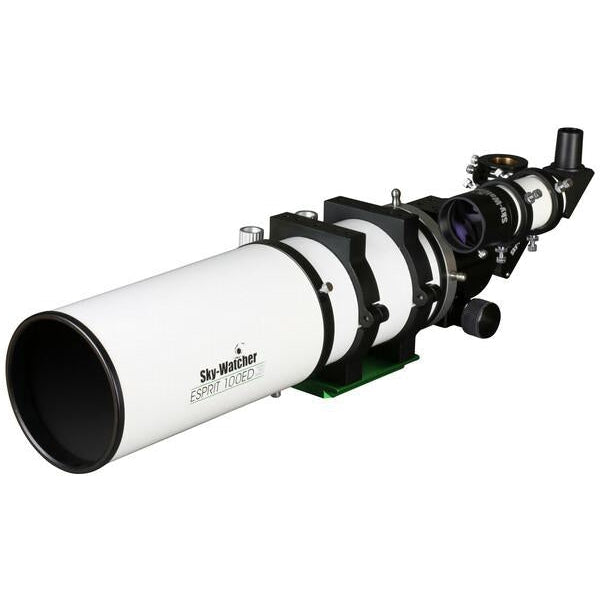

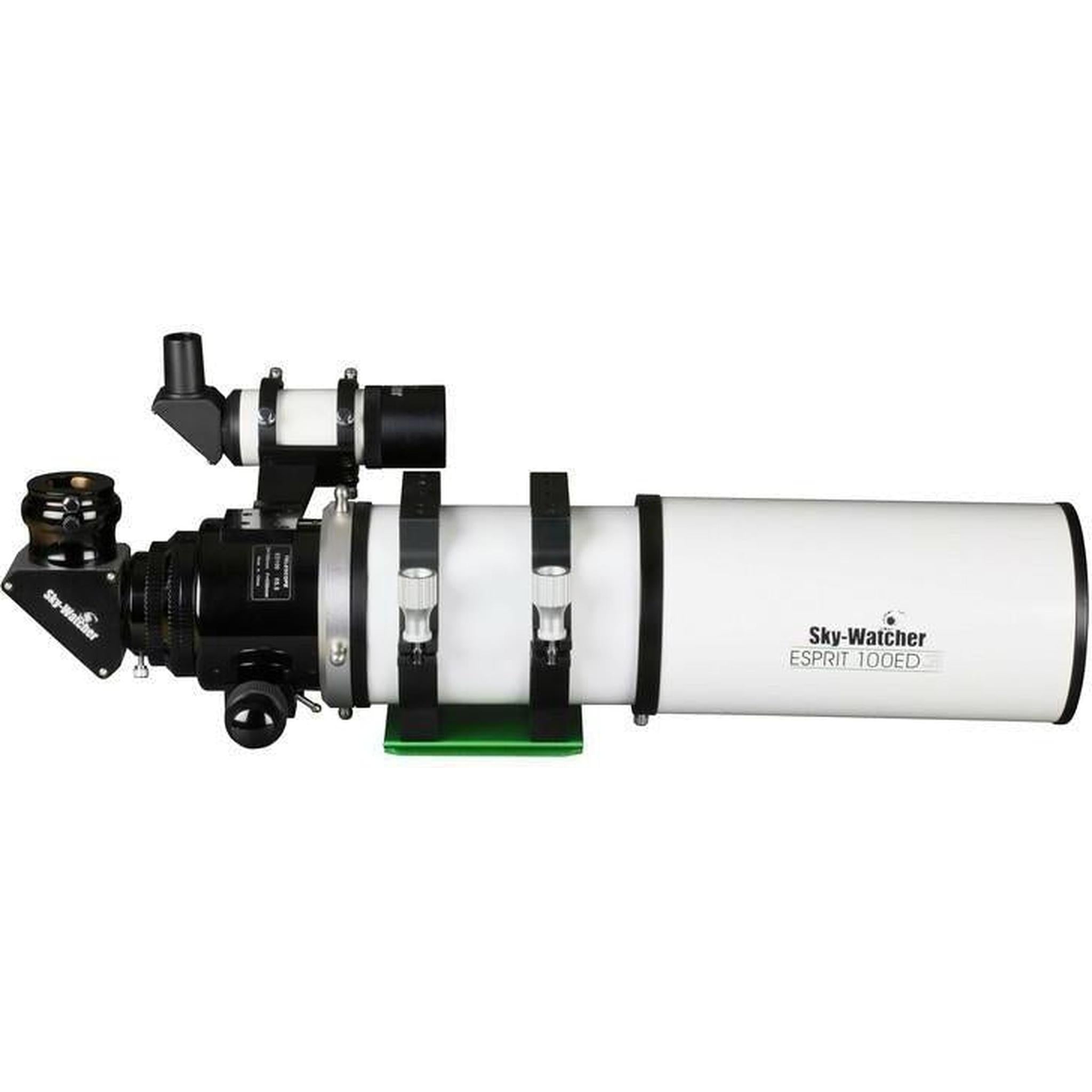

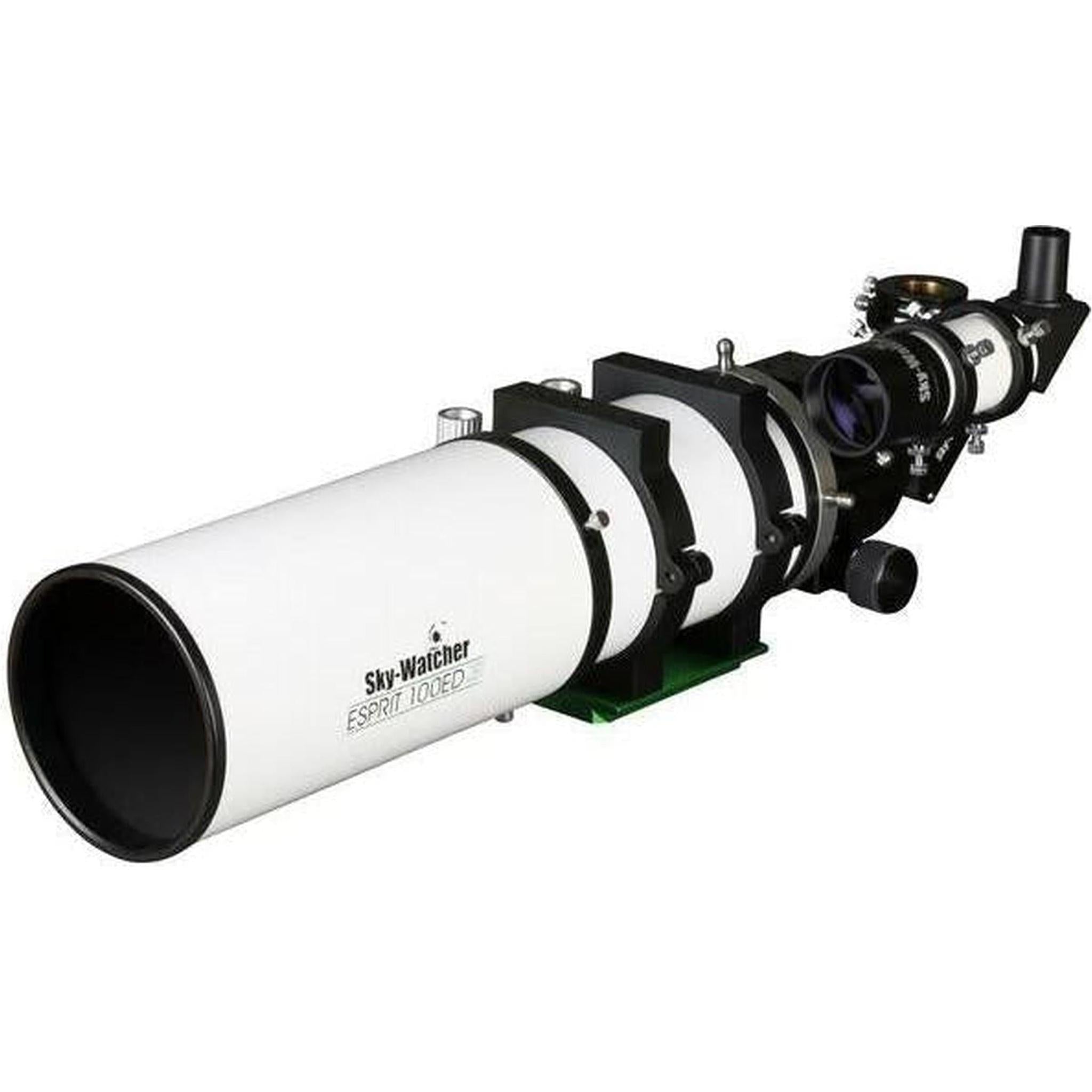

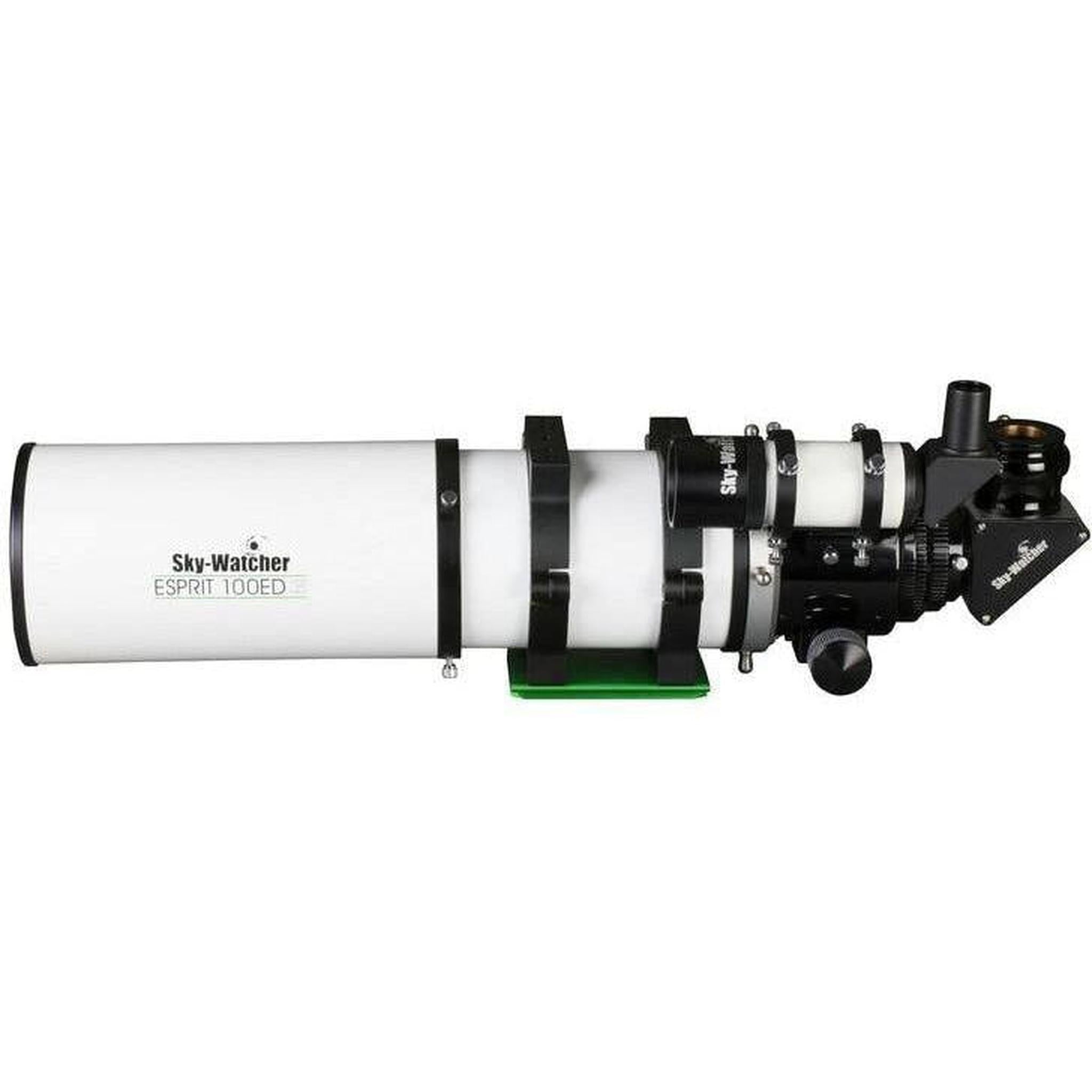

SkyWatcher 100mm ESPRIT ED Triplet APO Refractor Telescope
SKU: ---
About this product
The Esprit ED APO 100mm Telescope from Sky-Watcher is a 3-element refractor telescope designed for astrophotographers. The optical system features apochromatic extra-low dispersion (ED) glass and fully multicoated optics. A 2-element threaded field-flattener corrects distortion that can occur at the edges of the field of view. This combination makes astrophotographic images clear and sharp, with high-contrast and true-color transmission, from one edge of the field of view to the other. With a focal ratio of f/5.5, this fast telescope is well-suited for astrophotography.
The 2" rack-and-pinion Helinear Track focusing system allows you to bring celestial objects into precise focus with virtually no shift. The focuser features tracks above and below the focus tube. This gives the mechanism two points of contact, keeping focuser level even with a camera mounted on it. The Esprit comes with a 90° star diagonal with dielectric coatings. These coatings provide better than 99% light reflection. The telescope also comes with a 9x50 right-angle erector finderscope, and a foam-lined aluminium case.
- Optical Performance
-
- 3-Element Refractor
- Aperture: 100mm
- Focal length: 550mm
- Focal ratio: f/5.5
- Apochromatic extra-low (ED) dispersion glass
- Fully multicoated optics
- Use and Handling
-
- 2" rack-and-pinion Helinear Track focusing system
- Thread-on 2-element field flattener
- 90° star diagonal with dielectric coatings
- Construction Details
-
- Anodized aluminum optical tube assembly
- Tube rings with Celestron CGE-style dovetail bar
Optical Design | Refractor |
Aperture | 100 mm |
Focal Length | 550 mm |
Focal Ratio | f/5.5 |
Eyepiece Barrel Diameter | 2" |
Diagonal | Star diagonal |
Finderscope | 8 x 50 Right angle, erect-image |
Tripod | None |
Mount Type | None |
Power Source | None |
Optical Tube Dimensions | 3.9 x 24.5" (10 x 62 cm) |
Weight | 16.3 lb (7.4 kg) |
Packaging Info | |
---|---|
Package Weight | 48.6 lb |
Box Dimensions (LxWxH) | 26.0 x 22.0 x 15.0" |
*Special Order item, please contact us for delivery time*
In The Box:
- 100/550 Apochromatic Refractor
- Fixed Dew Shield
- Field Flattener with M48 Thread
- T2 Canon Camera Adapter
- 2″ Dielectric Star Diagonal
- 9×50 Right Angled Erect Image Diagonal
- D Style dovetail Bar
- 2″ to 1.25″ Eyepiece Adaptor
- Aluminium Foam-Lined Case
