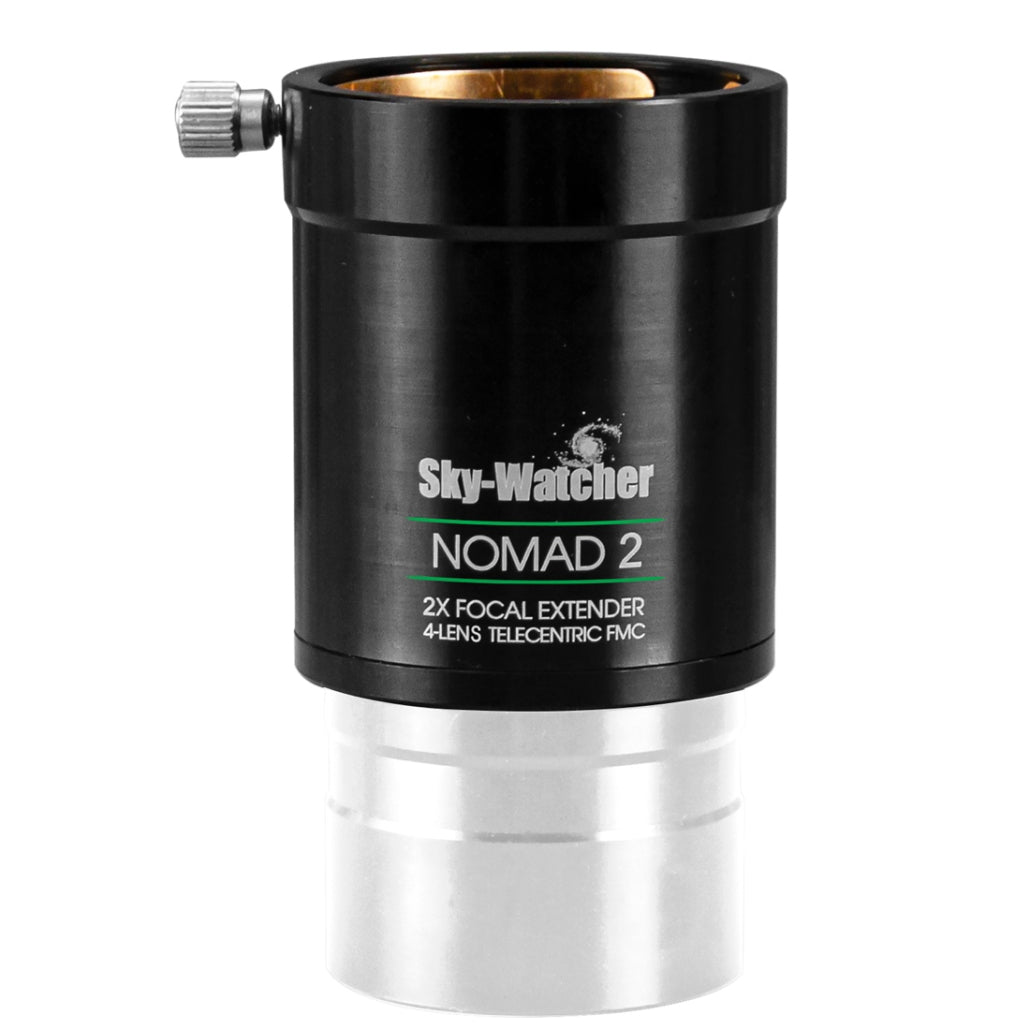

Sky Watcher Nomad 2x Barlow Lens with CCD Camera Adapter

SKU: SWA-NOMAD2

Sky Watcher Nomad 2x Barlow Lens with CCD Camera Adapter

Our Price

$359.00

$359.00

Green truck Usually Ships in 6-8 Weeks An order for this can be placed with our supplier, and usually ships within the specified timeframe.



Loading

800

35900

Shipping calculated at checkout

About this product

Double the focal reach of your optical setup without compromising image fidelity. Engineered with high-index glass and an advanced four-element optical train, the Sky-Watcher Nomad 2x Barlow Lens delivers crisp, colour-pure views and high-resolution planetary photography through visual eyepieces and dedicated astro-imaging cameras alike.

2x Magnification
Doubles effective focal length
4-Element Optics
True-to-life colour fidelity
Dual Compatibility
Fits 50.8 mm and 31.8 mm eyepieces
Brass Compression
Mar-free eyepiece security

Exceptional Optical Clarity for Visual Observation

Constructed with premium high-index glass elements and proprietary tuned multi-coatings, the Nomad 2x focal extender maintains high contrast with negligible light loss. The 4-element tele-centric configuration preserves colour correction across the entire field of view, making it an ideal companion for revealing intricate detail across lunar rilles and planetary atmospheres. Blackened lens edges and anti-reflective internal threads further suppress stray reflections for pitch-black sky backgrounds.

Dedicated Versatility for Astrophotography

Designed to seamlessly bridge visual viewing and high-resolution imaging, this unit maintains the optical performance of high-end ED apochromatic refractors. Astrophotographers can directly attach dedicated planetary CCD cameras using the supplied CCD adaptor, or hook up a DSLR using the included M48x0.75 adaptor and a matching camera ring. Its tele-centric geometry ensures reliable field collimation, allowing you to capture crisp lunar and planetary images straight to your camera sensor.

Apochromatic Performance Preservation
The 4-element optical configuration suppresses chromatic aberration and maintains the pin-sharp optical standard of high-end ED Apo telescopes for both visual observation and digital imaging.

Key Features

  • 2x Focal Extension – Doubles the magnification of any inserted eyepiece or attached camera system for high-resolution planetary views.
  • 4-Element Optical Train – Ensures colour-pure correction without chromatic fringing across the entire field.
  • Full Multi-Coatings & High-Index Glass – Maximises transmission efficiency and light throughput while preserving natural contrast.
  • Brass Compression Ring – Centres your accessories automatically and protects eyepiece barrels against surface marking.
  • Captive Thumb Screws – Retaining hardware cannot accidentally back out or fall onto the ground during cold night sessions.
  • Safety Barrel Undercut – Machined groove on the 50.8 mm nosepiece provides dependable slip protection within your focuser.
  • Universal Filter Compatibility – Threaded internally to accept standard 50.8 mm (2-inch) visual and imaging filters.

Specifications

Magnification 2x
Optical Design 4 elements in tele-centric arrangement
Lens Coatings Proprietary tuned fully multi-coated; blackened lens edges
Barrel Size 50.8 mm (2") with safety undercut
Filter Thread Threaded for standard 50.8 mm (2") filters
Eyepiece Compatibility 50.8 mm (2") and 31.8 mm (1.25")
Camera Adapters CCD camera adaptor and DSLR camera adaptor (M48x0.75)
Body Material All-metal construction
Weight 378 g (excluding accessories)

What's in the Box

  • Sky-Watcher Nomad 2x Tele-Centric Barlow Lens (50.8 mm / 2")
  • 31.8 mm (1.25") Eyepiece Adaptor with Brass Compression Ring
  • Dedicated CCD Camera Adaptor
  • DSLR Camera Adaptor (M48x0.75 thread)
