Sky Watcher Fusion 300DXi AZ/EQ Mount with Wedge

SKU: SWFUSION300DXI-K

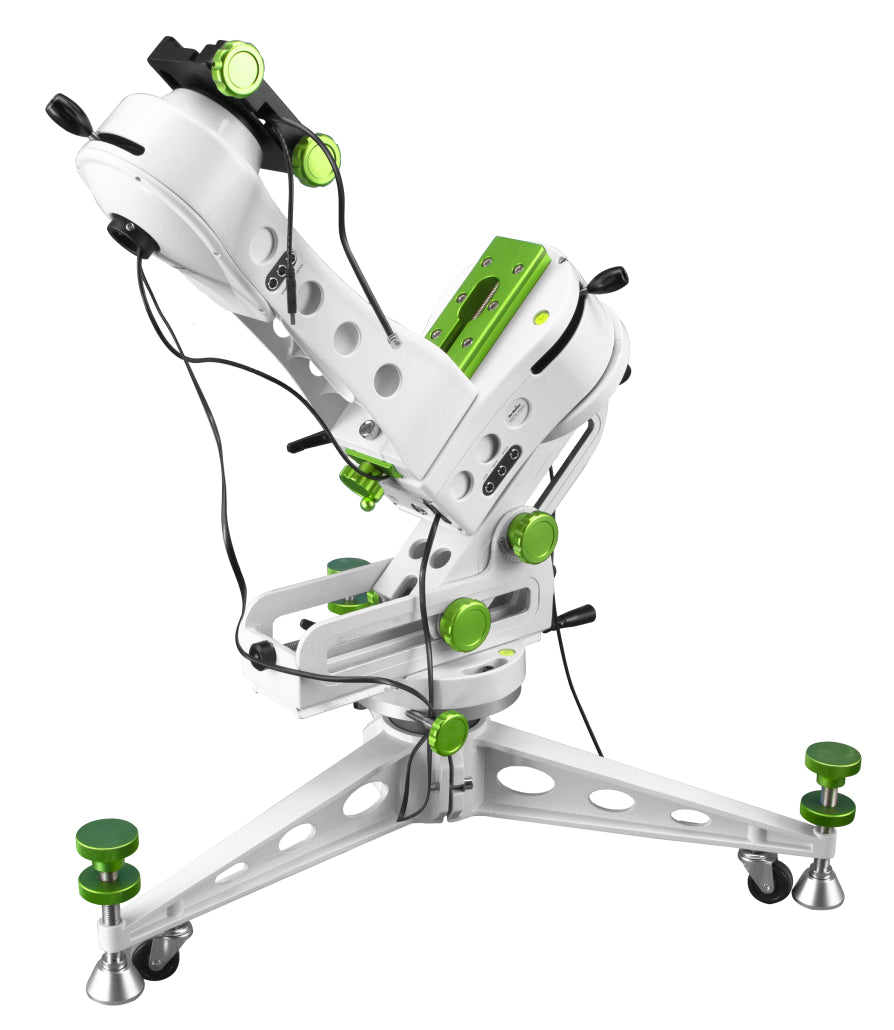

Sky Watcher Fusion 300DXi AZ/EQ Mount with Wedge

Our Price

$6,369.00

$6,369.00


Loading

15000

636900

Shipping calculated at checkout

When will I receive it?

About this product

Seamlessly transition between comfortable visual observing and serious deep-sky astrophotography with the Sky-Watcher Fusion 300DXi AZ/EQ Mount. Combining generous payload capacities with integrated Wi-Fi and the pre-bundled Equatorial Wedge, this hybrid platform delivers effortless tracking and pinpoint Go-To alignment right out of the box. Its modular architecture and dual-axis clutches ensure you spend less time wrestling with hardware and more time capturing pristine views of the cosmos.

Dual-Mode Hybrid
Alt-Az and Equatorial out of the box
Robust Capacity
Carries up to 30kg payload
Freedom-Find™
Manual slewing without losing alignment
Integrated Wi-Fi
Wireless SynScan app operation

Versatile Hybrid Performance

Why choose between a fast-setup visual platform and a dedicated imaging rig when you can have both? With the pre-bundled Fusion Equatorial Wedge, the Fusion 300DXi readily switches between native Alt-Azimuth mode for stargazing and full equatorial mode for long-exposure tracking. Fine-tuning latitude across 0° to 70° alongside ±14° azimuth control makes precise polar alignment straightforward from virtually any observing site.

Intelligent Modular Engineering

Transporting heavy gear into the field shouldn't require complex logistics. The mount combines a lightweight 8.1kg ALT arm and a 9.4kg AZ base into a modular profile that packs down quickly and installs cleanly. To cater to a broad variety of visual and imaging optical tubes, the ALT arm easily slides along the AZ base to achieve rapid, exact balance.

Freedom-Find™ Dual-Encoder Control
Reposition your telescope freely by hand using the dual-axis clutches without throwing off your polar alignment or computerised Go-To positional data.

Key Features

  • Dual Payload Profiles – Supports heavy telescope assemblies with up to 30kg capacity in Alt-Azimuth mode and 25kg in Equatorial mode.
  • Dedicated Equatorial Wedge – Delivers fine-tune adjustment from 0° to 70° latitude and ±14° azimuth for accurate polar tracking.
  • Sliding Balance Adjustment – ALT arm shifts along the AZ base to effortlessly counterweight different optical configurations.
  • Built-In Wireless Control – Operates smoothly via the SynScan App on mobile devices or computers, leaving hand controllers optional.
  • Dual-Saddle Platform – Readily secures telescope setups fitted with either standard Vixen or wide Losmandy dovetail bars.
  • Expansive Sky Database – Directs your scope swiftly to over 40,000 deep-sky targets, catalogued stars, and solar system objects.
  • Dual-Axis Clutch System – Smoothly release and lock individual axes for quick manual aiming and reliable tracking hold.

Specifications

Model Number SWFUSION300DXI-K
Mount Type Computerised Alt-Azimuth / Equatorial Hybrid
Payload Capacity (Alt-Azimuth) 30kg
Payload Capacity (Equatorial) 25kg
ALT Arm Net Weight 8.1kg
AZ Base Net Weight 9.4kg
Encoders Freedom-Find™ dual-encoder technology
Dovetail Compatibility Dual saddle (Vixen and Losmandy style)
Wedge Latitude Range 0° to 70°
Wedge Azimuth Adjustment ±14°
Tracking Rates Sidereal, Lunar, Solar
Object Database 40,000+ objects
Connectivity & Ports Built-in Wi-Fi, HC, AG, USB, POWER
Operating Voltage DC 12V

What's in the Box

  • ALT Arm Assembly (with dual Vixen/Losmandy saddle and dual-axis clutch)
  • AZ Base Assembly (movable base for balance tuning)
  • Fusion Equatorial Wedge
  • Integrated Built-in Wi-Fi Module
  • DC 12V Power Cable
  • User Manual (mount and wedge setup instructions)
