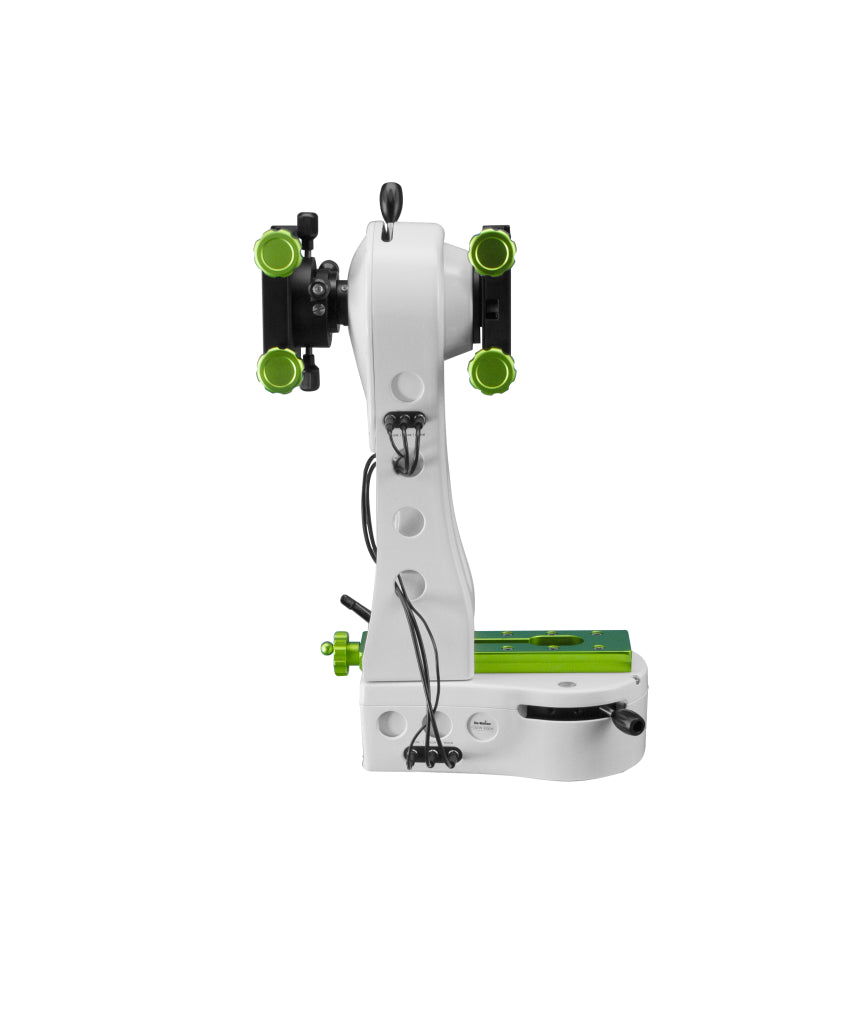

Sky Watcher Sky Watcher Fusion 300DXi AZ Mount

SKU: SWFUSION300DXI

Sky Watcher Sky Watcher Fusion 300DXi AZ Mount

Our Price

$4,438.00

$4,438.00

Green truck Usually Ships in 4-6 Weeks An order for this can be placed with our supplier, and usually ships within the specified timeframe.



Loading

8000

443800

Shipping calculated at checkout

About this product

Command the cosmos with complete flexibility using the Sky-Watcher Fusion 300DXi AZ Mount with Equatorial Wedge. Engineered for serious observers and astrophotographers alike, this hybrid platform seamlessly transitions between rapid Alt-Azimuth viewing and high-precision equatorial tracking. With heavy payload limits and built-in wireless control, sweeping the night sky has never been more straightforward.

Hybrid Versatility
Alt-Az and EQ modes in one kit
Up to 30kg Payload
Handles substantial optical assemblies
Freedom-Find™
Manual slewing without losing alignment
Integrated Wi-Fi
Full control via the SynScan App

Seamless Hybrid Performance

Switch smoothly from spontaneous stargazing to long-exposure astrophotography without investing in separate mounts. The bundled Fusion Equatorial Wedge provides 0° to 70° of latitude adjustment and ±14° of azimuth fine-tuning, allowing you to achieve pin-sharp polar alignment. When operating in standard Alt-Azimuth mode, it easily carries up to 30kg, while the equatorial configuration supports robust setups up to 25kg.

Refined Balance and Freedom of Movement

Achieving optimal balance across diverse optical tube assemblies is fast and painless thanks to the sliding ALT arm mechanism on the AZ base. Paired with dual-axis clutches and Freedom-Find™ dual-encoder technology, you can loosen the clutches and manually re-point the telescope whenever you choose. The mount retains its internal alignment, letting you return to Go-To operations instantly without recalibrating.

Wireless Control and Broad Compatibility

Free yourself from tangled hand controller cables using the onboard Wi-Fi module, which links directly to the SynScan App on your smartphone, tablet, or PC. Access an extensive database of over 40,000 celestial targets alongside dedicated ports for autoguiding, USB connectivity, and power. The dual-saddle system accommodates both Vixen and Losmandy-style dovetail plates, ensuring your optical collection mounts securely straight away.

Dual-Encoder Freedom-Find™ Technology
Reposition your telescope freely by hand in either Alt-Az or Equatorial mode without resetting your Go-To alignment or missing a beat in your observing session.

Key Features

  • Dual Operating Modes – Works out of the box in Alt-Azimuth configuration or as a full equatorial mount using the included wedge.
  • Massive Carrying Capacity – Handles up to 30kg in Alt-Azimuth mode and up to 25kg in Equatorial mode for heavy optical tubes and imaging gear.
  • Freedom-Find™ Dual Encoders – Manually swing the mount on both axes using the clutches without disturbing electronic star alignment.
  • Sliding Balance Adjustment – Position the movable ALT arm smoothly along the AZ base to perfectly balance varied equipment loads.
  • Precision Polar Tuning – The included wedge offers 0° to 70° latitude range and ±14° azimuth fine adjustment for accurate polar alignment.
  • Built-In Wi-Fi Connectivity – Control the system wire-free via the SynScan App across iOS, Android, or PC platforms.
  • Dual Dovetail Saddle – Effortlessly mount equipment equipped with either Vixen or Losmandy-style mounting rails.
  • Extensive Celestial Database – Explore over 40,000 deep-sky and solar system targets with automated tracking at Sidereal, Lunar, and Solar rates.

Specifications

Model Number SWFUSION300DXI-K
Mount Type Computerised Alt-Azimuth / Equatorial Hybrid Wi-Fi Mount
Payload Capacity (Alt-Az) 30kg
Payload Capacity (Equatorial) 25kg
ALT Arm Net Weight 8.1kg
AZ Base Net Weight 9.4kg
Encoder Technology Freedom-Find™ dual encoders with dual-axis clutch
Saddle Compatibility Dual saddle (Vixen and Losmandy style)
Wedge Latitude Adjustment 0° – 70°
Wedge Azimuth Adjustment ±14°
Tracking Rates Sidereal, Lunar, Solar
Object Database 40,000+ objects (Messier, Caldwell, NGC, IC, SAO catalogues)
Interface Ports HC (hand controller), AG (autoguide), USB, POWER
Operating Voltage DC 12V

What's in the Box

  • ALT Arm Assembly (with Vixen/Losmandy dual-saddle and dual-axis clutch)
  • AZ Base Assembly (with movable base for balance tuning)
  • Fusion Equatorial Wedge
  • Built-in Wi-Fi Module
  • DC 12V Power Cable
  • User Manual (mount and wedge setup instructions)
