SkyWatcher EQ6-R Pro Belt Drive GoTo Mount

SKU: SWEQ6-R

SkyWatcher EQ6-R Pro Belt Drive GoTo Mount
SkyWatcher EQ6-R GoTo Mount-Mount-Jacobs Photo and Digital
SkyWatcher EQ6-R GoTo Mount-Mount-Jacobs Photo and Digital
SkyWatcher EQ6-R GoTo Mount-Mount-Jacobs Photo and Digital
×

SkyWatcher EQ6-R Pro Belt Drive GoTo Mount

SKU: SWEQ6-R

Our Price

or 6 easy payments of $483.16

Laybuy

or 4 easy payments of $724.75

Afterpay

Loading
×

Pickups and Delivery

In-store pickup

We don't have this item in our store right now. Please enquire for availability.

If you come to pick up your order please bring photo ID, if someone else is picking it up on your behalf please contact us prior to pickup.

Delivery estimates

Once your order has been picked up by the courier please allow 2 working days for North Island addresses, for the South Island allow 3 working days. Rural deliveries and extra-large items may take several additional days.

Shipping costs

Shipping costs are automatically calculated during checkout. The price of shipping varies based on the delivery location. Select items may be be eligible for free shipping.

Delivery of oversize items

Oversize items such as very large telescopes may only be available via pickup from a depot or a business address. For a list of available depots, click here

Security

To ensure the safe delivery of your order we require a signature with all parcels. Some exceptions may be made if you give the courier company authority to leave parcels at your preferred address.

About this product

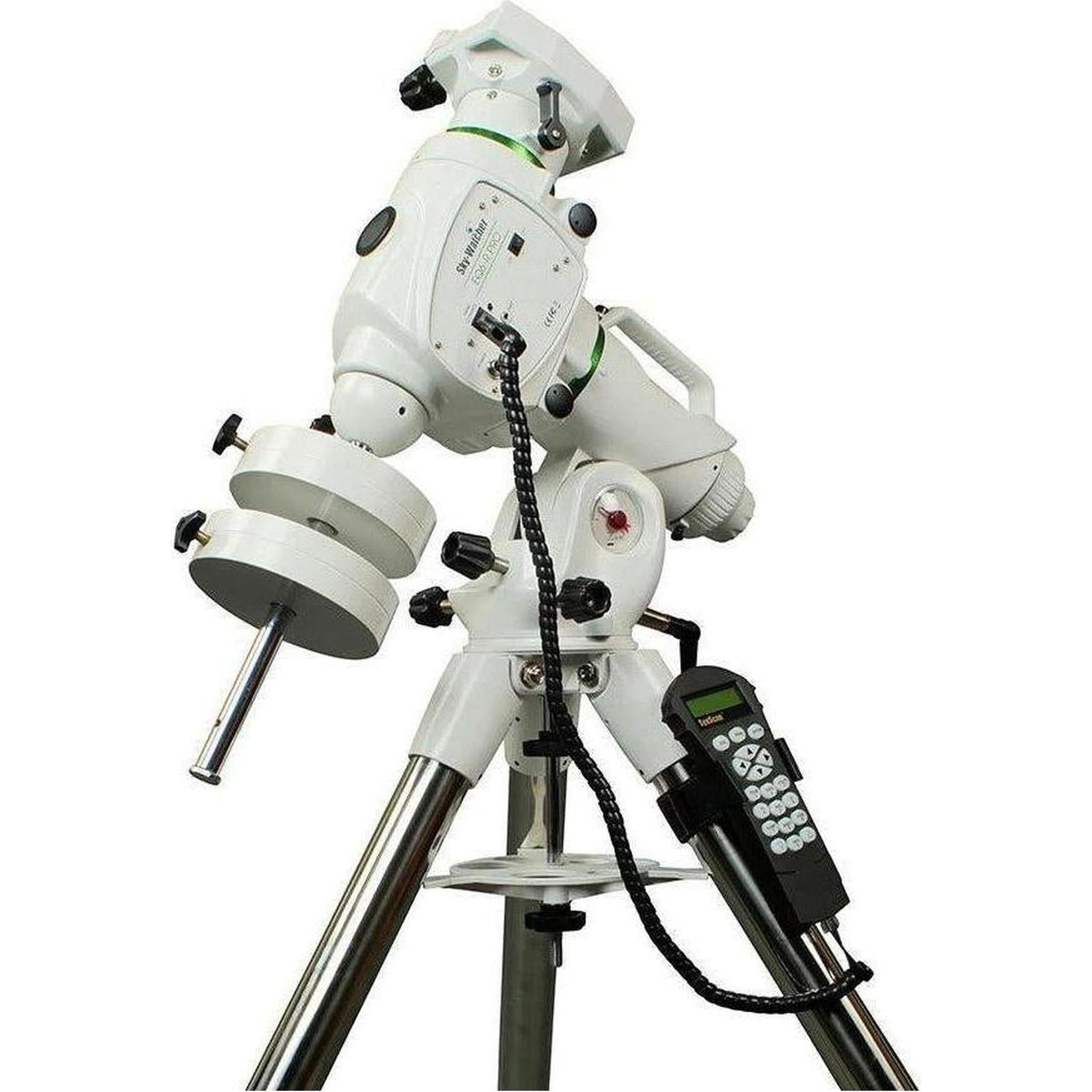

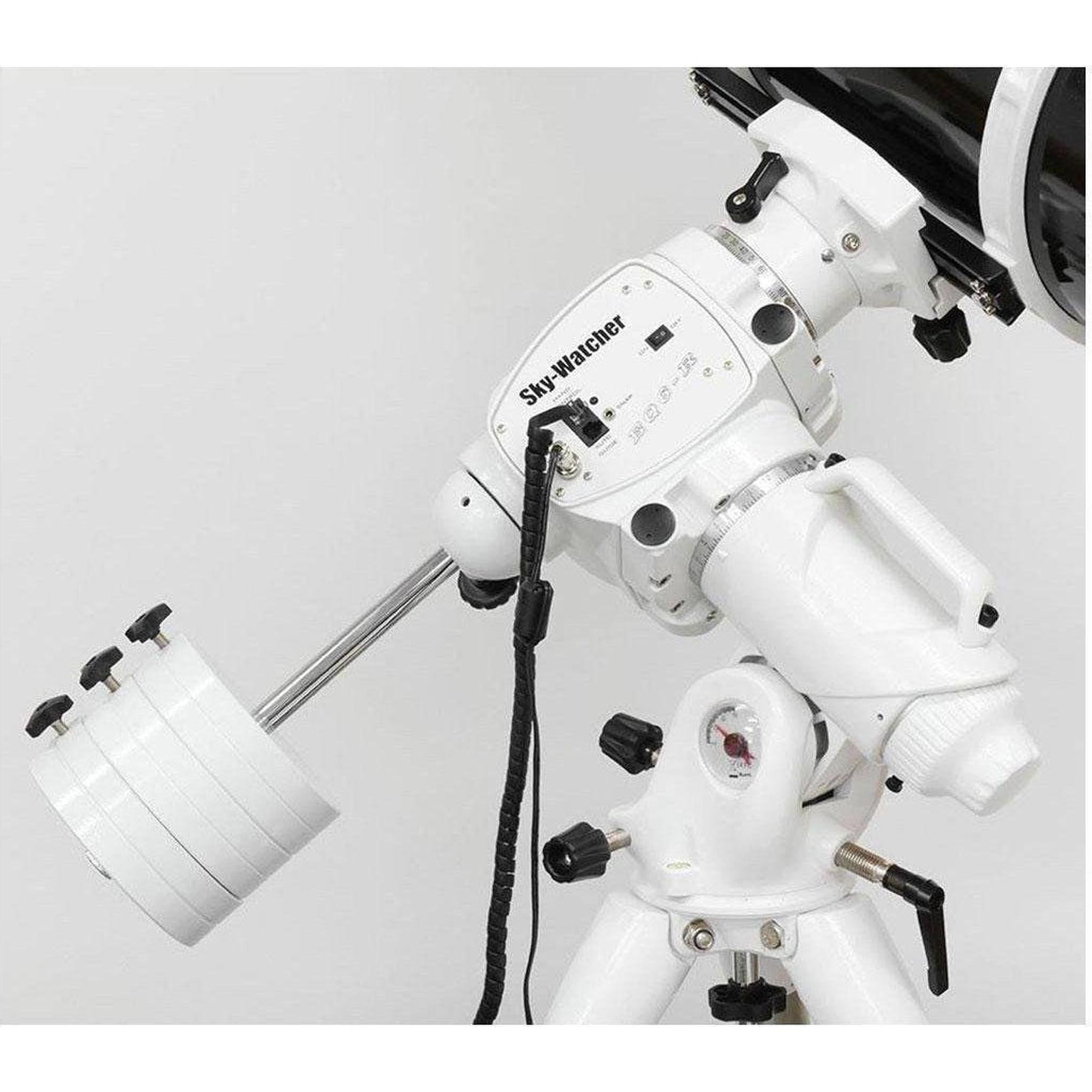

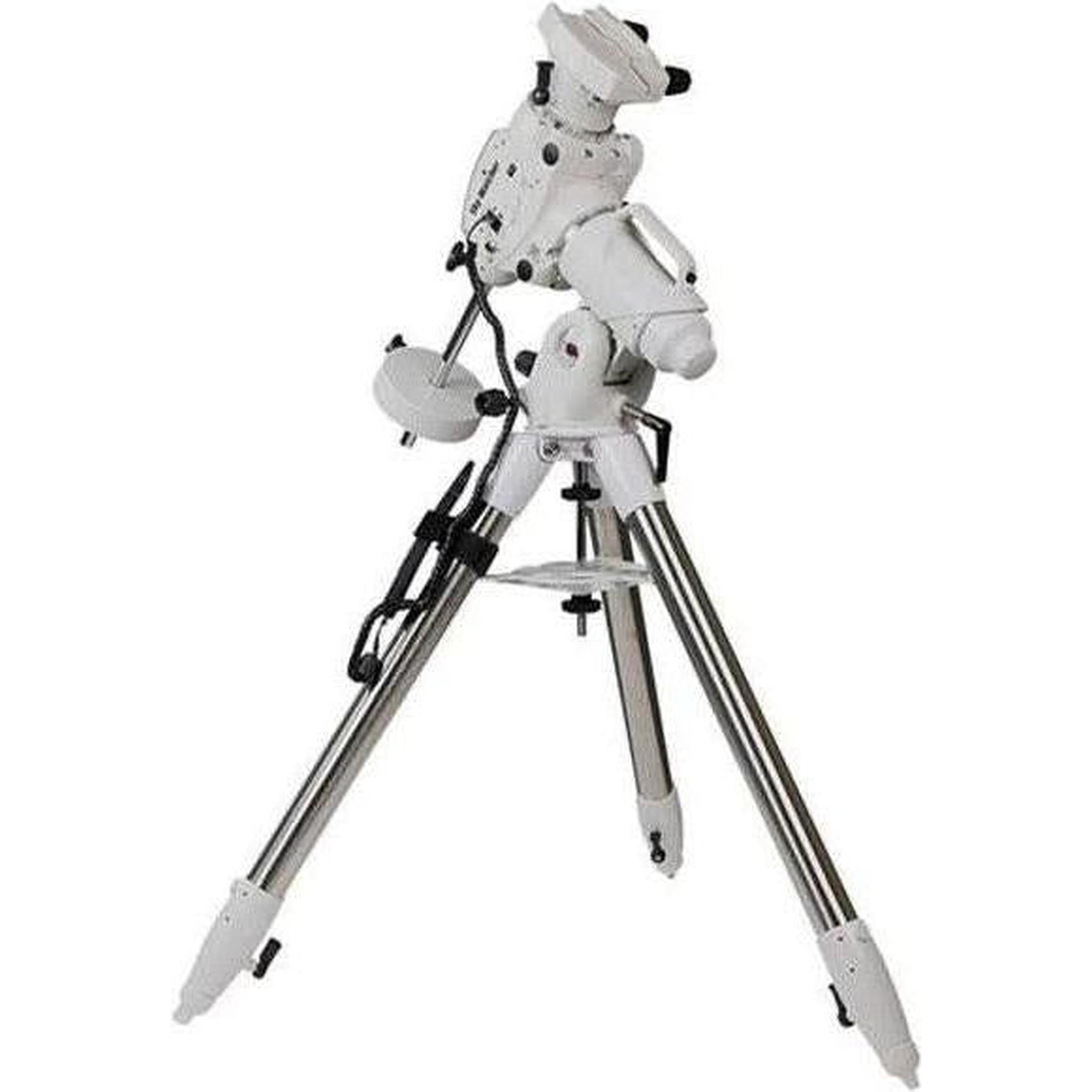

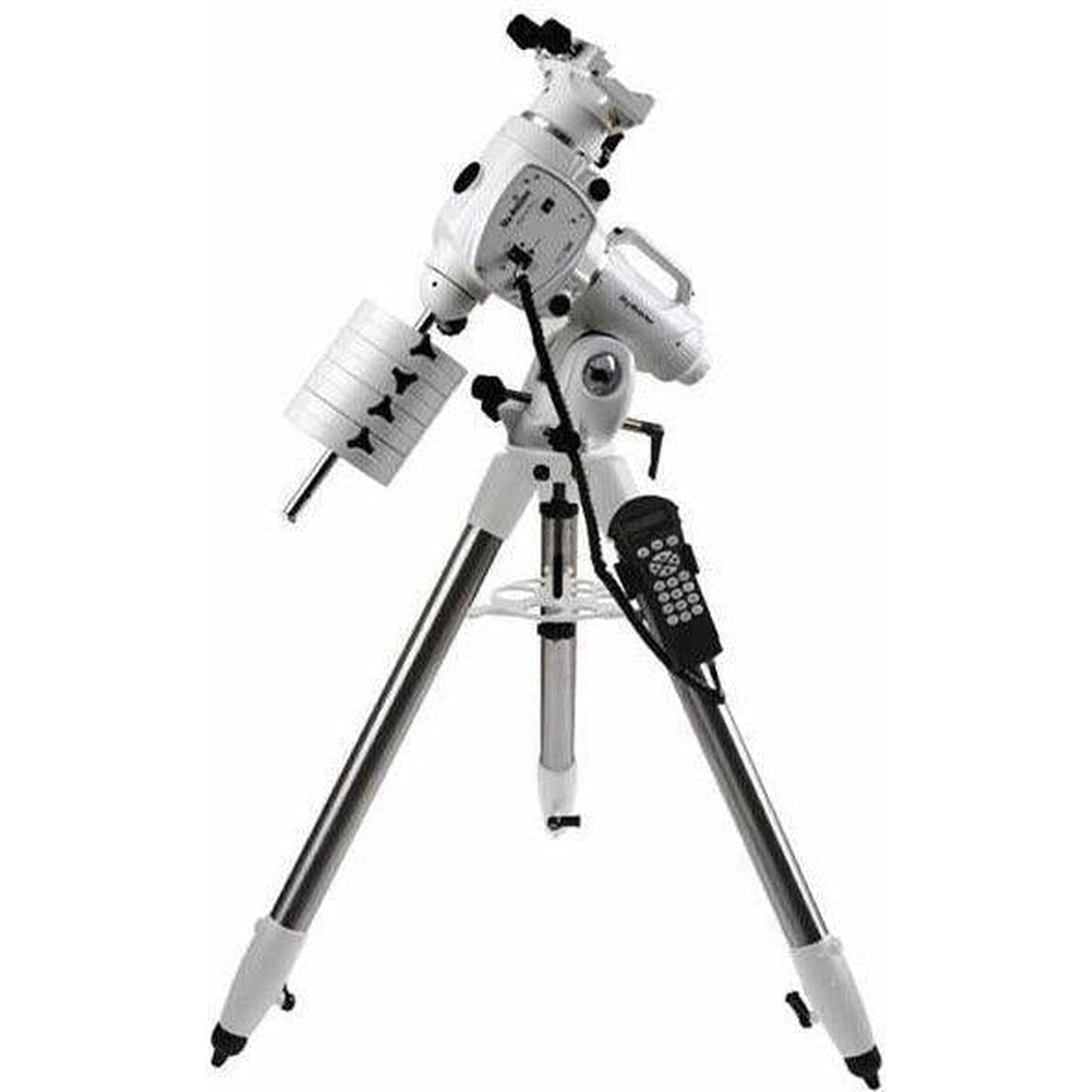

The new SkyWatcher EQ6-R PRO Synscan Computerised Go-To mounting is an exciting evolutionary progression of the continuing legend that is the EQ6 PRO. The modern optimised design of the EQ6-R PRO incorporates features that serious imagers will immediately appreciate, such as;

  • Increased Payload capacity of 20kg for Astro-Photography
  • Synchronous Belt Driven, resulting in minimal backlash – Even quieter, smoother operation and better results when guiding. Higher Torque.
  • Superior Latitude adjustment controls with greater range of latitudes possible
  • Built-in SNAP camera control port
  • PPEC worm gear and worm periodic error correction function (avoids having to constantly re-train)
  • Built-in carrying handle for convenient transportation

The supplied computerised Synscan™ hand control allows you to control the mount to point your telescope at a specific object or even tour the skies at the touch of a button. The user-friendly menu system allows automatic slewing to 42,000+ night sky objects from it’s extensive database.

Supplied with;

  • EQ6-R Pro mount
  • Tripod with 2″ stainless steel legs
  • Dual-Fit 45mm/75mm dovetail saddle
  • SynScan hand controller / cable
  • Counterweight Rod: 18mm diameter, length 240mm + 180mm
  • 2 x5 kg counterweights
  • Polar alignment scope
  • Autoguiding connection
  • Printed Instruction Manual

SPECIFICATIONS

  • Product Name:  EQ6-R PRO Synscan
  • Mount Type:  German Equatorial
  • Maximum Payload (Counterweights excluded):  20kg (for Astro-Photography)
  • Latitude Adjustment Range:  5º to 65º
  • Azimuth Adjustment Range:  About ±9 º
  • Mount Weight (Tripod excluded): 17.3 kg
  • Counterweights Supplied:  2 x 5kg
  • Tripod Supplied:    2-inch stainless steel, 7.5kg Weight
  • Counterweight Rod:  18mm Diameter, Length 240mm + 180mm
  • Power Requirement:  DC11~16V 4A
  • Motors: 1.8 º Hybrid Stepper Motors
  • Transmission:  180:1 Worm Drive + 48:12 Timing Belt Drive + 64 Micro-step/1.8º Stepper Motor Drive
  • Gear Ratio:  720
  • Resolution:  9216000 Counts/Rev., approx. 0.14 arc-second
  • Maximum Slewing Speed:  4.2 degrees/second
  • Tracking Rate:  Sidereal rate, solar rate, lunar rate
  • Tracking Mode:  Equatorial mode
  • Auto-guiding Speed:  0.125X, 0.25X, 0.5X, 0.75X, 1X
  • PEC: 100 Segments Permanent PEC (PPEC)
  • Hand Controller: SynScan™
  • Database:  42000+ Objects
  • Celestial Object Catalogue:  Messier, NGC, IC, SAO, Caldwell, Double Star, Vari-able Star, Named Star, Planets
  • Pointing Accuracy:  Up to 5 arc-minutes (RMS)
  • An integral SNAP camera control port
  • Dual-Fit 45mm/75mm Dovetail Saddle
  • Polar Alignment Scope

Contact us

Customer Reviews

Customer Reviews
4.0 Based on 3 Reviews
Write a Review Ask a Question
  • Reviews
  • Questions

Thank you for submitting a review!

Your input is very much appreciated. Share it with your friends so they can enjoy it too!

Filter Reviews:
DR
01/04/2021
Dennis R.
New Zealand New Zealand
Amazing mount

Just got the mount today, its heavy, but not as heavy as I thought. Moved the dowel on the mount so its over the front leg, as standard between the legs. Having it over the leg, makes altitude easier to adjust and if you use the polar scope easier to use also. The mount is easy to move, smooth and quiet also. Have not used it outside yet, as it is a slight learning curve compared to using my Evolution alt alz celestron mount. Got software working and playing with software on laptop. Got to play with HC to get used to it, a bit of reading and playing around before using it outside. As I am getting into EAA an EQ mount is better. Always have had excellent service from Jacob Digtial and always helpful. Received it before Easter which was great, got it in 2 days. Thanks Jacob Digtial for your exceptionally great service and highly recommend them highly. Now got to get used to taking off and putting on telescope, you do get used to it and becomes easier the more you do it. It was the same when I got my SCT 9.25, harder to mount when new but gets easier.

Jacobs Digital SkyWatcher EQ6-R Pro Belt Drive GoTo Mount Review
RL
12/03/2021
Ruggiero L.
New Zealand New Zealand
Very Solid Mount

I love this mount as it is very solid and it has 20kg payload. Unfortunately, the Synscan stopped working after 2 days so I had to bring it back to the store to get it fixed. The team fixed it for free and they told me that Synscan was not working as a pin was corroded. I think Skywatcher should be more careful :)

AK
31/10/2019
Allan K.
A solid quality mount.

I am very impressed with my EQ6-R Pro mount. Its not as heavy to manage as I thought so thats a bonus. It points and tracks very well. I am getting around 0.8 on PHD in poor sky conditions without using PEC, so pretty pleased with that. The only disappointment is that it only came with cigarette lighter plug for power which left me rushing around town to find an adapter before I could use it. A $2K plus mount should come ready to go I would have thought. Shame on you there Sky Watcher.
