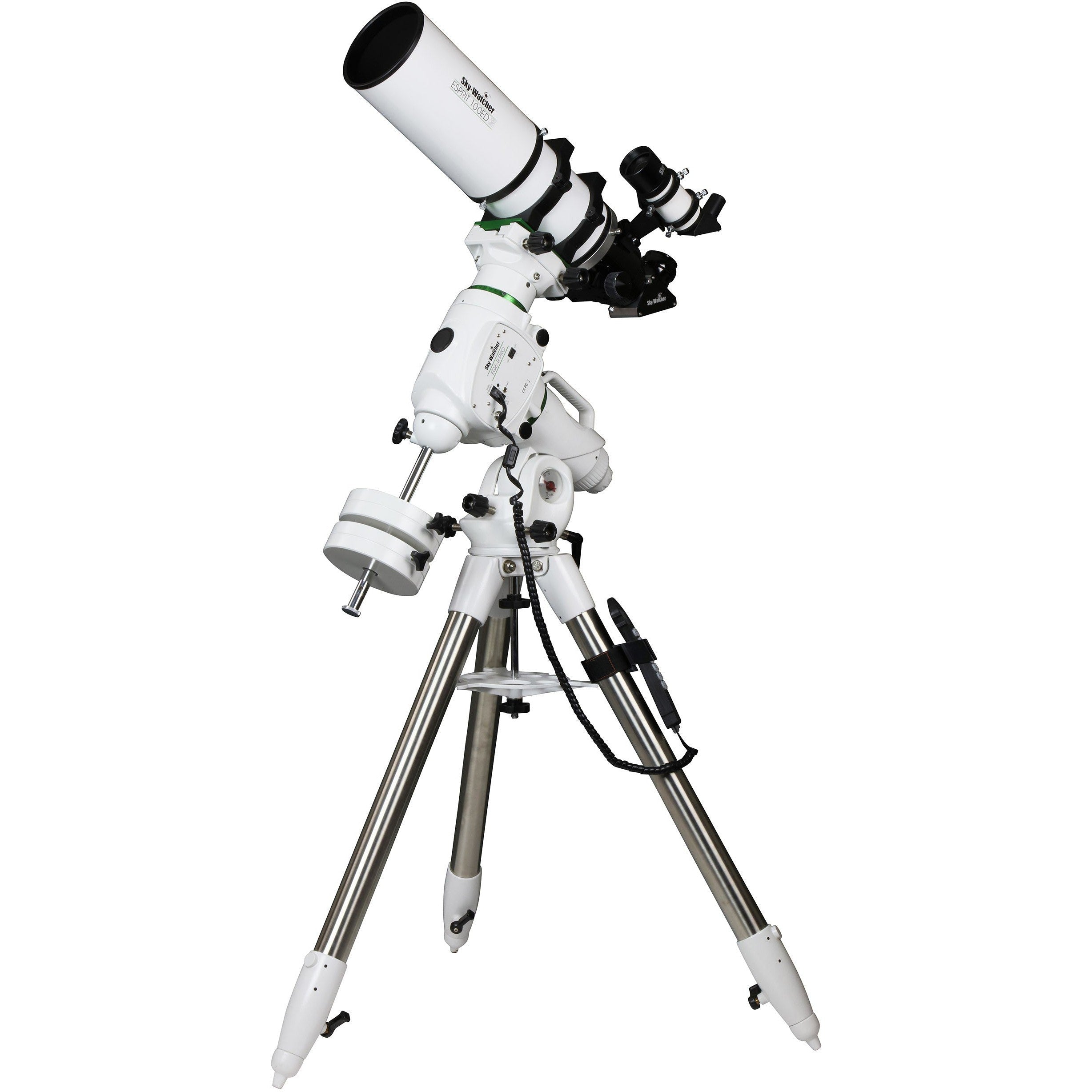

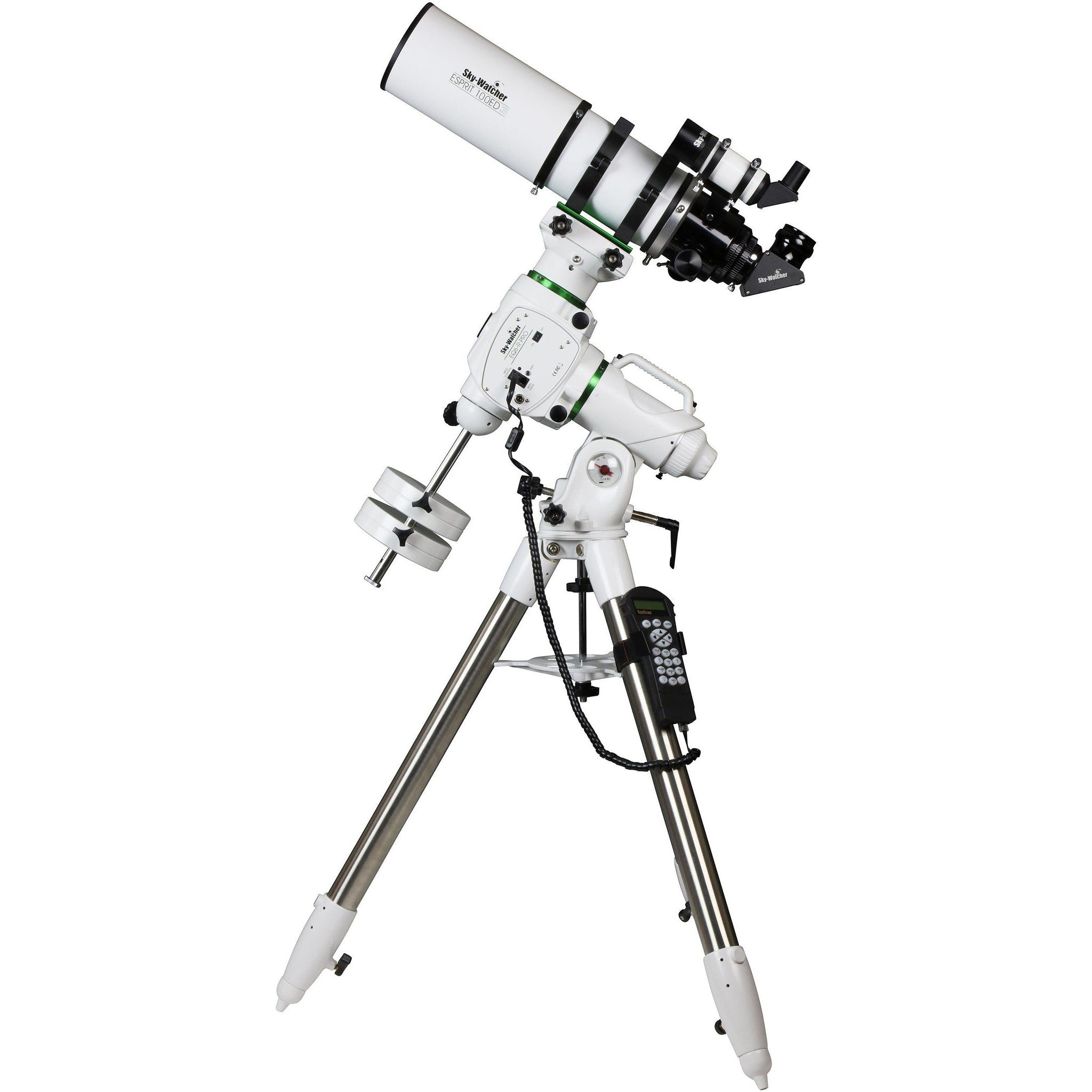

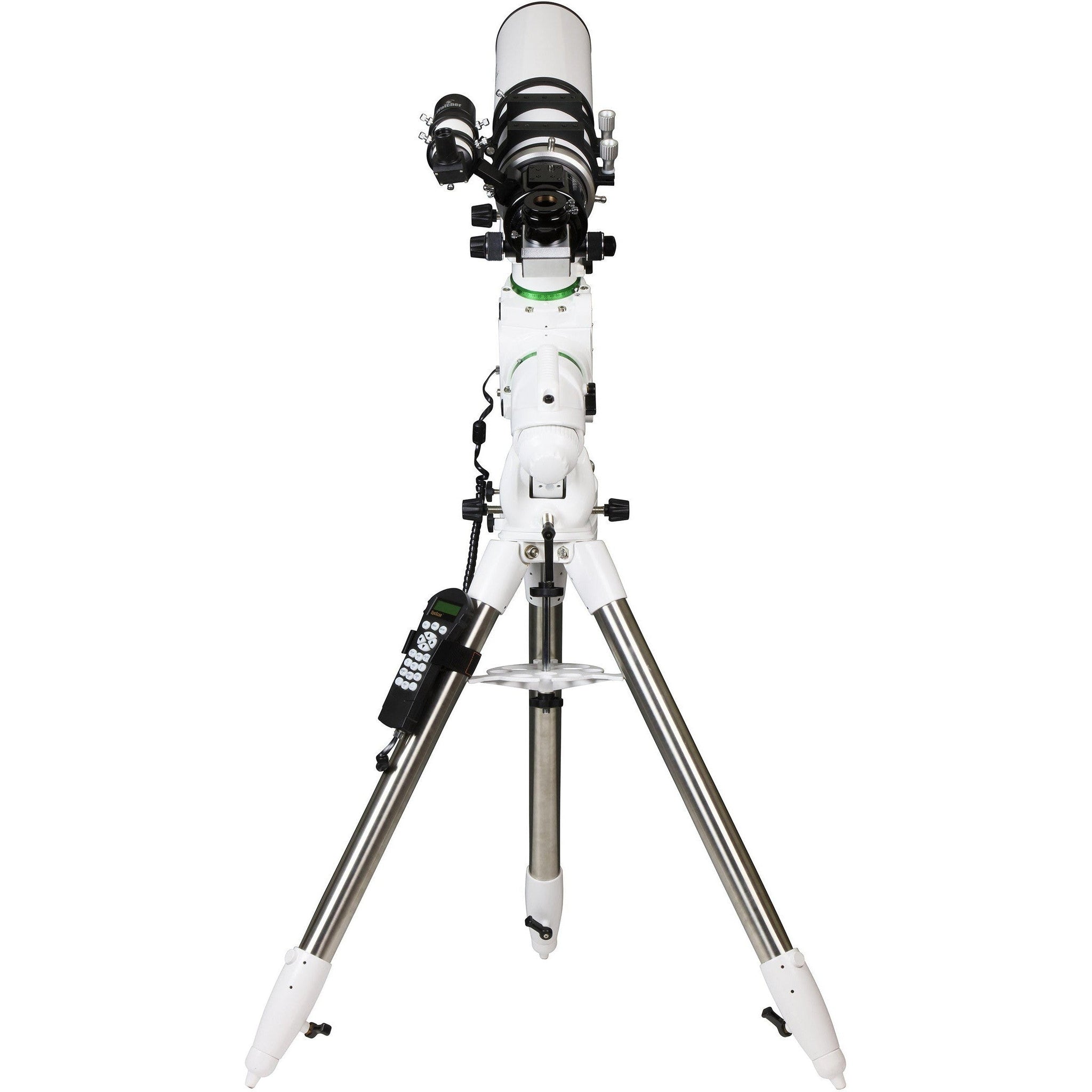

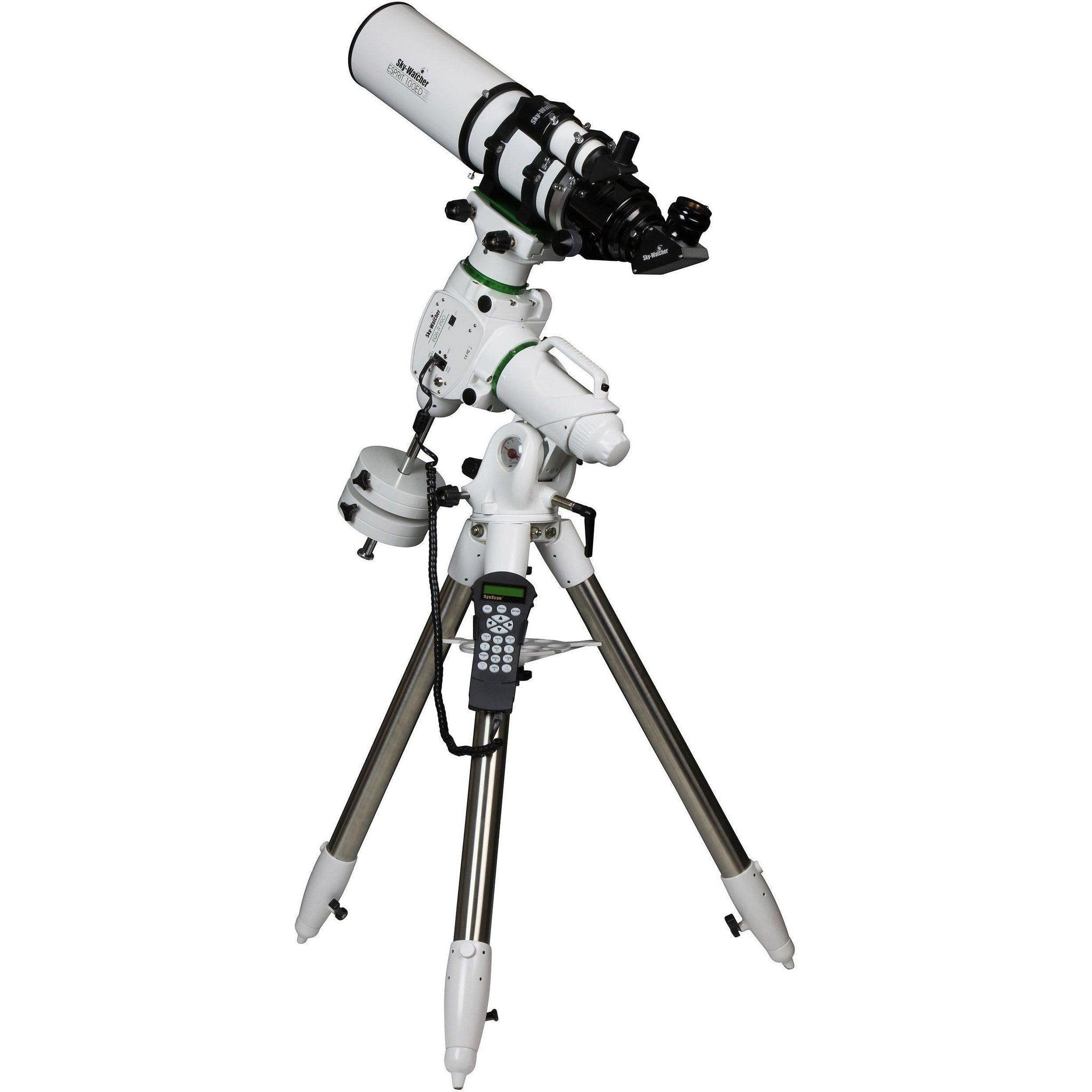

Skywatcher Esprit 100ED on EQ6-R Refractor Telescope with Tripod Telescope Bundle

SKU: SWEQ6R-ESPR10

Skywatcher Esprit 100ED on EQ6-R Refractor Telescope with Tripod Telescope Bundle - Jacobs Digital
Skywatcher Esprit 100ED on EQ6-R Refractor Telescope with Tripod Telescope Bundle - Jacobs Digital
Skywatcher Esprit 100ED on EQ6-R Refractor Telescope with Tripod Telescope Bundle - Jacobs Digital
Skywatcher Esprit 100ED on EQ6-R Refractor Telescope with Tripod Telescope Bundle - Jacobs Digital
Skywatcher Esprit 100ED on EQ6-R Refractor Telescope with Tripod Telescope Bundle - Jacobs Digital

Our Price

$9,000.00

$9,000.00

Green truck Usually Ships in 4-6 Weeks An order for this can be placed with our supplier, and usually ships within the specified timeframe.



Loading

30000

900000

Shipping Quote

About this product

Buy together and save!

Start your Astrophotography journey on a high, or update existing kit with this great bundle from Skywatcher.

Kit includes:

  • 1 x EQ6-R GoTo Mount with Tripod (SynScan HC)
  • 1 x 100/550 Esprit 100ED Triplet APO

Esprit 100ED

Designed with the discerning astrophotographer in mind, Sky-Watcher’s top-of-the-line Esprit refractors deliver the kind of imaging performance one would expect from telescopes costing thousands of dollars more. With Esprit’s three-element, air-spaced objective lens design, false color is virtually eliminated, yielding exceptional contrast and sharpness. Each element is fully multi-coated with Sky-Watcher’s proprietary Metallic high-transmission Coatings (MHTC)™, producing a transmission rate that rivals any refractor on the market.

In addition to superb optics, all Esprits feature exclusive dual-speed, Helinear track focusers, which provide smooth, rock-solid focusing with zero image shift. Using a captain’s wheel design all focusers can be rotated, giving astrophotographers flexibility when framing their image.

As is customary, Sky-Watcher supplies everything you need to get out under the stars, including a 2-element field corrector, which guarantees a flat field across the entire imaging plane. All Esprit refractors also come with an 8x50 right-angle finderscope, 2-inch star diagonal, M48 camera adapter, mounting hardware, and padded case.

Optical Info
Optical Design ED Triplet Refractor
Lens Coatings Fully Multi-Coated
Glass Type BK7 (2)/FPL-53(ED)
Primary Aperture (mm) 100
F/Ratio 5.5
Focal Length (mm) 550
Observational Info
Dawes Limit 1.16
Rayleigh Limit 1.4
Limiting Mag. 12.5
Minimum Magnification 14
Maximum Magnification 197
Light Gathering (compared to next size down) 56%
General Info
Focuser 3.4" Dual Speed R&P
OTA Length (Retract/Ext.) 18.3"/24.5"
OTA Outer Diameter 5.75"
OTA Weight (with accessories) 16
Accessories
Included Finder 8x50 RACI
Included Diagonal 2" Dielectric
Mounting Accessories Rings/D-Rail
Included Eyepieces None
Included Case Yes
Corrector Yes

Skywatcher EQ6-R

The new SkyWatcher EQ6-R PRO Synscan Computerised Go-To mounting is an exciting evolutionary progression of the continuing legend that is the EQ6 PRO. The modern optimised design of the EQ6-R PRO incorporates features that serious imagers will immediately appreciate, such as;

  • Increased Payload capacity of 20kg for Astro-Photography
  • Synchronous Belt Driven, resulting in minimal backlash – Even quieter, smoother operation and better results when guiding. Higher Torque.
  • Superior Latitude adjustment controls with greater range of latitudes possible
  • Built-in SNAP camera control port
  • PPEC worm gear and worm periodic error correction function (avoids having to constantly re-train)
  • Built-in carrying handle for convenient transportation

The supplied computerised Synscan™ hand control allows you to control the mount to point your telescope at a specific object or even tour the skies at the touch of a button. The user-friendly menu system allows automatic slewing to 42,000+ night sky objects from it’s extensive database.

Supplied with;

  • EQ6-R Pro mount
  • Tripod with 2″ stainless steel legs
  • Dual-Fit 45mm/75mm dovetail saddle
  • SynScan hand controller / cable
  • Counterweight Rod: 18mm diameter, length 240mm + 180mm
  • 2 x5 kg counterweights
  • Polar alignment scope
  • Autoguiding connection
  • Printed Instruction Manual

SPECIFICATIONS

  • Product Name:  EQ6-R PRO Synscan
  • Mount Type:  German Equatorial
  • Maximum Payload (Counterweights excluded):  20kg (for Astro-Photography)
  • Latitude Adjustment Range:  5º to 65º
  • Azimuth Adjustment Range:  About ±9 º
  • Mount Weight (Tripod excluded): 17.3 kg
  • Counterweights Supplied:  2 x 5kg
  • Tripod Supplied:    2-inch stainless steel, 7.5kg Weight
  • Counterweight Rod:  18mm Diameter, Length 240mm + 180mm
  • Power Requirement:  DC11~16V 4A
  • Motors: 1.8 º Hybrid Stepper Motors
  • Transmission:  180:1 Worm Drive + 48:12 Timing Belt Drive + 64 Micro-step/1.8º Stepper Motor Drive
  • Gear Ratio:  720
  • Resolution:  9216000 Counts/Rev., approx. 0.14 arc-second
  • Maximum Slewing Speed:  4.2 degrees/second
  • Tracking Rate:  Sidereal rate, solar rate, lunar rate
  • Tracking Mode:  Equatorial mode
  • Auto-guiding Speed:  0.125X, 0.25X, 0.5X, 0.75X, 1X
  • PEC: 100 Segments Permanent PEC (PPEC)
  • Hand Controller: SynScan™
  • Database:  42000+ Objects
  • Celestial Object Catalogue:  Messier, NGC, IC, SAO, Caldwell, Double Star, Vari-able Star, Named Star, Planets
  • Pointing Accuracy:  Up to 5 arc-minutes (RMS)
  • An integral SNAP camera control port
  • Dual-Fit 45mm/75mm Dovetail Saddle
  • Polar Alignment Scope
