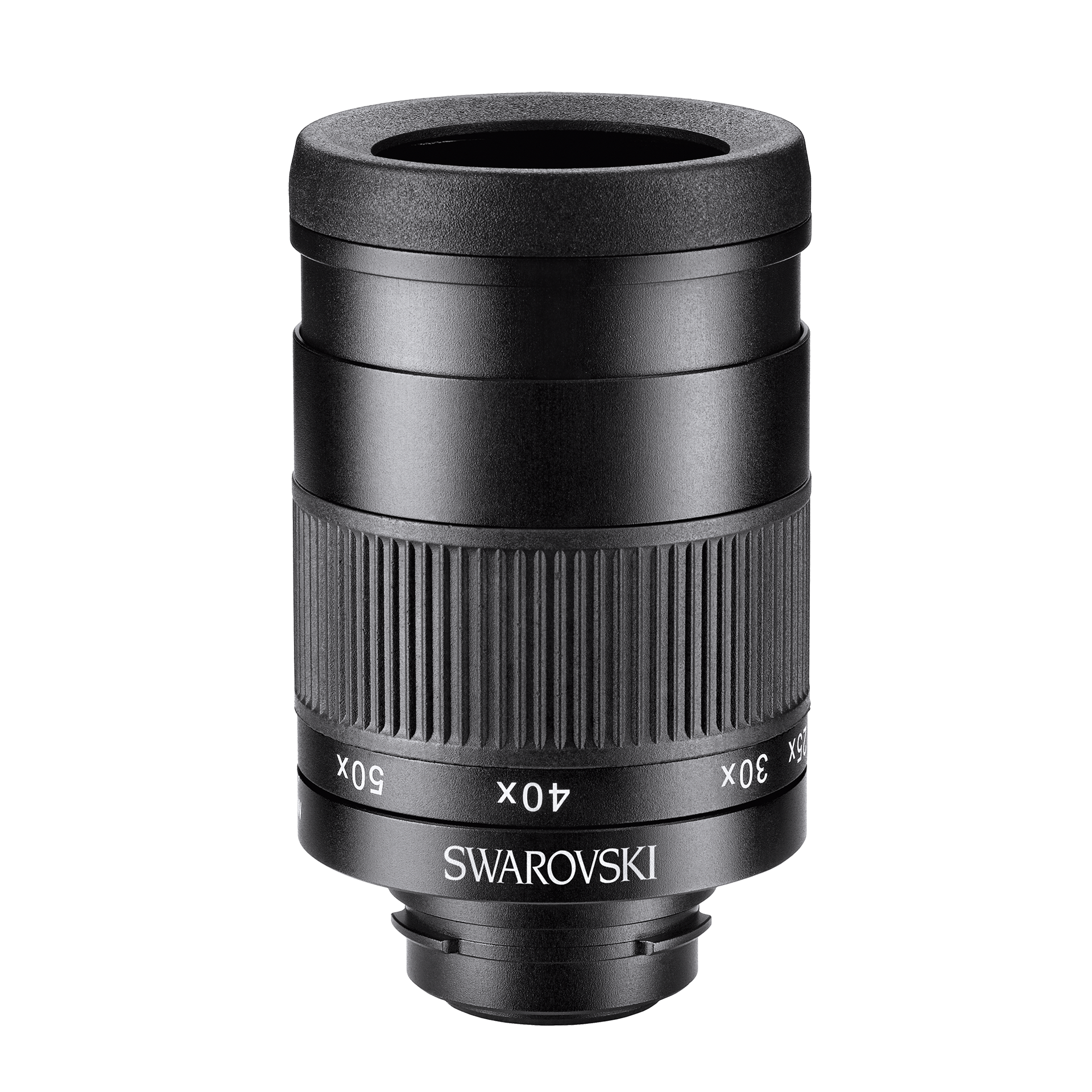

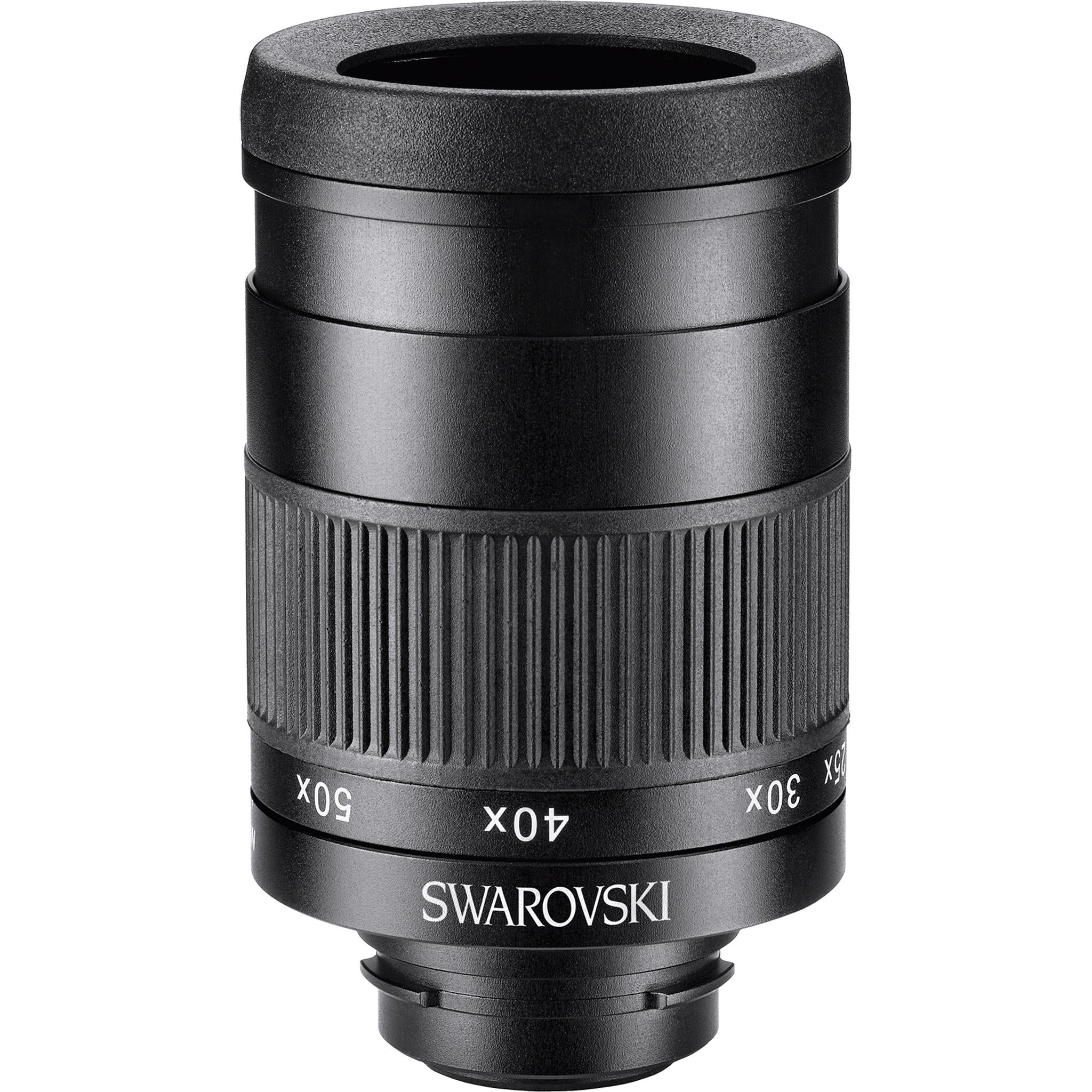

Swarovski 25-50x W Eyepiece for ATS/STS, ATM, STM, STR, CTS

Name: Swarovski 25-50x W Eyepiece for ATS/STS, ATM, STM, STR, CTS
Brand: Swarovski
SKU: BF-Z660-0245A
Price: 1250.00 NZD
Availability: InStock

SKU: BF-Z660-0245A

Swarovski 25-50x W Eyepiece for ATS/STS, ATM, STM, STR, CTS - Jacobs Digital

Our Price

$1,250.00

incl. GST excl. GST

ORDER NOW

ENJOY NOW

PAY LATER

Pay it in four interest-free payments

At checkout, select Afterpay as the payment method

No new cards, you can use your existing bank card

Complete your checkout

No long forms, online approval

Pay over four installments

Pay every 2 weeks, enjoy your purchase right away

All you need to apply is to have a debit or credit card, to be over 18 years of age, and to be a resident of New Zealand or Australia

Late fees and additional eligibility criteria apply. The first payment may be due at the time of purchase. For complete terms visit https://www.afterpay.com/terms

Shipping calculated at checkout

When will I receive it?

Learn more about this type of product

Request a price match

Have a question about this product?

Share

Print

Pickups and Delivery

In-store pickup

We don't have this item in our store right now, please allow 2-3 days for it to be transferred to our retail store.

If you come to pick up your order please bring photo ID, if someone else is picking it up on your behalf please contact us prior to pickup.

Delivery estimates

Once your order has been picked up by the courier please allow 2 working days for North Island addresses, for the South Island allow 3 working days. Rural deliveries and extra-large items may take several additional days.

Shipping costs

Shipping costs are automatically calculated during checkout. The price of shipping varies based on the delivery location. Select items may be be eligible for free shipping.

Delivery of oversize items

Oversize items such as very large telescopes may only be available via pickup from a depot or delivered to a business address. For more infomation click here. Due to less frequent collection of oversize items delivery may take 2 to 4 additional days.

Security

To ensure the safe delivery of your order we require a signature with all parcels. Some exceptions may be made if you give the courier company authority to leave parcels at your preferred address.

About this product

THE RIGHT CHOICE

With the 25-50x wide-angle eyepiece, you can enjoy viewing comfort across the entire magnification range. With a weight of only 295 g / 10.4 oz and a unique optical system with an aspherical lens for an edge-to-edge viewing experience in sharp detail, this eyepiece is also excellent for digiscoping.

With such a wide variety available, you will always be able to find a SWAROVSKI OPTIK eyepiece to suit your personal hunting needs. Eyepieces are compatible with spotting scopes in the ATS/STS range and can be quietly and easily changed at any time.

Has Swaroclean

**Swarovski 25‑50× W Zoom Eyepiece — Technical Specifications**
Parameter	Value / Range	Notes / Comments
Magnification	25 – 50×	Variable zoom eyepiece module
Exit Pupil Diameter	2.6 – 1.3 mm	When used with 65 mm objective scopes
Eye Relief	17 mm	Consistent across zoom range
Field of View (at 1000 m / ft at 1000 yd)	27 – 42 m / 89 – 138 ft	Actual values depend on zoom level
Apparent Field of View	60° – 70°	Wide‑angle immersive view
Actual Field Angle	2.4° – 1.55°	Derived from FOV and magnification
Length	86 mm (≈ 3.4 in)	Compact form factor
Weight	295 g (10.4 oz)	Lightweight design
Waterproof / Fogproof	Yes (submersible to 4 m / 13 ft)	Gas-filled, sealed
Operating Temperature Range	–25 °C to +55 °C (–13 °F to +131 °F)	Outdoor ready
Storage Temperature Range	–30 °C to +70 °C (–22 °F to +158 °F)	Long-term safe storage
Twilight Factor	40 – 55.5	Useful for low light comparison
Mounting Interface	Quick-lock bayonet system	Attaches to compatible Swarovski scope bodies
Optical Features	Aspherical lens, HD glass	Edge-to-edge clarity, minimal distortion

What It Can Be Used On (Compatible Swarovski Scopes)

ATS 65 / ATS 80 (Angled Spotting Scopes)
STS 65 / STS 80 (Straight Spotting Scopes)
ATM / STM Series (Older angled/straight models)
STR Series (Tactical / Reticle Spotting Scopes)
CTS Series (Collapsible Telescoping Spotting Scopes)
