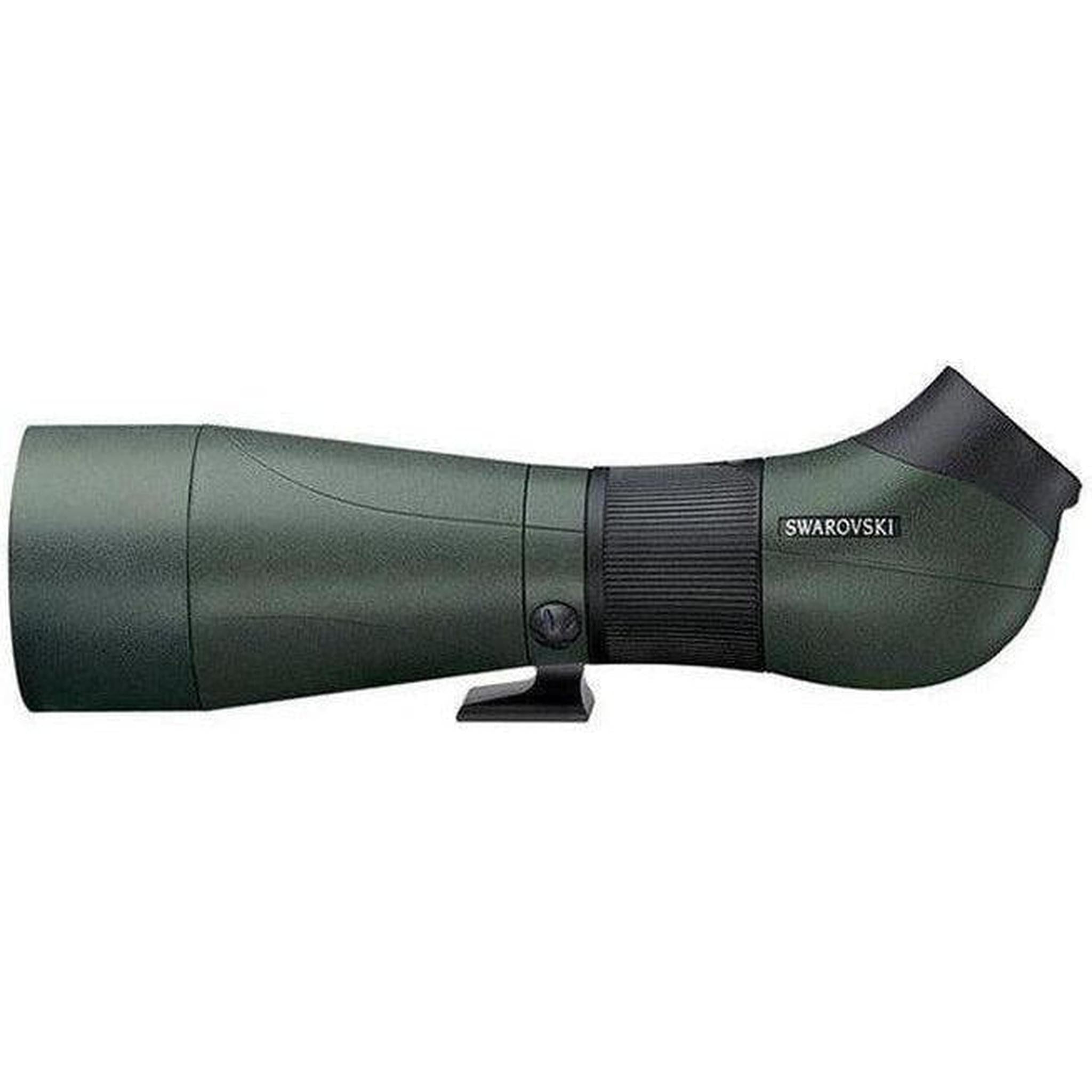

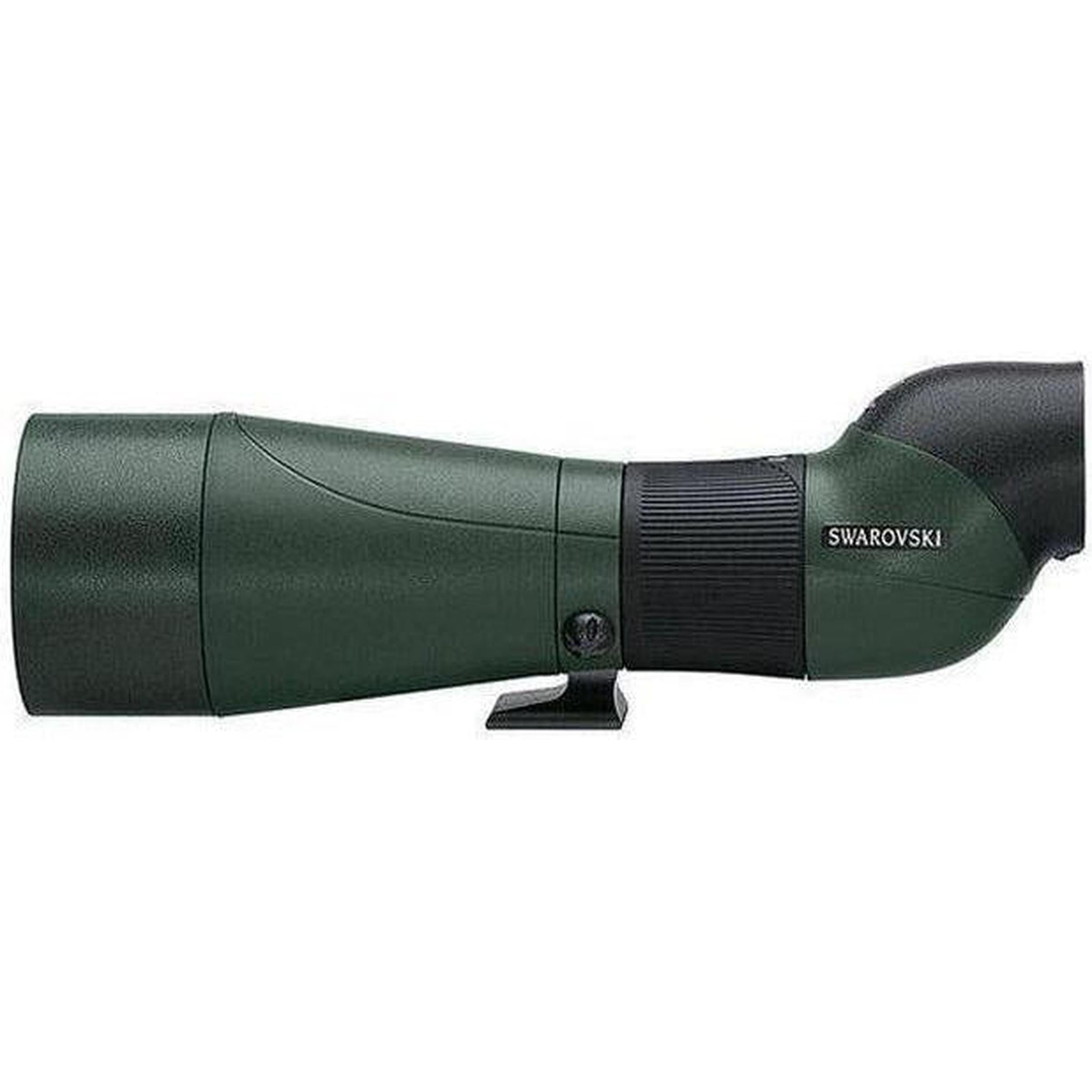

Swarovski ATS/STS 80 Spotting Scope body

SKU: BF-1X4H20-03

Swarovski ATS/STS 80 Spotting Scope body - Jacobs Digital
Swarovski ATS/STS 80 Spotting Scope body - Jacobs Digital

Our Price

$4,020.00

$4,020.00

Green truck Usually ships in 3-6 weeks An order for this can be placed with our supplier, and usually ships within the specified timeframe.



Loading

3000

402000

Shipping calculated at checkout

When will I receive it?

About this product

Anyone looking for equipment of proven quality right from the start will be delighted by the spotting scopes in the ATS/STS range. They offer all the features that you would look for in a spotting scope, including a large field of view for rapid target acquisition and tried-and-tested optics. The (straight or angled) view can be adjusted to meet personal preferences for any hunting situation.

Eyepiece not included.

Objective

The objective lens diameter specifies how much light can enter the optics. This makes it a key factor in an instrument’s performance, for example, in twilight. The bigger the objective lens diameter, the more light the objective lens can capture. The darker the surroundings, the larger the objective lens diameter needs to be. Check the precise product name as the number after the ‘x’ specifies the objective lens diameter in millimeters. For example, a device with the suffix 10x42 has an objective lens with a diameter of 42 mm.

Magnification

Variable magnification makes it possible to adjust the magnification flexibly within a specific range. In contrast to fixed magnification, it allows you to zoom from the lower value to the higher value. However, as the magnification increases, the field of view, i.e. the image section, becomes smaller. Check the precise product name as the number in front of the ‘x’ specifies the magnification. For example, 30-70x95 is a device with a variable magnification from 30x to 70x.

Weight

The weight specifies how heavy or light the device is (in grams or ounces). Do you intend to do a lot of walking? Lightweight equipment is a priority in this case.


Sold out

Sold out

Specifications

TECHNICAL DATA
Effective objective lens diameter (mm) 80
Eye relief (mm) 17
Shortest focusing distance (ft / m) 16.4 / 5
Diopter correction at ∞ (dpt) > 5
Objective filter thread M 82 x 0.75
Functional temperature -13 °F to +131 °F (-25 °C to +55 °C)
Storage temperature -22 °F to +158 °F (-30 °C to +70 °C)
Submersion tightness 13 ft (4m) water depth (inert gas filling)

TECHNICAL DATA ATS/STS WITH 25-50x Eyepiece (Eyepiece not included)
25-50X Magnification 25-50x
Exit pupil diameter (mm) 3.2-1.6
Field of view (ft/1000 yds/m/1000 m) 126-81 ft / 42-27 m
Field of view (degrees) 2.4-1.55
Field of view for spectacle wearers (degrees) 2.4-1.55
Field of view. apparent (degrees) 60-70
Light transmission (%) total product 85
Weight angled view (oz/g) 59.1 / 1675
Length angled view (in / mm) 15.8 / 400
Focal length with TLS APO (mm) 750-1500

TECHNICAL DATA ATS/STS WITH 20-60X Eyepiece (Eyepiece not included) Magnification 20-60x
Exit pupil diameter (mm) 4.0-1.3
Field of view (ft/1000 yds / m/1000 m) 108-60 / 36-20
Field of view (degrees) 2.1-1.1
Field of view for spectacle wearers (degrees) 2.1-1.1
Field of view. apparent (degrees) 40-65
Light transmission (%) total product 86
Weight angled view (oz / g) 57.8 / 1640
Length angled view (in / mm) 15.8 / 400
Focal length with TLS APO (mm) 600-1800
