Vortex Mountain Pass Tripod

SKU: VOTRMTP

Vortex Mountain Pass Tripod - Jacobs Digital
Vortex Mountain Pass Tripod - Jacobs Digital
Vortex Mountain Pass Tripod - Jacobs Digital
Vortex Mountain Pass Tripod - Jacobs Digital
Vortex Mountain Pass Tripod - Jacobs Digital
Vortex Mountain Pass Tripod - Jacobs Digital
Vortex Mountain Pass Tripod - Jacobs Digital

Our Price

$328.99

$328.99


Loading

2000

32899

Shipping calculated at checkout

When will I receive it?

About this product

The Vortex Mountain Pass Tripod Kit TR-MTP is a compact aluminium tripod and two-way pan head built for seated glassing, wildlife observation, birdwatching, hunting, range spotting and camera use. It supports equipment up to 10 kg while the complete tripod weighs 1.39 kg. Four-section legs, three independent leg angles, flip-lever locks, an Arca-Swiss compatible quick-release mount, a two-piece centre column, detachable counterweight hook and rubber feet provide fast, stable setup across varied terrain. Operating height adjusts from 22.9 cm to 142.2 cm and the tripod folds to 48.3 × 10.2 cm. Includes quick-release plate, packing strap, carry case and 1.3 mm hex key. Covered by the Vortex VIP Unlimited, Unconditional, Lifetime Warranty, subject to current manufacturer terms.
Mountain Pass™ · TR-MTP · Aluminium tripod + pan head

Built to move with the view.Vortex Mountain Pass Tripod Kit

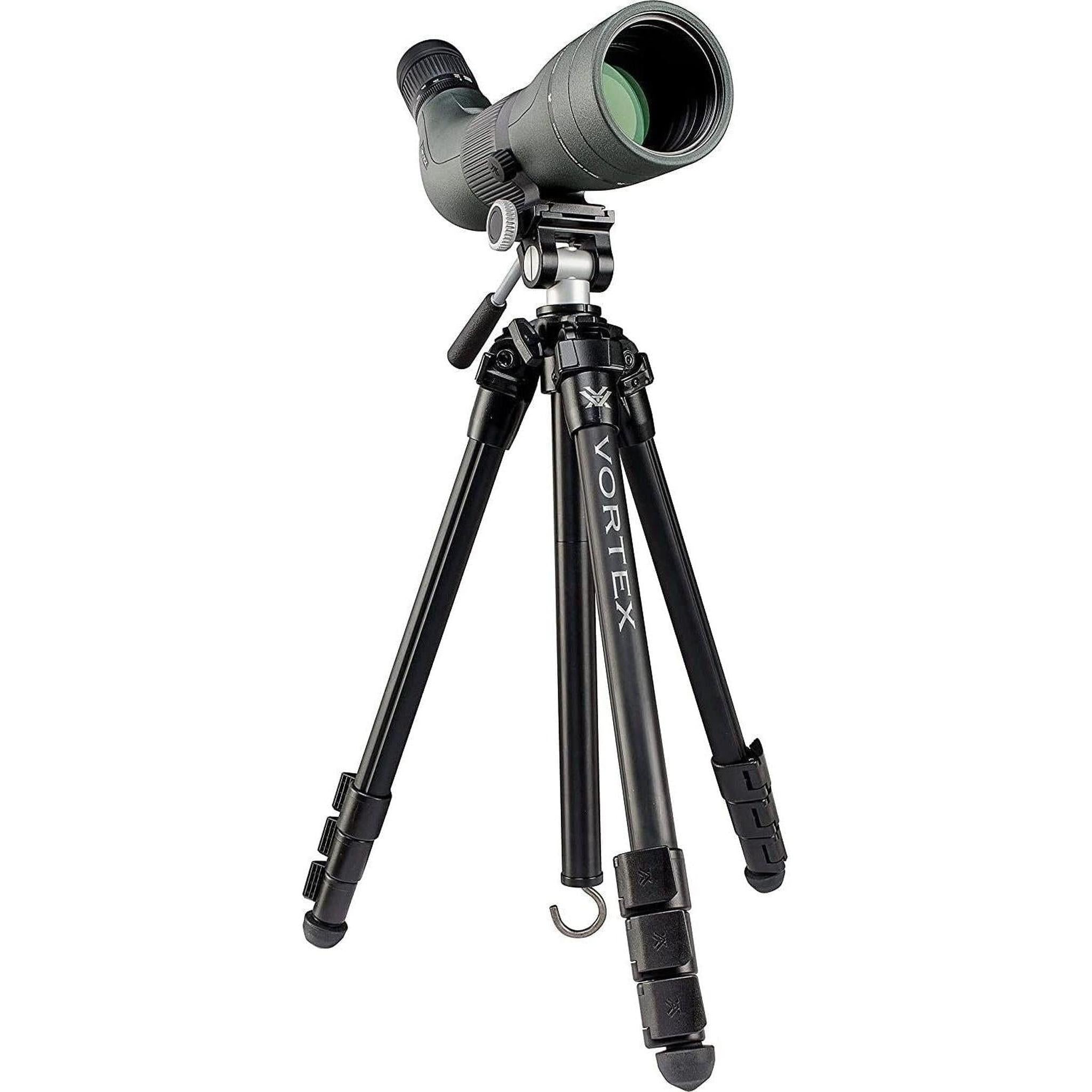

Purpose-built for glassing far from the truck, Mountain Pass balances packability, stability and value. Its machined-aluminium legs support large binoculars and spotting scopes, while the two-way pan-and-tilt head gives you smooth, intuitive control when wildlife moves or the next detail appears across the valley.

Seated glassing Wildlife observation Range spotting Arca-Swiss compatible

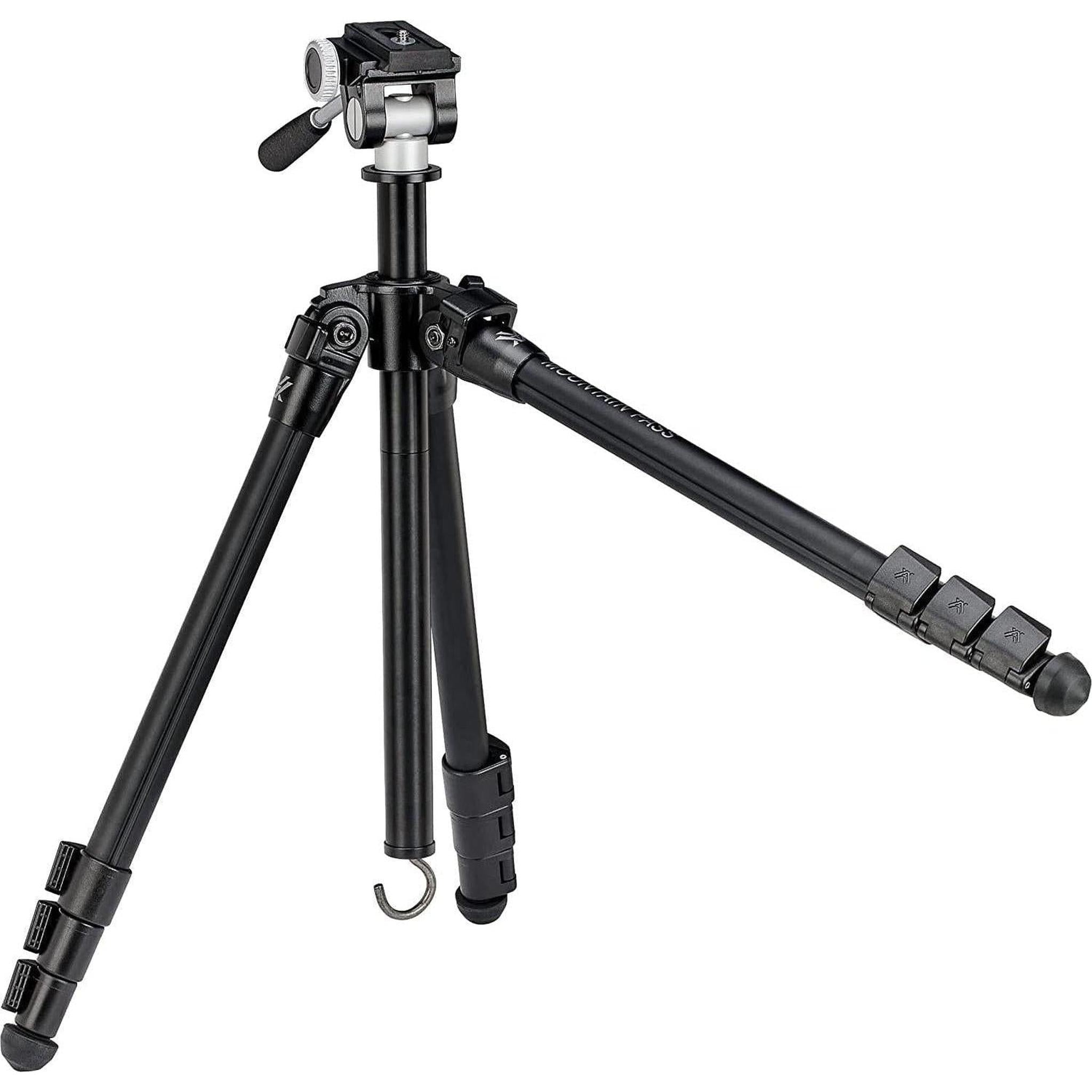

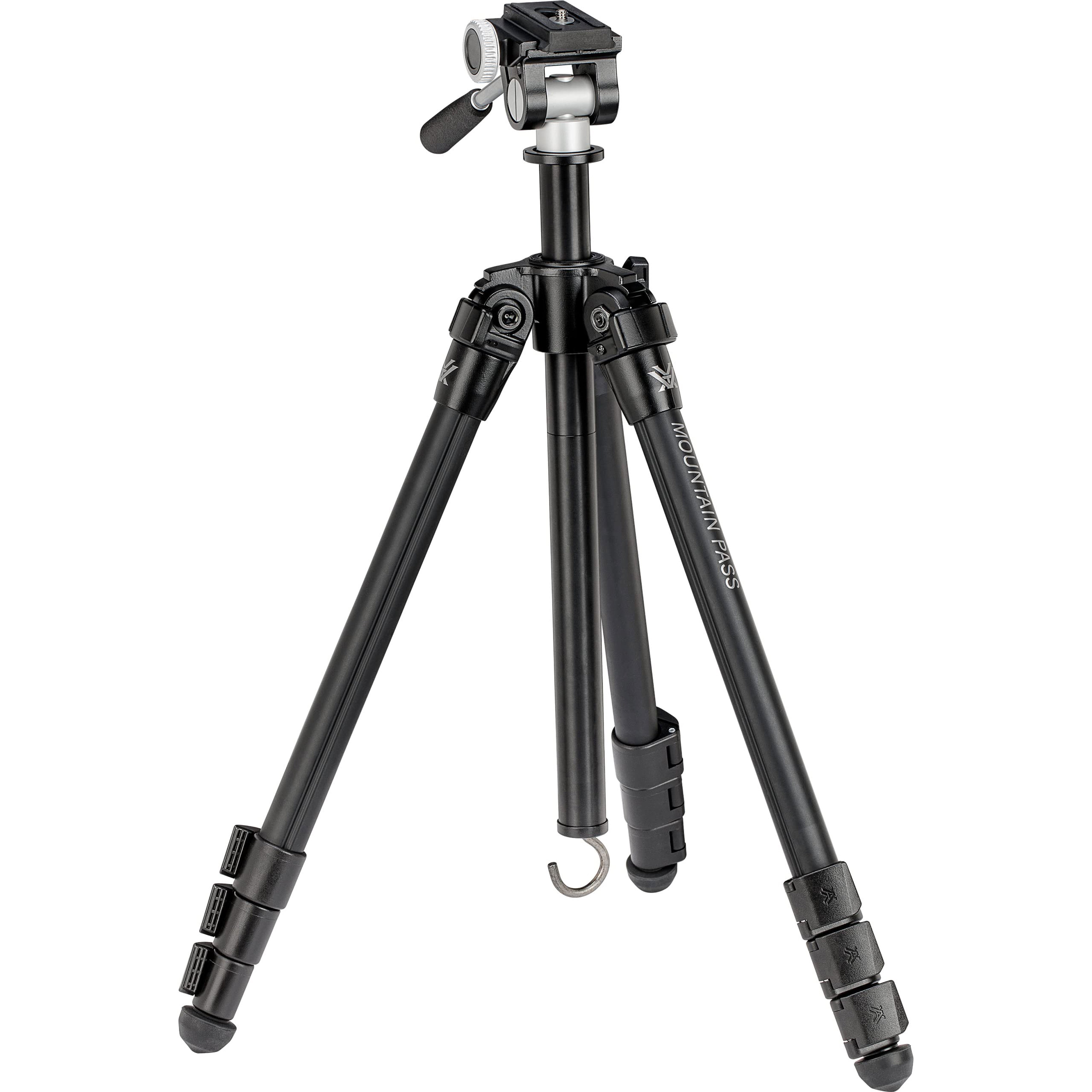

Vortex Mountain Pass aluminium tripod kit TR-MTP extended on a white background, showing the two-way pan head, Arca-Swiss compatible mounting plate, four-section legs, flip-lever locks, rubber feet and detachable counterweight hook 10 kgmaximum supported load
Tripod weight 1.39 kg Packable aluminium construction.
Operating height 22.9-142.2 cm Low seated setups through to full-height viewing.

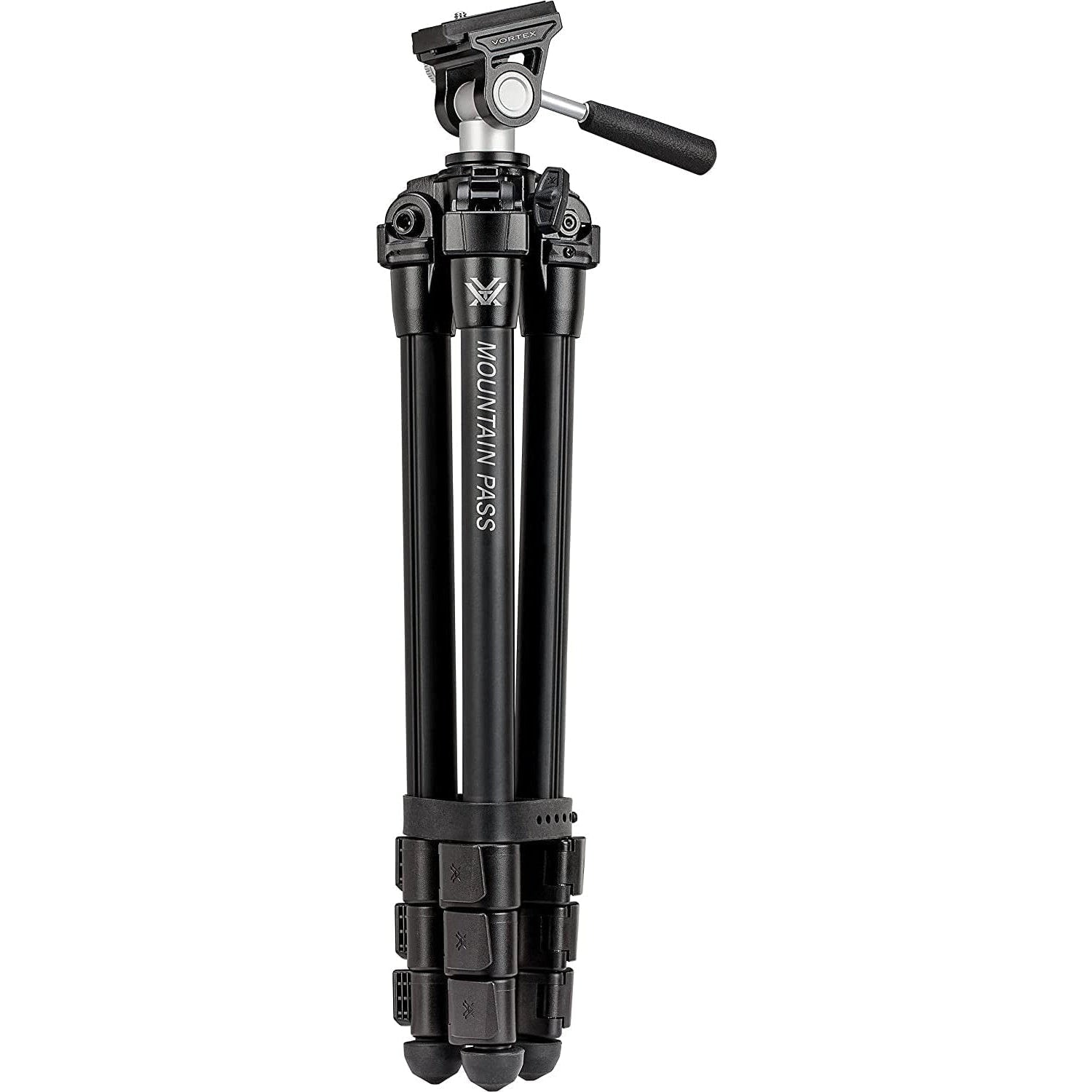

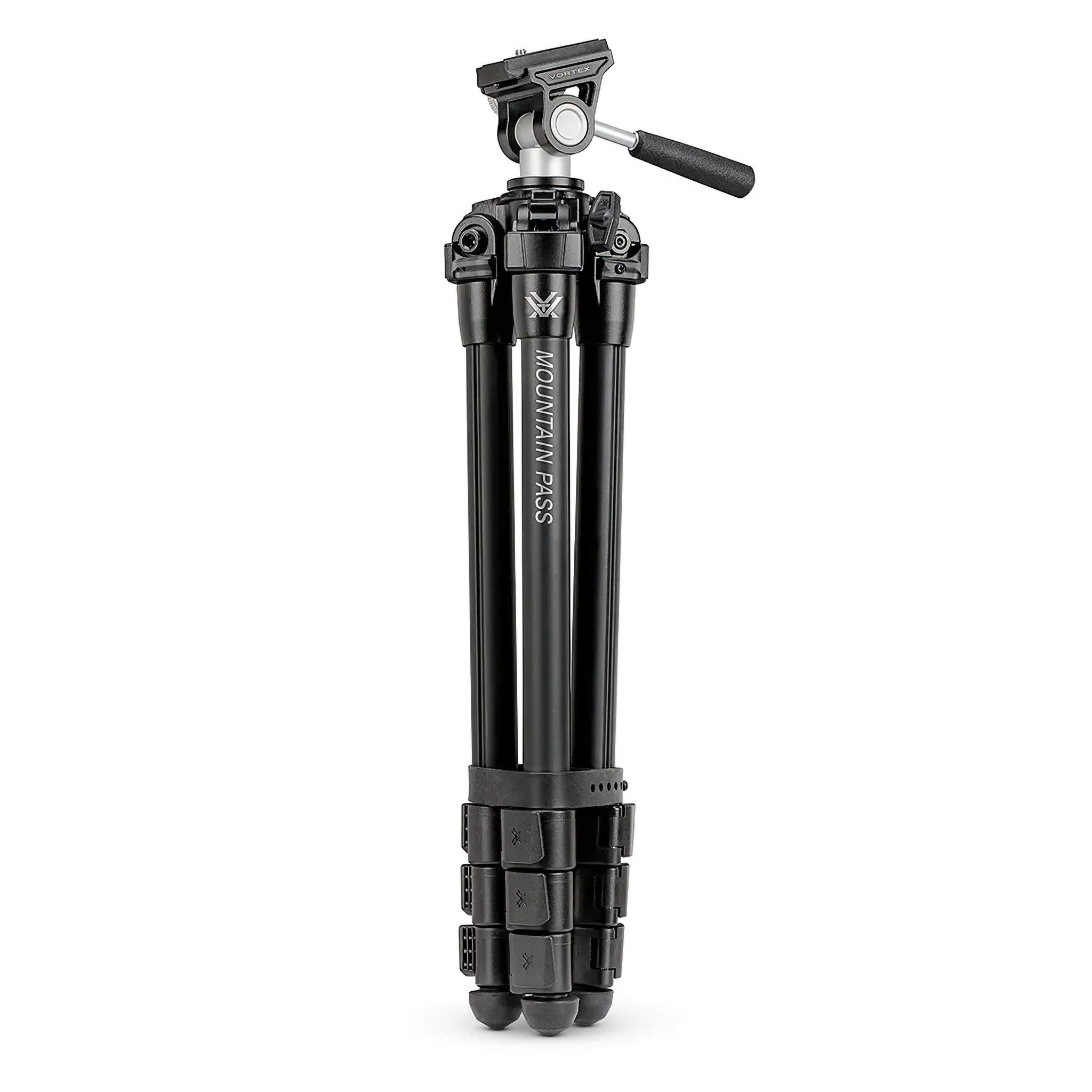

Folded size 48.3 × 10.2 cm Compact enough for transport and field storage.
Leg system 4 sections · 3 angles Independent positioning with quick flip-lever locks.
Packability without the compromise

A steady platform for serious glassing.

Mountain Pass is made for the moments when hand-held viewing is no longer enough: identifying distant wildlife, reading detail through a spotting scope, following movement across open country, or holding a camera precisely on a scene.

  • Two-way pan-and-tilt head

    Simple handle control releases the head for movement, adds panning resistance or locks the view in place. The result is controlled scanning without a complicated set of controls.

  • Arca-Swiss compatible mount

    The supplied quick-release plate makes it easy to attach compatible optics and cameras, while some Arca-Swiss compatible optics can mount directly to the head.

  • Machined-aluminium support

    A 1.39 kg tripod supports equipment up to 10 kg, giving larger spotting scopes and binocular setups a secure platform without moving into a bulky studio-style system.

  • Independent four-section legs

    Each leg extends independently with flip-lever locks and can be set to one of three angles for low viewing positions, sloping ground or a wider stance.

  • Stability when conditions change

    Rubber feet hold on smooth surfaces, and the detachable hook below the centre column accepts additional ballast when wind or uneven terrain demands more stability.

Official Vortex video

Meet Mountain Pass.

See the compact aluminium build, two-way head and field-ready leg system designed to keep glass stable without weighing down the rest of your kit.

Open the official video with controls
Mapped controls and connection points

Know every working part.

Tap a numbered marker to jump to its explanation, or use the complete key below the image. The map remains fully usable without scripts.

Eight numbered links identify the major controls and support features on the Vortex Mountain Pass tripod.

  1. Arca-Swiss compatible quick-release plate

    Remove the plate with the side locking knob, secure the plate to a compatible optic or camera, then return it to the head and tighten the knob.

  2. Two-way pan-and-tilt head

    Provides a controlled vertical tilt and smooth horizontal scan for following wildlife, surveying a landscape or positioning a camera.

  3. Two-piece centre column

    Raises the head by up to 28.7 cm. The lower column section can be removed when the tripod needs to work closer to the ground.

  4. Three-angle leg pivot locks

    Set each leg independently to 25°, 49° or 70° for low setups, a broader footprint or uneven ground.

  5. Flip-lever leg locks

    Release, extend and secure each telescoping leg section quickly. Independent adjustment helps keep the head positioned correctly on changing terrain.

  6. Detachable counterweight hook

    Hang suitable ballast beneath the centre column to increase stability in windy conditions. The hook unscrews with the lower centre-column section.

  7. Rubber feet

    Provide a secure contact point on smooth and hard surfaces while helping protect floors and delicate ground.

  8. Tilt and panning locking handle

    Turn counter-clockwise to free the head. Turn clockwise to add the desired resistance or lock the view in place.

Binocular mounting note: binoculars require a compatible binocular tripod adapter, sold separately. A spotting scope or camera with a suitable mounting interface can use the supplied plate, while some Arca-Swiss compatible optics can attach directly.
Fast field setup

From packed to on target.

The controls are deliberately simple, so height, stance and head movement can be adjusted without taking attention away from the view.

Close view of the Vortex Mountain Pass two-way pan head showing the tilt and panning locking handle turning to release or secure movement
Head control

Set tilt and panning resistance.

  1. Turn the handle counter-clockwise until the head moves freely.
  2. Position the optic at the desired angle.
  3. Turn clockwise to add controlled resistance for panning or continue until the head is locked.
Close view of a Vortex Mountain Pass tripod leg-angle pivot lock showing how it pulls outward to unlock and pushes inward to lock
Leg stance

Choose one of three leg angles.

  1. Pull the leg-angle pivot lock outward.
  2. Move the leg toward the required 25°, 49° or 70° position.
  3. Push the pivot lock back in and move the leg to the nearest positive angle stop.
Close view of a Vortex Mountain Pass tripod flip-lever leg lock showing the unlocked and locked directions for changing leg length
Working height

Extend each leg independently.

  1. Flip a leg lock open.
  2. Slide that section to the desired length.
  3. Close the lever fully, then repeat as needed for the remaining sections and legs.
Vortex Mountain Pass Arca-Swiss compatible head showing the quick-release locking knob, quick-release plate and optic mounting bolt
Optic connection

Secure the quick-release plate.

  1. Turn the side locking knob counter-clockwise and remove the plate.
  2. Attach the plate firmly to the compatible optic or camera and fold its D-ring flat.
  3. Seat the plate back in the head, then turn the locking knob clockwise until secure.
Operating envelope

Low, tall and ready to travel.

Three independent leg angles and a two-piece centre column give Mountain Pass a broad working range without sacrificing a compact packed profile.

Minimum operating height22.9 cm

Useful for seated observation, low camera positions and a wide, stable stance.

Maximum operating height142.2 cm

Raises the optic for standing or elevated viewing while retaining full head control.

Maximum centre-column extension28.7 cm

Fine-tunes viewing height after the legs are placed. For best stability, extend the legs before raising the centre column more than necessary.

Folded dimensions48.3 × 10.2 cm

A slim packed footprint for a vehicle, gear room or suitable field pack.

Complete tripod kit

What is in the box.

The core support, head and transport accessories are supplied together so the tripod can be configured for compatible optics or camera equipment.

  • Mountain Pass aluminium tripod with four-section legs, three-angle pivot locks, flip-lever locks and rubber feet
  • Two-way pan-and-tilt head with removable locking handle
  • Arca-Swiss compatible quick-release plate with standard camera mounting screw
  • Detachable counterweight hook beneath the two-piece centre column
  • Rubber leg-packing strap for compact transport
  • Mountain Pass carry case
  • 1.3 mm hex key for the tripod-head retaining screw
  • Product manual
Technical data

Vortex Mountain Pass Tripod Kit specifications.

A complete metric reference for model identification, operating range, construction, controls, supplied accessories and warranty.

Identification
Product name
Vortex Mountain Pass™ Tripod Kit
Model
TR-MTP
Product type
Aluminium tripod with two-way pan-and-tilt head
Colour
Black with silver head components
GTIN
00843829129282
Capacity and dimensions
Maximum supported load
10 kg
Tripod weight
1.39 kg
Maximum operating height
142.2 cm
Minimum operating height
22.9 cm
Maximum centre-column extension
28.7 cm
Folded dimensions
48.3 cm high × 10.2 cm wide
Legs and stability
Leg material
Aluminium
Number of legs
3, independently positionable
Leg sections
4 sections per leg
Leg angles
3 positive positions: 25°, 49° and 70°
Leg-lock type
Flip lever
Feet
Rubber
Additional stability
Detachable counterweight hook
Head and mounting
Head type
Two-way pan-and-tilt head
Head control
Single locking handle for movement, resistance and locking
Head mount
Arca-Swiss compatible quick-release system
Supplied plate
Removable Arca-Swiss compatible quick-release plate with standard camera mounting screw and folding D-ring
Centre column
Two-piece, height adjustable, with removable lower section
Binocular mounting
Requires a compatible binocular tripod adapter, sold separately
Supplied accessories and support
Included accessories
Quick-release plate, rubber packing strap, detachable counterweight hook, carry case, 1.3 mm hex key and product manual
Manufacturer warranty
Vortex VIP® Unlimited, Unconditional, Lifetime Warranty, subject to current manufacturer terms and exclusions
Vortex VIP® Warranty

Unlimited. Unconditional.Lifetime Warranty.

If your Vortex product becomes damaged or defective, Vortex promises to repair or replace it at no charge under its current VIP Warranty policy.

The VIP Warranty does not cover loss, theft, deliberate damage or cosmetic damage that does not hinder product performance. Warranty terms can be updated by Vortex; refer to the current manufacturer policy for complete coverage and service information.

Product information and measurements are based on current Vortex manufacturer material for model TR-MTP. Product presentation and manufacturer terms may change without notice.
