XP ICON 28FMF Metal Detector with WSA-ST Stereo Headphones

Name: XP ICON 28FMF Metal Detector with WSA-ST Stereo Headphones
Brand: XP
SKU: ICON-28FMFRCWSAST
Price: 999.00 NZD
Availability: InStock

SKU: ICON-28FMFRCWSAST

FLASH SALE PRICE

$999.00

incl. GST excl. GST

This sale ends in --:--:--:--

ORDER NOW

ENJOY NOW

PAY LATER

Pay it in four interest-free payments

At checkout, select Afterpay as the payment method

No new cards, you can use your existing bank card

Complete your checkout

No long forms, online approval

Pay over four installments

Pay every 2 weeks, enjoy your purchase right away

All you need to apply is to have a debit or credit card, to be over 18 years of age, and to be a resident of New Zealand or Australia

Late fees and additional eligibility criteria apply. The first payment may be due at the time of purchase. For complete terms visit https://www.afterpay.com/terms

More on the way

Estimated time of arrival:

Shipping calculated at checkout

When will I receive it?

Request a price match

Have a question about this product?

Pickups and Delivery

In-store pickup

We don't have this item in our store right now, please allow for it to be transferred to our retail store.

If you come to pick up your order please bring photo ID, if someone else is picking it up on your behalf please contact us prior to pickup.

Delivery estimates

Once your order has been picked up by the courier please allow 2 working days for North Island addresses, for the South Island allow 3 working days. Rural deliveries and extra-large items may take several additional days.

Shipping costs

Shipping costs are automatically calculated during checkout. The price of shipping varies based on the delivery location. Select items may be be eligible for free shipping.

Delivery of oversize items

Oversize items such as very large telescopes may only be available via pickup from a depot or delivered to a business address. For more infomation click here. Due to less frequent collection of oversize items delivery may take 2 to 4 additional days.

Security

To ensure the safe delivery of your order we require a signature with all parcels. Some exceptions may be made if you give the courier company authority to leave parcels at your preferred address.

About this product

Buy the XP ICON 28FMF RC metal detector with WSA ST wireless stereo headphones in New Zealand. SKU ICON-28FMFRCWSAST combines XP FMF® simultaneous multi-frequency detection, a versatile 28 cm / 11-inch FMF search coil, ICON remote control, blue S-Telescopic Lite stem and lightweight WSA ST headphones. It offers three ready-to-use factory programmes plus three user slots, 4 kHz and 14 kHz mono choices, five reactivity levels, 28-segment Multi-Notch, advanced PWM and Square audio, visual and audio pinpointing, an approximately 11-hour system runtime and USB updates. The detector weighs approximately 845 g with its remote fitted, folds to approximately 58 cm and supports fields, parks, beaches, pasture and general treasure hunting. IP68 use to 5 m requires the optional XP BH-02 bone-conduction headphones and waveguide; the included WSA ST headphones are rainproof, not submersible.

Designed to detect. Built to explore.

ICON

28FMF RC + WSA ST

XP’s fast, fully wireless multi-frequency platform in a complete 11-inch package—simple enough to switch on and hunt, capable enough to tune as your experience grows.

FMF® simultaneous multi-frequency 28 cm / 11-inch coil WSA ST stereo included Made in France

WSA ST Wireless stereo pack included

~845 gDetector with remote

~11 hSystem runtime

~4 msWireless latency

5 mIP68 with BH-02*

28 cmIncluded FMF coil

XP ICON overview

Power without the learning wall.

The ICON brings proven XP FMF processing into a streamlined detector that is ready in two steps: power on, choose a programme. Its remote, coil and headphones communicate over XP’s ultra-low-latency wireless link, so there is no coil cable to snag and no Bluetooth delay between the target and your ears.

✓Three factory programmes

✓Three saved user programmes

✓Sun-readable LCD

✓USB software updates

Official XP presentation

SKU ICON-28FMFRCWSAST

The exact package, mapped.

This is the standard ICON—not ICON-X—paired with the 28 cm FMF coil and the compact WSA ST stereo headset. Every major component is rechargeable and built to work as one wireless system.

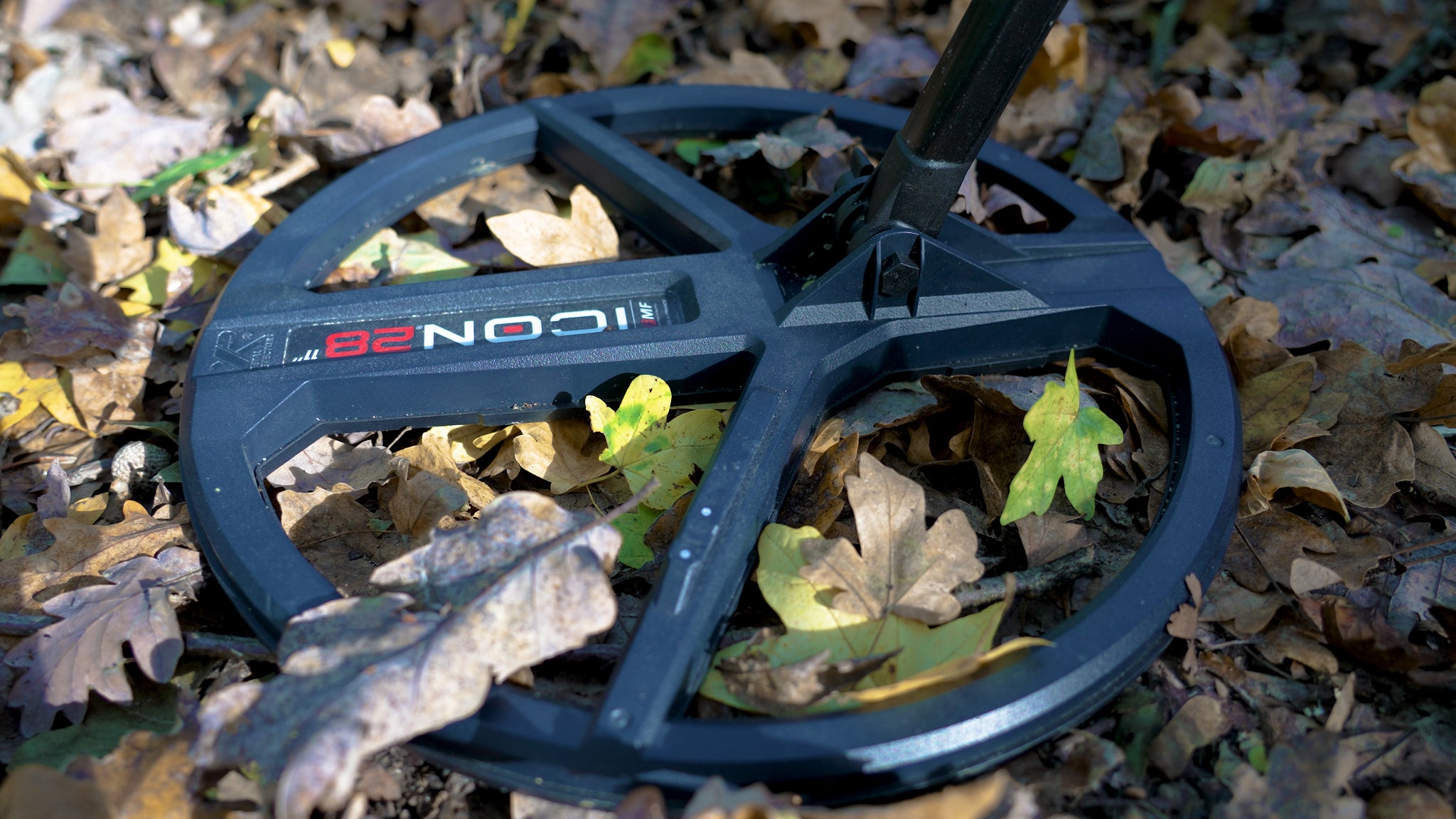

ICON28 FMF coil28 cm / 11-inch coil with cover and carbon lower stem.

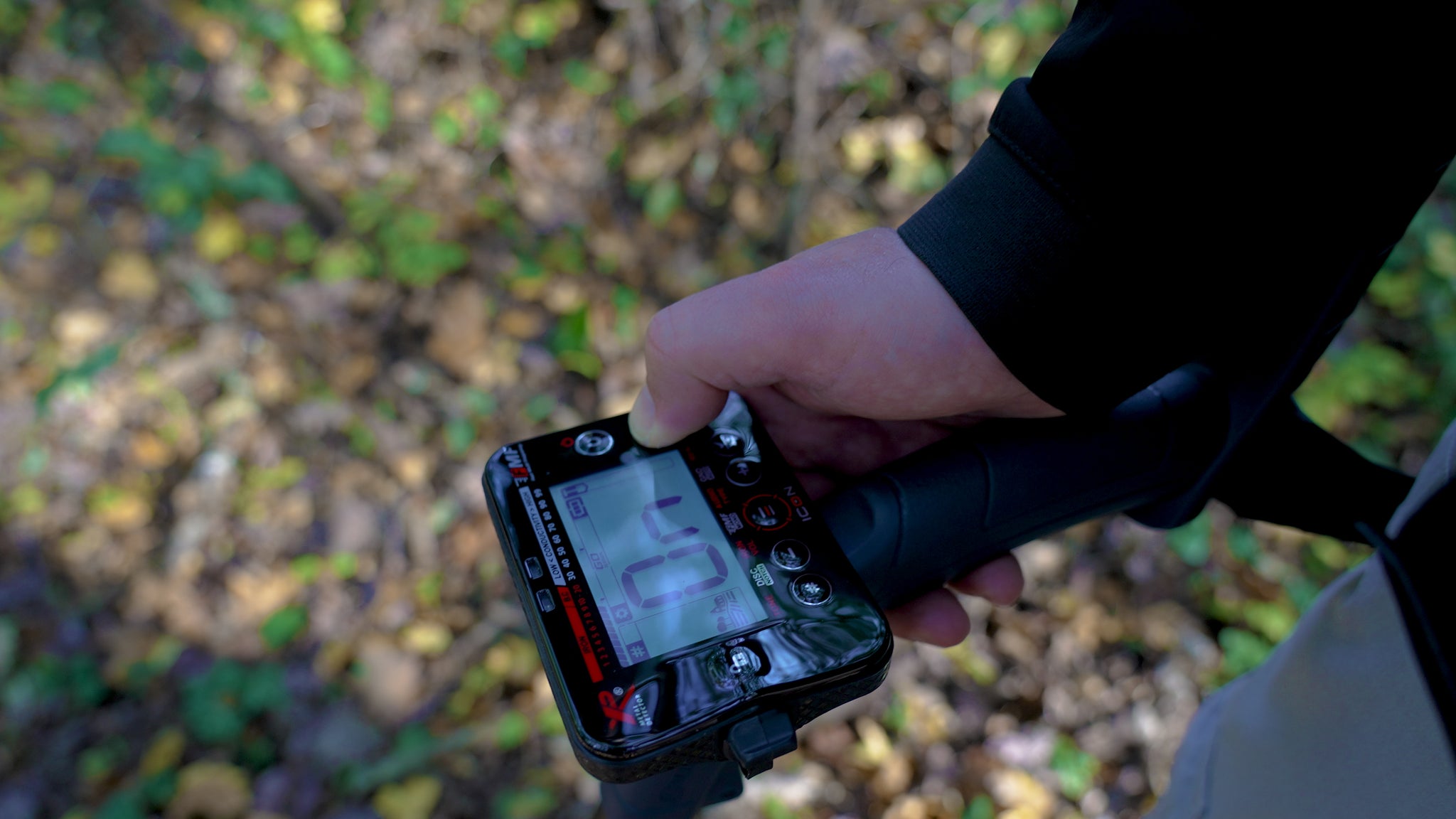

ICON remoteSun-readable display, three factory programmes and three user slots.

S-Telescopic LiteBlue telescopic stem, approximately 58–130 cm.

WSA ST headphonesWireless stereo, 72 g, foldable and rainproof.

01 02 03 04

Fast Multi Frequency

One sweep. A wider target picture.

FMF® programmes process multiple frequencies simultaneously instead of making you choose one before the hunt. Lower frequencies favour larger, higher-conductive targets; higher frequencies improve response to small and lower-conductive targets. ICON combines both in its factory programmes, with selected programme ranges extending up to 40 kHz.

FMFSimultaneous multi-frequency with automatic or manual frequency shift.

4 / 14 kHzSelectable mono frequencies when a single-frequency approach is useful.

Programme-dependent FMF spectrumIllustrative coverage

4714212840 kHz

Lower rangeCoverage and larger conductors

Mid rangeBalanced general detecting

Higher rangeSmall and low conductors

Three factory programmes

Choose the ground. Start detecting.

ICON keeps the programme list deliberately focused. Each factory profile starts from a tuned combination of FMF range, reactivity, audio and rejection settings; each can also become the basis for one saved user programme.

Programme 01

Field

The general-purpose profile for cleaner land, pasture and ploughed fields, with processing designed to reduce the effect of soil moisture.

Programme 02

Park

Tuned for coins and worthwhile targets in recreational areas where foil, bottle caps and modern iron trash are common.

Programme 03

Beach & Surf

A stable marine profile for dry sand, wet salt zones and surf, while retaining useful sensitivity across target sizes.

Three user programme slotsFine-tune a factory profile, then save one custom version for each factory programme.

U1U2U3

Built for the full hunt

From first signal to the next site.

Official XP field imagery shows the details that matter in use: a readable remote, a coil that can work the surf, and a compact telescopic system that is easy to carry between locations.

Detectorists carrying XP ICON metal detectors along a field track — **Light enough to keep going**Approximately 845 g with the remote fitted; around 735 g when the remote is removed from the stem.

Cut through the ironFive reactivity levels, adjustable discrimination, iron volume and bottle-cap handling help reveal nearby non-ferrous responses.

Stable across the beachFMF processing is designed for changing conductivity from dry sand through wet salt and surf zones.

XP detectorist carrying a compact detector and backpack through woodland — **Packable between sites**The S-shaped telescopic stem collapses to approximately 58 cm for transport.

Lightweight build Iron separation Beach stability Compact travel

Target identification

See the target. Hear the context.

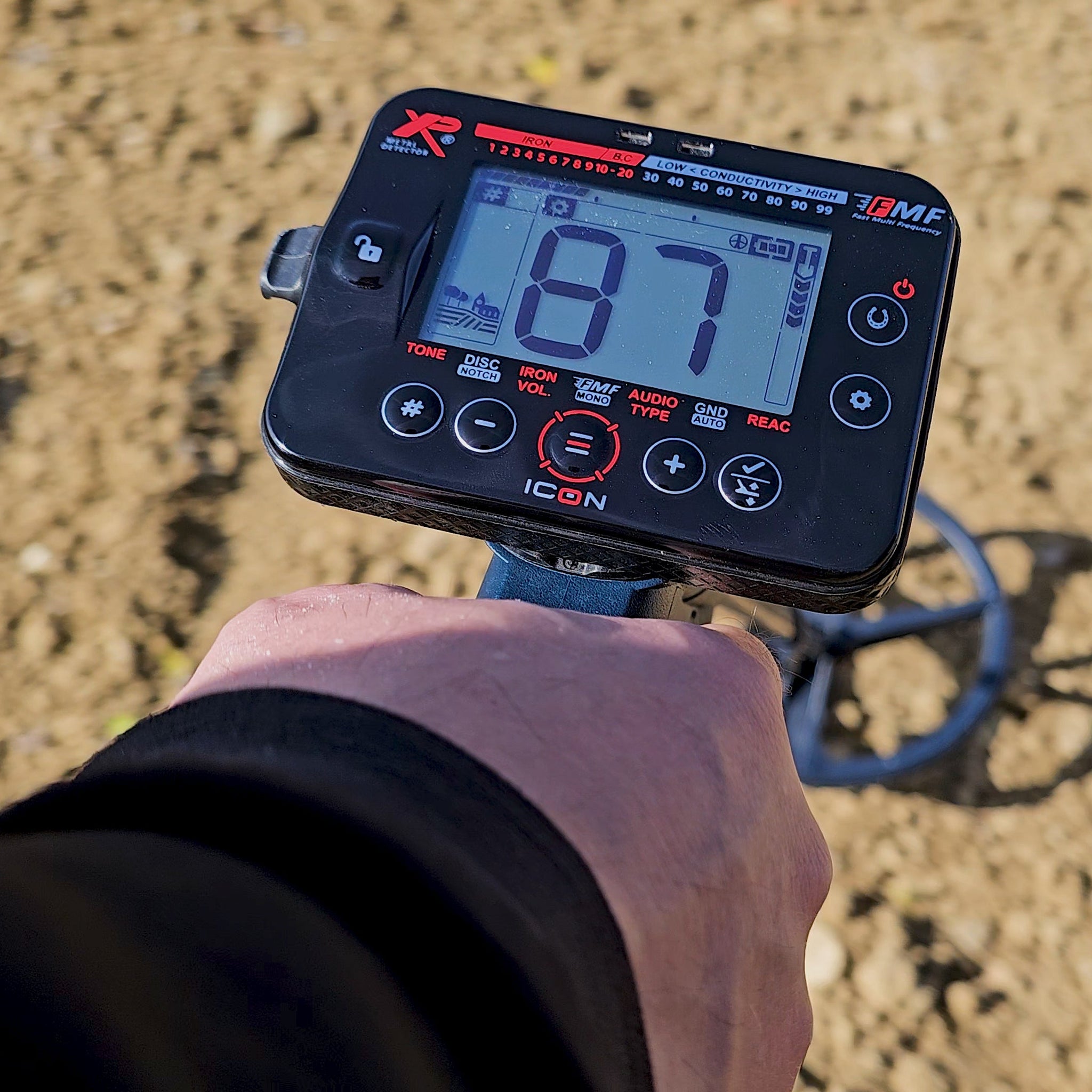

The large LCD pairs a numeric Target ID with a 28-segment conductivity and notch bar. Discrimination rejects everything below a selected threshold; Multi-Notch can silence a narrower conductivity window while retaining targets above and below it.

GroundIron / B.C.Low to high conductivity

−6010203050709099

−6 to 0Ground, ferrite and very small ferrous responses.

1 to 20Ferrous items and common ferrous bottle-cap zone.

30 to 60Foil, jewellery, thin coins and lower-conductive alloys.

70 to 99Bronze, silver, copper and higher-conductive targets.

Target IDs are indicative, not a guarantee of target type. Size, orientation, depth, corrosion, mineralisation and nearby metal can shift the response.

Information at a glanceTarget ID, conductivity bar, depth gauge, programme, ground tracking and battery status.

Advanced target audio

Build the sound language you trust.

Choose a familiar category-based tone layout or a more continuous response. ICON gives you XP’s dynamic PWM character, the softer Square profile and Stereo Audio Morphing for extra surface-target information through compatible stereo headphones.

2, 3 or 5 tones

Sort conductivity groups into a small number of memorable audio categories.

Full Tones

Pitch rises in proportion to Target ID, giving each conductivity value its own audible place.

Pitch mode

Signal strength changes pitch and volume for a fast, dynamic sense of target size and proximity.

PWM or Square

Choose XP’s harmonic, informative PWM sound or a softer Square profile with fixed harmonics.

Stereo Audio Morphing

A secondary sound overlays shallow surface targets, with a subtle stereo chorus effect to make their character easier to recognise through the included WSA ST.

Adjustable recovery speed

Five levels of target separation.

Reactivity controls how quickly ICON analyses successive targets. Higher values help separate good responses beside iron or dense modern trash; lower values extend the response and can favour depth in cleaner ground.

1Clean

2Open

3Mixed

4Busy

5Trashy

Lower reactivityLonger responses and stronger depth emphasis for cleaner sites.

Higher reactivityFaster recovery and improved separation where targets are close together.

WSA ST wireless stereo

The faint response stays connected.

WSA ST uses XP’s proprietary radio system rather than ordinary Bluetooth, keeping audio closely aligned with the coil position. The headset pairs to the remote, powers on and off with the detector, folds for transport and lets you adjust volume directly at the ear.

~72 gCompact, foldable backphone design

StereoSupports ICON Stereo Audio Morphing

10 levelsDirectly adjustable volume

4-band EQAdjustable from compatible XP controls

USB-CRechargeable with automatic power management

RainproofSuitable for land, beach wind and poor weather

Important: WSA ST is rainproof, not a diving headset. Full underwater listening requires the optional XP BH-02 bone-conduction headphones and the appropriate waveguide.

Included

XP Go Terrain compatible

Turn a hunt into a searchable record.

Connect ICON to the XP Go Terrain smartphone app to map a detected area with your phone’s GPS, view targets along the route and record finds. ICON can send targets automatically as they are detected or manually when you choose.

01PairConnect the remote to the Go Terrain app.

02TrackRecord your route using the smartphone’s GPS.

03ReviewLog targets, revisit finds and share sessions.

GO TERRAINLIVE SESSION

42 78 91

Route and finds recordedUse smartphone GPS to review your coverage and logged targets.

Land, rain and water

Waterproof platform. The right audio matters.

ICON is IP68 rated for submersion to 5 m for up to 30 minutes when configured with XP’s required underwater accessories. For normal land and beach use, this package’s WSA ST keeps the setup wireless and rainproof.

Included WSA STRainproof wireless stereo audio for land, wet weather and beach use above water.

Optional BH-02Required with the waveguide for full underwater use to the detector’s 5 m rating.

For underwater use, fit the correct waveguide and keep the BH-02 connected. After immersion, rinse with fresh water, dry the connection area fully and follow the official manual before resealing the USB-C cap.

What’s in the box

A complete wireless detecting package.

The ICON-28FMFRCWSAST configuration includes the detector’s four core wireless components, plus the fitting and charging accessories needed to assemble and recharge the system.

D28FMFICICON28 11-inch FMF coil28 cm wireless coil with coil cover, lower stem and fitting hardware.

ICON-RCICON remote controlWaterproof, rechargeable control with LCD screen and detachable stem mount.

D044LITE-BBlue S-Telescopic Lite stemS-shaped telescopic stem, approximately 58 cm folded and 130 cm extended.

WSASTWSA ST wireless headphonesCompact 72 g stereo backphones with USB-C charging and rainproof construction.

Also suppliedThree-output charging/data cable, coil charging clip, coil mounting kit and XP quick-start/user documentation.

Comprehensive specifications

XP ICON 28FMF RC + WSA ST

Specifications below apply to SKU ICON-28FMFRCWSAST. Approximate figures can vary with settings, audio output, battery condition and operating environment.

Product and physical

Product: XP ICON 28FMF RC Metal Detector with WSA ST
SKU: ICON-28FMFRCWSAST
Detector format: Fully wireless, rechargeable, simultaneous multi-frequency
Included coil: ICON28 FMF, 28 cm / 11 inch, with coil cover
Stem: Blue S-Telescopic Lite, fully telescopic S-shape
Folded / extended: Approximately 58 cm / 130 cm
Detector weight: Approximately 845 g with remote; approximately 735 g without remote
Component weights: Stem ~285 g; remote ~110 g; coil with cover ~370 g; WSA ST ~72 g
Manufacture: Designed and made in France

Detection and processing

Detection technology: FMF® simultaneous Fast Multi Frequency with automatic and manual frequency shift
Mono frequencies: 4 kHz and 14 kHz
Factory programmes: 3: Field, Park, Beach & Surf
User programmes: 3; one saved custom profile per factory programme
Sensitivity: 25 levels
Reactivity: 5 levels: 1 / 2 / 3 / 4 / 5
Discrimination: −6 to 99; 0 to 99 in beach programmes; 1-point ferrous-zone resolution
Multi-Notch: Yes, 28 segments
Iron volume: 11 levels: 0 to 10
Ground balance: Grab, Tracking, Standard and Pro ground modes
Pinpoint: Non-motion audio and visual pinpoint mode
Ferrous handling: Visual/audio bottle-cap identification and rejection, automatic silencer and all-metal shortcut

Audio, display and controls

Included audio: XP WSA ST wireless stereo headphones
Audio types: PWM and Square with Stereo Audio Morphing
Tone choices: Pitch, 2 tones, 3 tones, 5 tones and Full Tones
Audio volume: 10 levels for each supported output
WSA ST features: Stereo, foldable, rainproof, 4-band EQ, auto power management and USB-C
Display: Sunlight-readable LCD with adjustable low-consumption backlight
Display information: Target ID, conductivity/notch bar, depth gauge, programme, selected setting, ground tracking and component battery status
Audio outputs: Automatic selection between speaker, wireless headphones, compatible wired output and BH-02

Wireless, power and connectivity

Wireless protocol: XP ultra-low-latency digital radio, approximately 4 ms
Wireless channels: 36 automatic channels
Radio link: 2.40 to 2.48 GHz
Remote / headphone battery: 365 mAh rechargeable lithium-polymer battery in each
Coil battery: 700 mAh rechargeable lithium-polymer battery
Runtime: Remote and WSA ST approximately 11 hours depending on output; coil approximately 11 hours
Charging time: Approximately 3 hours for the detector system
Charging input: USB, 5 V / 1 A minimum recommended by XP
Software updates: Yes, via USB-C and internet connection
Smartphone app: XP Go Terrain: route mapping, target transfer and find logging
Pinpointer link: Wireless XP MI-6 compatibility, including remote locate function

Environment, compatibility and support

Waterproofing: IP68 to 5 m / 16 ft for up to 30 minutes with optional BH-02 bone-conduction headphones and the required waveguide; included WSA ST is rainproof and not submersible
Operating / charging temperature: 0°C to +40°C
Recommended storage temperature: 25°C
Compatible coils: DEUS II FMF ecosystem: D22FMF 22.5 cm, DELLFMFHP HF2 24 × 13 cm, D28FMF 28 cm and D3428FMF 34 × 28 cm
Compatible audio: XP ST-generation wireless headphones and compatible wired/bone-conduction outputs; check firmware alignment before pairing
Detector warranty: 5-year parts and labour warranty after required registration; optional additional 5-year extension may be purchased subject to XP eligibility and terms
Batteries and accessories: 2-year XP warranty
Durability: Longtime®-certified product range; repairability and long-term support are core XP design commitments

Official XP resources

Set up, learn and keep current.

Use XP’s official English manual for detailed controls, charging, underwater preparation, maintenance and troubleshooting.

ICON English user manualOfficial operating, maintenance and safety guide. ICON product data sheetOfficial feature overview, specifications and ICON / ICON-X comparison.

XP parts and labour cover, designed for long service.Activate the detector after purchase to receive the full five-year XP warranty. XP also offers an optional paid five-year extension for up to ten years total cover, subject to eligibility, registration window and manufacturer terms. Batteries and accessories carry separate two-year cover.

5Year warranty

Binoculars (611)

Telescopes (253)

Spotting Scopes (120)

Tripods (200)

Metal Detectors (50)

Weather Stations (55)

Laser Rangefinders (62)

Rifle Scopes (20)

Photography (16)

Night Vision and Thermal (131)

Microscopes (28)

Torches (156)

Magnifiers (49)

Electronics (35)

Frames & Albums (182)

General Purpose Binoculars

Hunting Binoculars

Birdwatching Binoculars

Laser Rangefinder Binoculars

Marine Binoculars

Stabilized Binoculars

Binocular Accessories

Oversize Binoculars

Stargazing Binoculars

Monoculars

Trade-in

Binocular Bundles

Read our Binocular Guide

Spotting Scopes

Tripods

Accessories

Trade-in

Spotting Scope Bundles

Read our Spotting Scope Guide

Refractor Telescopes

Reflector Telescopes

Dobsonian Telescopes

Computerised Telescopes

Telescopes for Kids

Telescope Accessories

Telescope Mounts

Astro Cameras

Stargazing Binoculars

Optical Tube Assemblies

Trade-in

Telescope Bundles

Read our Telescope Guide

Binocular Rangefinders

Monocular Rangefinders

Laser Distance Meters

Read Our Rangefinder Guide

Compact cameras

Mirrorless and DSLR Cameras

Instax Cameras

Film and Disposable Cameras

Game & Trail Cameras

Camera Lenses

Camera Bags

Camera Batteries

Camera Chargers

Studio Equipment

Infrared Night Vision

Thermal Imagers

Infrared Torches

Thermal Scopes

Night Vision Scopes

Read our Night Vision Guide

Read our Thermal Guide

Handheld Magnifiers

Handsfree Magnifiers

LED Magnifiers

Read our Magnifier Guide

Pocket Microscopes

Digital Microscopes

Stereo Microscopes

Compound Microscopes

Microscope Accessories

Read our Microscope Guide

Relic Detectors

Gold Detectors
