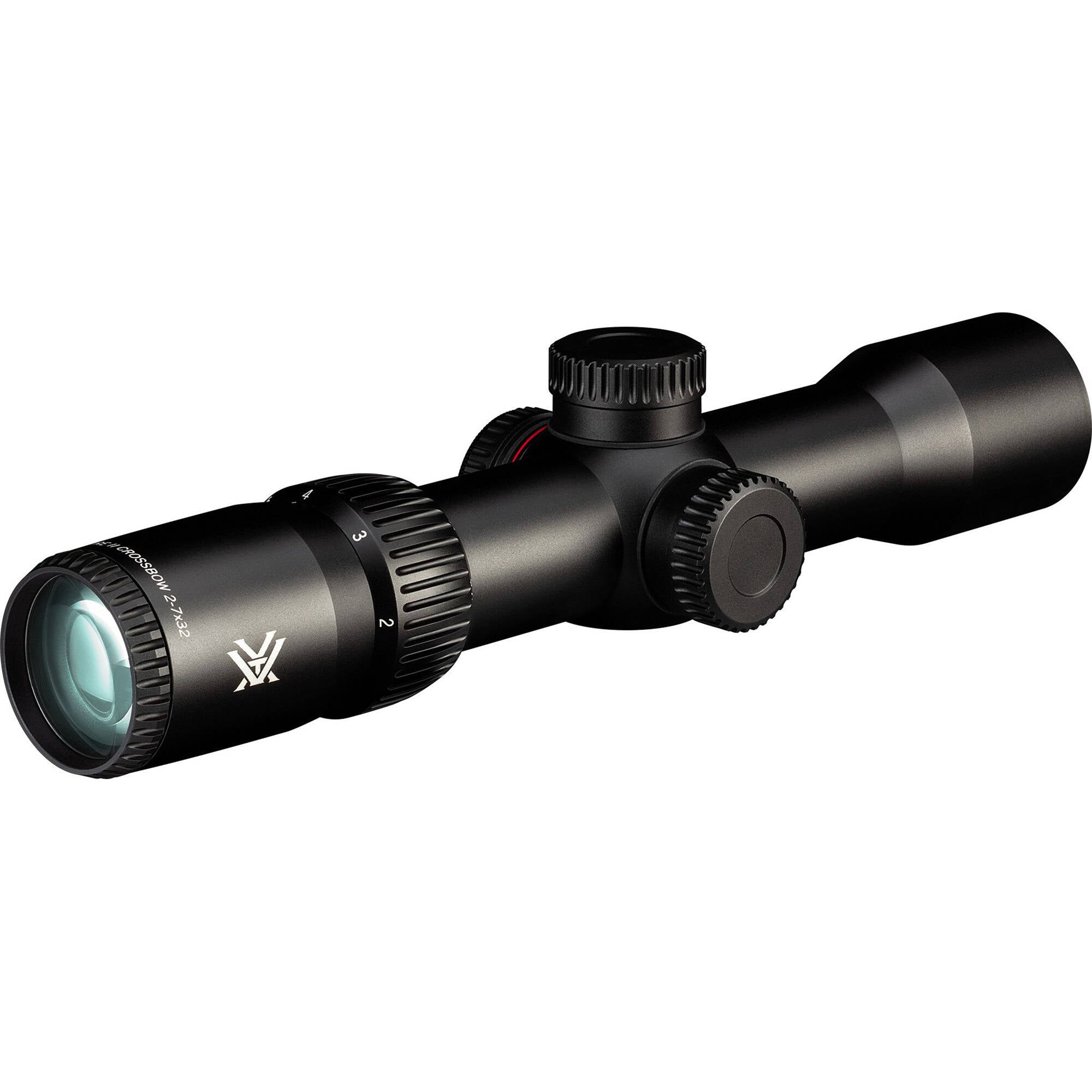

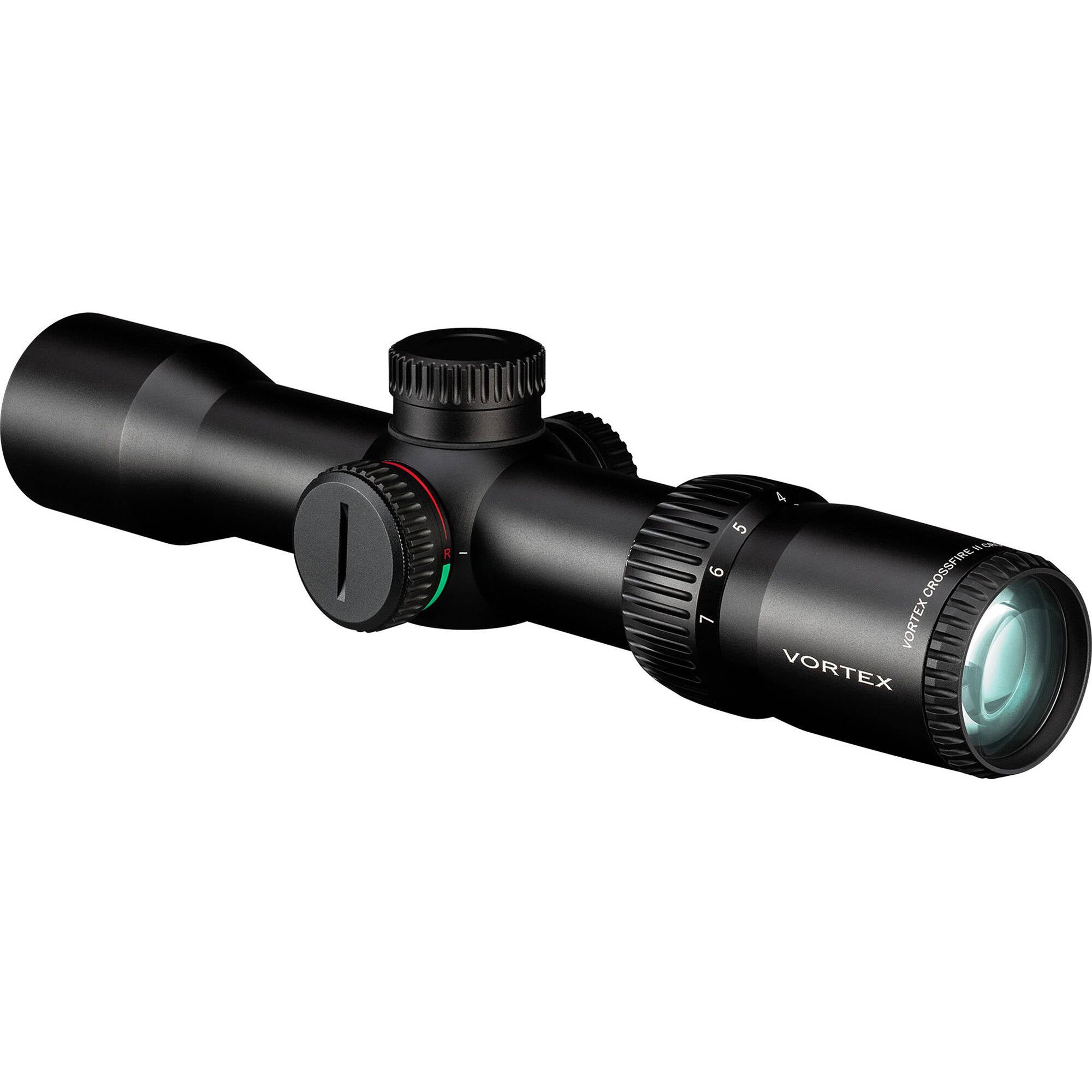

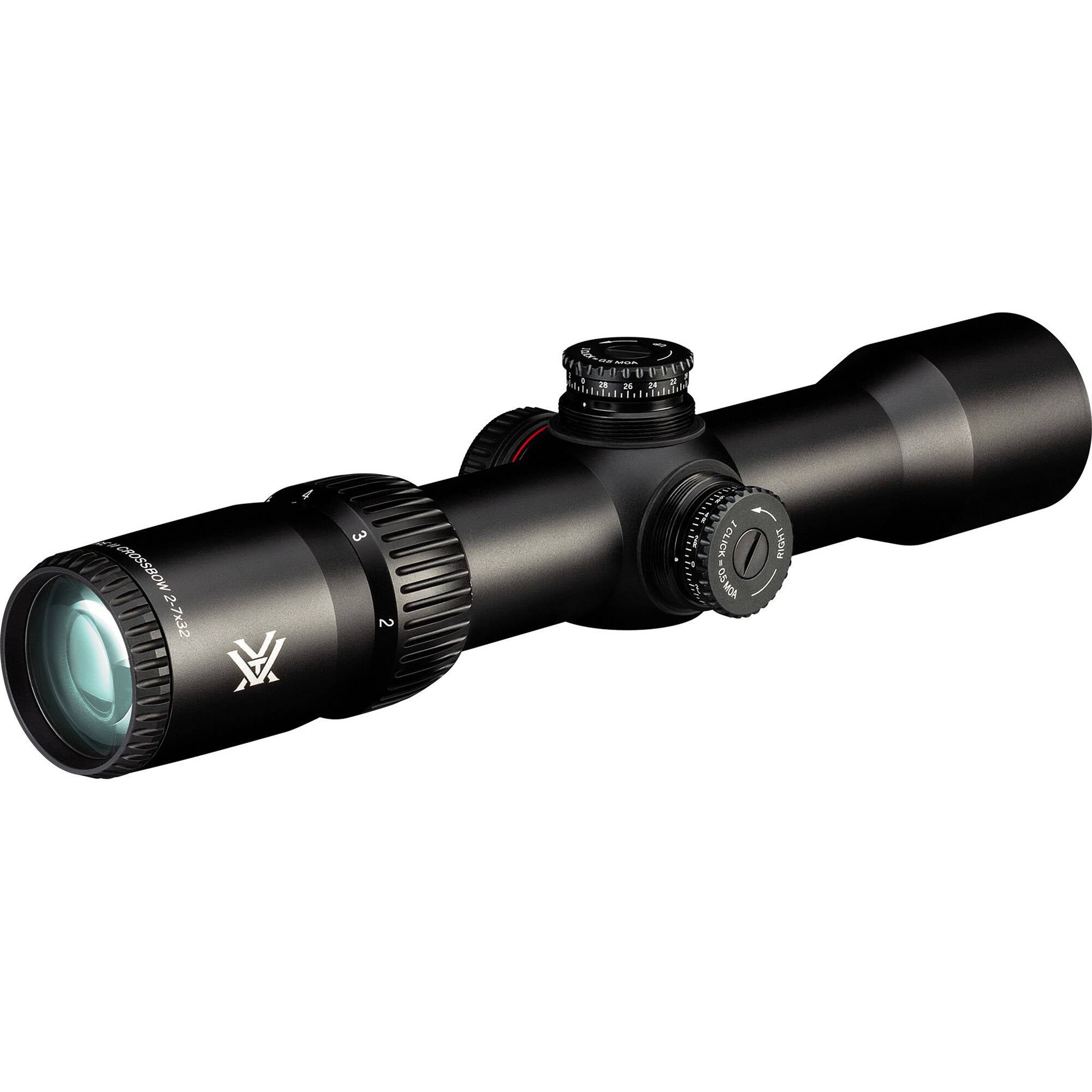

Vortex Crossfire II 2-7x32 Crossbow Red/Green Illumination

SKU: VOCF2CB1

Vortex Crossfire II 2-7x32 Crossbow Red/Green Illumination - Jacobs Digital
Vortex Crossfire II 2-7x32 Crossbow Red/Green Illumination - Jacobs Digital
Vortex Crossfire II 2-7x32 Crossbow Red/Green Illumination - Jacobs Digital
Vortex Crossfire II 2-7x32 Crossbow Red/Green Illumination - Jacobs Digital
Vortex Crossfire II 2-7x32 Crossbow Red/Green Illumination - Jacobs Digital
Vortex Crossfire II 2-7x32 Crossbow Red/Green Illumination - Jacobs Digital
Vortex Crossfire II 2-7x32 Crossbow Red/Green Illumination - Jacobs Digital
Vortex Crossfire II 2-7x32 Crossbow Red/Green Illumination - Jacobs Digital

Our Price

$405.00

$405.00


Loading

1000

40500

Shipping calculated at checkout

When will I receive it?

About this product

The 2-7x32 Crossfire II Crossbow Scope from Vortex features premium construction and comes with mounting rings, flip caps, and a neoprene cover—ready to go, right out of the box. Fully multicoated glass ensures optimal light transmission for a bright sight picture, and the waterproof and fogproof 30mm maintube has room for 160 MOA of elevation and windage adjustment at 1/2 MOA per click. Illuminated in your choice of red or green for visibility under all conditions, the XBR-2 reticle is designed for a 40-yard zero and has hold marks from 20 to 100 yards. The FPS number is on the magnification ring for compatibility with a variety of crossbows and setups, and the 16.4-57.5' field of view helps you find targets quickly.

Optical Performance
  • 2-7x magnification
  • 32mm objective lens diameter
  • Fully multicoated optics improve image brightness, clarity, and reduce glare
  • Linear field of view: 57.5-16.4' at 100 yd
  • Parallax correction: 75 yd

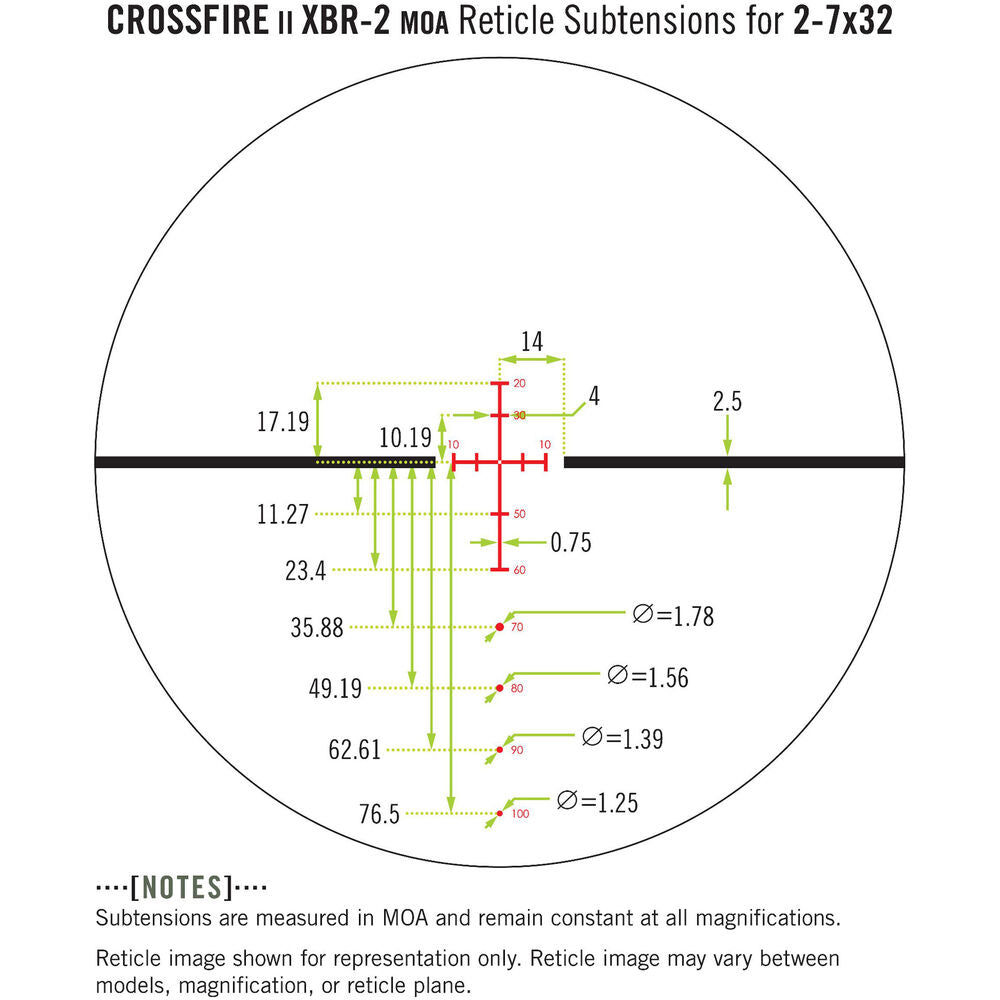

XBr-2 Reticle
  • Purpose-built for crossbows
  • Second focal plane
  • Designed for 40-yard zero
  • Illuminated crosshair
  • Hold marks below center out to 100 yards
  • Choose green or red illumination to suit conditions
Use and Handling
  • 1/2 MOA impact point correction
  • 160 MOA total elevation and windage adjustment
  • 30 MOA travel per rotation
  • FPS setting on magnification ring
  • Fast-focus eyepiece, knurled ring for sure grip
Construction Details
  • 30mm single-piece maintube
  • Aluminum construction
  • Matte black anodized finish
  • Impact-resistant
  • Fogproof, nitrogen-filled
  • Waterproof, sealed with O-rings
Optics
Magnification
2 to 7x
Objective Lens Diameter
32 mm
Field of View
2x: 57.5' @ 100 yd / 19.1 m @ 100 m
7x: 16.4' @ 100 yd / 5.4 m @ 100 m
Exit Pupil Diameter
2x: 16 mm
7x: 4.6 mm
Eye Relief
2.7" / 68.6 mm
Impact Point Correction
160 MOA (Windage & Elevation)
Adjustment per Click: 1/2 MOA
Parallax Correction
Yes, 75 yd / 68.6 m
Anti-Reflective Coatings
Fully Multicoated
Reticle
Reticle Type
XBR-2 Reticle (Second Focal Plane)
Illumination
Battery-Powered Illumination: Green/Red
General
Maintube Diameter
30 mm
Battery
1x CR2032
Environmental Resistance
Water-Resistant (Unrated)
Fogproof
Yes, Nitrogen Filled
Materials
Aluminum
Dimensions
Length: 9.5" / 241.3 mm
Weight
14 oz / 397 g
Packaging Info
Package Weight
1.895 lb
Box Dimensions (LxWxH)
14.4 x 4.5 x 3.9"
