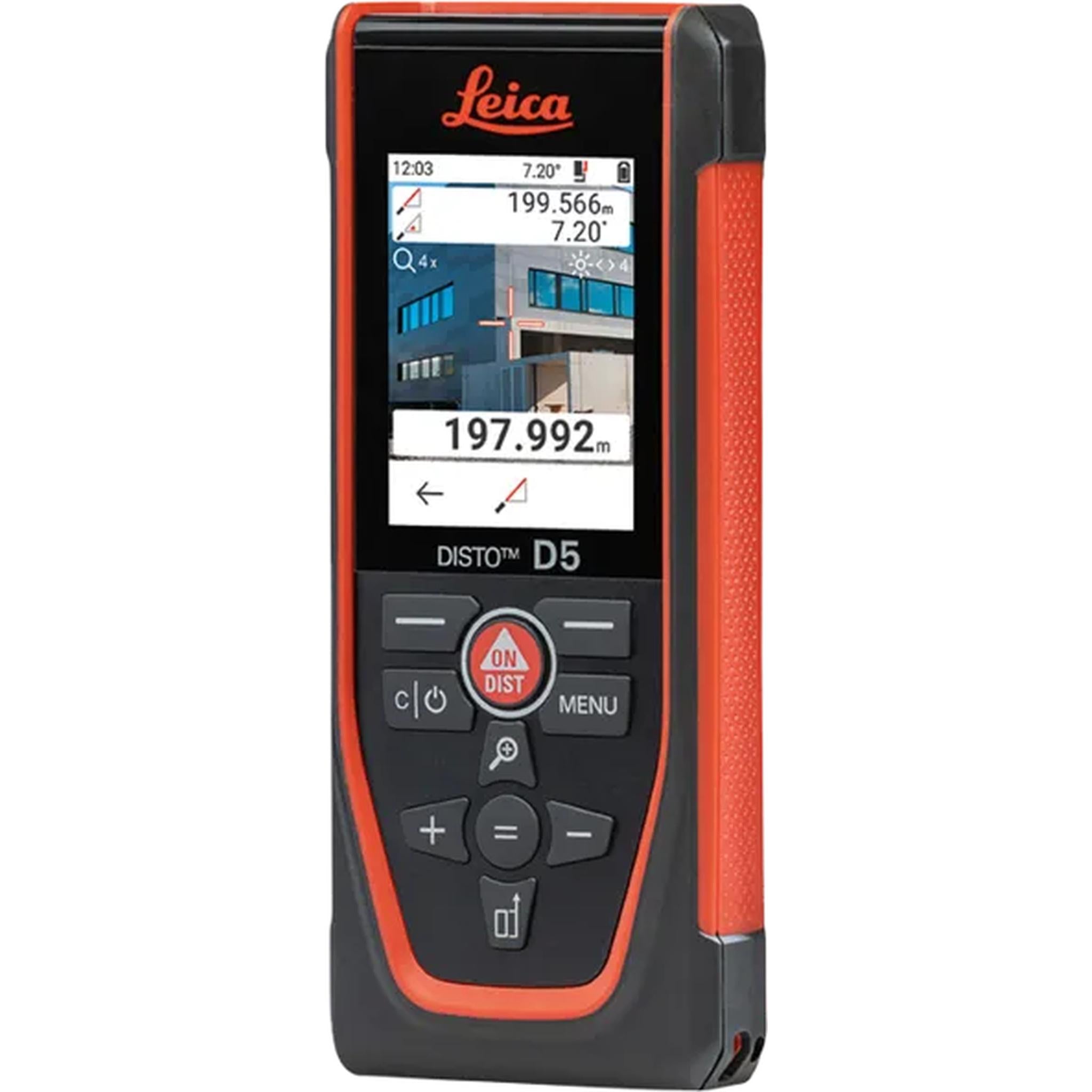

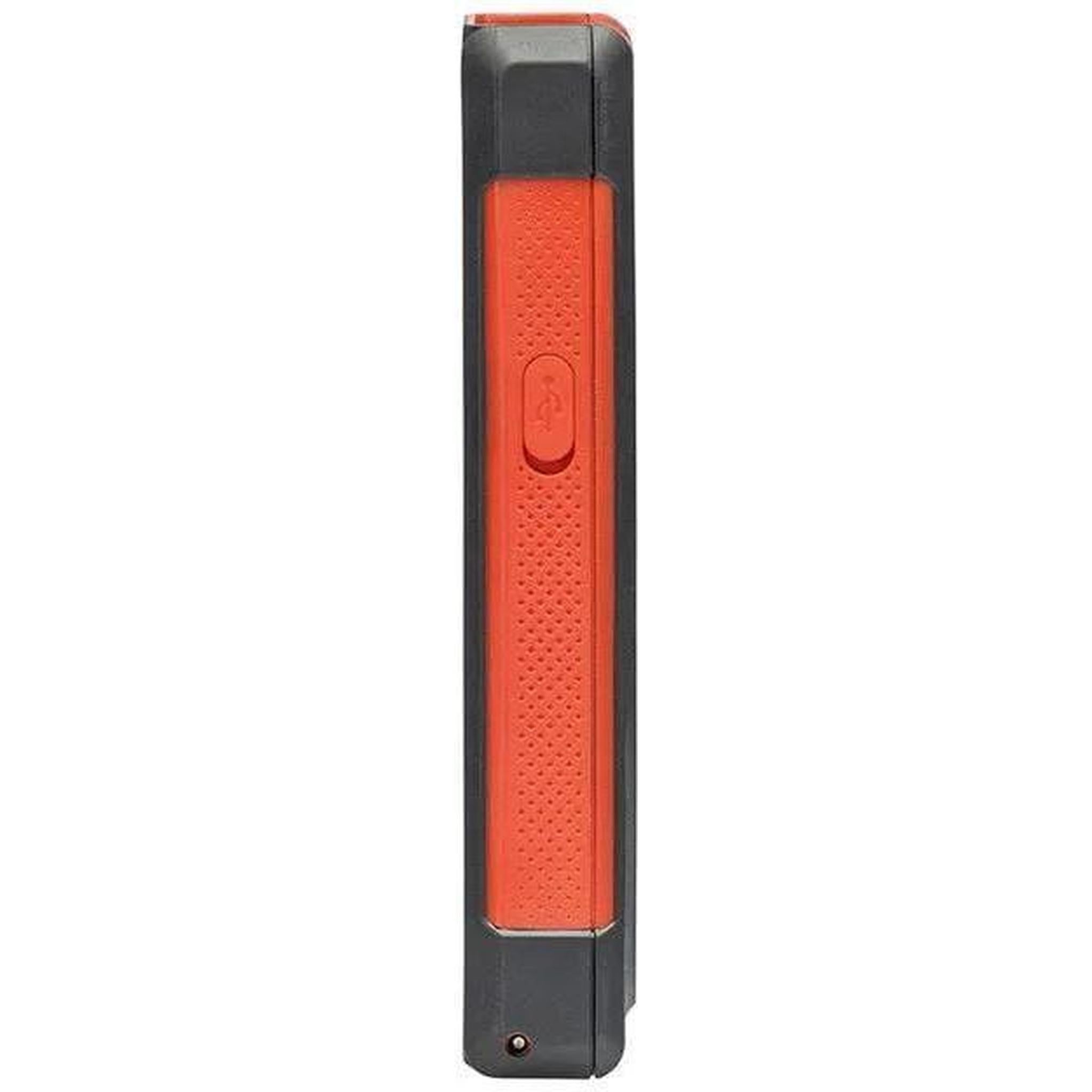

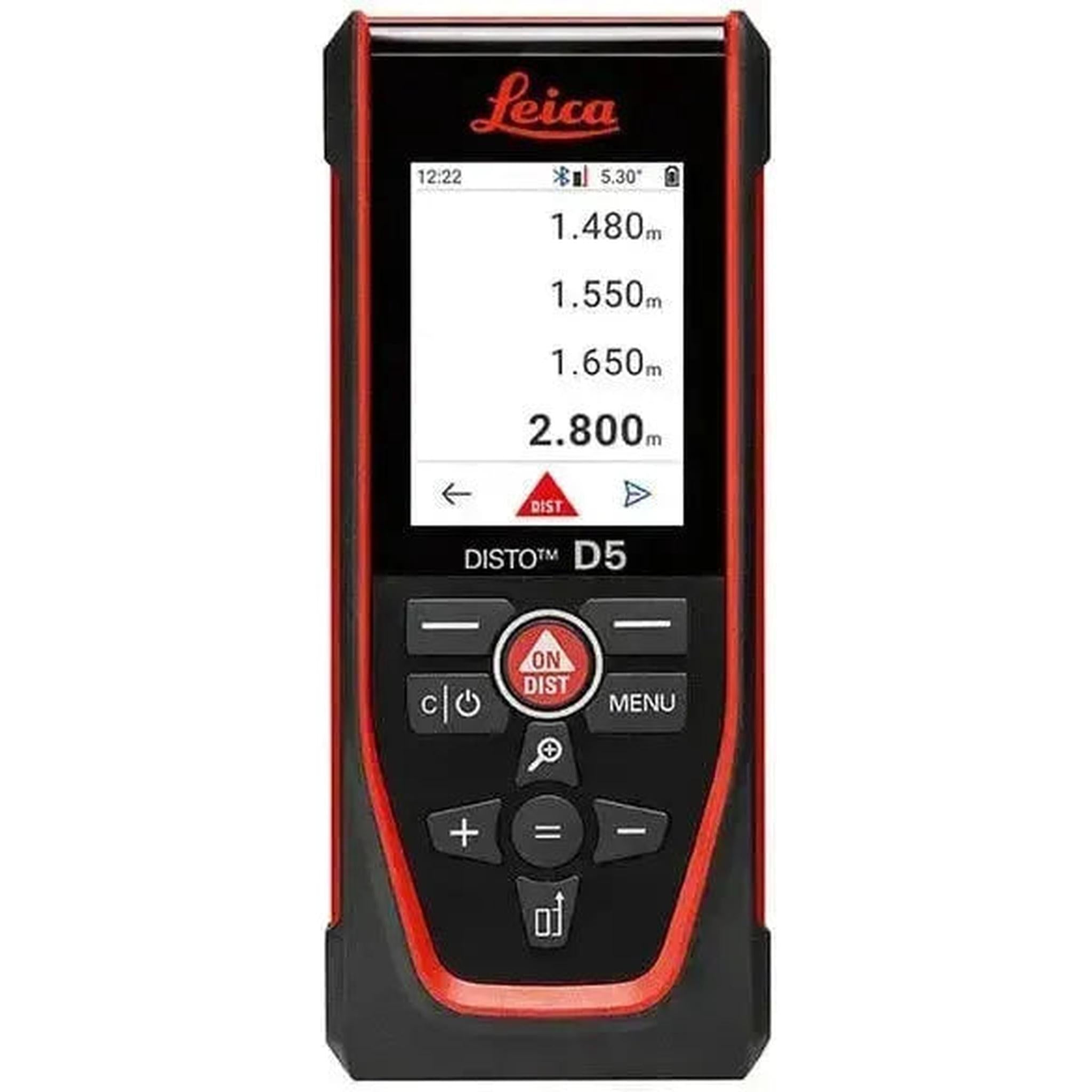

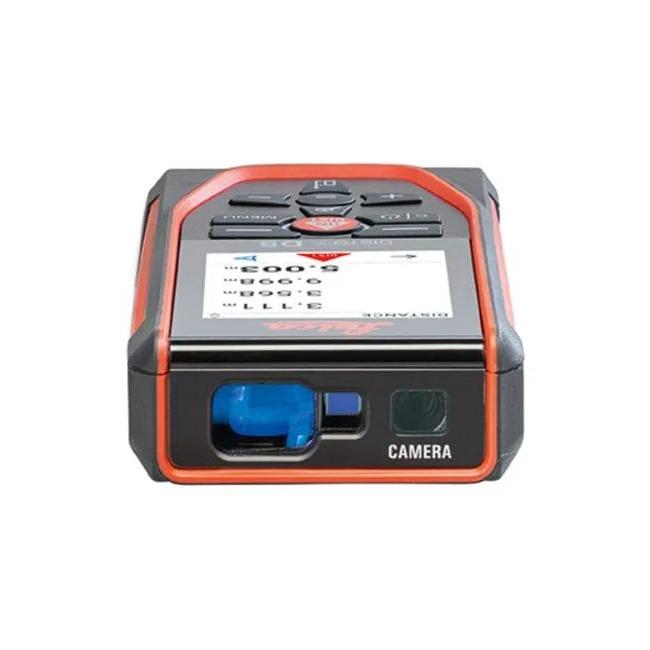

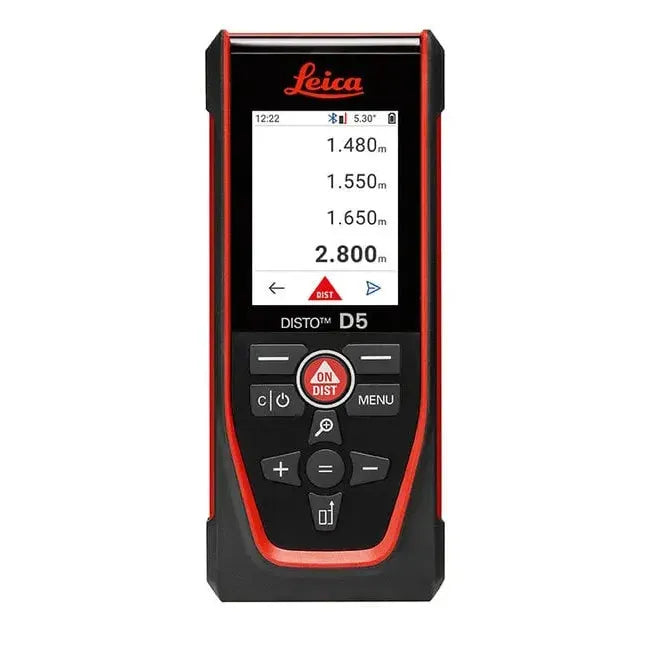

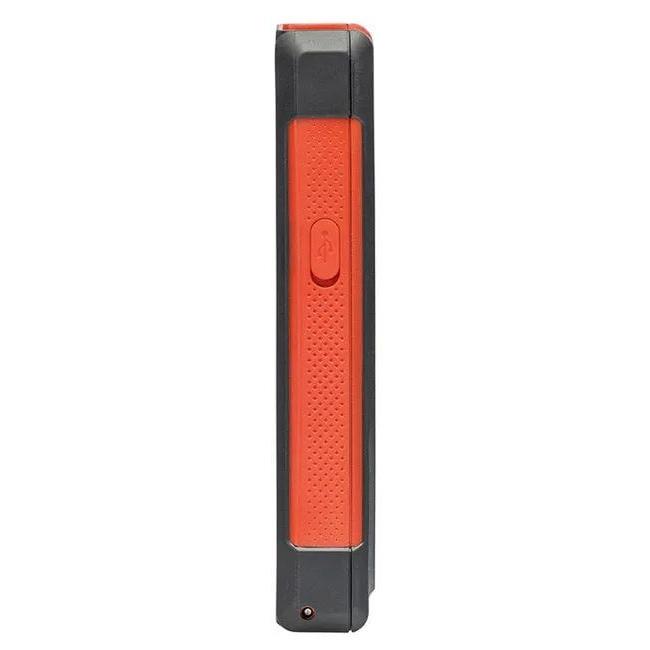

Leica Disto D5 Laser Distance Meter

SKU: LG950908

Leica Disto D5 Laser Distance Meter - Jacobs Digital
Leica Disto D5 Laser Distance Meter - Jacobs Digital
Leica Disto D5 Laser Distance Meter - Jacobs Digital
Leica Disto D5 Laser Distance Meter - Jacobs Digital
Leica Disto D5 Laser Distance Meter - Jacobs Digital

Our Price

$948.00

$948.00

Green truck Usually Ships in 2-4 Weeks An order for this can be placed with our supplier, and usually ships within the specified timeframe.



Loading

2000

94800

Shipping calculated at checkout

When will I receive it?

About this product

The Leica DISTO D5 is particularly suitable for distance measurements in outdoor areas. Due to the digital Pointfinder, aiming is no problem even in sunshine and at very long distances. Both the target and the measurement results can be seen very clearly on the large display with IPS technology. For maximum accuracy, the measurement can be triggered by gestures, which is a distinct advantage, especially over long distances. High flexibility is offered by various functions, such as Smart Horizontal Mode, height tracking, profile or angle measurements. This means that any measurement situation on the construction site can be solved quickly and efficiently. The data can then be transferred to the DISTO Plan app or individual templates, e.g. in Excel, and processed further to support an efficient and error-free digital workflow.



Trigger measurements with a wave of your hand

Bluetooth® Keyboard Mode

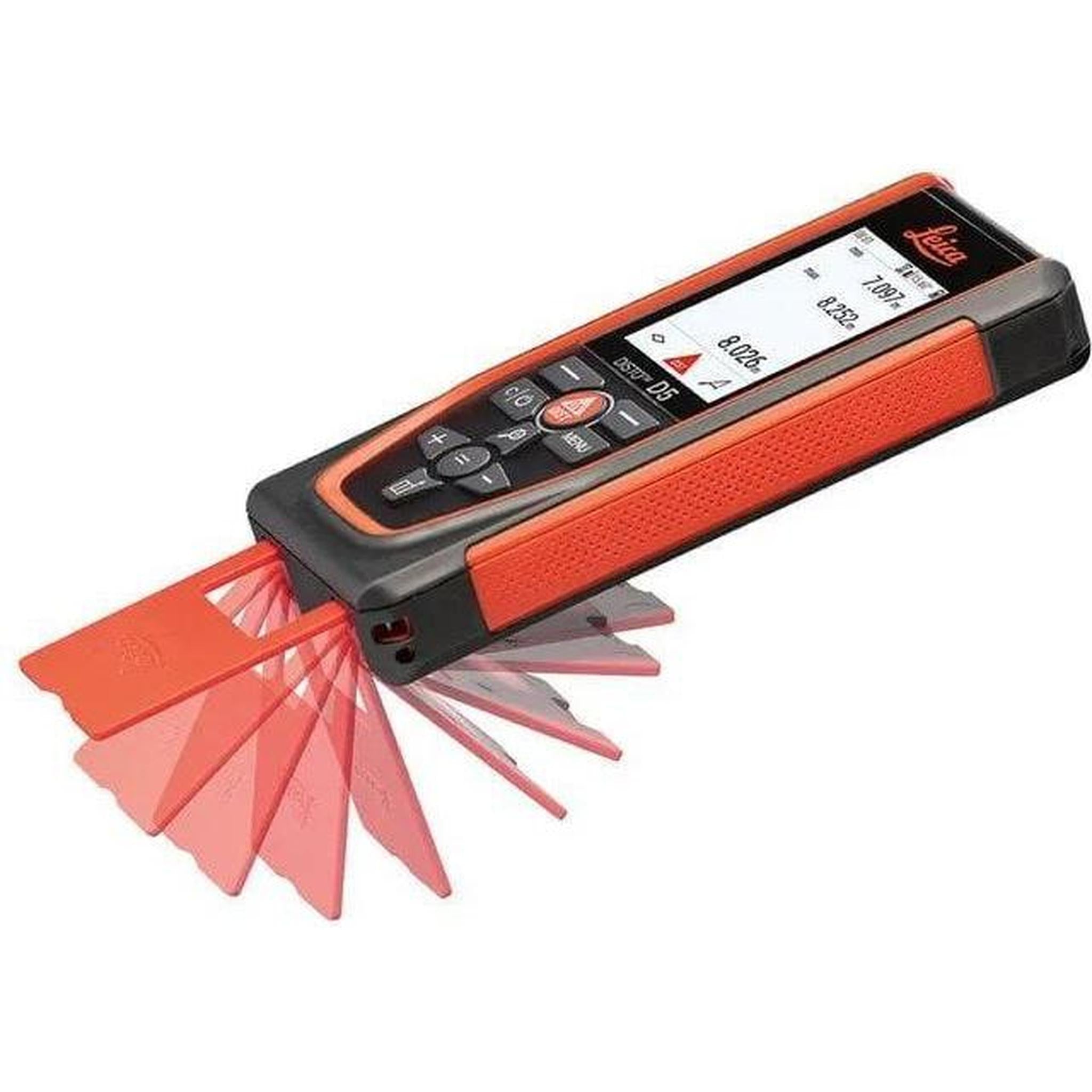

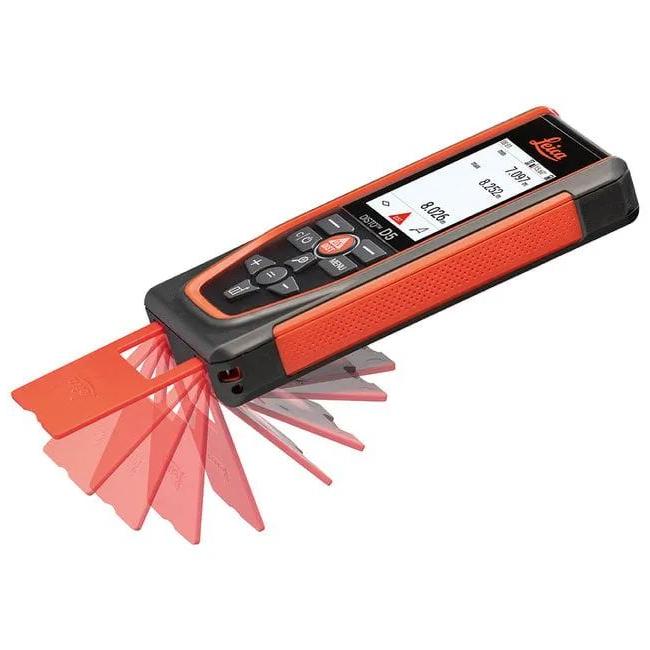

Ensure accurate measurements from corners and tight places



Leica DISTO D5

  • Leica DISTO D5 laser distance meter
  • Hand loop
  • Pouch
  • USB cable
  • Safety instructions
  • Calibration Certificate Silver
  • Quick Start with QR code linking to online manual
  • 3 Years warranty card
Accuracy with favourable conditions 1.0 mm / 1/16"
Accuracy with unfavourable conditions 2.0 mm / 1/8"
Range with favourable conditions 0.05 – 200 m / 0.07 – 660 ft
Range with unfavourable conditions 0.05 – 120 m / 0.07 – 400 ft
Smallest unit displayed 0.1 mm / 1/32 in
X-Range Power Technology yes
Laser Class 2 635 nm, <1 mW
Digital Pointfinder with 4-fold zoom yes
Tilt measuring range 360°
Tilt measuring tolerance ± 0.2°
ø laser point | at distances 6 / 30 / 60 mm | 10 / 50 / 100 m
Protection class IP54 (dust- and splash water protected)
Auto. laser switch off after 90 s
Auto. power switch off after 180 s
Bluetooth® Smart Bluetooth® v5.0
Range of Bluetooth® up to 10 m
Battery durability (Li-Ion 2 000 mAh) up to 5’000 measurements
up to 10 hours operation time
Dimension (H x D x W) 144 x 60 x 24 mm | 5.7 x 2.4 x 0.9 in
Weight (with batteries) 180 g / 6.35 oz
Temperature range storage | operation -25 to 70 °C / -13 to 158 °F | -10 to 50 °C / 14 to 122 °F
