Night Tech Hunter Series MS-42R 384x288 Thermal Mini Sight - Display unit

SKU:

Night Tech Hunter Series MS-42R 384x288 Thermal Mini Sight-Jacobs Digital
Night Tech Hunter Series MS-42R 384x288 Thermal Mini Sight-Jacobs Digital
Night Tech Hunter Series MS-42R 384x288 Thermal Mini Sight-Jacobs Digital
Night Tech Hunter Series MS-42R 384x288 Thermal Mini Sight-Jacobs Digital
Night Tech Hunter Series MS-42R 384x288 Thermal Mini Sight-Jacobs Digital
Night Tech Hunter Series MS-42R 384x288 Thermal Mini Sight-Jacobs Digital

Our Price

$3,038.00

$3,038.00

Green truck One Time Sale An order for this can be placed with our supplier, and usually ships within the specified timeframe.



Loading

2200

303800

Shipping calculated at checkout

When will I receive it?

About this product

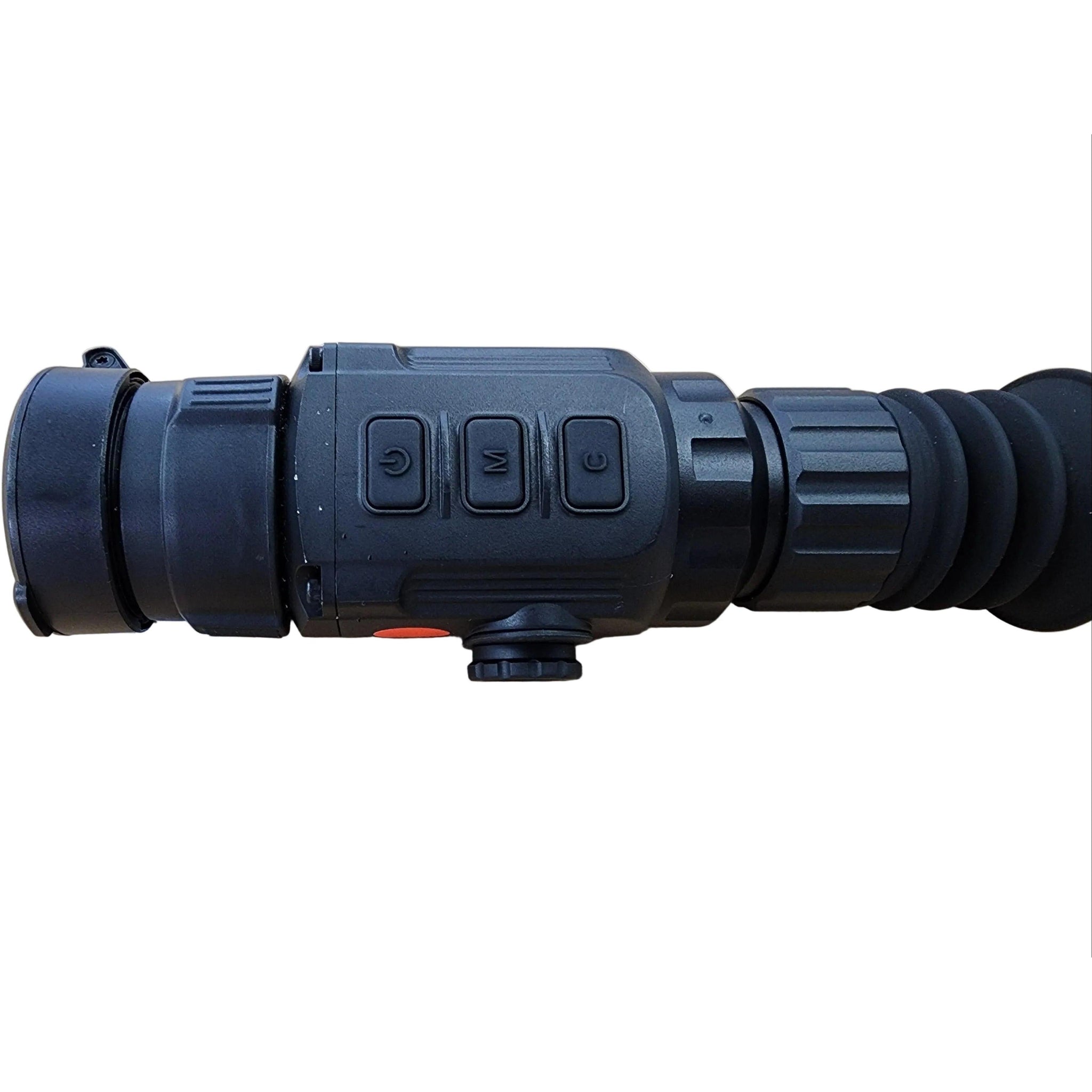

Unit has been used as a display. Slight marks on the top as pictured. Still in great condition overall.

With XST Technology for superior image quality, Night Tech Mini-Sights have been developed with the hunter in mind

Night Tech customers wanted a high quality thermal mini-sight that was lightweight, simple to use, available at a competitive price and that didn’t have any needless complexities.

Introducing the Hunter Series: Mini-Sight from Night Tech. Incorporating the latest in thermal imaging developments – XST Technology, our latest sight means you can now detect objects at greater distances and identify them with better accuracy. Enjoy class-leading performance with images that are up to 3 times sharper and more sensitive than other thermal products on the market.

Features

  • One of the smallest and lightest thermal scopes on the market
  • Simple and easy to use with no fancy or complex options
  • High-resolution 1280×960 pixel HD display
  • XST Technology providing exceptional image quality and clarity
  • Thermal Detection ranges out to 2100 metres

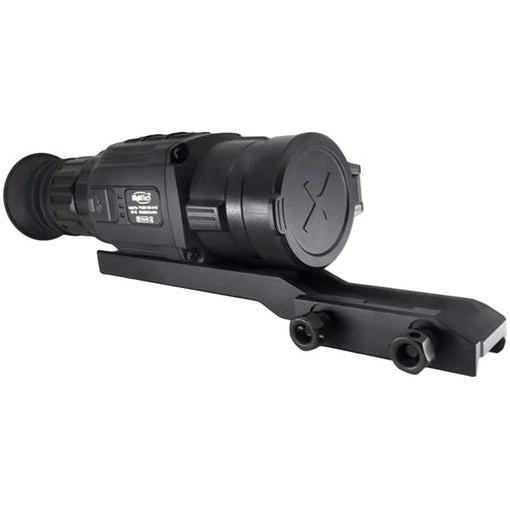

  • Easy to use on an Extended Eye Relief Picatinny Mount (included)
  • Recoil rated to 1000Gs
  • Rugged, reliable and built to last
  • Multiple thermal colour pallets including black, white, red hot and colour mode
  • Multiple zero settings for different setups
  • Bluetooth capability for future expansion
  • Built-in Accelerometer and Digital Compass for improved accuracy

Main

MS-42R

Thermal Sensor

384 x 288

Objective lens

F42 / 1.0

Magnification, x

3.0 - 12x

Field of view (HxV), degrees / m @ 100mtrs

7.5 x 5.7

Detection range, m

1800

  Sensor



Type

uncooled Vox

Resolution, pixels

384 x 288

Pixel Pitch

12um

NETD

<35mK

Frame rate, Hz

50

  Optics



Objective lens

F42/1.0

Magnification, x

3.0-12x

Field of view (HxV), degrees / m @ 100mtrs

7.5 x 5.7

  Display



Resolution, pixels

1024 x 768 OLED

Thermal Palettes

Black Hot, White Hot, Red Hot, Colour

  Range Performance



Detection range, m (Rabbit)

350

Detection range, m (Fox)

600

Detection range, m (Person)

1800

Detection range, m (Deer)

2500

  Laser Rangefinder



Safety class for laser equipment according to IEC 60825-1:2014

-

Wavelength, nm

-

Max. measuring range, m

-

Measurement accuracy, m

-

Min. Measuring Range, m

-

  Reticle



Picture in Picture

Yes

Number of preloaded reticles

8 types / 4 colours

Number of Zero Profiles available

4

  WiFi Connection

Yes

  Video Recorder

Video & Snapshot

32Gb Internal

  Environmental Characteristics



Degree of protection, IP code (IEC60529)

IP66

  Power Supply



Output voltage, V

3.0 - 3.7

Battery type

CR123 x2 or RCR123A x2

Operating time on battery pack (at t=22°C), h *

4

External power supply, V

5V (USB Type-C)

  Connections and Compatibilities



Max. recoil power on firearm

Shock Proof to 1000G (300 Win Mag)

Mounting brackets on firearm

Full Picatinny rail (0 MOA)

  Weight & Size



Dimensions, mm

195 x 61 x 61

Weight, kg

0.42

  Warranty



  Trade Data



SKU (Model #)

MS-42R
