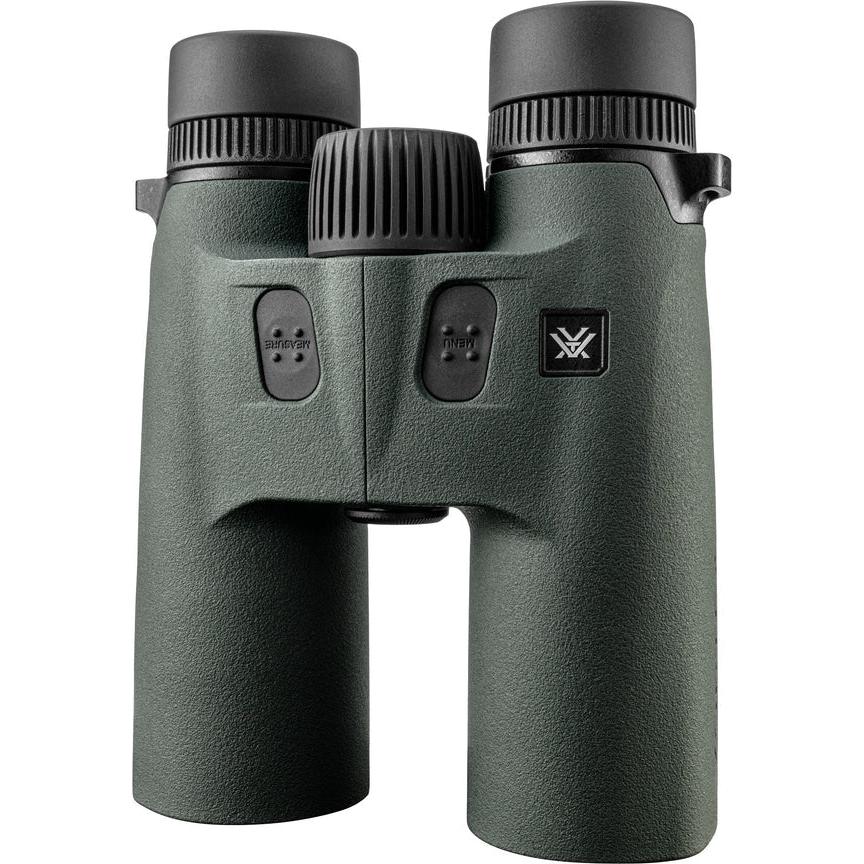

Vortex Ranger® HD 3000 10x42 Binoculars LRF

SKU: VORGR3000

+5 more

Vortex Ranger® HD 3000 10x42 Binoculars LRF - Jacobs Digital

Our Price

$1,662.00

incl. GST excl. GST

ORDER NOW

ENJOY NOW

PAY LATER

Pay it in four interest-free payments

At checkout, select Afterpay as the payment method

No new cards, you can use your existing bank card

Complete your checkout

No long forms, online approval

Pay over four installments

Pay every 2 weeks, enjoy your purchase right away

All you need to apply is to have a debit or credit card, to be over 18 years of age, and to be a resident of New Zealand or Australia

Late fees and additional eligibility criteria apply. The first payment may be due at the time of purchase. For complete terms visit https://www.afterpay.com/terms

Shipping calculated at checkout

When will I receive it?

Request a price match

Have a question about this product?

Share

Print

Pickups and Delivery

In-store pickup

We don't have this item in our store right now, please allow for it to be transferred to our retail store.

If you come to pick up your order please bring photo ID, if someone else is picking it up on your behalf please contact us prior to pickup.

Delivery estimates

Once your order has been picked up by the courier please allow 2 working days for North Island addresses, for the South Island allow 3 working days. Rural deliveries and extra-large items may take several additional days.

Shipping costs

Shipping costs are automatically calculated during checkout. The price of shipping varies based on the delivery location. Select items may be be eligible for free shipping.

Delivery of oversize items

Oversize items such as very large telescopes may only be available via pickup from a depot or delivered to a business address. For more infomation click here. Due to less frequent collection of oversize items delivery may take 2 to 4 additional days.

Security

To ensure the safe delivery of your order we require a signature with all parcels. Some exceptions may be made if you give the courier company authority to leave parcels at your preferred address.

About this product

The Vortex Ranger® HD 3000 10x42 Binoculars LRF combine premium HD optics with an integrated laser rangefinder, delivering clear 10x magnification and fast, accurate distance measurements out to 3,000 yards on reflective targets. Fully multi-coated lenses, dielectric and phase-corrected prisms, multiple ranging modes and waterproof, fogproof construction make them ideal for hunting, wildlife observation and long-range field use. Includes the Vortex GlassPak™ harness system, neck strap, tethered objective covers, rainguard and carrying case.

Vortex Ranger HD 3000 10x42 laser rangefinding binoculars combine 10x HD optical performance with HCD angle-compensated ranging, LOS distance, continuous SCAN, Normal, First and Last target modes, a red OLED display, up to 3000-yard reflective range, 1800-yard tree range and 1500-yard deer range. Waterproof, fogproof and shockproof with ArmorTek exterior lens protection, tripod adaptability, CR123 battery and included GlassPak binocular harness.

Ranger® HD 3000 · 10x42 · LRF-RGR3000

See it. Range it. Stay ready.Laser rangefinding binocular

The Ranger HD 3000 brings clear 10x observation and fast distance measurement into one streamlined field optic. Glass, range and select the target response you need without moving between separate binoculars and a handheld rangefinder.

HCD angle compensation LOS + SCAN 3000-yard reflective range GlassPak included

Vortex Ranger HD 3000 10x42 laser rangefinding binocular showing its streamlined green rubber-armoured body, centre focus wheel, ranging controls, twist-up eyecups and 42 mm objective barrels

10x42 · 32.4 oz / 918.5 g

3000 ydMaximum reflective-target range

1800 ydMaximum tree range

1500 ydMaximum deer range

335 ftField at 1,000 yards

6 ydMinimum ranging distance

Official product overview

One optic for glassing and ranging.

See how the Ranger HD 3000 combines a familiar binocular form, two-button operation, selectable ranging modes and field-ready construction.

Every angle

A rangefinder that handles like a binocular.

The slim bridge, central focus wheel and low-profile Measure and Menu buttons keep the electronic controls integrated into a familiar 10x42 body instead of turning the optic into a bulky instrument.

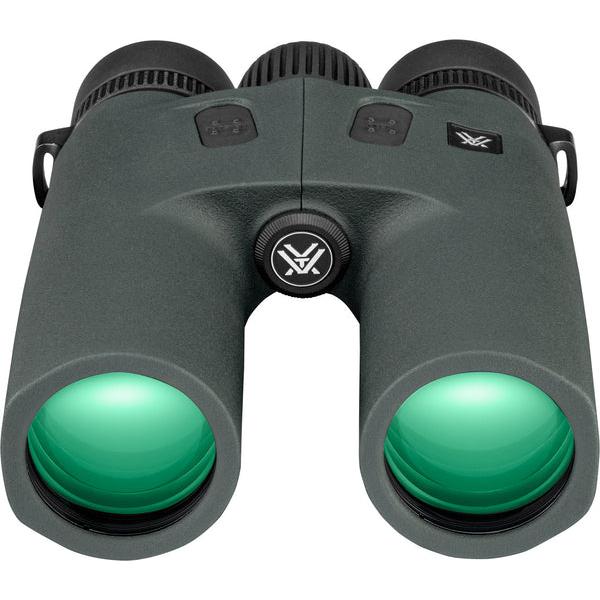

Straight-on front view of the Vortex Ranger HD 3000 showing the two 42 mm barrels, open lower bridge, centre focus wheel and two top control buttons

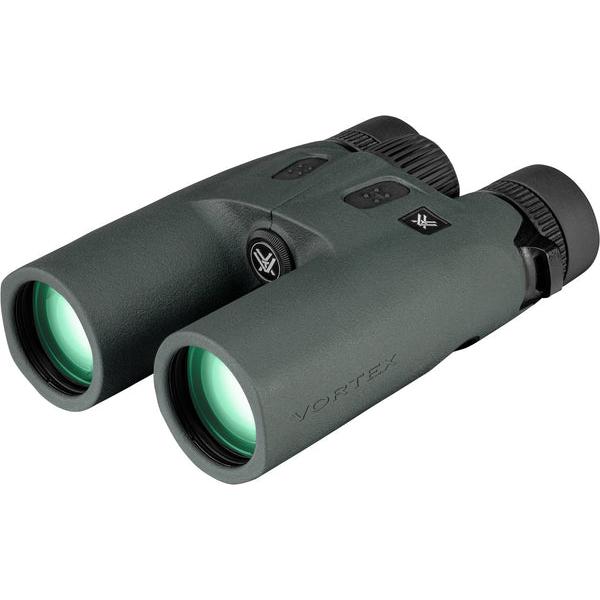

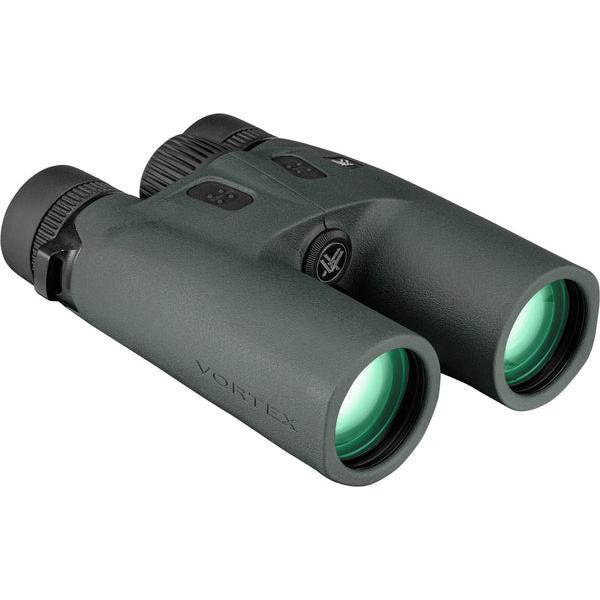

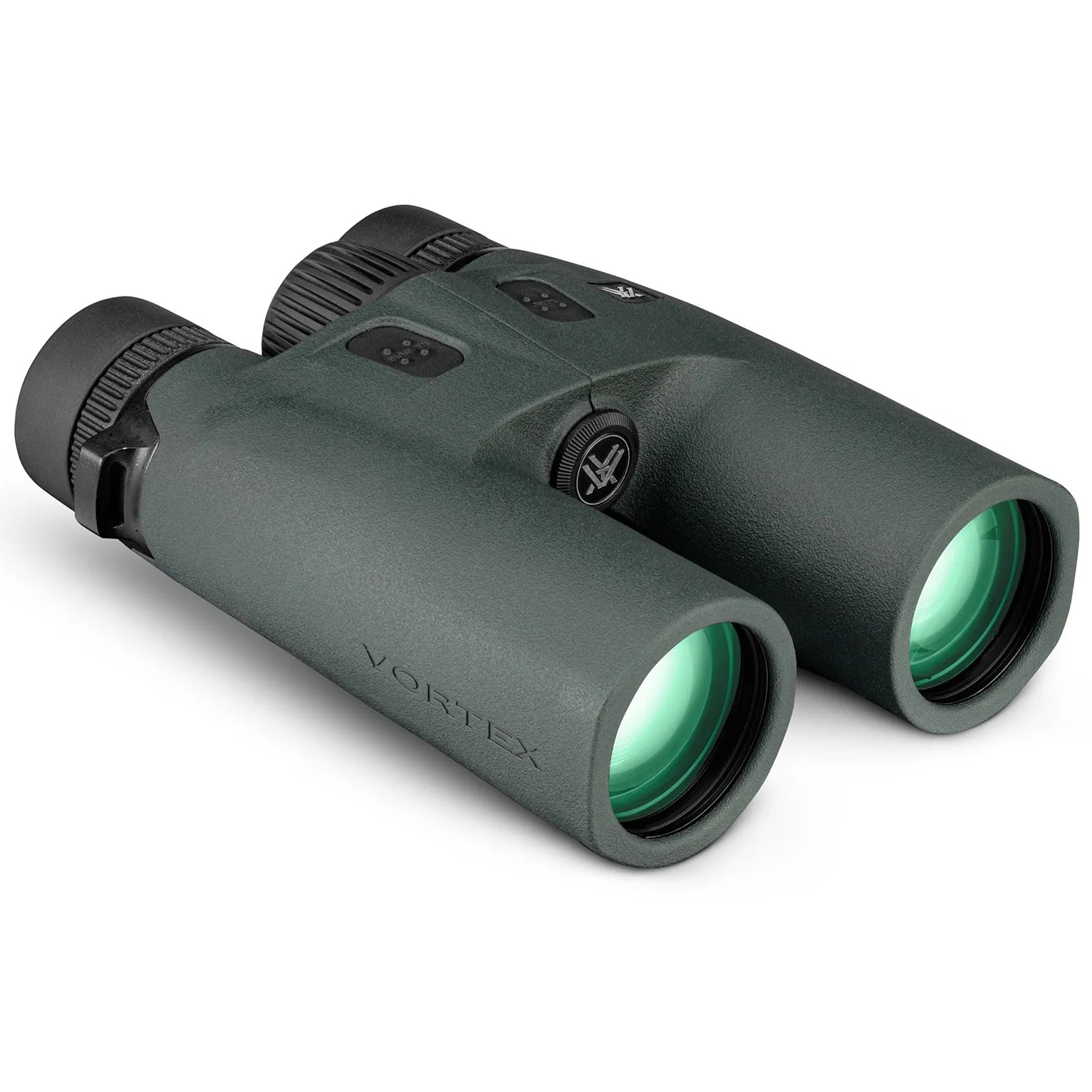

Front-left view of the Vortex Ranger HD 3000 showing its streamlined green armour, eyecups, central focus wheel and 42 mm objectives

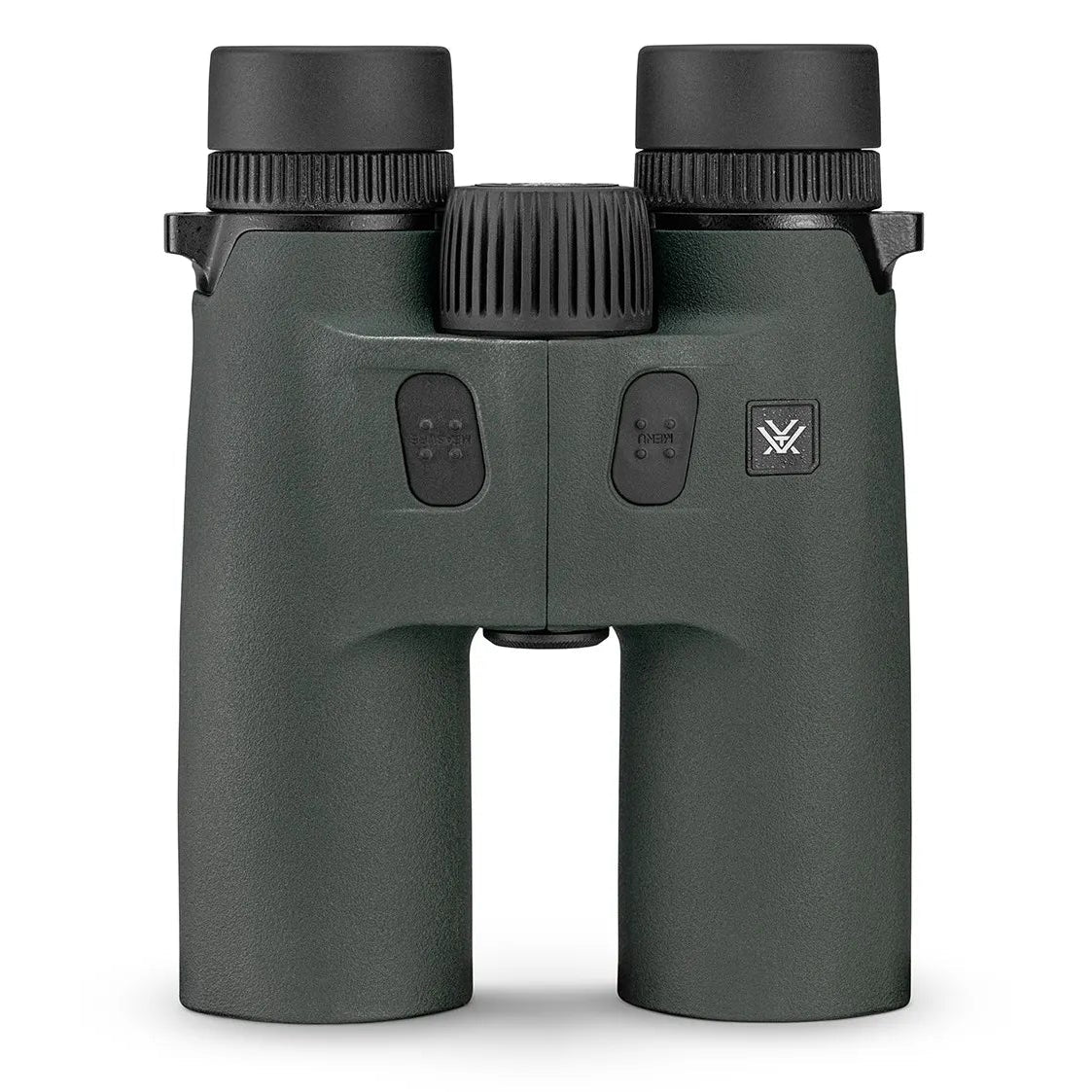

Rear view of the Vortex Ranger HD 3000 showing both twist-up eyecups, individual eyepiece adjustment rings and central focus wheel

Hunter using the Vortex Ranger HD 3000 in mountainous terrain to observe and range a distant target — Measure without dropping the binocular or reaching for a second device.

Vortex Ranger HD 3000 rangefinding binocular carried in the field during a hunt — The included GlassPak harness keeps the optic protected and immediately accessible.

Red OLED display

The information you need stays inside the view.

The display places the aiming reticle, measured distance, selected distance model and supporting indicators directly in the optical field. Use the controls below to preview the main display states.

HCD LOS SCAN

123.0YHCD

141.6YLOS-29°

684YSCAN · HCD

HCD corrected range

Shows the horizontal, slope-compensated distance used for the majority of rifle and archery situations.

LOS distance + angle

Shows the actual line-of-sight distance and angle when ballistic calculation or a full geometric reading is required.

Five brightness levels

Adjust the red OLED intensity for dark timber, first light, open sun or difficult backgrounds.

Yards or metres

Select the unit that matches your maps, range cards and field practice.

Ranging capability

Different targets return different maximum ranges.

Reflective targets return more laser energy than irregular natural surfaces. Vortex therefore publishes separate range envelopes for reflective objects, trees and deer-sized game.

3000 yd

Reflective target

Maximum published distance for large, highly reflective surfaces under favourable conditions.

1800 yd

Tree

Maximum published range for a substantial natural target with a more varied return.

1500 yd

Deer

Maximum published deer range for game-sized targets under favourable conditions.

6 yd

Minimum range

Measure close targets from six yards, useful for nearby reference points and archery setups.

Actual ranging performance depends on target size, colour, reflectivity, angle, atmospheric conditions, steadiness and background separation. Bright sun, haze, rain, snow, fog, dark texture and oblique surfaces can reduce the usable range.

HCD and LOS

Choose the distance that matches the job.

Uphill and downhill targets create two meaningful distances: the direct line to the target and the shorter horizontal component. Ranger HD 3000 provides both.

Shoot-to range

HCD · Horizontal Component Distance

HCD compensates for the slope and displays the horizontal distance. It is the practical primary mode for most rifle shots and archery situations within the limits described in the manual.

Actual line of sight

LOS · Line Of Sight

LOS reports the actual straight-line distance and slope angle. Use it when feeding data into a ballistic solution or when your method requires the full distance and angle rather than an already corrected value.

Target priority modes

Tell the laser which return matters.

When brush, branches, rocks or multiple objects sit inside the beam path, target priority controls which valid return is shown.

Normal mode

Returns the strongest valid result. It is the standard setting and the best starting point for most open, clearly defined targets.

First mode

Prioritises the closest valid return, useful for a small target positioned in front of a larger or more reflective background.

Last mode

Prioritises the farthest valid return, useful when the intended target is behind foreground brush, branches, rocks or other partial obstructions.

Measure in seconds

From observation to distance without changing tools.

The two-button interface keeps the most common operation direct, while the Menu button provides access to modes, units, brightness and timing preferences.

Set the view

Adjust interpupillary distance, eyecups, centre focus and the individual eyepiece settings so both the landscape and OLED display appear sharp.

Aim and measure

Place the central reticle over the target and press the Measure button. The selected distance model and target-priority setting determine the returned value.

Hold for SCAN

Keep the Measure button depressed to receive continuous readings while panning across terrain, following an animal or checking several landmarks.

Optical performance

A capable 10x42 binocular before the laser is even activated.

The rangefinder is integrated into an HD optical system designed to preserve useful detail, colour and brightness during long observation sessions.

HD optical system

Select glass elements support resolution, colour fidelity, edge-to-edge sharpness and reduced chromatic aberration.

Fully multi-coated

Anti-reflective coatings on air-to-glass surfaces improve light transmission, clarity and lower-light performance.

Red OLED display

Red information remains readable in low light while being less visually intrusive than a bright white display.

ArmorTek®

An ultra-hard exterior-lens coating helps resist scratches, oil and dirt on exposed optical surfaces.

Objective size comparison

42 mm balances field brightness with practical carry.

At 10x, a 42 mm objective produces a calculated 4.2 mm exit pupil. That gives the Ranger HD 3000 more light-gathering area than compact 28 mm or mid-size 32 mm formats while remaining easier to carry than a larger-objective binocular.

4.2 mmCalculated exit pupil: 42 mm ÷ 10x

10xMagnification for identifying distant detail

42 mmFull-size objective suited to dawn and dusk use

The 28, 32 and 42 mm circles are a proportional objective-size comparison, not three Ranger HD 3000 model options. Ranger HD 3000 is supplied only as a 10x42.

28

28 mmCompact carry, smaller light-gathering area

32

32 mmMid-size compromise between bulk and brightness

42

42 mmRanger HD 3000: brighter full-size field format

Controls and adjustment

Everything sits where your hands already expect it.

Rangefinder controls are placed around a conventional central focus layout so observation remains natural and adjustments stay available without looking away from the target.

Front-facing Vortex Ranger HD 3000 10x42 binocular diagram with eight markers identifying the eyepiece adjustments, centre focus wheel, Measure and Menu buttons, 42 mm objective, laser system and tripod adapter socket

1Left eyepiece adjustment

Balances optical focus for the left eye after centre focusing.

2Display focus adjustment

Sharpens the red OLED information independently for the right eye.

3Centre focus wheel

Moves the optical focus of both barrels from 6 ft / 1.8 m to infinity.

4Measure button

Wakes the display, returns a single range and activates continuous SCAN when held.

5Menu button

Cycles settings including ranging model, target mode, units, brightness and timing.

642 mm objective

Collects light for the left optical channel.

7Laser receive/transmit system

Integrates the rangefinder into the binocular body while retaining a slim profile.

8Tripod adapter socket

Accepts a compatible binocular adapter for supported glassing and long-range measurements.

Initial setup

Set the binocular and the display to your eyes.

Correct setup matters more on a rangefinding binocular because both the target image and the digital display need to appear sharp and correctly aligned.

Eyecups and spacing

Twist the eyecups to the position that gives a complete field with or without glasses, then fold the hinge until both circular views merge into one.

Centre focus

Aim at a detailed target, close the right eye and use the centre focus wheel to make the left optical channel sharp.

Optical balance

Close the left eye and adjust the right optical/display system as directed in the manual until the target image is equally sharp.

Display clarity

Wake the OLED and fine-tune the display-focus adjustment so the reticle, digits and mode text are crisp without disturbing optical focus.

Power and display timing

One replaceable CR123 battery.

The battery compartment is accessible from the underside of the body. A low-battery indicator appears when remaining power becomes limited, and selectable auto-shutoff timing helps conserve power between measurements.

CR123One included battery

15 / 30 / 60 sSelectable auto-shutoff timing

Low-battery iconOn-screen power warning

Hunter carrying and using the Vortex Ranger HD 3000 10x42 laser rangefinding binocular in rugged outdoor terrain

Built around real field movement

Fewer handoffs. Fewer exposed movements.

Using one optic for observation and distance reduces the need to lower your binocular, locate a second device and reacquire the same target. That saves time and can reduce visible movement when animals are alert.

Slim form factorDesigned to feel closer to a conventional 10x42 than a bulky electronic instrument.

Tripod adaptableSupported viewing helps stabilise both the image and laser aim at longer distances.

17 mm eye reliefProvides practical viewing space for users with or without eyeglasses.

102 m at 1,000 mApproximately 335 ft at 1,000 yards for scanning terrain and following movement.

Field protection

Designed for weather, impact and repeated handling.

The electronic ranging system is housed inside the same kind of sealed, rubber-armoured platform expected from a serious hunting binocular.

Waterproof

O-ring sealing helps prevent moisture, dust and debris from entering during harsh weather.

Fogproof

Nitrogen gas purging helps resist internal fogging across changing temperatures.

Shockproof

Built to withstand high levels of impact and the knocks associated with active field use.

Rubber armour + ArmorTek

Textured armour supports grip and external protection while ArmorTek helps protect exposed lens surfaces.

Vortex Ranger HD 3000 in field use with its included carry equipment

Ready to carry

GlassPak™ harness included.

The supplied harness distributes weight across the torso, protects the optic between observations and keeps the Ranger HD 3000 close enough for fast one-handed access.

What is in the box

Ranger HD 3000 10x42 LRF binocular
GlassPak binocular harness
Comfort neck strap
Tethered objective lens covers
Rainguard eyepiece cover
Lens cloth
CR123 battery
Product documentation

Optional accessories

Build a steadier, more protective field setup.

Use a compatible tripod adapter for long-range stability or move to a different harness style when extra storage, quieter access or a lighter strap-only carry is preferred.

Pro Binocular Adapter

A low-profile stud and quick-release base for steady supported glassing and more repeatable long-distance ranging.

View product

GlassPak Sport Small

A quiet fold-open harness sized for binoculars with objective lenses up to 42 mm, with a microfibre interior and storage pockets.

View product

Binocular Harness Strap

A simple strap-only option that spreads the Ranger HD 3000's weight across the shoulders and reduces bounce while walking.

View product

Complete technical reference

Vortex Ranger HD 3000 10x42 specifications.

Optical, ranging, control, power, physical and environmental specifications for model LRF-RGR3000.

Identification
Product	Vortex Ranger® HD 3000 10x42 Laser Rangefinding Binocular
Manufacturer model / SKU	LRF-RGR3000
Recommended primary use	Hunting, terrain observation and distance measurement
Optical system
Magnification	10x
Objective lens diameter	42 mm
Exit pupil	4.2 mm, calculated from 42 mm ÷ 10x
Optical system	HD optical system with select glass elements
Lens coatings	Fully multi-coated anti-reflective surfaces; ArmorTek® protection on exterior lens surfaces
Display	Red OLED with five brightness levels
Eye relief	17.0 mm
Angular field of view	6.4°
Linear field of view	335 ft at 1,000 yd / approximately 102 m at 1,000 m
Close focus	6.0 ft / approximately 1.8 m
Interpupillary distance	55-74 mm
Dioptre adjustment	Individual optical/display adjustment; published detailed data lists ±3.0 dpt per eye
Laser rangefinding
Reflective target range	Up to 3,000 yd / approximately 2,743 m
Tree range	Up to 1,800 yd / approximately 1,646 m
Deer range	Up to 1,500 yd / approximately 1,372 m
Minimum range	6 yd / approximately 5.5 m
Published ranging accuracy	±1 yd across the published distance bands
Maximum angle reading	±60°
Distance modes	HCD Horizontal Component Distance and LOS Line Of Sight
Continuous ranging	SCAN feature while the Measure button is held
Target modes	Normal, First and Last
Units	Yards or metres
Controls and power
Primary controls	Measure button and Menu button
Focus	Central focus wheel with individual eyepiece/display adjustment
Eyecups	Adjustable twist-up eyecups
Power source	One CR123 battery
Auto shutoff	Selectable 15, 30 or 60 seconds
Battery warning	Low-battery icon in the OLED display
Tripod use	Tripod adaptable with a separately sold compatible binocular adapter
Size, construction and protection
Height	6.7 in / approximately 170 mm
Width	5.1 in / approximately 130 mm
Weight with battery	32.4 oz / approximately 918.5 g
Exterior	Streamlined green rubber-armoured body
Internal gas	Nitrogen gas purged
Environmental protection	Waterproof, fogproof and shockproof
Included accessories
Carry	GlassPak binocular harness and Comfort Neck Strap
Lens protection	Tethered objective lens covers and Rainguard eyepiece cover
Cleaning	Lens cloth
Battery	One CR123 battery
Warranty
Manufacturer warranty	Vortex VIP® Unlimited, Unconditional, Lifetime Warranty, subject to stated exclusions

Vortex VIP® Warranty

Unlimited. Unconditional. Lifetime.

If the product becomes damaged or defective, Vortex promises to repair or replace it.

The Vortex VIP Warranty does not cover loss, theft, deliberate damage or cosmetic damage that does not hinder product performance. Warranty terms may be updated by Vortex; refer to the current manufacturer policy for full details.

Manuals and support

Product manual, parts diagram and display reference.

Open the official Vortex documents for operating instructions, control identification, setup, maintenance, safety and warranty information.

PDFRanger HD 3000 product manualOperating modes, setup, battery, maintenance and laser safety→ PDFLRF-RGR3000 parts diagramModel-specific controls, components and included accessories→ OLEDDisplay components referenceIdentification of the in-view OLED indicators and readouts→ VIPCurrent VIP Warranty policyCoverage promise, exclusions and service support→

Laser and optical safety: This is a laser-emitting optical device. Do not activate the laser while aiming toward a person's eyes, and never look at the sun or another intense light source through the binocular. Use only as directed in the official manual. Do not disassemble the product or allow children to use it unsupervised.

Binoculars (450)

Telescopes (246)

Spotting Scopes (82)

Tripods (192)

Metal Detectors (25)

Weather Stations (51)

Laser Rangefinders (38)

Rifle Scopes (7)

Photography (15)

Night Vision and Thermal (18)

Microscopes (28)

Torches (69)

Magnifiers (40)

Electronics (34)

Frames & Albums (184)

General Purpose Binoculars

Hunting Binoculars

Birdwatching Binoculars

Laser Rangefinder Binoculars

Marine Binoculars

Stabilized Binoculars

Binocular Accessories

Oversize Binoculars

Stargazing Binoculars

Monoculars

Trade-in

Binocular Bundles

Read our Binocular Guide

Spotting Scopes

Tripods

Accessories

Trade-in

Spotting Scope Bundles

Read our Spotting Scope Guide

Refractor Telescopes

Reflector Telescopes

Dobsonian Telescopes

Computerised Telescopes

Telescopes for Kids

Telescope Accessories

Telescope Mounts

Astro Cameras

Stargazing Binoculars

Optical Tube Assemblies

Trade-in

Telescope Bundles

Read our Telescope Guide

Binocular Rangefinders

Monocular Rangefinders

Laser Distance Meters

Read Our Rangefinder Guide

Compact cameras

Mirrorless and DSLR Cameras

Instax Cameras

Film and Disposable Cameras

Game & Trail Cameras

Camera Lenses

Camera Bags

Camera Batteries

Camera Chargers

Studio Equipment

Infrared Night Vision

Thermal Imagers

Infrared Torches

Thermal Scopes

Night Vision Scopes

Read our Night Vision Guide

Read our Thermal Guide

Handheld Magnifiers

Handsfree Magnifiers

LED Magnifiers

Read our Magnifier Guide

Pocket Microscopes

Digital Microscopes

Stereo Microscopes

Compound Microscopes

Microscope Accessories

Read our Microscope Guide

Relic Detectors

Gold Detectors
