System and product architecture
Product modelZWO Seestar S50 Pro
Product typeAll-in-one app-controlled smart telescope and astrophotography imaging system
Viewing methodLive image, controls and captured media are viewed through the Seestar app; the S50 Pro is not a conventional eyepiece telescope
Integrated hardware50 mm telephoto telescope, telephoto astronomy camera, wide-angle camera, electronic focuser, alt-azimuth mount, precision drive, ASIAIR-based smart controller, dew heater, filter-switching mechanism, onboard processing, battery and internal storage
Onboard autonomyTarget locating, plate solving, focusing, tracking, capture and live stacking run on the telescope; an active imaging task can continue if the controlling phone or tablet disconnects
Regional version for New ZealandInternational / overseas version. Mainland China units have regional activation and warranty restrictions outside Mainland China, Hong Kong SAR and Macao SAR
Telephoto astronomy camera and optics
Telephoto sensor modelOmniVision OS08B10 CMOS; not the Sony IMX585
Telephoto sensor format1/1.2-inch class; 8.3 MP; 2.9 μm pixel pitch
Telephoto still resolution at 1×2160 × 3840 pixels, portrait orientation; equivalent to 3840 × 2160 when expressed landscape-first
Telephoto live-preview stream1080p at 1×
Telephoto digital magnification1× / 2× / 4×; recorded resolution reduces at 2× and 4×

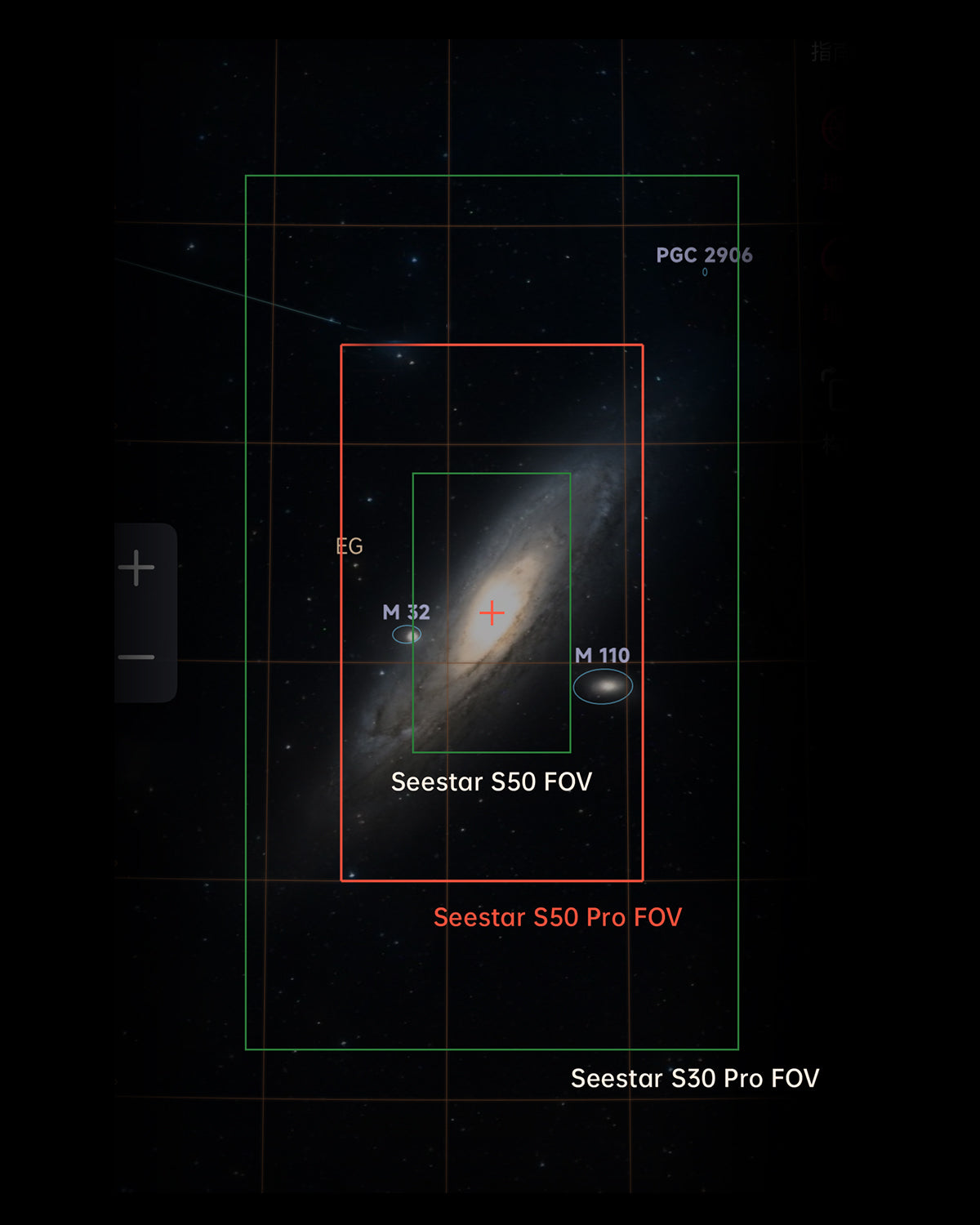

Telephoto field of view2.8° portrait
Telephoto aperture50 mm
Telephoto focal length260 mm physical; approximately 880 mm full-frame equivalent
Telephoto focal ratiof/5.2
Telephoto optical designFour-element apochromatic optical system including extra-low-dispersion glass, using a folded optical path
Telephoto working distance15 m to infinity
Practical target emphasisDeep-sky objects, star clusters, the Moon, safely filtered solar imaging and distant scenery. The short focal length is not intended to resolve fine planetary detail such as Saturn’s rings
Wide-angle camera and optics
Wide-angle sensor modelSony IMX586 CMOS
Wide-angle sensor format1/2-inch class; 8.3 MP; 1.6 μm pixel pitch
Wide-angle still resolution at 1×2160 × 3840 pixels, portrait orientation; equivalent to 3840 × 2160 when expressed landscape-first
Wide-angle live-preview stream1080p at 1×
Wide-angle field of view63° portrait
Wide-angle aperture3.4 mm
Wide-angle focal length6 mm physical; approximately 35 mm full-frame equivalent
Wide-angle focal ratiof/1.75
Wide-angle working distance0.1 m to infinity
Wide-angle functionsMilky Way imaging, wide-field live stacking, Milky Way time-lapse, star trails, constellation overlays, panoramic stitching, landscape compositions, scenery capture and assistance with target location
Dual-camera operationTelephoto and wide-angle channels can operate together, allowing wide-field and telephoto data to be captured during the same observing session
Focusing, filters and calibration hardware
Focusing systemIntegrated electronic focuser with app-controlled automatic focusing
Target acquisitionAutomatic GOTO, proprietary target-acquisition algorithm, plate solving, automatic tracking and automatic focus
UV/IR-cut filtrationBuilt into both telephoto and wide-angle imaging channels
Dual-band light-pollution filterBuilt into the telephoto channel; OIII 30 nm / Hα 20 nm passbands; manually selectable in the Seestar app
Dark-frame filterBuilt into the telephoto channel for automated calibration workflows
Solar filterExternal magnetic solar filter included. It must be securely installed before the main camera is directed toward the Sun
Dew controlIntegrated dew heater; heater use adds power load and can reduce battery runtime
Capture modes, exposure and image processing
Stargazing ModeTelephoto deep-sky mode for nebulae, galaxies, star clusters and comets, with automatic GOTO, initialization, tracking and live stacking
Default deep-sky sub-exposure10 seconds per frame in the standard Stargazing workflow, stacked automatically onboard
Maximum stated long exposureUp to 60 seconds in Equatorial Mode only; 60-second exposures are unavailable in standard Alt-Azimuth Mode
Milky Way ModeWide-field photo capture, live stacking, Milky Way composition, star trails and constellation functions
Solar System ModeMoon, Sun and solar-system target workflow. Solar capture requires the supplied solar filter; fine planetary detail is limited by the compact 260 mm focal length
Scenery ModeDaytime or terrestrial photos and videos of landscapes, birds, wildlife and distant subjects
Deep-sky mosaicAutomatic telephoto mosaic stitching expands the native 2.8° field and can produce output up to 8K
Milky Way stitchingMultiple framing layouts, including automatic Milky Way arch capture and panoramic output up to 8K
Freeze the GroundSeparates the foreground from the tracked sky so landscape detail can remain fixed while stars are aligned; foreground freeze duration is adjustable
Star-trail outputLong-exposure star-trail sequences can be assembled automatically into a finished still and a dynamic video
Image formatsJPEG for convenient viewing and sharing; FITS for astronomical post-processing
Video formatsMP4 / AVI
Smart EnhancementOne-tap processing of real captured data, including automatic noise optimisation; ZWO states that this is non-generative enhancement rather than AI-created sky imagery
Manual app editing toolsStar Reduction, Star Removal by setting reduction to 100%, crop, brightness, contrast, noise reduction, saturation and related finishing controls
Mount, drive, alignment and tripod interface
Standard mount configurationIntegrated motorised alt-azimuth mount
Equatorial ModeSupported with a suitable EQ wedge / support and accurate polar alignment; compensates for Earth’s rotation and reduces field rotation
Equatorial accessoriesAn EQ wedge and suitable quick-release hardware are required for the illustrated EQ workflow and are not listed among the standard in-box components
EQ setup path in appMe → Device Management → Mount Mode; the app calculates azimuth and altitude polar-alignment error
Recommended polar-alignment toleranceAdjust the wedge until the app reports both azimuth and altitude errors within 1°
Drive designPrecision drive system described by ZWO as near-zero backlash for smoother tracking and fine adjustment
Slew-rate range1× to 1440×
Home / zero positionMechanical zero position; normal shutdown returns the optical assembly to zero before switching off
Base mounting interface3/8-16 inch threaded socket; compatible with the supplied tripod and other photographic tripods using a 3/8-inch mounting screw
Storage, file handling and connectivity
Internal storage medium128 GB eMMC
Approximate usable storageApproximately 100 GB after system files and reserved allocation; available capacity may change after firmware or system updates
Image retrievalBrowse files stored on the telescope from the Seestar album, download selected files to the phone or tablet, export to other apps, or share to the AstroImg community
Wireless methods2.4 GHz Wi-Fi, 5 GHz Wi-Fi, Bluetooth and NFC-assisted pairing
Wired methodUSB Type-C for charging, computer connection and supported file-transfer workflows
Wi-Fi rangeUp to 10 m in ZWO’s open, unobstructed test environment; interference and obstructions reduce actual range
Bluetooth rangeUp to 5 m in an open, unobstructed test environment
Direct hotspot operationAfter first activation, the phone or tablet connects to the S50 Pro’s own Wi-Fi hotspot; ordinary field control does not require cellular coverage or home internet
Android manual hotspot connectionAndroid may require manual selection of the SSID formatted S50 Pro_[serial number]; the documented default hotspot password is 12345678
Station ModeCan join an available local Wi-Fi network; the controlling device connects while on the same LAN
Wi-Fi resetSupported via the dedicated base button; press and hold for approximately 3 seconds when the S50 Pro is powered on
Telescope NetworkRemote device control, access sharing / transfer and batch photo export; ZWO currently describes Remote Access as a beta feature with a limited-time free trial
Battery, charging and power management
Battery capacity10,000 mAh; 36 Wh rated energy
Battery electrical ratings3.6 V rated voltage; 4.2 V charging voltage
Maximum stated runtimeUp to approximately 9 hours from a full charge in ZWO laboratory testing
Runtime test conditionsApproximately 25°C, image enhancement and object tracking enabled, dew heater off; actual runtime varies with temperature, heater use, wireless activity and operating mode
Power inputUSB Type-C; supports DC 5 V / 3 A and 12 V / 3 A
Charger requirementsUse a reputable USB BC1.2-compatible charger; the manual identifies 5 V / 2 A normal charging and up to 12 V / 3 A fast charging
Use while chargingSupported from a suitable mains adapter, computer port or portable power bank
Low-battery protectionBelow 5%, the telescope automatically returns to zero position and shuts down
Battery serviceabilityBattery compartment is accessible for replacement; power must be off and disconnected, and removal is intended only when replacing the battery
Cold-weather behaviourLithium-battery capacity naturally decreases at low temperature, so winter runtime can be shorter than the laboratory figure
Seestar app, compatibility and software functions
Control applicationSeestar app for phone or tablet
Minimum Apple operating systemiOS 13.0 or later / iPadOS 13.0 or later
Minimum Android operating systemAndroid 10 or later
Android memory requirement6 GB RAM minimum stated in the V1 user manual
Recommended Android graphics hardwareQualcomm Adreno 660 at 840 MHz or better, as stated in the V1 user manual
First-use app permissionsBluetooth, nearby-device / device-connection and network permissions must be granted; NFC setup also requires NFC, Wi-Fi, Bluetooth and location services as applicable to the phone
First activationRequires a signed-in ZWO account and an internet-connected phone or tablet; keep the Seestar app open until activation completes
NFC connectionSupported after initial activation on compatible NFC phones; tapping the phone to the telescope can launch the app and begin connection. Changed Wi-Fi names or passwords require the NFC information to be updated
Firmware update behaviourThe app prompts when compatible firmware is available; the telescope must remain connected during installation and automatically reboots when the update completes
Target discoverySky Atlas, Tonight’s Best recommendations, target altitude information, intelligent star-map guidance and an object encyclopedia
Database scaleMore than 80,000 deep-sky objects and 600,000 stars stated by Seestar
Core app controlGOTO, live view, target centring, virtual joystick, tracking, plate solving, autofocus, filter selection, dew-heater control, exposure control, live stacking, photo / video capture, albums, download and sharing
Plan ModeCreates or recommends an observing plan using targets and conditions, then automatically changes targets and runs the planned captures
AI assistantTarget search, GOTO initiation, observing and imaging help, celestial information and operation guidance
Constellation recognitionOne-tap constellation-line and label overlays with direct movement from identification to GOTO
Open software integrationASCOM Alpaca protocol support for compatible third-party astronomy software, including N.I.N.A.; available functions can depend on firmware and client-software versions
Community and weatherAstroImg community supports image sharing and interaction; the app ecosystem also provides observing information and real-time weather data
Software lifecycleApp, firmware, menus, beta services, storage allocation and supported features may change through future updates
Physical construction and supplied tripod
Main-unit weight2.8 kg without tripod
Current product-page folded dimensions140 × 149 × 268 mm
Manufacturer-document dimension noteThe V1 manual separately lists 260 × 140 × 145 mm. This appears to reflect a different measurement order and/or an earlier document revision; use 140 × 149 × 268 mm as the current product-page figure
Main external interfacesUSB Type-C charge / data port, power button and indicator, four-segment battery indicator, Wi-Fi reset button, 3/8-16 tripod socket and serviceable battery compartment
Included tripod constructionAdjustable carbon-fibre tripod with two leg-angle positions and two-stage telescopic legs
Tripod fully extendedApproximately 227 mm high and 737 mm in overall footprint diameter at the widest leg angle
Tripod folded sizeApproximately 275 mm long with an 85 mm maximum diameter
EQ tripod configurationFor maximum stability, fully extend the legs and use the widest leg angle; orient one leg toward true north and position the optical tube over that leg
Buttons, status indicators and shutdown behaviour
Battery check while offShort-press the power button to display the remaining charge on the four-segment battery indicator
First power-onShort press for approximately 1 second, then press and hold for approximately 2 seconds
Subsequent power-onPress and hold the power button for approximately 2 seconds
Connected mode indicationYellow power light in Alt-Azimuth Mode; green power light in Equatorial Mode
Live-stacking indicationSlow breathing yellow light in Alt-Azimuth Mode or slow breathing green light in Equatorial Mode
Battery indicator thresholds0–15%: one red light blinking; 16–25%: one red light; 26–50%: two; 51–75%: three; 76–100%: four
Normal shutdownUse swipe-to-shut-down in the app or the power-button long press; the optical assembly returns to zero before power-off. The V1 manual gives both 2-second and 3-second long-press wording in different sections, so follow the current device prompt
Forced shutdownPress and hold for approximately 6 seconds only when normal shutdown is unavailable; the optical assembly does not return to zero
Environmental and operational limits
Recommended operating temperature−10°C to 40°C
Charging temperature0°C to 40°C
Storage temperature−10°C to 60°C
Operating humidity20% to 80%
Storage humidity20% to 50%; store clean and dry
Weather protectionNo waterproof or dustproof rating is stated; the manual instructs users to avoid exposure to water and dust
Wind limit in manualDo not use when wind exceeds Force 3 on the Beaufort scale
Recommended sky clearanceAt least 45° of unobstructed sky is recommended so buildings, trees or balcony structures do not block the selected target
Solar safetyNever point the main camera at the Sun without the magnetic solar filter securely fitted. Move the Sun fully out of the telephoto field before removing the filter
CleaningUse dedicated optical lens wipes only; avoid alcohol, thinner, general chemical solvents, liquids, fabric and ordinary eyeglass cloth on the optics
Unattended-plan limitationCloud, rain or strong wind can interrupt a scheduled task; the telescope does not automatically shut down simply because weather deteriorates
