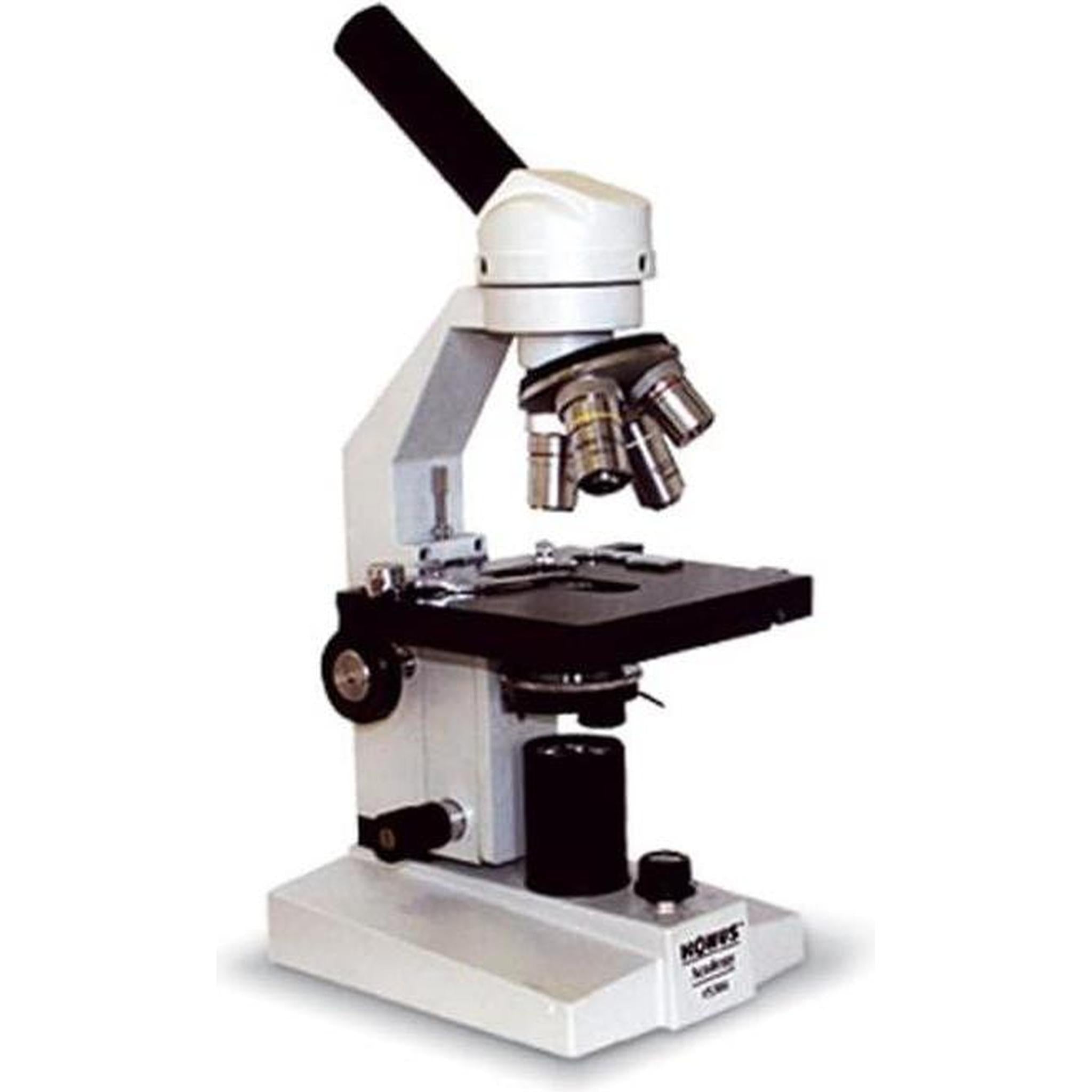

Konus Academy-2 Compound Microscope

SKU: KS5305

Konus Academy-2 Compound Microscope - Jacobs Digital

Our Price



Delivery truck More on the way

Estimated time of arrival: Jul 25, 2024



Shipping Quote

When will I receive it?

About this product

  • Inclined Monocular Viewing
  • 40x, 100x, 400x, and 1000x Magnification
  • 4x, 10x, 40x, and 100x DIN Achromats
  • 10x WF Eyepiece
  • Fine & Coarse Focusing
  • 0.5W LED Illuminator / Abbe Condenser
  • Movable Stage with Coaxial Controls
  • Iris Diaphragm & Four Filters
  • Cordless or 220V Corded Operation
  • Cast Metal Frame with Gray Enamel Finish

Konus Optics'Academy-2 Biological Monocular Microscope offers users a scientific microscope experience by providing four DIN achromatic objectives, a widefield eyepiece, a stable metal frame with fine and coarse focusing, and a movable stage with a sample bracket. The optical system has a 1000mm focal length and delivers a maximum 1000x magnification. You will see crisp images with low color distortion, thanks to the achromatic optics. To add proper illumination to your images, the scope has a bottom 0.5W white LED lamp, an Abbe condenser with a double lens, and an iris diaphragm. To enable you to emphasize certain details of your samples you are also provided with four color filters, in orange, white, light blue, and green. For precise positioning of your specimens under the objective, the scope offers fine and coarse focusing wheels and a movable square stage with two coaxial Vernier controls. The stage has a metal bracket to secure your slides. Another definite highlight of this microscope is its ability to be operated as both corded or a cordless device using the included accessories: a 220V AC adapter or three rechargeable AAA batteries with a battery charger.

Optical Performance
  • Inclined monocular viewing
  • 40x, 100x, 400x, and 1000x magnification
  • 4x/0.10, 10x/0.25, 40x/0.65, and 100x/1.25 DIN achromatic objectives
  • 10x WF eyepiece
  • Clear field Abbe condenser with double lens
  • Four filters: orange, white, light blue, and green
  • Fine and coarse focusing
  • 1000mm focal length
  • 0.5W LED illumination
  • Iris diaphragm
Use and Handling
  • Cordless operation using the three included AAA batteries
  • Corded operation using the included power adapter
  • Movable stage with specimen bracket
  • Coaxial Vernier controls
  • Filter holder
Construction Details
  • Metal frame
  • Wide base
  • Arched back can serve as a handle
  • Rotating nosepiece turret
