About this product

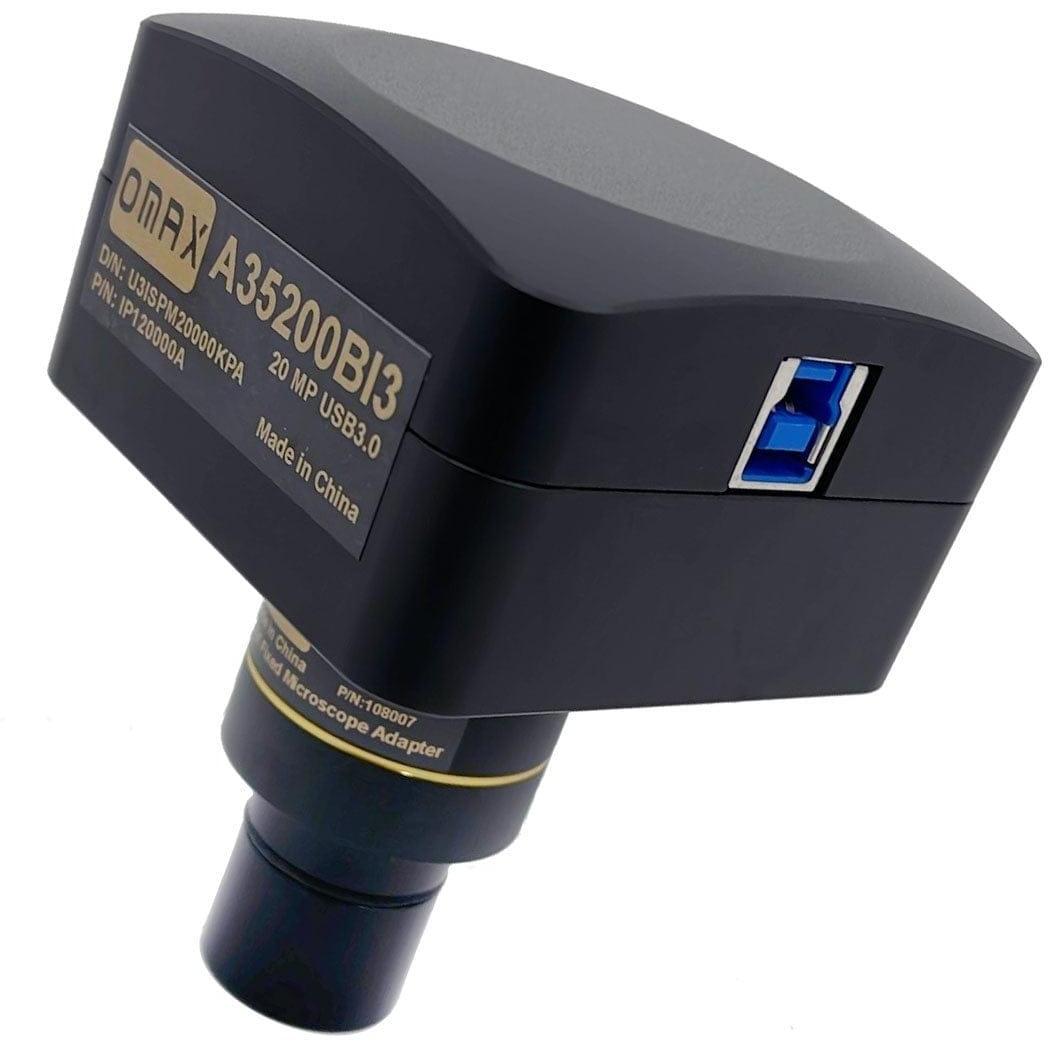

The A35200U3 uses a high-speed 20MP back-illuminated CMOS sensor for high resolution with high quantum-efficiency.
The 1" format sensor provides a large field-of-view with improved light-gathering efficiency.
High-speed processing and USB3.0 connectivity provide high frame-rates.
Capture high-resolution photos and high-definition video with the included microscopy software suite.
The A35200BI3 is a high-resolution imaging solution that won't break the bank. This camera uses a back-illuminated CMOS sensor for improved light absorption, resulting in less noise and more accurate detail.
The included software for Windows, Mac, and Linux provides an imaging solution for photography and videography. The Windows (XP/Vista/7/8/10) version provides an extensive toolset for image-processing and measurements. A lite version of the application is provided for Mac and Linux.
Specifications
Sensor Specifications
Model
OnSemi AR2020 (color)
Sensor Type
back-illuminated CMOS
Sensor Optical Format
1/1.8"
Active Pixels
19.66M (5120 x 3840)
Pixel Size
1.4µm x 1.4µm
Active Sensor Area
7.17mm x 5.38mm
Shutter
electronic rolling shutter
Responsivity
8.4 ke-/lux-sec
Spectral Response
380-650nm with IR-cut filter
Other Camera Specifications
Binning
1x1, 2x2
Video Capture Framerate
20fps @ 5120x3840 45fps @ 2560x1920
Connectivity
USB 3.0
Lens-mount
C-mount
Compensating Lens
0.7X
Power
5VDC over USB
Operating Temperature
-10-50°C
Operating Humidity
30-80%
Software
OS Requirements
Windows (32/64 bit) 8/10/11, Mac OS 10.8+, Linux kernel 3.13+
Hardware Requirements
Intel Core2 2.8GHz or comparable processor, 4GB RAM
Features
Windows Version
Live video preview
Captures still images and video
Time-lapse capture
Exposure and white-balance controls
Dark-field correction
Digital binning
Image processing
Measurement tools, including lines, arcs, polygons
Segmentation and counting tools
Image-stitching, extended depth-of-field, HDR
Fluorescence color-mapping
Mac/Linux Versions
Live video preview
Captures still images and video
Exposure control
Color adjustment
Measurement tools, including lines, arcs, polygons
