Samyang Xeen Anamorphic 50mm T2.3 Pl Meter

SKU: SY888343

Samyang Xeen Anamorphic 50mm T2.3 Pl Meter - Jacobs Digital
Samyang Xeen Anamorphic 50mm T2.3 Pl Meter - Jacobs Digital
Samyang Xeen Anamorphic 50mm T2.3 Pl Meter - Jacobs Digital

Our Price






Shipping Quote

About this product

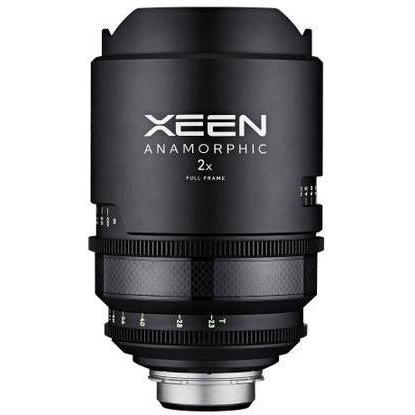

XEEN Anamorphic

2x Anamorphic lens for high-end digital cinematography
Covers full-frame sensor
Compatible with PL mount

50mm T2.3

Compatible with
Full Frame Sensor

Compatible with full-frame PL mount cameras. It offers excellent quality, high resolution, and excellent sharpness. It's suitable for 4K or UHD as well as 8K resolution cameras.

2X Anamorphic :Magnificent & Highly Immersive

After being de-squeezed, the XEEN Anamorphic 50mm T2.3 lens covers a 2.55:1 original cinematic cope ratio in a 35mm full-frame sensor in order to provide old films' own vintage look and a wider field of view and more attractive images from a horizontal angle of view.
Carbon Fiber
By applying carbon fiber, which is lighter than metal but solid and beautiful, to the lens body tube, it remains lightweight while maintaining durability.
Outstanding Usability

Designed to 114mm standard front diameter size it is easily compatible with 4x5 Matte Box. All scales, including focal length and aperture values, are on both sides of the lens and with the luminous font that glows in the dark, enabling convenient verification and operation, even in low light environments. 300° wide focus gear rotation angle makes you adjust focus minutely.


Model Name : XEEN Anamorphic 50mm T2.3
Maximum T-stop : T2.3
Image Circle : Ø 43.2 mm
Angle of View Full Frame : H:68.4˚ V:26.9˚
Super 35 : H:50.0˚ V:20.5˚
Focusing Range : ∞ to 1.0 m
Focusing Range : ∞ to 3.3 ft
Front Diameter : Ø 114 mm
Number of Aperture Blades : 15
Rotation Angle of Focus Ring : 300°
Rotation Angle of Aperture Ring : 89.5°
Mount :PL
Size : Ø128.0 x 198.6 mm
Weight(Without Lens Cap) : 3.9 kg
Squeeze Ratio : X2
Focus Drive Gear : 158 teeth 0.8 metric module x 8.0mm wide x 121mm from the image plane
Iris Drive Gear : 136 teeth 0.8 metric module x 7.0mm wide x 75mm from image plane
