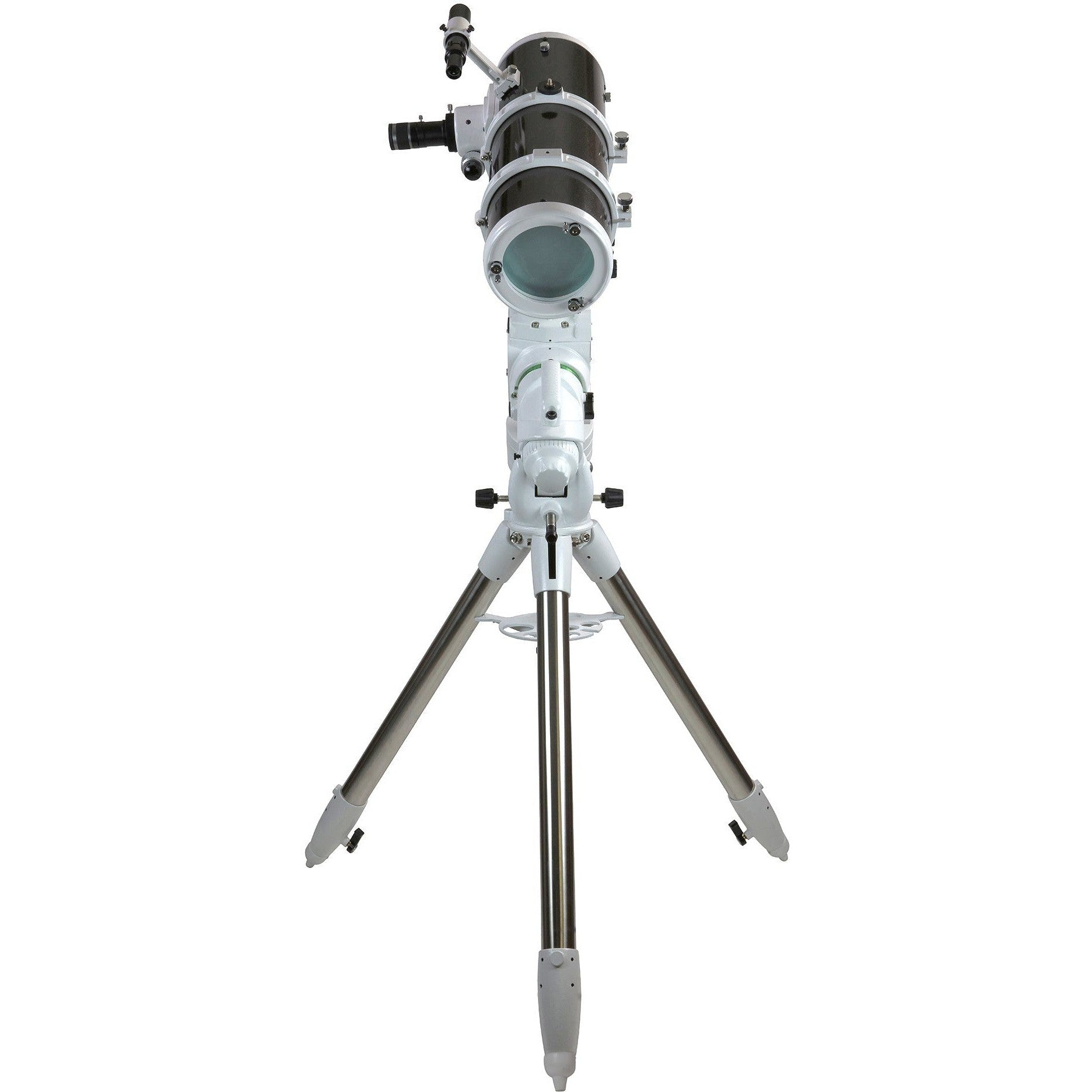

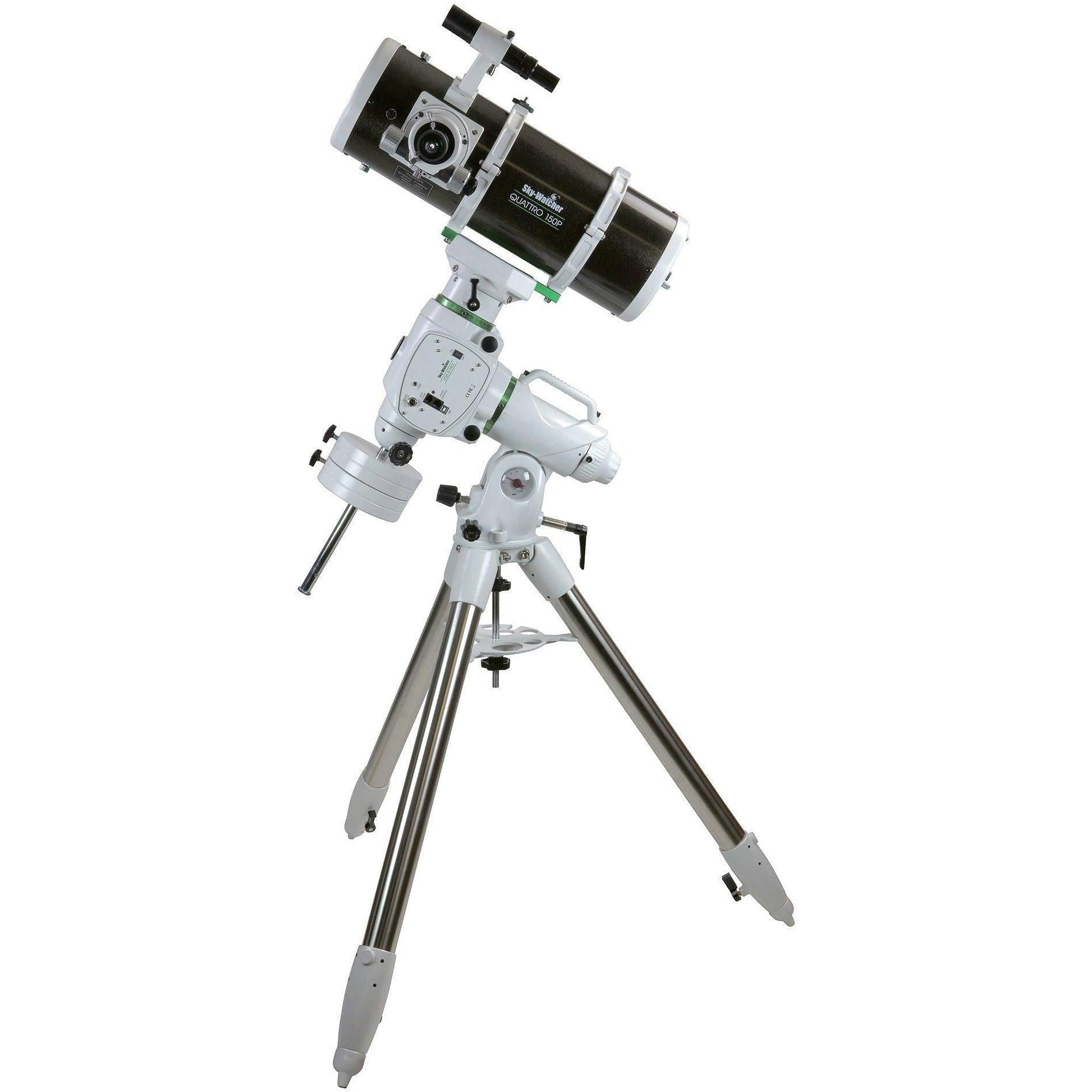

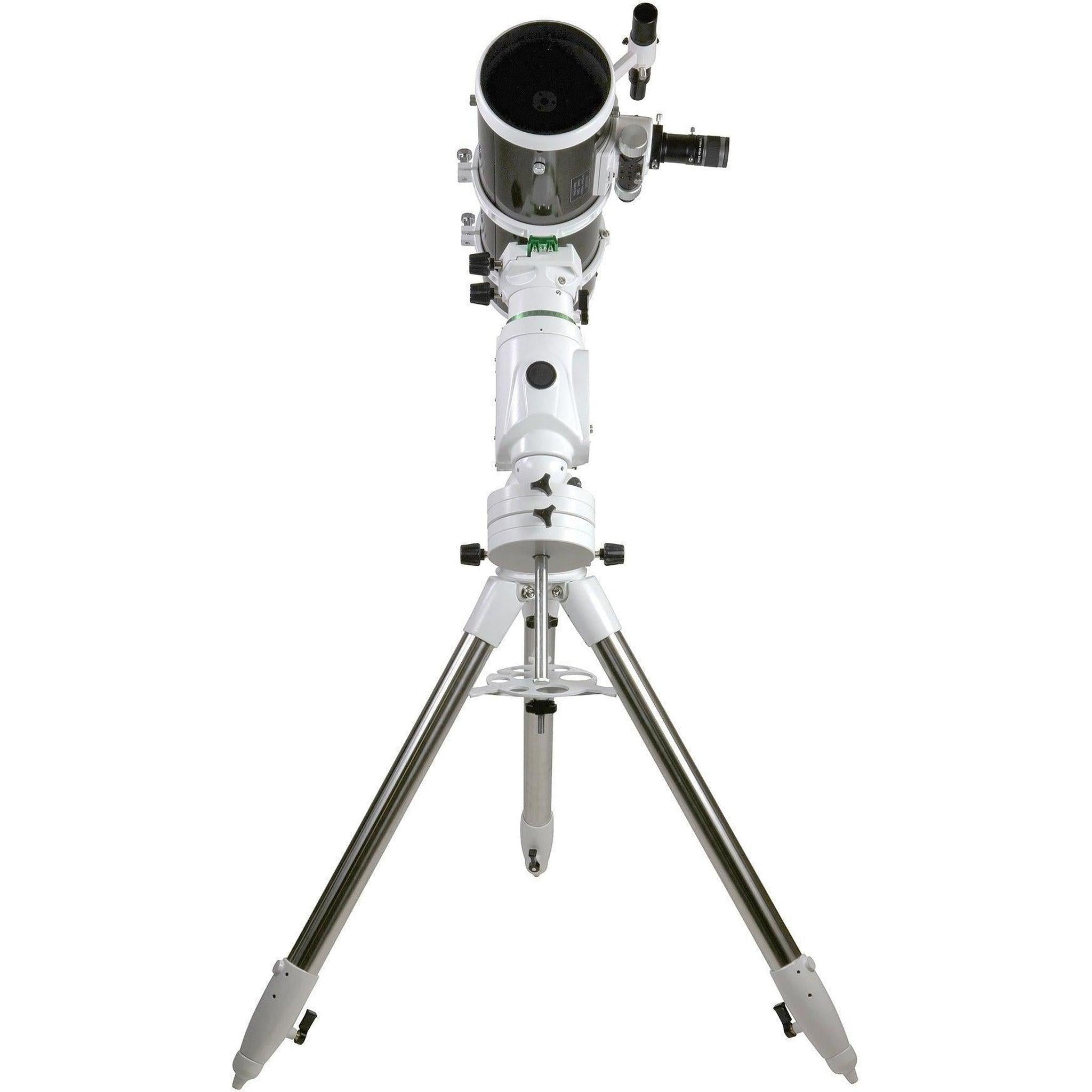

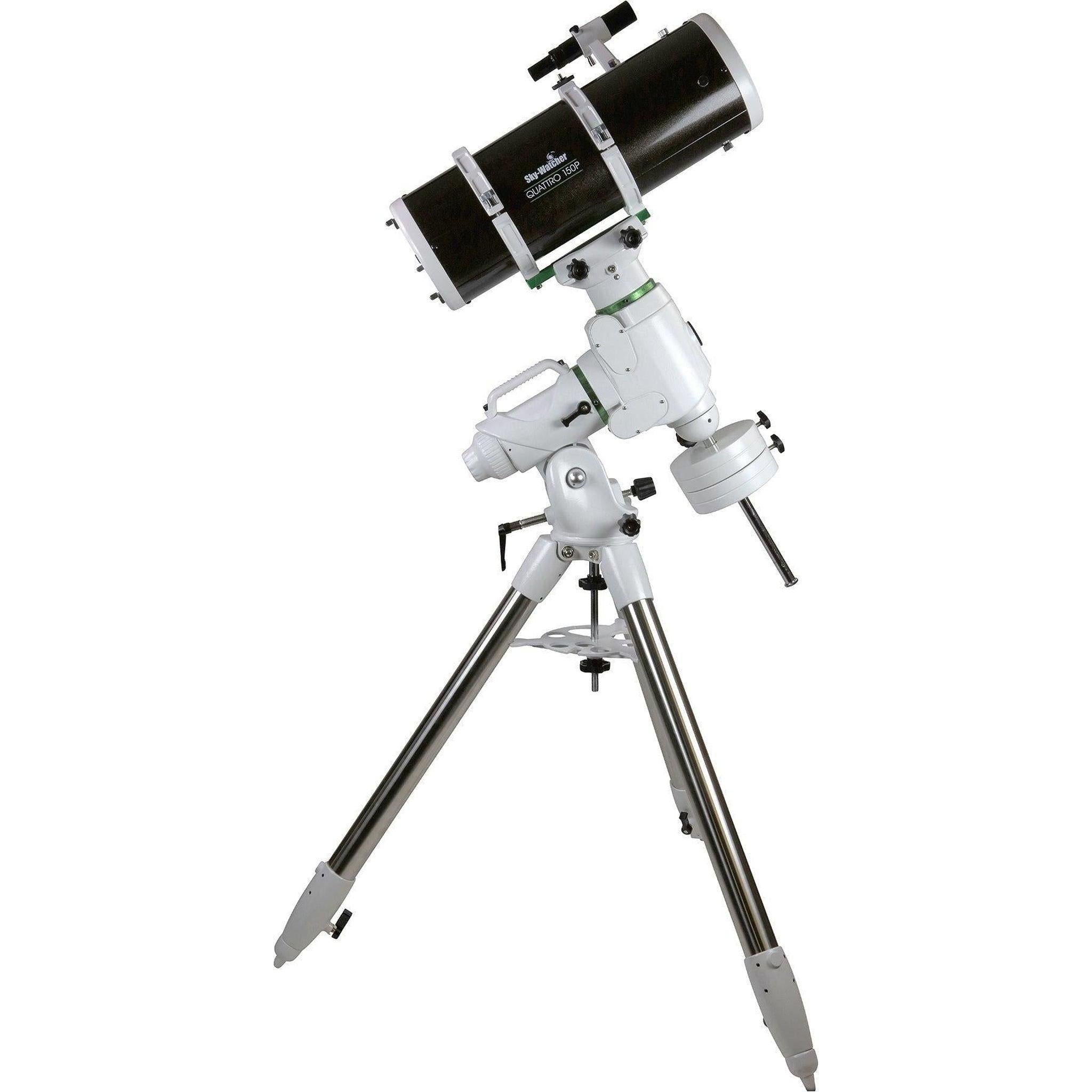

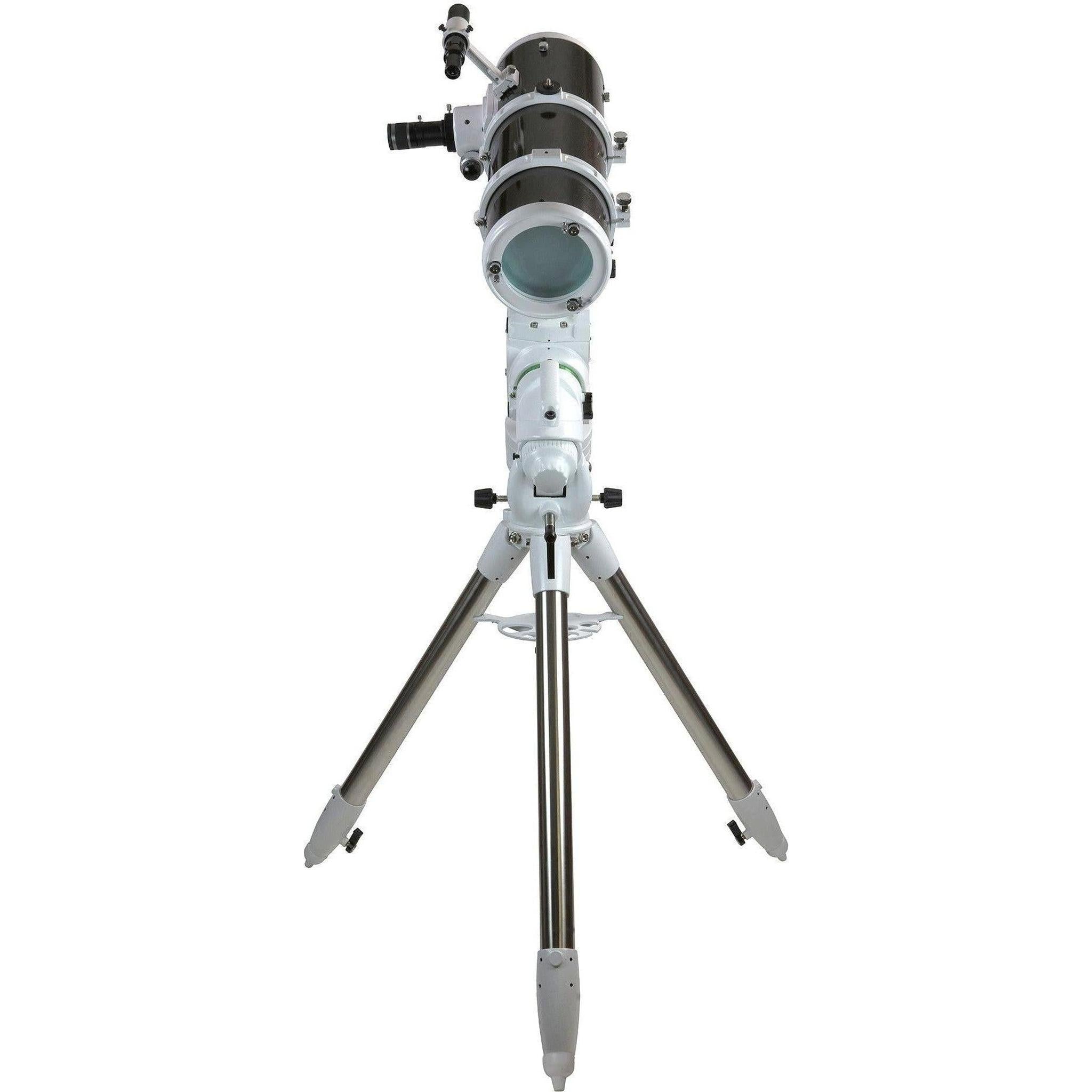

Skywatcher Quattro 150Q on EQ6-R Reflector Telescope with Tripod Telescope Bundle

SKU: SWEQ6R-150Q

Skywatcher Quattro 150Q on EQ6-R Reflector Telescope with Tripod Telescope Bundle - Jacobs Digital
Skywatcher Quattro 150Q on EQ6-R Reflector Telescope with Tripod Telescope Bundle - Jacobs Digital
Skywatcher Quattro 150Q on EQ6-R Reflector Telescope with Tripod Telescope Bundle - Jacobs Digital
Skywatcher Quattro 150Q on EQ6-R Reflector Telescope with Tripod Telescope Bundle - Jacobs Digital

Our Price

$4,700.00

$4,700.00

Green truck Usually Ships in 4-6 Weeks An order for this can be placed with our supplier, and usually ships within the specified timeframe.



Loading

35000

470000

Shipping Quote

When will I receive it?

About this product

Bundle and Save

Get a great start, or upgrade your astrophotography gear with this great bundle from Skywatcher.

This bundle includes:

  • 1 x EQ6-R GoTo Mount with Tripod (SynScan HC)
  • 1 x 150/600 Quattro 150 Photo Newtonian OTA Dual Speed Focuser, Coma Corrector

Quattro 150Q

Newtons have always been the best-selling reflector telescopes as they combine a large diameter at an affordable price. Sky-Watcher's Newton Quattro 150/600 f/4 is a telescope with a 150mm diameter and 600mm focal length suitable for photographic use, thanks to the fast f/4 focal ratio and the included coma corrector.

This instrument is very bright and allows you to record the faintest details of faint objects but can still be used in visual mode, especially for observing galaxies, nebulae or star clusters. The Newton Four are the best tools for observing or photographing faint objects, at very low cost. They were created for deep-sky photography but are also very suitable as a tool for observing both weak and planetary objects. Lightweight, weighing only 5.7kg and compact, despite appearances, it can be used on EQ3 type mounts but for photographic use we recommend at least one EQ5.

Newton Quattro ducted optic with parabolic mirror diam. 150mm, 600mm focal length (f / 4), 45mm dovetail guides (EQ5 type), dual-speed focuser with 50.8 / 31.8mm dual-speed eyepiece holder, 6 × 30 finder scope, 22mm Ultra Wide eyepiece with 70 field degrees, and coma corrector f / 4 included.


  • Optical Configuration: Newtonian Reflector
  • Effective Aperture of 150mm
  • Focal Length of 600mm
  • Focal Ratio of f/4
  • Eyepiece:70 degree Ultra Wide 22mm
  • Magnification:27x
  • OTA Weight: 5.7kg
  • Finder Scope: 6x30
  • 2" (50.8mm) Dual-Speed 10:1 Crayford Power Focuser
  • Tube Rings & Dovetail Bar
  • Coma Corrector included



Manufacturer Sky-Watcher
Name SkyWatcher Newton Quattro 150 f/4
MPN SKP1506-IWP-F
EAN 8032539197182
Warranty 3 YEARS
-- TECHNICAL FEATURES -- ⬇︎
Optical Scheme Newton
Diameter 150 mm
Focal Length 600 mm
Aperture f/4



EQ6-R

The new SkyWatcher EQ6-R PRO Synscan Computerised Go-To mounting is an exciting evolutionary progression of the continuing legend that is the EQ6 PRO. The modern optimised design of the EQ6-R PRO incorporates features that serious imagers will immediately appreciate, such as;

  • Increased Payload capacity of 20kg for Astro-Photography
  • Synchronous Belt Driven, resulting in minimal backlash – Even quieter, smoother operation and better results when guiding. Higher Torque.
  • Superior Latitude adjustment controls with greater range of latitudes possible
  • Built-in SNAP camera control port
  • PPEC worm gear and worm periodic error correction function (avoids having to constantly re-train)
  • Built-in carrying handle for convenient transportation

The supplied computerised Synscan™ hand control allows you to control the mount to point your telescope at a specific object or even tour the skies at the touch of a button. The user-friendly menu system allows automatic slewing to 42,000+ night sky objects from it’s extensive database.

Supplied with;

  • EQ6-R Pro mount
  • Tripod with 2″ stainless steel legs
  • Dual-Fit 45mm/75mm dovetail saddle
  • SynScan hand controller / cable
  • Counterweight Rod: 18mm diameter, length 240mm + 180mm
  • 2 x5 kg counterweights
  • Polar alignment scope
  • Autoguiding connection
  • Printed Instruction Manual

SPECIFICATIONS

  • Product Name:  EQ6-R PRO Synscan
  • Mount Type:  German Equatorial
  • Maximum Payload (Counterweights excluded):  20kg (for Astro-Photography)
  • Latitude Adjustment Range:  5º to 65º
  • Azimuth Adjustment Range:  About ±9 º
  • Mount Weight (Tripod excluded): 17.3 kg
  • Counterweights Supplied:  2 x 5kg
  • Tripod Supplied:    2-inch stainless steel, 7.5kg Weight
  • Counterweight Rod:  18mm Diameter, Length 240mm + 180mm
  • Power Requirement:  DC11~16V 4A
  • Motors: 1.8 º Hybrid Stepper Motors
  • Transmission:  180:1 Worm Drive + 48:12 Timing Belt Drive + 64 Micro-step/1.8º Stepper Motor Drive
  • Gear Ratio:  720
  • Resolution:  9216000 Counts/Rev., approx. 0.14 arc-second
  • Maximum Slewing Speed:  4.2 degrees/second
  • Tracking Rate:  Sidereal rate, solar rate, lunar rate
  • Tracking Mode:  Equatorial mode
  • Auto-guiding Speed:  0.125X, 0.25X, 0.5X, 0.75X, 1X
  • PEC: 100 Segments Permanent PEC (PPEC)
  • Hand Controller: SynScan™
  • Database:  42000+ Objects
  • Celestial Object Catalogue:  Messier, NGC, IC, SAO, Caldwell, Double Star, Vari-able Star, Named Star, Planets
  • Pointing Accuracy:  Up to 5 arc-minutes (RMS)
  • An integral SNAP camera control port
  • Dual-Fit 45mm/75mm Dovetail Saddle
  • Polar Alignment Scope
