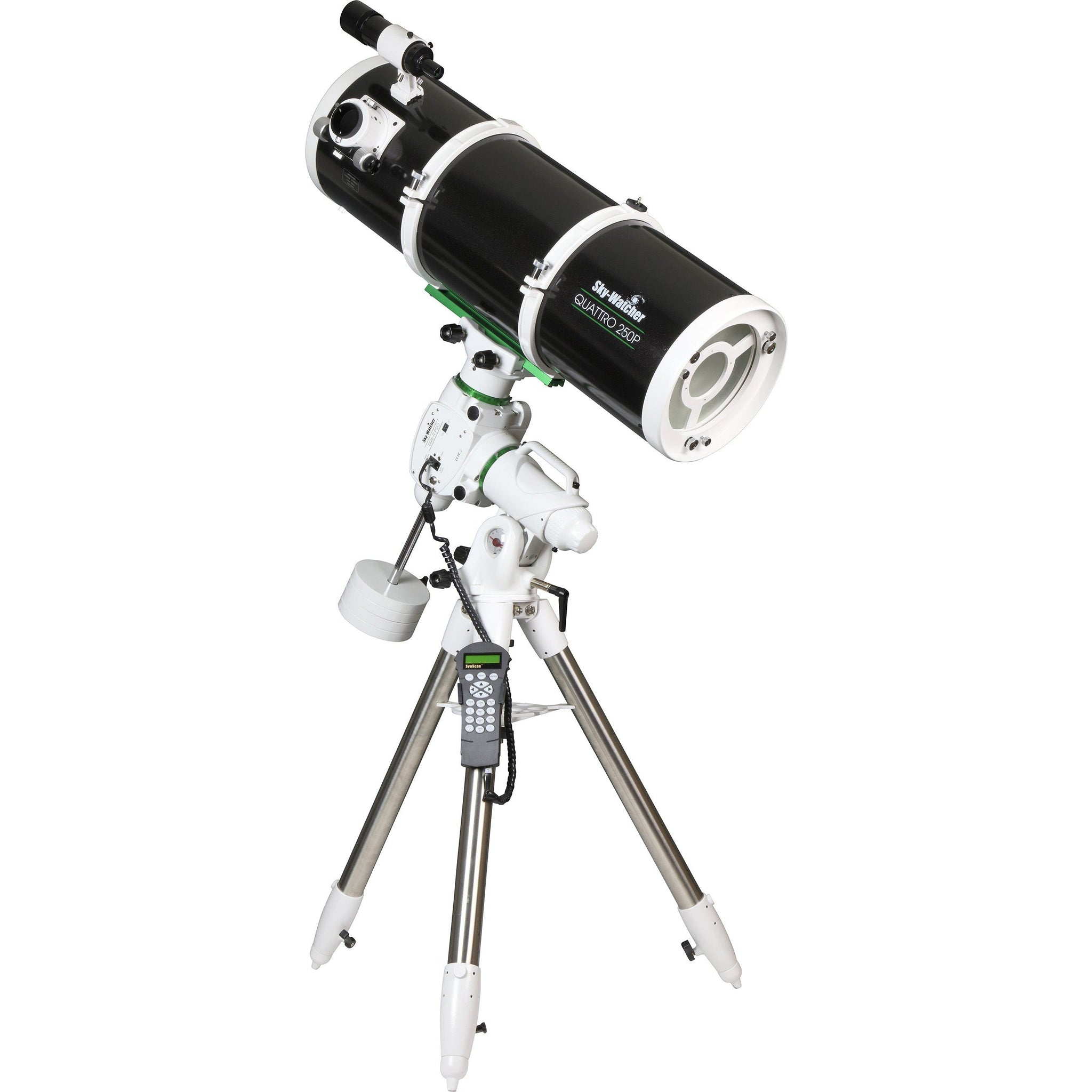

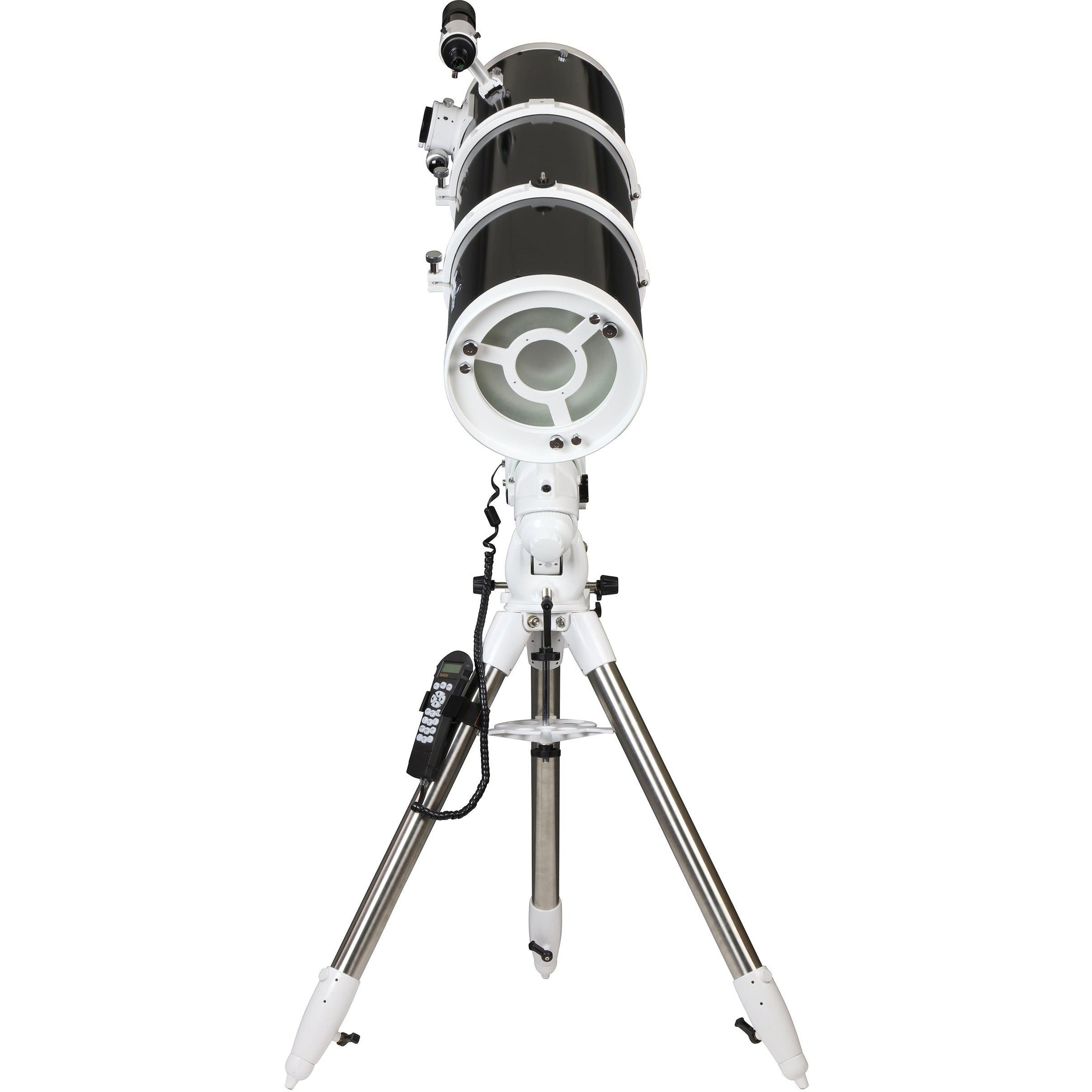

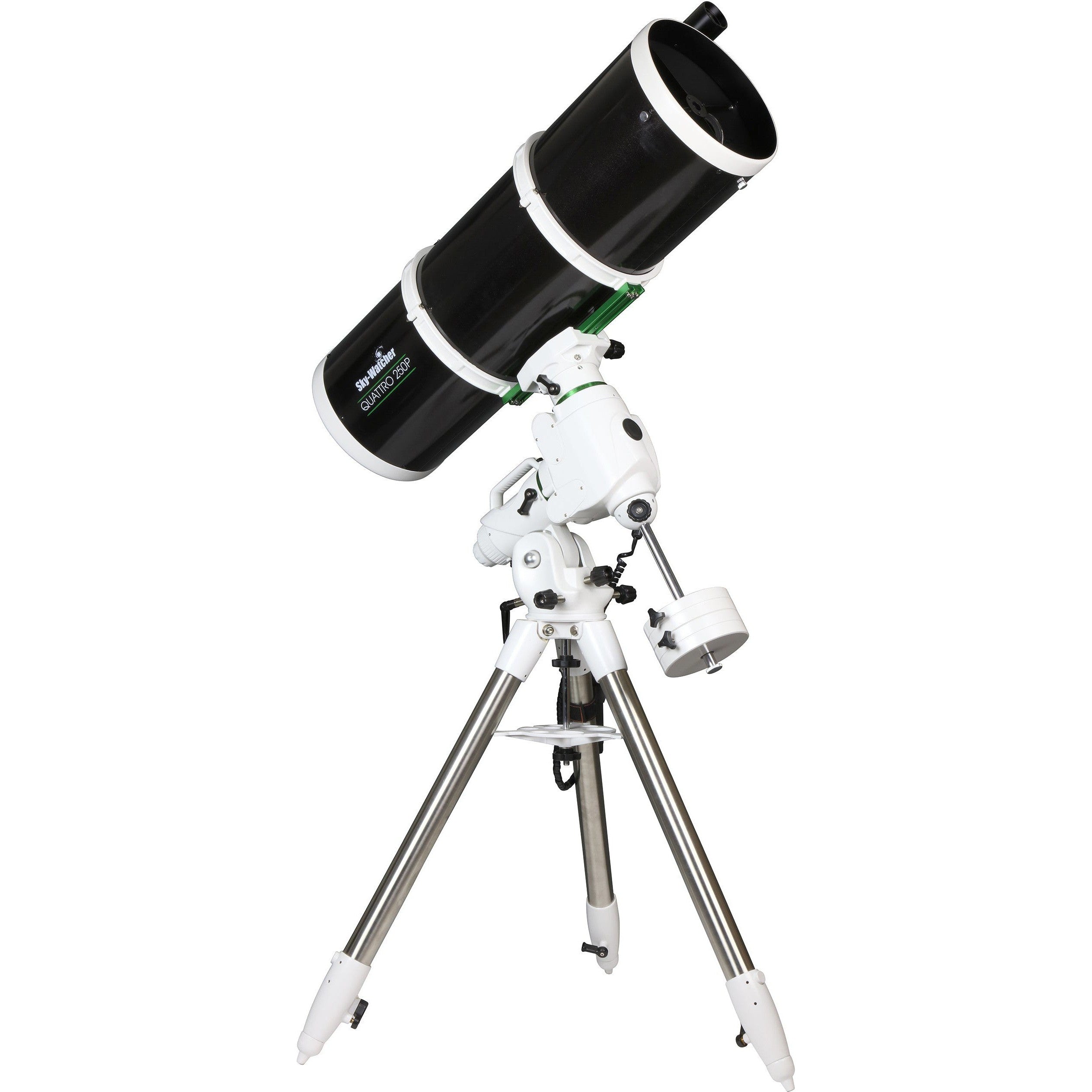

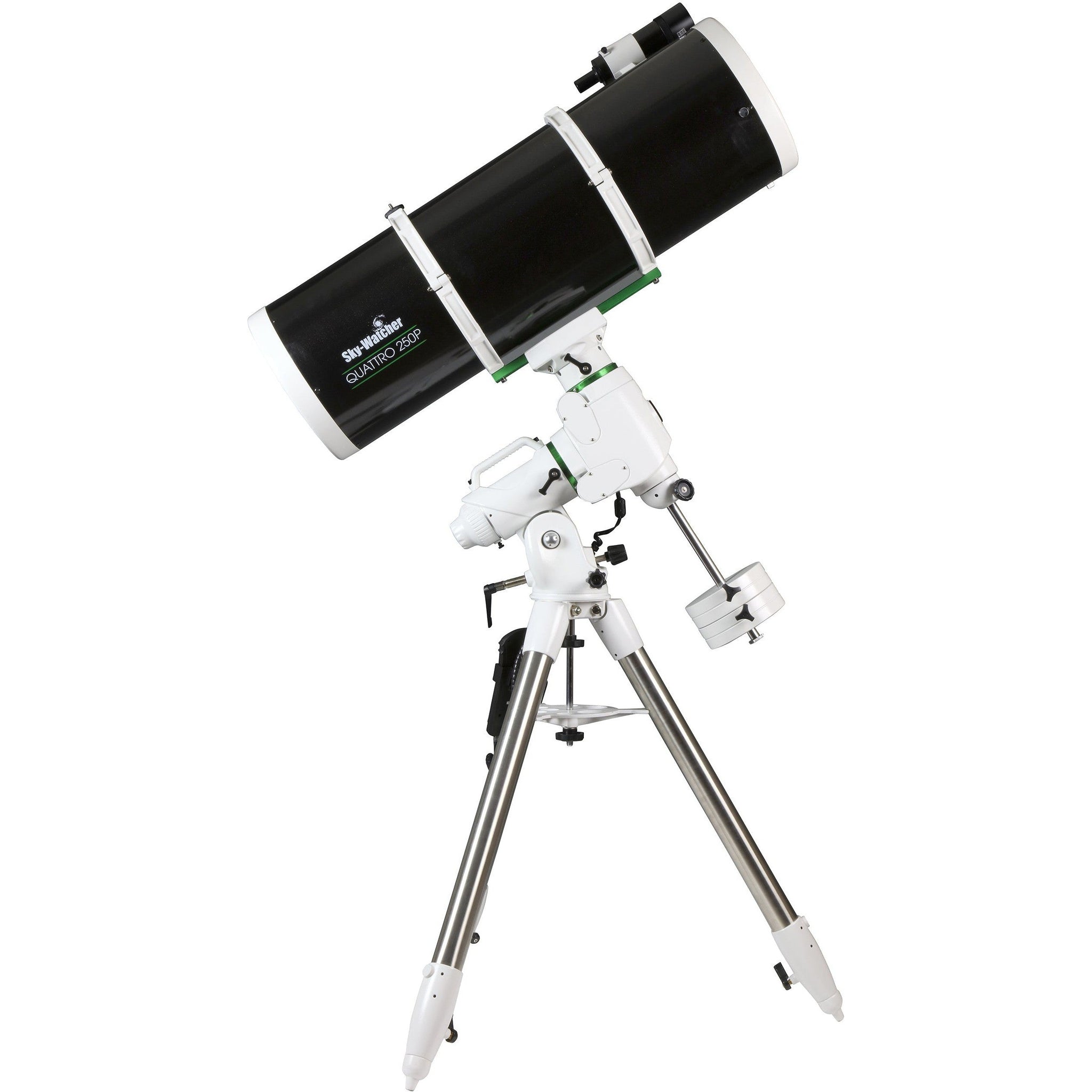

Skywatcher Quattro 250Q on EQ6-R Photo Reflector Telescope Bundle

SKU: SWEQ6R-250Q

Skywatcher Quattro 250Q on EQ6-R Photo Reflector Telescope Bundle-Jacobs Digital
Skywatcher Quattro 250Q on EQ6-R Photo Reflector Telescope Bundle-Jacobs Digital
Skywatcher Quattro 250Q on EQ6-R Photo Reflector Telescope Bundle-Jacobs Digital
Skywatcher Quattro 250Q on EQ6-R Photo Reflector Telescope Bundle-Jacobs Digital

Our Price

$5,390.00

$5,390.00

Green truck Usually Ships in 6-8 Weeks An order for this can be placed with our supplier, and usually ships within the specified timeframe.



Loading

40000

539000

Shipping Quote

When will I receive it?

About this product

Bundle and Save!

Get a great start, or upgrade your astrophotography gear with this great bundle from Skywatcher

This bundle includes:

  • 1 x EQ6-R GoTo Mount with Tripod (SynScan HC)
  • 1 x 250/1000 Quattro 250 Photo Newtonian OTA with Dual Speed Focuser

250/1000 Quattro

Explore the night sky with the SkyWatcher Quattro 250mm Reflector OTA Telescope! With its 250mm aperture, this telescope provides clear and detailed views of celestial objects. Ideal for astrophotography, it captures stunning images of the cosmos. Enjoy convenient use and smooth movements with its sturdy design. Unleash your curiosity and discover the wonders of the universe with this exceptional telescope.
  • Aperture: 250mm (10-inch)
  • Focal Length: 1000mm – f/4.0
  • Highest practical power: 504x
  • Resolving power (arc sec.): 0.6
  • Focuser: Crayford 2-inch Dual speed with 1.25-inch adaptor
  • Optical Tube: Steel powder-coated finish
  • Mounting plate and tube rings: YES
  • Piggyback bracket included with mounting rings
  • Finderscope 8x50mm
  • Excellent adjustable mirror mounting cell and superbly made 10-inch fully coated diffraction-limited pyrex paraboloidal mirror.
  • Eyepiece not included.

Classic f/4 Newtonian wide-field optical tube with a superpower linear 2-speed focuser and built for wide-field astrophotography, the Sky-Watcher 250mm f/4 reflector will ensure you fit more sky on your CCD camera and reduce exposure times.

Optical Design Reflector
Diameter/Aperture 250mm
Focal Length 1000mm
F/Ratio f/4
Finder Scope 8 x 50mm
Highest Practical Power 504x
Focuser Diameter 2″ (50.8mm) Dual-Speed 10:1 Linear Power Focuser

EQ6-R

The new SkyWatcher EQ6-R PRO Synscan Computerised Go-To mounting is an exciting evolutionary progression of the continuing legend that is the EQ6 PRO. The modern optimised design of the EQ6-R PRO incorporates features that serious imagers will immediately appreciate, such as;

  • Increased Payload capacity of 20kg for Astro-Photography
  • Synchronous Belt Driven, resulting in minimal backlash – Even quieter, smoother operation and better results when guiding. Higher Torque.
  • Superior Latitude adjustment controls with greater range of latitudes possible
  • Built-in SNAP camera control port
  • PPEC worm gear and worm periodic error correction function (avoids having to constantly re-train)
  • Built-in carrying handle for convenient transportation

The supplied computerised Synscan™ hand control allows you to control the mount to point your telescope at a specific object or even tour the skies at the touch of a button. The user-friendly menu system allows automatic slewing to 42,000+ night sky objects from it’s extensive database.

Supplied with;

  • EQ6-R Pro mount
  • Tripod with 2″ stainless steel legs
  • Dual-Fit 45mm/75mm dovetail saddle
  • SynScan hand controller / cable
  • Counterweight Rod: 18mm diameter, length 240mm + 180mm
  • 2 x5 kg counterweights
  • Polar alignment scope
  • Autoguiding connection
  • Printed Instruction Manual

SPECIFICATIONS

  • Product Name:  EQ6-R PRO Synscan
  • Mount Type:  German Equatorial
  • Maximum Payload (Counterweights excluded):  20kg (for Astro-Photography)
  • Latitude Adjustment Range:  5º to 65º
  • Azimuth Adjustment Range:  About ±9 º
  • Mount Weight (Tripod excluded): 17.3 kg
  • Counterweights Supplied:  2 x 5kg
  • Tripod Supplied:    2-inch stainless steel, 7.5kg Weight
  • Counterweight Rod:  18mm Diameter, Length 240mm + 180mm
  • Power Requirement:  DC11~16V 4A
  • Motors: 1.8 º Hybrid Stepper Motors
  • Transmission:  180:1 Worm Drive + 48:12 Timing Belt Drive + 64 Micro-step/1.8º Stepper Motor Drive
  • Gear Ratio:  720
  • Resolution:  9216000 Counts/Rev., approx. 0.14 arc-second
  • Maximum Slewing Speed:  4.2 degrees/second
  • Tracking Rate:  Sidereal rate, solar rate, lunar rate
  • Tracking Mode:  Equatorial mode
  • Auto-guiding Speed:  0.125X, 0.25X, 0.5X, 0.75X, 1X
  • PEC: 100 Segments Permanent PEC (PPEC)
  • Hand Controller: SynScan™
  • Database:  42000+ Objects
  • Celestial Object Catalogue:  Messier, NGC, IC, SAO, Caldwell, Double Star, Vari-able Star, Named Star, Planets
  • Pointing Accuracy:  Up to 5 arc-minutes (RMS)
  • An integral SNAP camera control port
  • Dual-Fit 45mm/75mm Dovetail Saddle
  • Polar Alignment Scope
