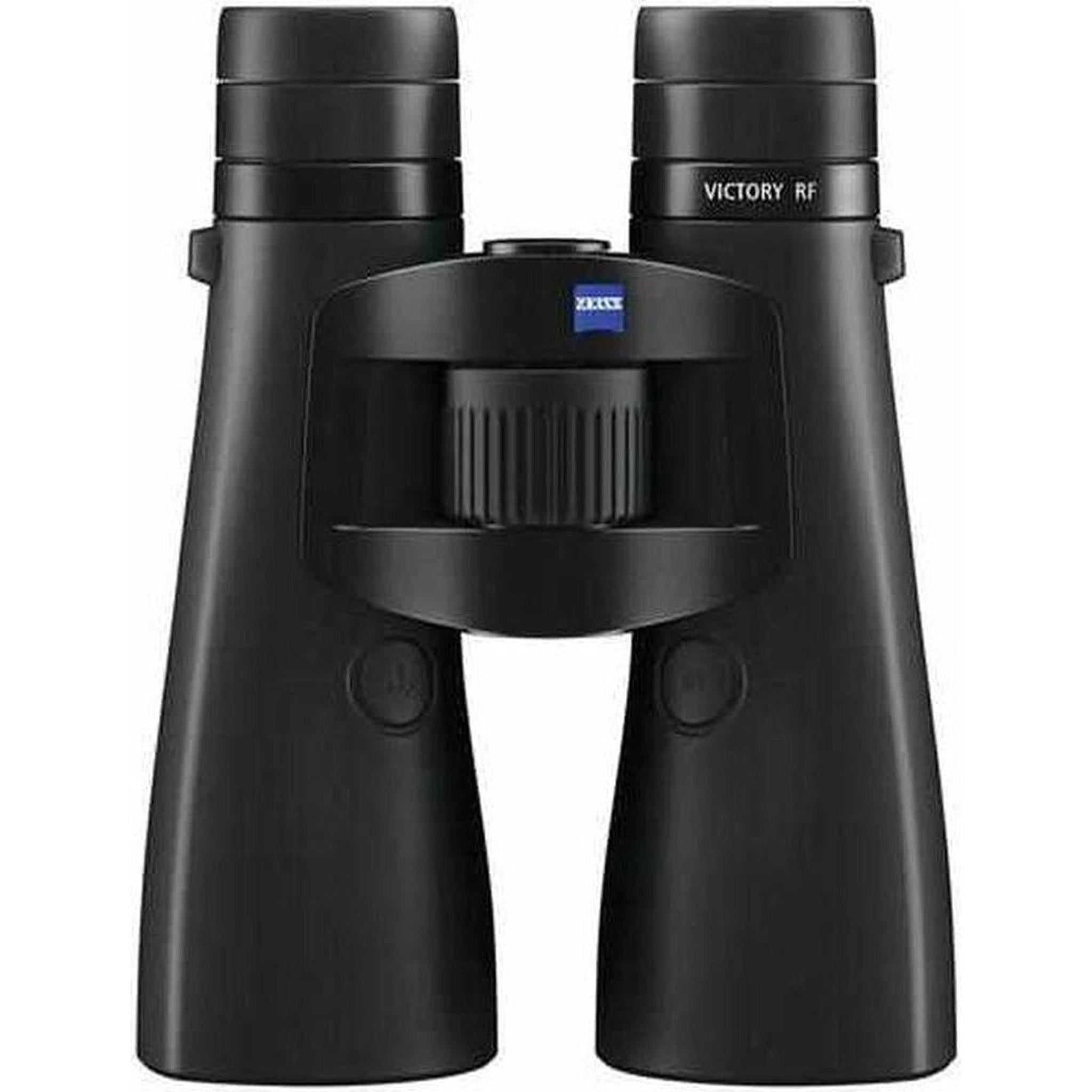

Zeiss Victory 10x54 Laser Rangefinder Binocular
SKU: 525649-0000-000

Click the image to enlarge
About this product
The top model in the rangefinder family offers more than just the largest field of view, with its 10x magnification. Its carefully manufactured, 4-lens, high-performance objectives with fluoride glass produce impressively bright, sharp and high-contrast images. Even in poor light conditions and deep into the night. The only heavyweights in sight are the arguments in favour of the Victory 10x56 T* RF. In all other respects, at around 1,150 g the 56 mm Victory RF is a genuine lightweight.
Specifications:
Magnification | 10 x |
Effective Lens Diameter | 56 mm |
Exit Pupil Diameter | 7 mm |
Twilight Factors | 21.2 |
Field of View at 1000m | 115 m |
Close Focus | 5 m |
Diopter Adjustment Range | +3.5 | -3.5 dpt |
Pupil Distance | 57 - 76 mm |
Eye Relief | 17 mm |
Lens Type | Achromat (4 Lenses) |
PrismSystem | Abbe-KÇônig |
Water Resistance | 400 mbar |
LotuTec© | Yes |
Nitrogen Filling | Yes |
Measuring Range in m | 10 m - 1200 m |
Laser Class | Class 1 |
Laser Wave Length | 904 nm |
Measuring Accuracy in m | 1 m |
Measuring Accuracy in % | 0.5 % |
Measuring Accuracy at | 600 m |
Measuring Time | 0.5 sec |
Beam Divergence | 1,6 x 0,5 mrad |
Battery | 1,3 V Type CR 2 |
Battery Life at 20øC to 25øC (number of measurements) | > 10.000 |
Height | 194 mm |
Width at an eye width of 65 mm |
139 mm |
Weight in Use | 1150 g |
