Konus Flame 0.6x - 2.4x Handheld Thermal Monocular 160x120

SKU: KS7953

Konus Flame 0.6x - 2.4x Handheld Thermal Monocular 160x120 - Jacobs Digital
Konus Flame 0.6x - 2.4x Handheld Thermal Monocular 160x120 - Jacobs Digital

Our Price

$981.00

$981.00


Loading

760

98100

Shipping calculated at checkout

When will I receive it?

About this product

The Thermal Excellence

While being very compact and competitively priced our #7953 model is among the most versatile of the market. It lets you choose between 4 different palettes it comes with a photo/video recording function and it is also able to transfer the thermal images via Wi-Fi so that you can see them live on your cellphone if you want. And having a 0.6x-2.4x zoom system and a bigger display with enhanced field of view this unit dramatically outperforms the competition from an optical standpoint as well.

Specifications

Handheld Thermal Monocular Camera 160x120 Pixels Resolution High Sensivity Detector Built-In Rechargeable Lithium Battery Wi-Fi Hot Spot Digital Zoom From 0.6X To 2.4X 8Gb Internal Memory Waterproof Up To 3.3Ft Depth Photo And Video Recording Function

Technical Data

Detection Range (Standard Car Size): 559M – 1833.9FT Detection Range (Average Human Size): 200M – 656.1FT Recognition Range (Standard Car Size): 140M – 45 FT Recognition Range (Average Human Size): 46M – 150.9FT Identification Range (Standard Car Size): 70M – 229.6FT Identification Range (Averge Human Size): 23M – 75.4FT Weight: 250G – 8.81OZ Length: 158.3MM – 6.23"

Thermal Module

Image Sensor: Vanadium Oxide Uncooled Focal Plane Arrays Max Resolution: 160X120 Pixel Interval: 17µm Response Waveband: 8 µm To 14 µm Netd: less than 35mk (@25°C) F#=1.0 Lens (Focal Length): 6.2mm Field Of View: 14.7°x18.7° (Hxv) Digital Zoom: from 0.6x to 2.4x Aperture: F1.1 Magnification: 0.6x to 2.4x

Image Display

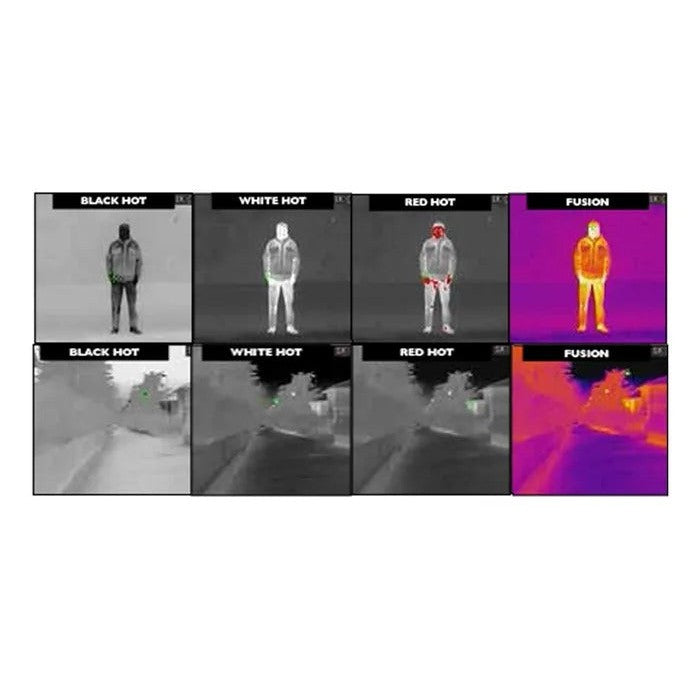

Monitor: 0.2 inch LCOS 720×540 FFC (Flat Field Correction): Auto Manual External Correction Palettes: Black Hot White Hot Red Hot Fusion Frame Frequency: 50Hz

Smart Function:

Highest Temperature Spot Tracking Wi-Fi Hot Spot Stand-By Mode

System:

Storage: Buit-In Memory Module (8Gb) Record Video Capture Snapshot

Power Supply:

Battery Type: Built-In 18650 Lithium Battery Battery Operating Time: 10 Hrs. continuously running with CVBS and WI-FI hot spot off (@25°C) 7.5 hours continuous running with CVBS and Wi-Fi hot spot on (@25°C) Battery Capacity Display

General:

Power: 5V DC/2A 1.5W Type-C interface Working Temperature: -20°C to 55°C (-4°F to 131°F) Protection Level: Submersible Waterproof Rating Ip-67 Dimension: 158.3mmx61mmx57mm (6.23"x2.40"x2.24") Weight: 250G (0.55lb)
