About this product

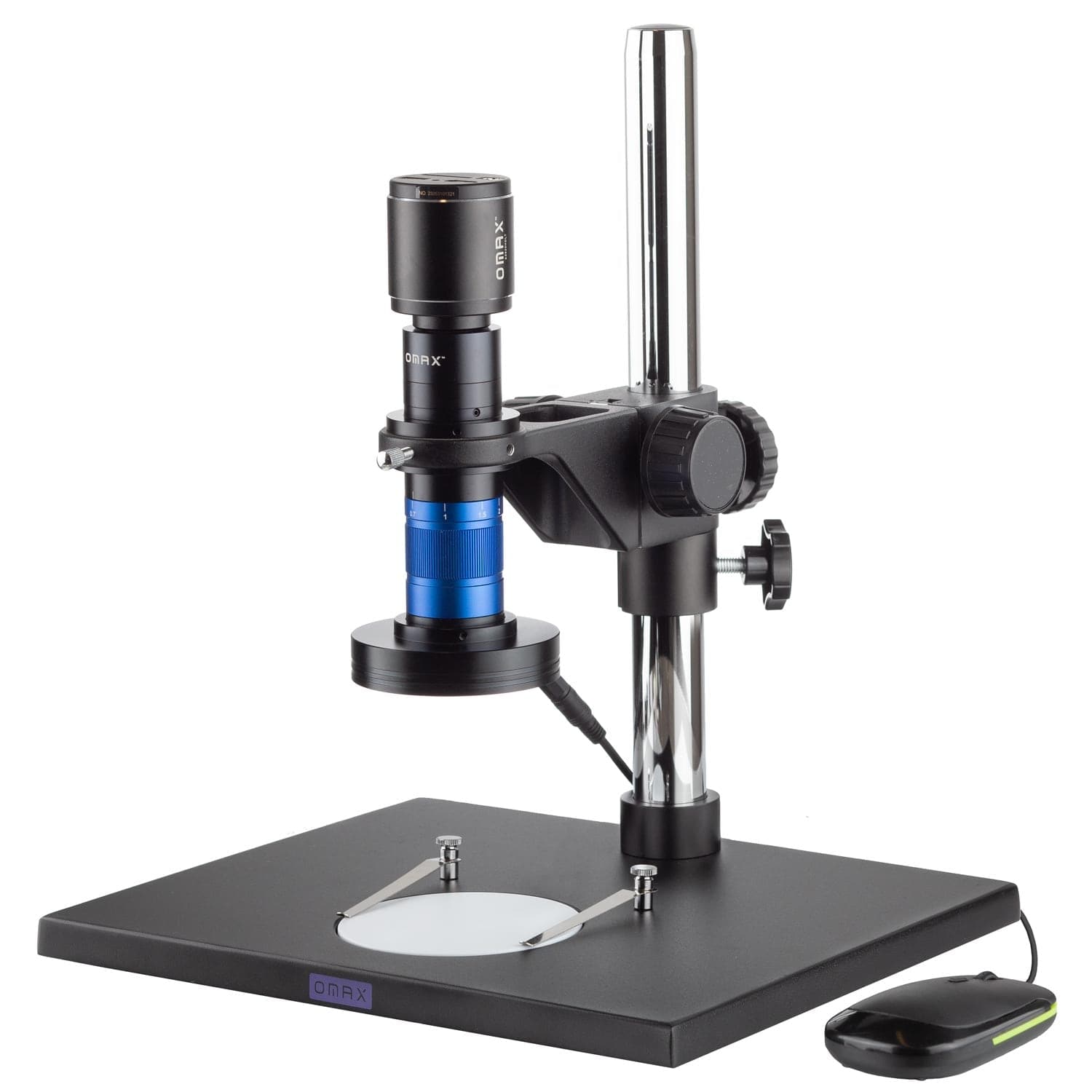

This OMAX M5 Series video inspection system includes our 0.7X-4.5X zoom lens, a 1080p camera with live HDMI output, and a 60-LED ring light.

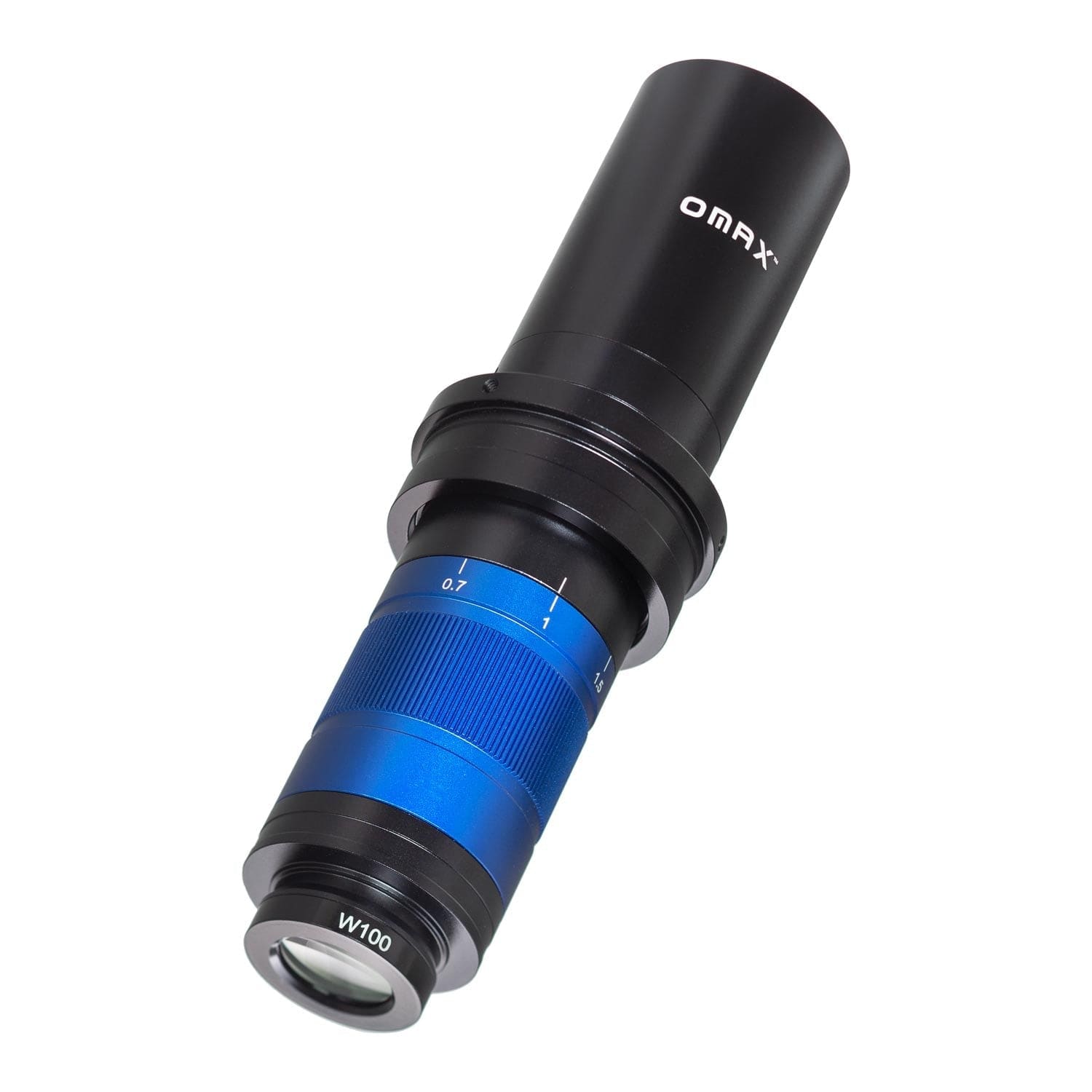

Modular Zoom Lens
M5745TD zoom lens systems provide a 0.7X to 4.5X magnification range when using the pre-mounted 1X auxiliary objective lens. Additional lenses from 0.5X to 2X are available to increase or decrease magnification. The zoom ring has a detent to click into place at key magnifications which can be especially useful when recording measurements or following redundant procedures on a production or QC line.

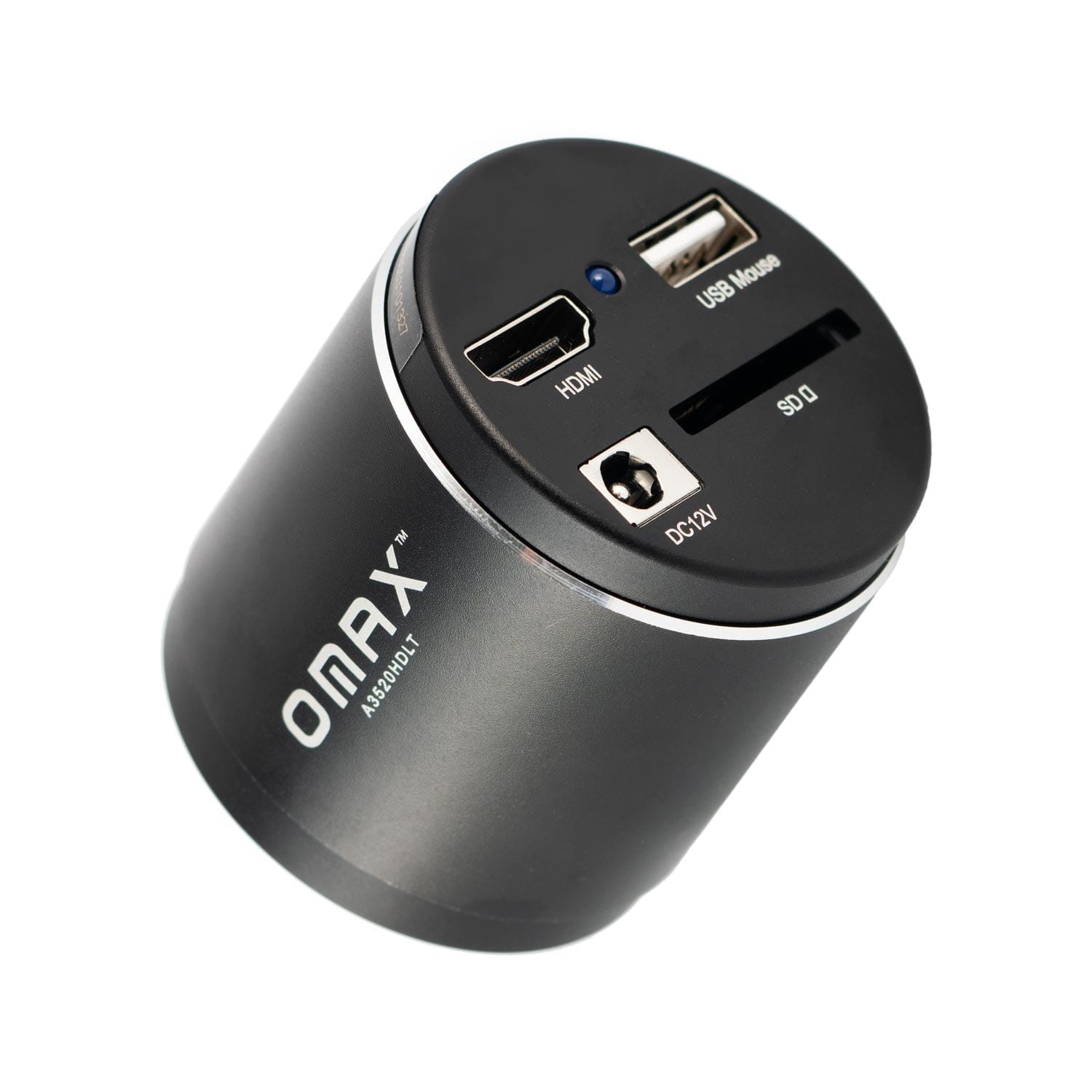

Real-Time Video Output
The included camera provides real-time 1080p video output which can be connected to a monitor or television using HDMI. The compact, lightweight camera takes up barely any space, but delivers high quality video with built-in recording capabilities for capturing videos and still images. A USB mouse is included to navigate the on-screen controls which eliminates handling vibration.

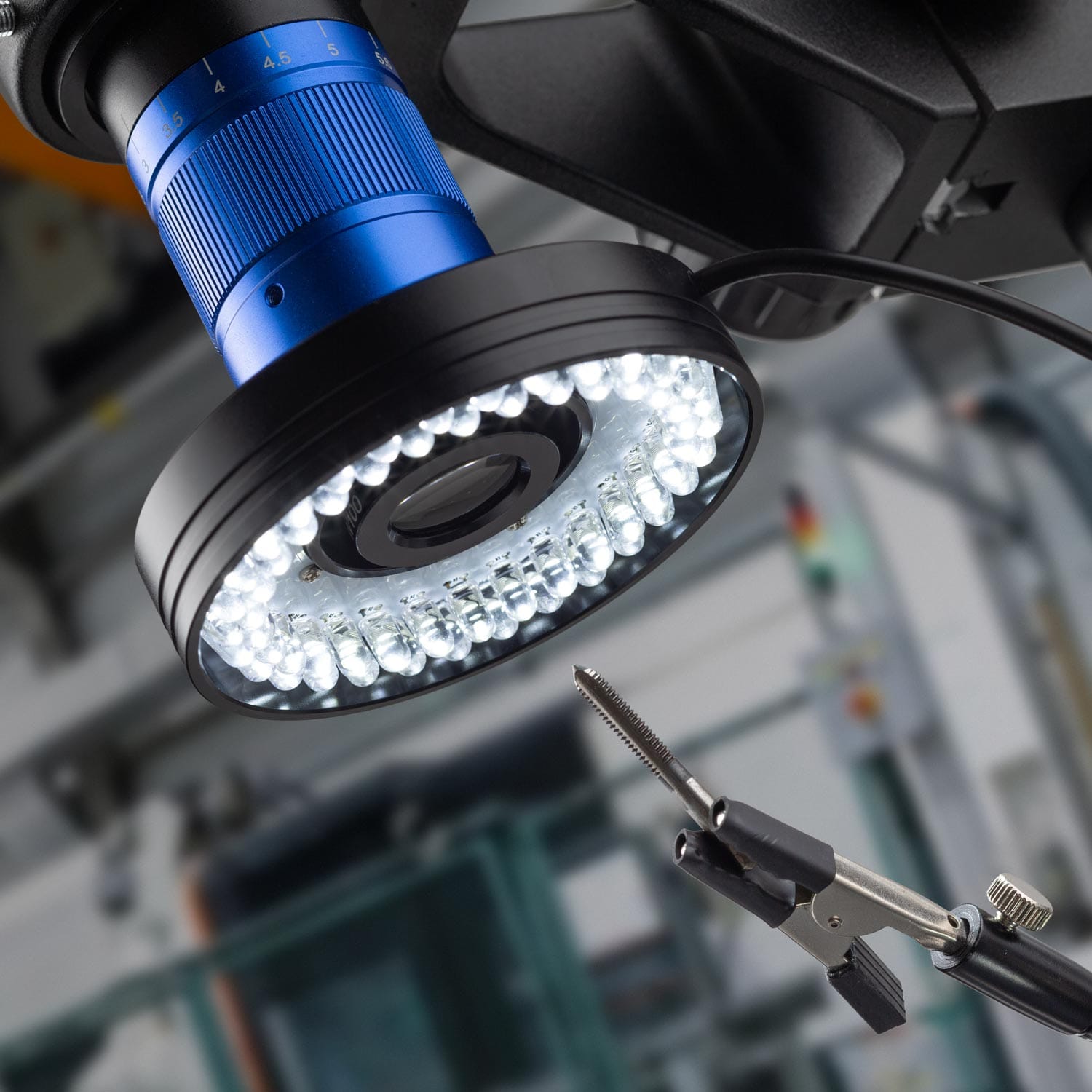

Illumination
An LED ring light is included to provide cool, even illumination. With the illuminator attached to the lens, the light will always be where you need it. 60 individual LEDs blanket the subject with light, daylight-balanced at 6500K for ideal imaging. Brightness can be controlled using the wired controller.
Table Stand
This package includes a table stand to provide fundamental support and focusing ability. The lens mounts to a basic focusing block designed specifically for the lens’ smaller diameter. An extra-tall pillar provides ample latitude and rotation while the focusing block offers symmetrical, tension-adjustable coarse focus knobs with 43mm travel. A large base provides plenty of stability along with a sturdy, metal working surface.
Specifications
Sensor Specifications
Model
IMX307 (color)
Sensor Type
CMOS
Sensor Optical Format
1/2.8"
Active Pixels
2.1M (1920 x 1080)
Pixel Size
2.9µm x 2.9µm
Active Sensor Area
5.57mm x 3.13mm
Shutter
electronic rolling shutter
Sensitivity
1300mV @ 1/30s (f/5.6)
Spectral Response
380-650nm with IR-cut filter
Other Camera Specifications
Video Preview Resolution (HDMI)
1920 x 1080
Video Preview Framerate (HDMI)
60fps
Video Capture Resolution
1920 x 1080
Video Capture Framerate
50-60fps (based on SD card performance)
Internal Video Capture Format
MP4
Photo Capture Resolution
1920 x 1080
Internal Photo Capture Format
JPG
Recording Media
SecureDigital (SDI3.0)
Connectivity
HDMI (v1.4)
Lens-mount
C-mount
Power
12VDC 1A
Lens
Primary Objective Magnification
0.7X-4.5X zoom with detent
Auxiliary Objective Lens
1X, 80mm working distance
Camera Mount
C-Mount (25.4mm)
Integrated Compensating Lens
0.75X
Working Distance
80mm
Lens Mounting Diameter
50mm
Ring Light
Light Source
LED x 60
Color Temperature
6500K
Maximum Power
3W
Maximum Current
1.056A (17.6mA/LED)
LED Driver
Voltage Control
Power Requirements
100-240VAC 50Hz/60Hz 0.3mA 12V 1A adapter included
