About this product

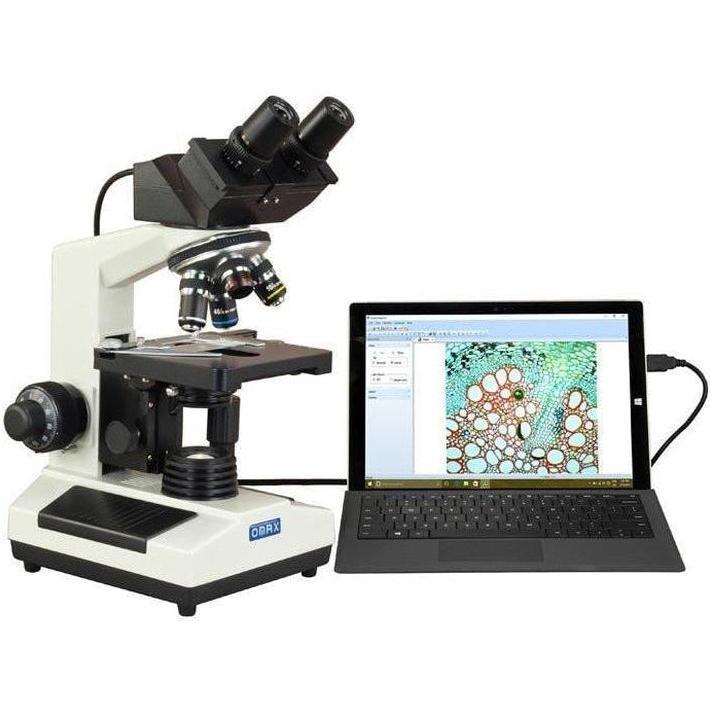

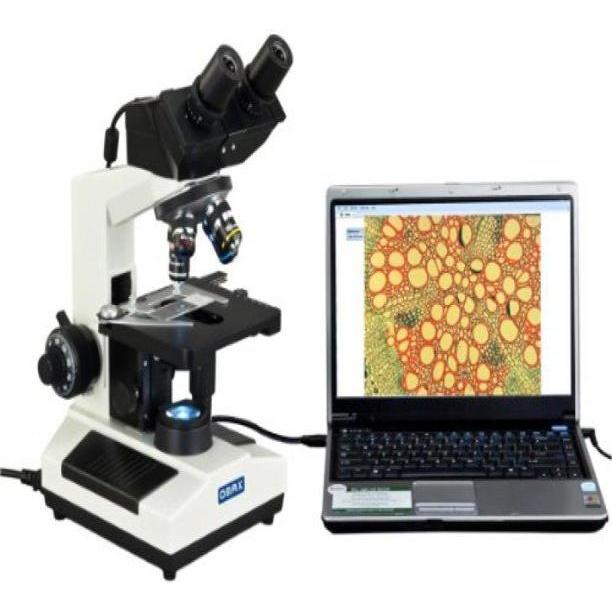

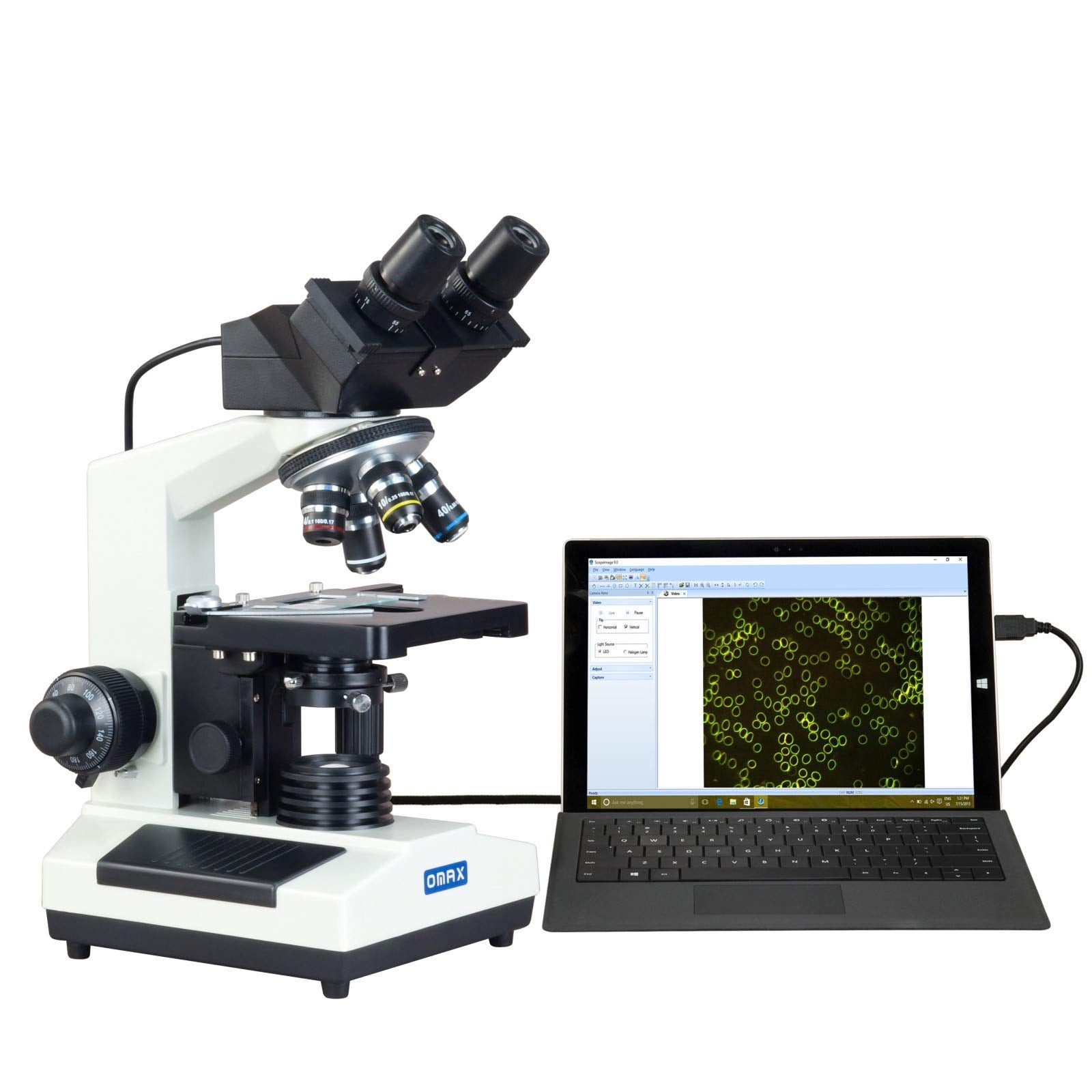

This digital compound binocular biological microscope allows for viewing through the eyepieces and use of the digital camera simultaneously, no need to compromise. It includes a built-in 3.0 mp digital camera binocular viewing head with advanced software, revolving quadruple nosepiece, four DIN achromatic optics objectives, double layer mechanical stage with scale, Abbe NA1.25 condenser with iris diaphragm, variable intensity halogen transmitted illumination system.

It offers six magnification levels out of the box between 40X and 2500X. The 2048 x 1536 pixels USB digital imaging system can capture both video and stills. The included software compatible with Windows can also be used to make measurements.

Features:

Built-in 2048x1536 pixels (3.0MP) USB digital camera with advanced software applications
Double-layer mechanical stage with NA1.25 Abbe condenser
Coaxial coarse and fine focus knobs
Digital binocular viewing head with adjustable diopter interpupillary distance
Sturdy metal framework and glass optics

Specifications:

Total magnification: 40x-100x-250x-400x-1000x-2500x
Eyepieces: wide field WF10X/18 and WF25X
Objective: achromatic DIN 4x, 10x, 40x(S), 100x(S, Oil)
Viewing head: black, digital 45øInclined 360øswiveling binocular
Sliding adjustable interpupillary distance: 2-3/16" ~ 2-15/16"(55~75mm)
Ocular diopter adjustable on both eyetubes
Built-in 2048x1536 pixel (3.0MP) USB high-resolution digital camera
Nosepiece: revolving quadruple
Stage: mechanical double layer size 5-1/2" x 5-1/2" (140mm x 140mm)
Stage x-y stroke (travel range): 3" x 2" (75mm x 50mm)
Focus adjustment: Coaxial coarse & fine knobs on both sides
The focusing knob can be locked for observation & transportation
Rubber cover on the fine focus knob
Condenser & diaphragm: NA1.25 Abbe condenser with iris aperture diaphragm
Black palm rest on the base
Transmitted (lower) illuminator: 6V/20W halogen, intensity adjustable
Power supply: AC 100V~240V 0.2/0.1A 50/60Hz worldwide range (NZ, US and Canada plug)
Dimension: 7-7/8 " x 10-1/4" x 15-3/8" (20cm x 26cm x 39cm)
Net weight: 12 lbs (5.45 kg)
Shipping package: 15 lbs (7 kg)

Packing List:

Digital binocular microscope head
Microscope stand
4 objectives: 4x, 10x, 40x, 100x
A pair of WF10X/18
A pair of WF25X
A bottle of Immersion oil
Power cord (NZ)
Dust cover
Color filters
Extra halogen bulb (6V/20W)
Extra fuses
Mirror
CD (camera driver and software)
USB2.0 cable

Product Overview
Brand	OMAX
Model	MD827Z30
Product Type	Digital binocular compound biological microscope
Microscope Format	Upright compound microscope
Viewing System	Binocular eyepiece viewing with integrated USB digital camera
Best Suited For	Education, classroom demonstrations, clinics, biological observation, slides, cells, microorganisms, prepared specimens and documentation work
Body Construction	Sturdy metal framework with glass optics
Product Code	7502510
UPC	670541482988

Optical System
Optical System	Finite-conjugate
Tube Length	160 mm
Optical Correction	Achromatic
Total Magnification Range	40x to 2500x
Included Magnification Levels	40x, 100x, 250x, 400x, 1000x, 2500x
Eyepieces	Wide Field WF10X/18 and WF25X
Ocular Diameter	23.2 mm eyepiece size / 23 mm class
Objective Lenses	DIN achromatic 4x, 10x, 40x spring, 100x spring oil
Nosepiece	Revolving quadruple objective turret
Viewing Head	Digital binocular head, 45° inclined, 360° swivelling
Interpupillary Distance	Sliding adjustment, 55 mm to 75 mm / 2-3/16" to 2-15/16"
Diopter Adjustment	Yes, adjustable on both eyepiece tubes
Simultaneous Eyepiece and Camera Use	Yes, view through the eyepieces while using the built-in digital camera

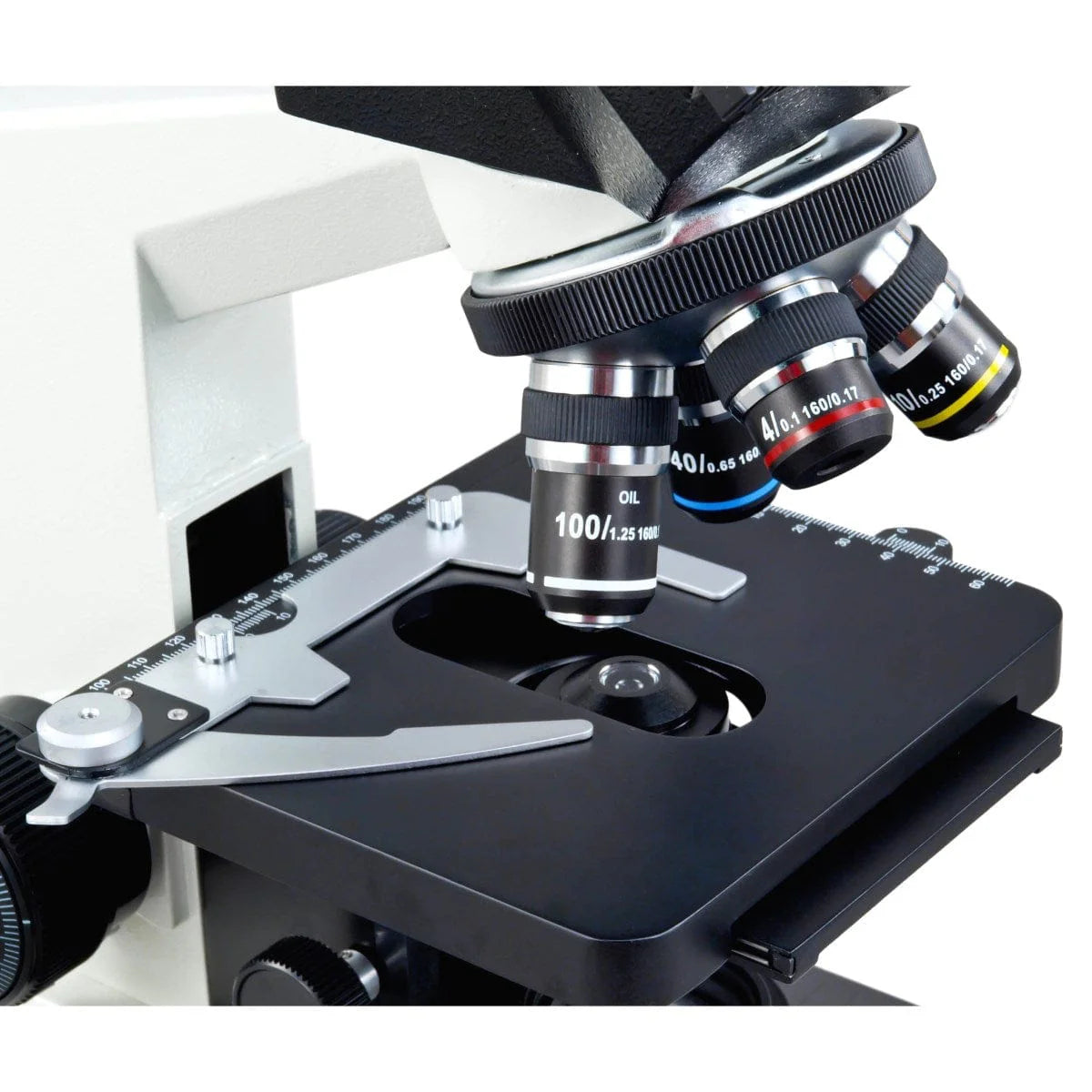

Objective Lens Specifications
Objective	Correction	Numerical Aperture	Immersion Medium	Cover Glass
4x	Achromatic	NA 0.10	None	0.17 mm
10x	Achromatic	NA 0.25	None	0.17 mm
40x S	Achromatic, spring-loaded	NA 0.65	None	0.17 mm
100x S Oil	Achromatic, spring-loaded	NA 1.25	Immersion oil	0.17 mm

Magnification Combinations
WF10X with 4x Objective	40x
WF10X with 10x Objective	100x
WF10X with 40x Objective	400x
WF10X with 100x Objective	1000x
WF25X with 4x Objective	100x
WF25X with 10x Objective	250x
WF25X with 40x Objective	1000x
WF25X with 100x Objective	2500x

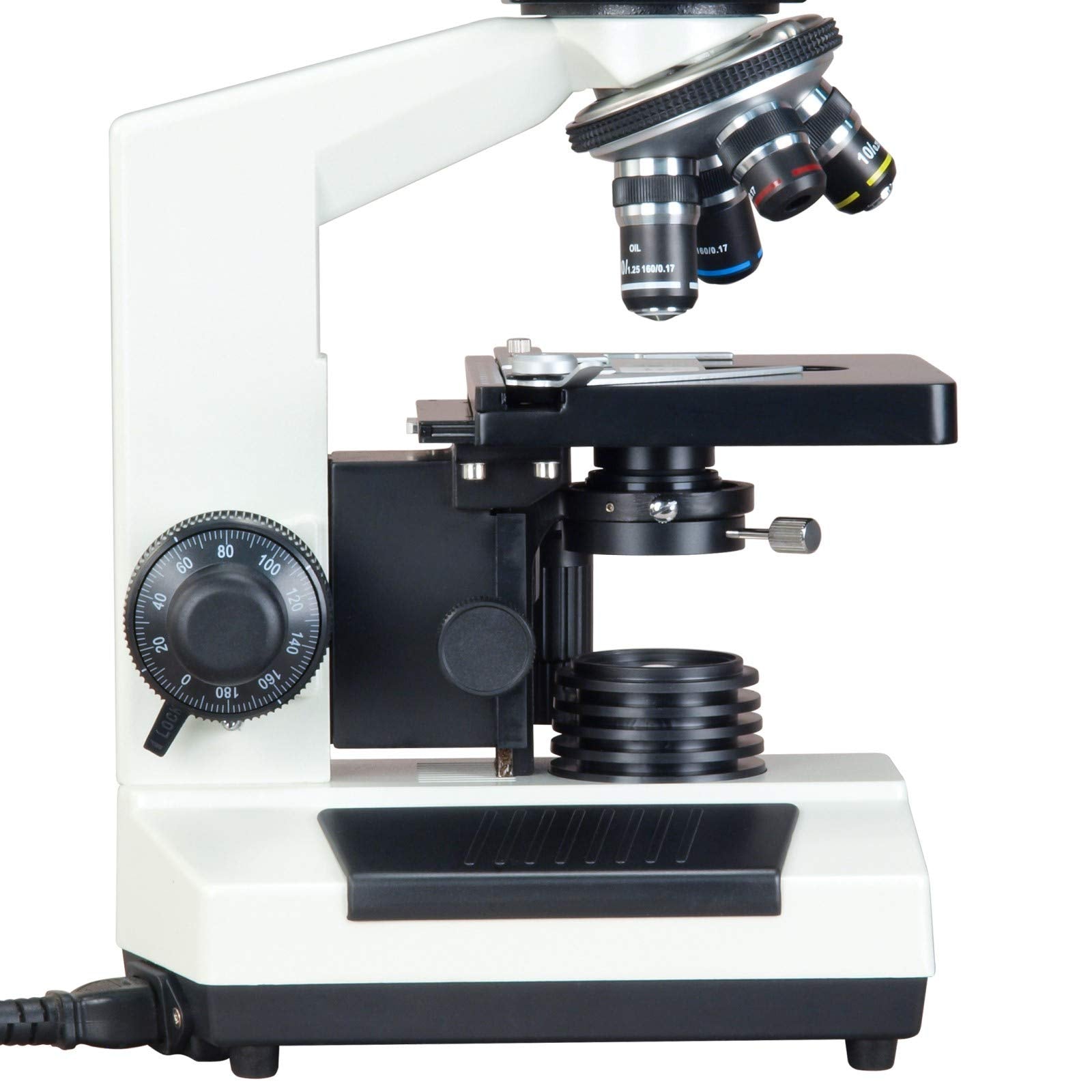

Stage, Focus and Condenser
Stage Type	Double-layer mechanical stage with slide caliper
Stage Size	140 mm x 140 mm / 5-1/2" x 5-1/2"
Stage X-Y Travel Range	75 mm x 50 mm / 3" x 2"
Specimen Holder	Slide caliper / mechanical slide holder
Focus System	Coaxial coarse and fine focus knobs on both sides
Fine Focus Sensitivity	Minimum fine focusing adjustment approx. 0.002 mm
Focus Range	Approx. 28 mm
Focus Lock / Stop	Yes, focusing knob can be locked for observation and transportation
Focus Tension Control	Yes, rack-and-pinion focusing with tension control
Fine Focus Knob Cover	Rubber cover on fine focus knob
Brightfield Condenser	Abbe NA1.25 condenser with iris aperture diaphragm
Condenser Holder	Rack-and-pinion sub-stage condenser holder
Iris Diaphragm	Yes, adjustable iris aperture diaphragm
Filter Holder	Yes, colour filter holder under condenser

Illumination and Power
Illumination Type	Transmitted lower illumination
Light Source	6V / 20W halogen bulb
Light Intensity Control	Yes, variable intensity adjustment
Colour Rendering	Halogen illumination gives warm, high colour-rendering light suitable for biological slides
LED Illumination	No, MD827Z30 is the halogen version
Power Source	Corded electric
Power Supply	AC 100V-240V, 0.2/0.1A, 50/60Hz worldwide range
Battery Operation	No
Mirror Backup	Yes, mirror included for reflected ambient light use when power is unavailable
Power Cord	Power cord included. Plug type may vary by supplied package / region.

Built-In Digital Camera
Camera Type	Integrated USB digital microscope camera
Sensor Type	CMOS
Sensor Optical Format	1/2.5"
Camera Resolution	3.0 megapixels
Active Pixels	2048 x 1536
Maximum Still Image Resolution	2048 x 1536 pixels
Shutter Type	Electronic rolling shutter
Frame Rate	4fps at 2048 x 1536; 10fps at 1024 x 768
Signal-to-Noise Ratio	>40dB
Connectivity	USB 2.0
USB Speed Rating	USB 2.0, up to 480Mbps
USB Cable Included	Yes, USB 2.0 cable included
Live Computer Preview	Yes, through compatible imaging software
Still Image Capture	Yes
Video Recording	Yes, through computer software
On-Board Recording Without Computer	No, computer connection is required for digital viewing and recording
Internal Storage	No listed internal storage
HDMI Output	No
Wi-Fi / Wireless Camera	No

Software and Computer Requirements
Software Included	Yes, CD with camera driver and imaging software
Windows Software Support	Yes
Listed Windows Versions	Windows XP, Vista, 7, 8 and 10, 32-bit / 64-bit where supported by software package
Older Manual Windows Support	Windows 2000, XP, Vista and Windows 7 listed in older MD827 platform manual
Mac Basic Viewing / Capture	Yes, basic viewing/capture may be possible on Mac OS X using Photo Booth where supported
Mac Measurement Software	No dedicated Mac measurement software is listed for the standard package
Minimum Computer Hardware	Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB 2.0 port
Live Video Preview	Yes
Still Image Capture	Yes
Video Capture	Yes
Exposure Controls	Yes
White Balance Controls	Yes
Image Processing Tools	Yes
Measurement Tools	Yes, Windows software supports measurement tools
Measurement Types	Lines, arcs, polygons and other software measurement/editing tools
Annotation / Commenting	Yes, supported through included Windows software tools
Driver Required	Yes, camera driver/software installation may be required
Camera Operation Note	For best colour rendering at 1280 x 1024 or 2048 x 1536, use manual white balance rather than auto white balance.

Capability Checklist
Brightfield Observation	Yes
Biological Slide Viewing	Yes
Oil Immersion 100x Objective	Yes, immersion oil included
Simultaneous Eyepiece Viewing and Digital Camera Use	Yes
Computer Live View	Yes
Computer Still Capture	Yes
Computer Video Recording	Yes
Software Measurement	Yes, on compatible Windows software
Exposure / White Balance Adjustment	Yes
Image Processing	Yes
Darkfield Observation	Optional. Not included with the base MD827Z30 package unless supplied as a darkfield bundle such as MD827Z30-A191.
Phase Contrast Observation	Optional. Requires compatible phase contrast kit or phase contrast bundle.
Trinocular Photo Port	No, this model uses a digital binocular head with built-in USB camera
On-Device Screen	No, digital viewing is through connected computer/software
Wireless App Control	No
USB Data Connection	Yes, USB 2.0
Battery Powered Use	No
Field Mirror Use Without Power	Yes, mirror included for ambient light use

Physical Specifications
Dimensions	20 cm x 26 cm x 39 cm / 7-7/8" x 10-1/4" x 15-3/8"
Net Weight	5.45 kg / 12 lb
Shipping Package Weight	Approx. 7 kg / 15 lb
Palm Rest	Black palm rest on base
Body Colour	Black microscope head/body styling as listed for MD827Z30
Material	Metal framework with glass optics

Included Accessories
Digital Binocular Microscope Head	Included
Microscope Stand / Body	Included
4x Objective	Included
10x Objective	Included
40x Spring Objective	Included
100x Spring Oil Objective	Included
Pair of WF10X/18 Eyepieces	Included
Pair of WF25X Eyepieces	Included
Immersion Oil	Included
Power Cord	Included, plug type may vary by package / region
Dust Cover	Included
Colour Filters	Included
Extra Halogen Bulb	Included, 6V / 20W
Extra Fuses	Included
Mirror	Included
CD with Camera Driver and Software	Included
USB 2.0 Cable	Included
Darkfield Condenser	Not included with base MD827Z30 unless sold as a darkfield bundle
Carrying Case	Not included with base MD827Z30 unless sold as a case bundle

Optional and Compatible Techniques
Brightfield	Included as standard

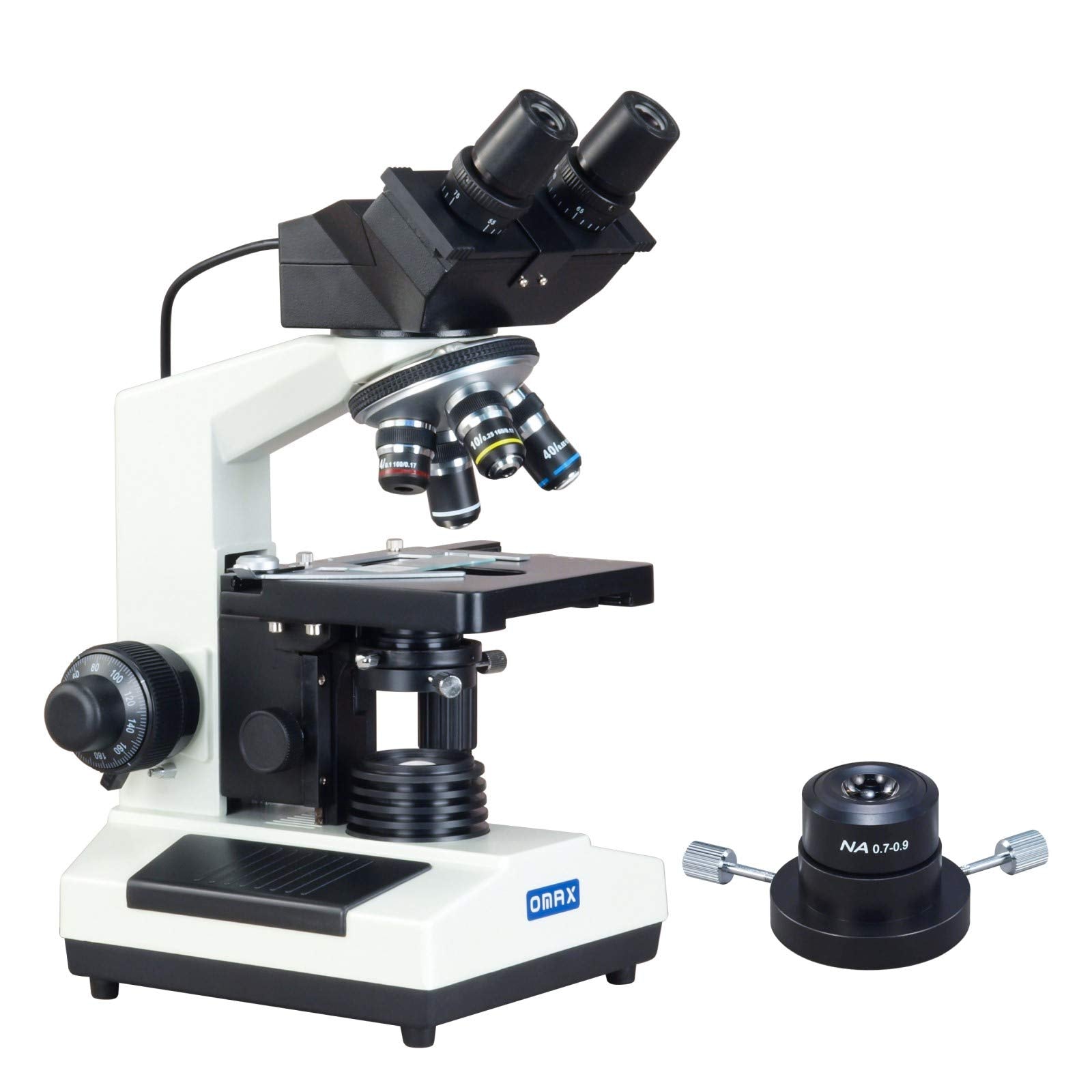

Darkfield	Optional, requires compatible darkfield condenser. The MD827Z30-A191 bundle includes a dry darkfield NA0.7-0.9 condenser.
Phase Contrast	Optional, requires compatible phase contrast kit or phase contrast version of the microscope
Oil Immersion	Supported with the included 100x oil objective and immersion oil
Photomicrography	Supported through built-in 3.0MP USB camera
Measurement / Documentation	Supported through included Windows imaging software

Warranty
Microscope Warranty	5-year factory warranty against manufacturing defects
Accessory Warranty	1 year for microscope accessories, unless otherwise specified
Consumables	Bulbs, fuses, cords and other consumables may be excluded from standard warranty coverage

Common Questions
Is this the halogen version?	Yes. The MD827Z30 uses a 6V / 20W halogen transmitted light system.
Is this the same as the MD827C30?	No. The models are closely related, but the MD827Z30 is the halogen model while MD827C30 is listed separately in the manual downloads.
Can I view through the eyepieces and camera at the same time?	Yes. The integrated digital binocular head allows eyepiece viewing and USB camera output.
Does it include software?	Yes. Camera driver and imaging software are included on CD.
Can the software measure specimens?	Yes. The Windows software includes measurement tools.
Does it work without a computer?	Yes for optical eyepiece viewing. A computer is required for digital live view, image capture and video recording.
Does it include darkfield?	No, not with the base MD827Z30 package. Darkfield is available on specific bundles such as MD827Z30-A191 or with compatible optional accessories.
Does it have 2000x magnification?	No. The correct MD827Z30 listed magnification levels are 40x, 100x, 250x, 400x, 1000x and 2500x.

Binoculars (502)

Telescopes (220)

Spotting Scopes (94)

Tripods (198)

Metal Detectors (28)

Weather Stations (51)

Laser Rangefinders (57)

Rifle Scopes (6)

Photography (16)

Night Vision and Thermal (37)

Microscopes (30)

Torches (147)

Magnifiers (45)

Electronics (38)

Frames & Albums (182)

General Purpose Binoculars

Hunting Binoculars

Birdwatching Binoculars

Laser Rangefinder Binoculars

Marine Binoculars

Stabilized Binoculars

Binocular Accessories

Oversize Binoculars

Stargazing Binoculars

Monoculars

Trade-in

Binocular Bundles

Read our Binocular Guide

Spotting Scopes

Tripods

Accessories

Trade-in

Spotting Scope Bundles

Read our Spotting Scope Guide

Refractor Telescopes

Reflector Telescopes

Dobsonian Telescopes

Computerised Telescopes

Telescopes for Kids

Telescope Accessories

Telescope Mounts

Astro Cameras

Stargazing Binoculars

Optical Tube Assemblies

Trade-in

Telescope Bundles

Read our Telescope Guide

Binocular Rangefinders

Monocular Rangefinders

Laser Distance Meters

Read Our Rangefinder Guide

Compact cameras

Mirrorless and DSLR Cameras

Instax Cameras

Film and Disposable Cameras

Game & Trail Cameras

Camera Lenses

Camera Bags

Camera Batteries

Camera Chargers

Studio Equipment

Infrared Night Vision

Thermal Imagers

Infrared Torches

Thermal Scopes

Night Vision Scopes

Read our Night Vision Guide

Read our Thermal Guide

Handheld Magnifiers

Handsfree Magnifiers

LED Magnifiers

Read our Magnifier Guide

Pocket Microscopes

Digital Microscopes

Stereo Microscopes

Compound Microscopes

Microscope Accessories

Read our Microscope Guide

Relic Detectors

Gold Detectors
