Omax 40x-2000x Compound Microscope w/ 1.3mp Camera

Key Features

• Built-in 1280x1024 pixels (1.3MP) USB digital camera with advanced software applications
• Digital binocular viewing head with adjustable interpupillary distance
• 4 DIN achromatic objectives 4X, 10X, 40X(S), 100X(S, Oil)
• Double layer mechanical stage with NA1.25 Abbe condenser and iris diaphragm
• Coaxial coarse and fine focus knobs and variable intensity transmitted LED illumination

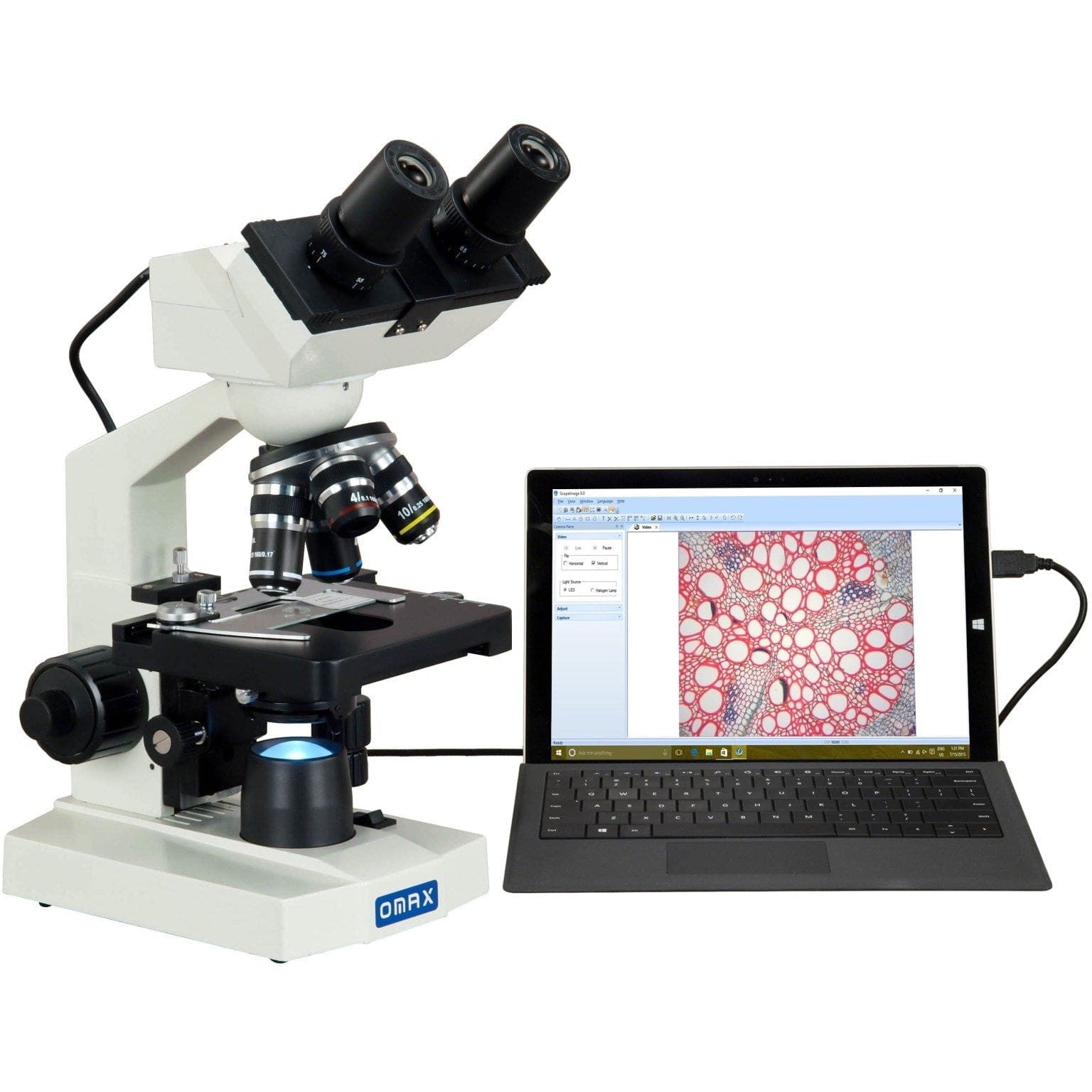

This is an OMAX MD82ES10 biological compound microscope with built-in 1.3 mega digital camera and advanced software. The digital compound microscope comes with a digital binocular viewing head, body frame, revolving quadruple nosepiece, two pairs of widefield eyepieces, four achromatic optics objectives, double layer mechanical stage with scale, Abbe NA1.25 condenser with iris diaphragm and variable intensity LED transmitted illumination system. It offers magnifications 40X-80X-100X-200X-400X-800X-1000X-2000X. The 1280 x1024 pixels USB digital imaging system that captures still microscope images and live video on computer. The included software compatible with Windows can also be used to make measurements.

Features:

• Built-in 1280x1024 pixels (1.3MP) USB digital camera with advanced software applications
• Digital binocular viewing head with adjustable interpupillary distance
• 4 DIN achromatic objectives 4X, 10X, 40X(S), 100X(S, Oil)
• Double layer mechanical stage with NA1.25 Abbe condenser & iris diaphragm
• Coaxial coarse & fine focus knobs and variable intensity transmitted LED illumination

Specifications:

• Model: MD82ES10
• Total magnification: 40X-80X-100X-200X-400X-800X-1000X-2000X
• Eyepieces: widefield WF10X and WF20X
• Objectives: achromatic DIN 4X, 10X, 40X(S), 100X(S, Oil)

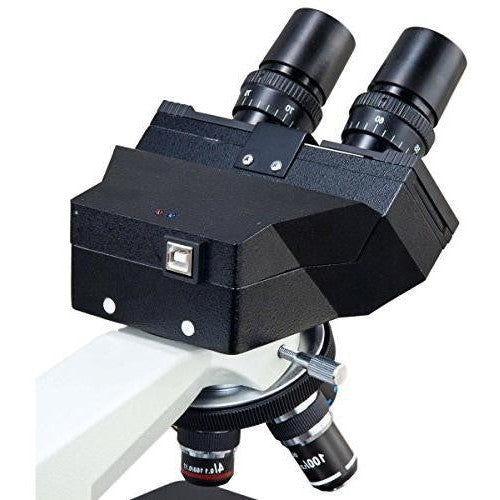

• Viewing head: 45°Inclined 360°swiveling digital binocular head
• Sliding adjustable interpupillary distance: 2-3/16" ~ 2-15/16"(55~75mm)
• Ocular diopter adjustable on both eyetubes
• Nosepiece: revolving quadruple
• Stage: double layer X-Y mechanical stage with scales, size: 4-1/2"x 4-15/16" (115mm x 125mm), translation range: 2-13/16" x 1-3/16" (70mm x 30mm)
• Condenser & diaphragm: NA1.25 Abbe condenser with iris diaphragm & filter holder,rack & pinion adjustment
• Transmitted (lower) illuminator: LED light, intensity adjustable
• Focus: coaxial coarse & fine knobs on both sides
• Stage upward moving lock protects objectives and slides
• All metal mechannical components
• Power supply: AC/DC adapter, 100V-240V (UL approved)
• Built-in digital camera:
  - Imaging device: 1.3 mega pixels, 1/2.5" CMOS
  - Effective pixels: 1280x1024
  - Maximum still image resolution: 1280x1024 pixels
  - Frame rate: 6 frames per second at 1280x1024, 10 frames per second at 1024x768
  - Interface: USB2.0 ( 480MB/second)
  - SNR: >40dB
  - Software compatible with Windows
• Dimension: 9-1/16" x 7-1/8" x 13" (23cm x 18cm x 33cm)
• Net weight: 7 lbs 5 oz (3.32 kg)
• Shipping Package: 4.15 kg

Packing List:

• Digital binocular microscope
• 4 objectives: 4X, 10X, 40X, 100X
• A pair of eyepieces WF10X
• A pair of eyepieces WF20X
• A bottle of Immersion oil
• AC adapter (US and Canada standard)
• Dust cover
• Color filters
• CD (camera driver and software)
• USB2.0 cable
