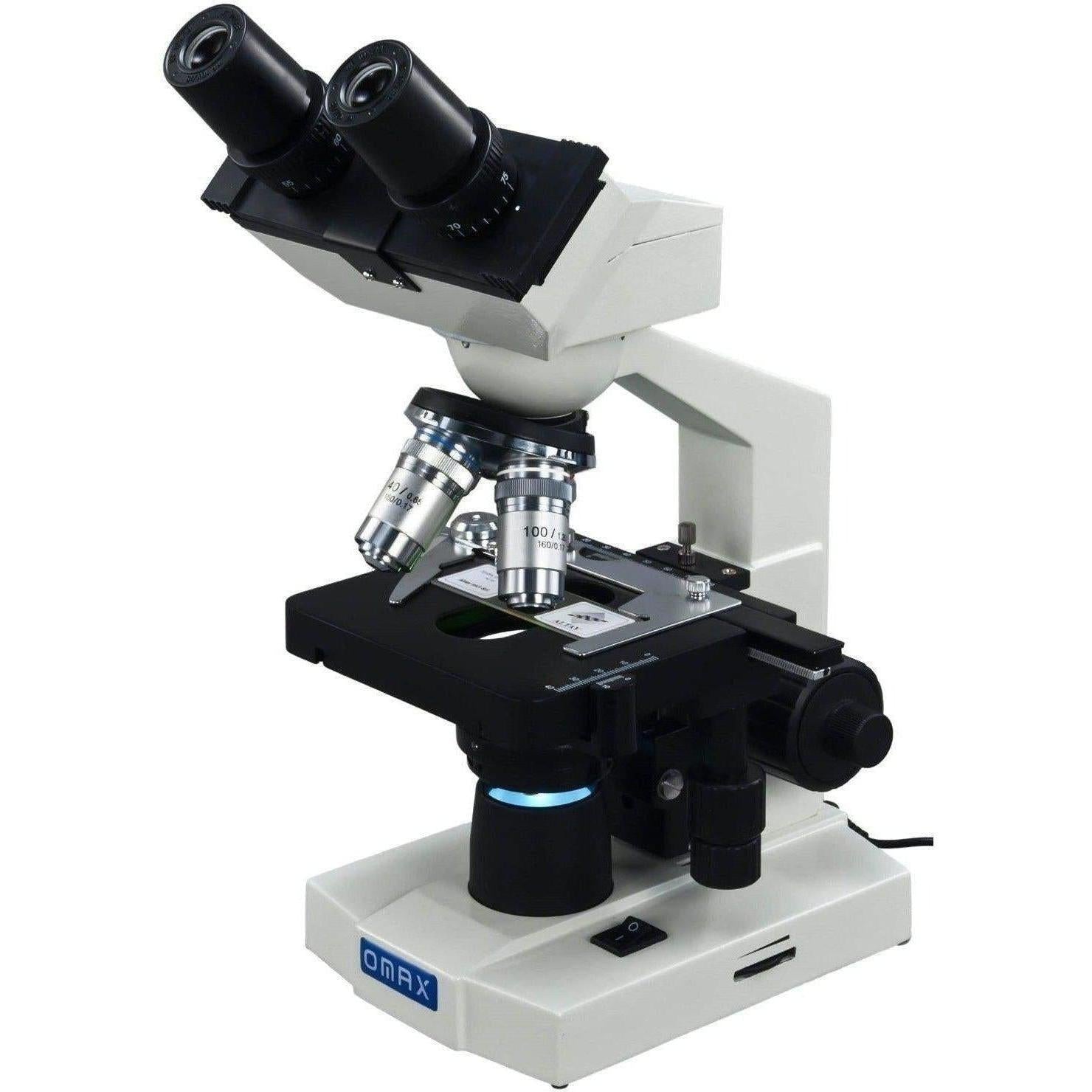

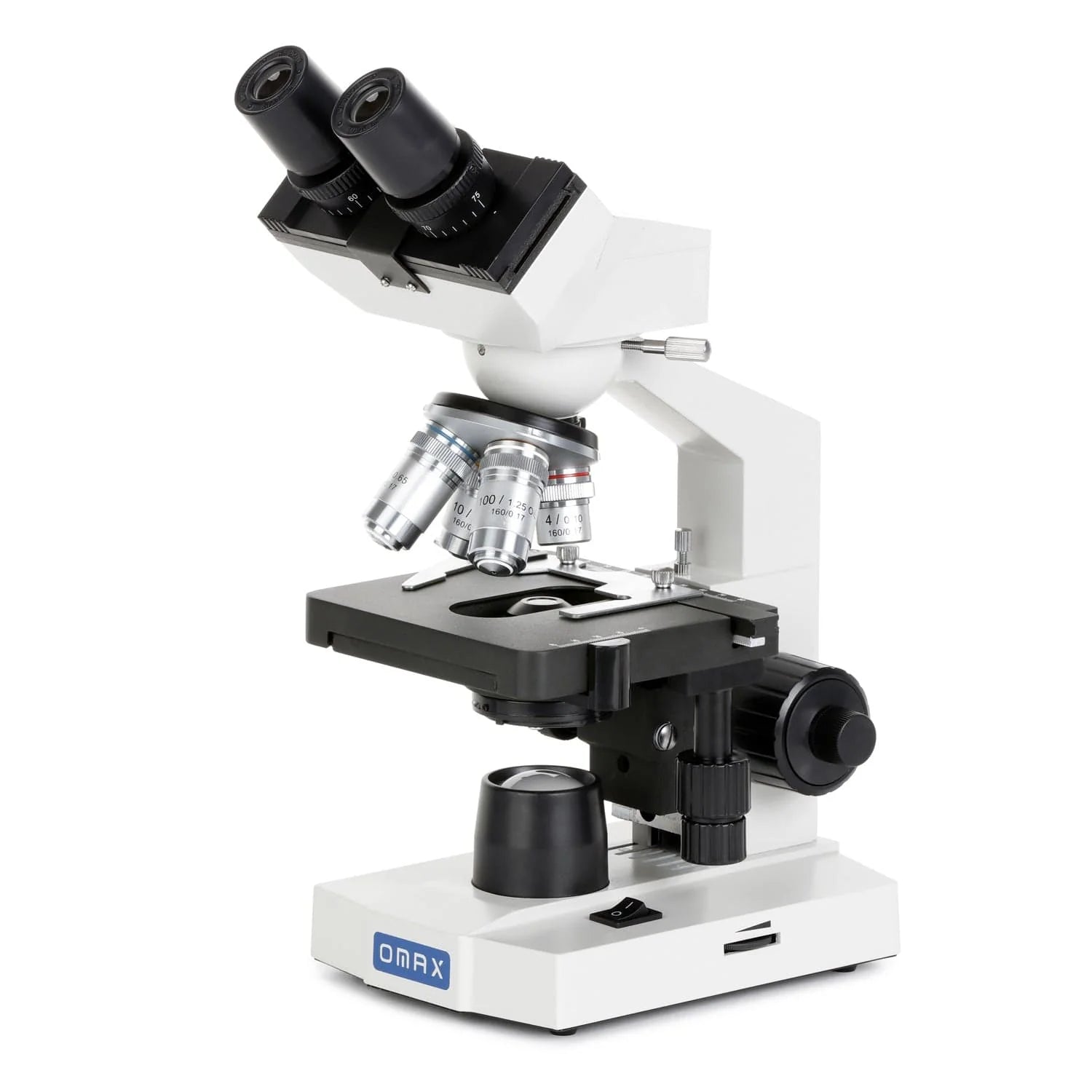

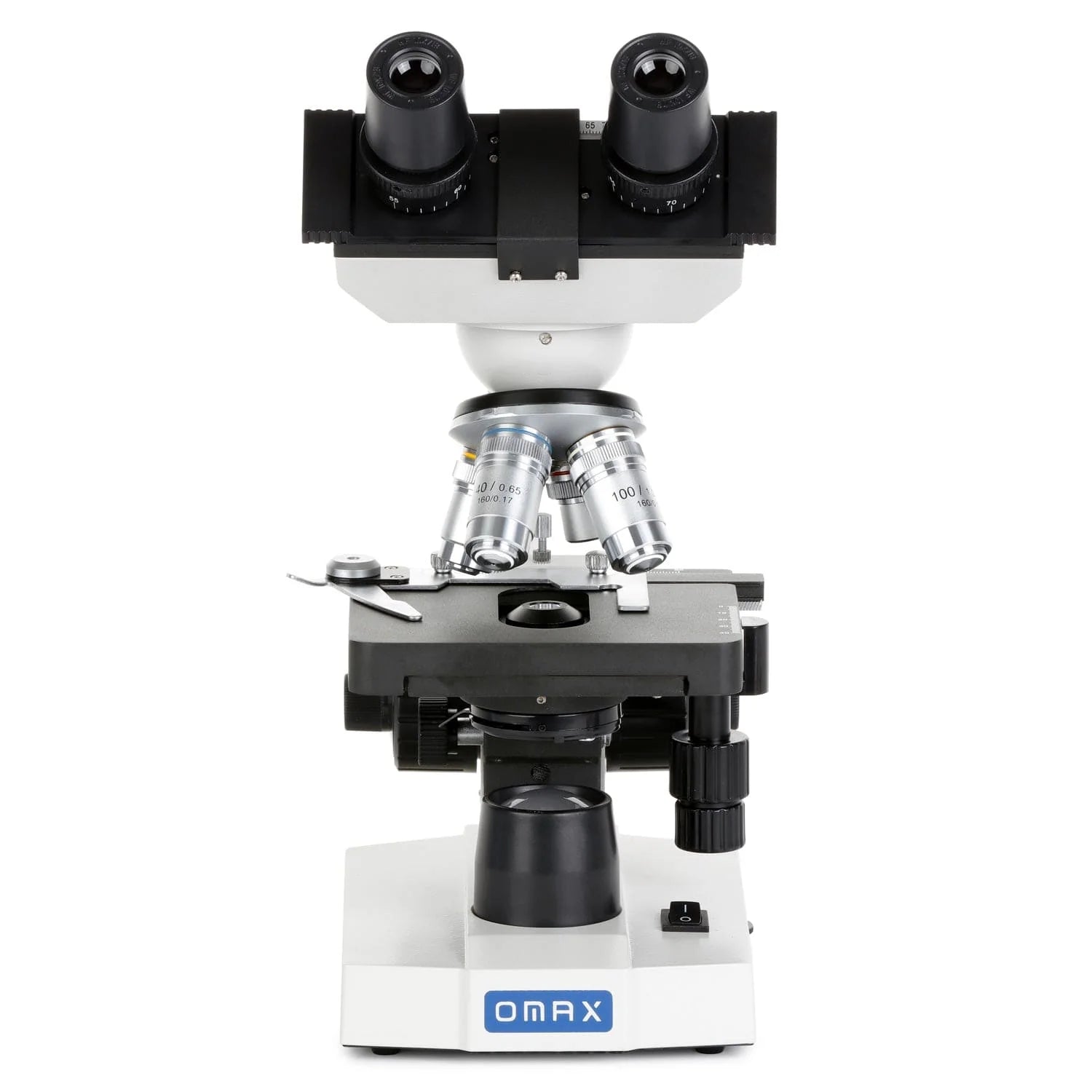

Omax M82ES 40x-2000x Compound w/ Double Layer stage Microscope

SKU: M82ES

Omax M82ES 40x-2000x Compound w/ Double Layer stage Microscope - Jacobs Digital
Omax M82ES 40x-2000x Compound w/ Double Layer stage Microscope - Jacobs Digital
Omax M82ES 40x-2000x Compound w/ Double Layer stage Microscope - Jacobs Digital
Omax M82ES 40x-2000x Compound w/ Double Layer stage Microscope - Jacobs Digital
Omax M82ES 40x-2000x Compound w/ Double Layer stage Microscope - Jacobs Digital
Omax M82ES 40x-2000x Compound w/ Double Layer stage Microscope - Jacobs Digital
Omax M82ES 40x-2000x Compound w/ Double Layer stage Microscope - Jacobs Digital
Omax M82ES 40x-2000x Compound w/ Double Layer stage Microscope - Jacobs Digital
Omax M82ES 40x-2000x Compound w/ Double Layer stage Microscope - Jacobs Digital
Omax M82ES 40x-2000x Compound w/ Double Layer stage Microscope
Omax M82ES 40x-2000x Compound w/ Double Layer stage Microscope
Omax M82ES 40x-2000x Compound w/ Double Layer stage Microscope

Our Price

$828.00

$828.00

Green truck Usually Ships in 1-3 Weeks An order for this can be placed with our supplier, and usually ships within the specified timeframe.



Loading

4500

82800

Shipping calculated at checkout

When will I receive it?

About this product

This OMAX binocular biological compound microscope offers eight magnifications between 40X and 2000X for total flexibility.

The microscope comes with a 45ø inclined 360ø swivelling binocular sliding viewing head, two pairs of widefield eyepieces with an adjustable diopter on oculars, four achromatic objectives, stain-resistant double layer mechanical stage with scales, coarse & fine focusing on both sides, NA 1.25 Abbe condenser with iris diaphragm and variable intensity LED transmitted illumination system.

This type of microscope is perfect for home school, teaching, demonstration, clinical examination, laboratories and advanced applications. It is easy to mount an electronic eyepiece (not included) for capturing images and live video on the computer. It can also be upgraded with a darkfield condenser (not included) to switch between brightfield and darkfield uses.

Features:

  • 8 levels of magnification: 40X-80X-100X-200X-400X-800X-1000X-2000X
  • Binocular viewing head with sliding adjustable interpupillary distance
  • Variable LED intensity transmitted illumination
  • NA1.25 Abbe condenser with iris diaphragm & filters
  • Coaxial coarse & fine focus knobs on both sides

Package contains:

  • 4 DIN objectives 4X, 10X, 40X, 100X
  • A pair of eyepieces WF10X
  • A pair of eyepieces WF20X
  • A bottle of Immersion oil
  • AC adapter (NZ ADAPTER PLUG INCLUDED)
  • Dust cover
  • Colour filter

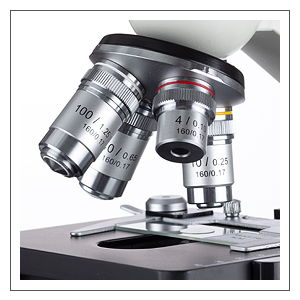

2000X magnification with 100X oil immersion objective



OMAX compound biological microscope offers eight level magnifications from 40X to 2000X. The microscope has 5X, 10X, 40X, and 100X objectives.

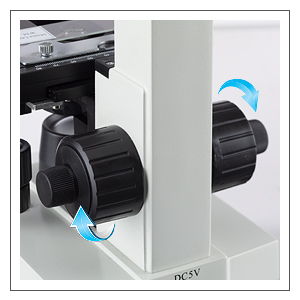

Coarse and Fine focusing



Coaxial coarse & fine focus knobs on both sides. This ergonomic designs helps adjusting the focus easily to achieve your desired result.

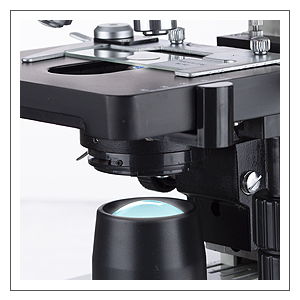

Variable LED intensity transmitted illumination



Transmitted illumination can be found in this product as it has a LED light of which the intensity can be customized depending on the situation. It also lasts much longer than a typical halogen bulb.

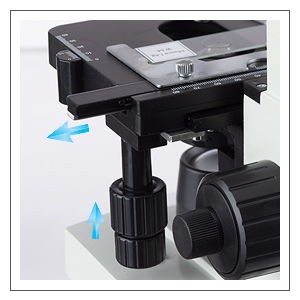

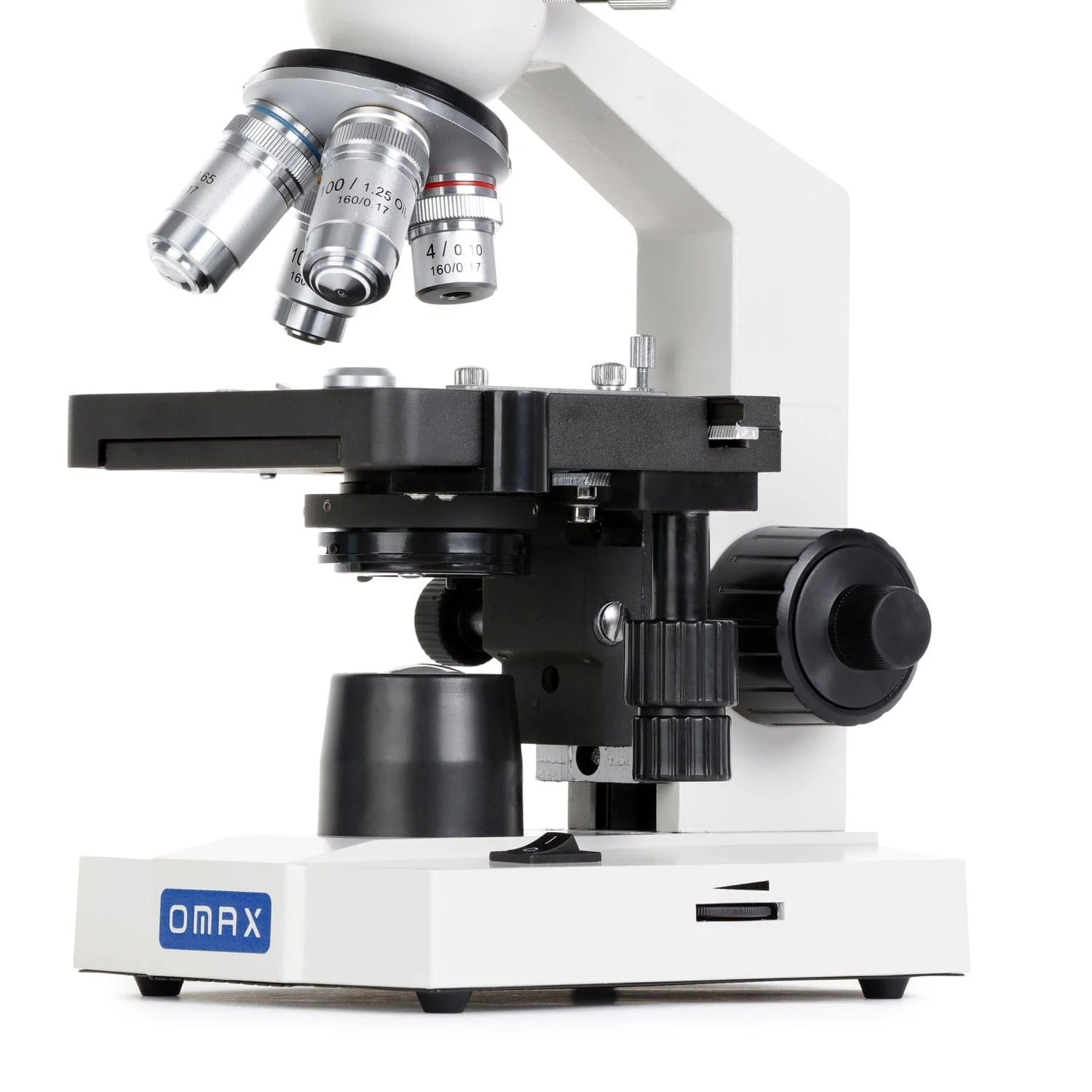

Mechanical stage with adjustment handle

The double layer mechanical stage gives you full movement of your sample for scanning purposes, or centering purposes. So instead of just the clips moving around on the stage, the entire stage moves in the X, Y, and Z dimensions. So, your slide won’t slip off in any way when you’re trying to locate your point of interest on your slide.

OMAX / AmScope M82ES Specifications

Model M82ES series
Microscope Type Binocular biological compound microscope with transmitted LED illumination
Total Magnification Range 40x, 80x, 100x, 200x, 400x, 800x, 1000x, 2000x

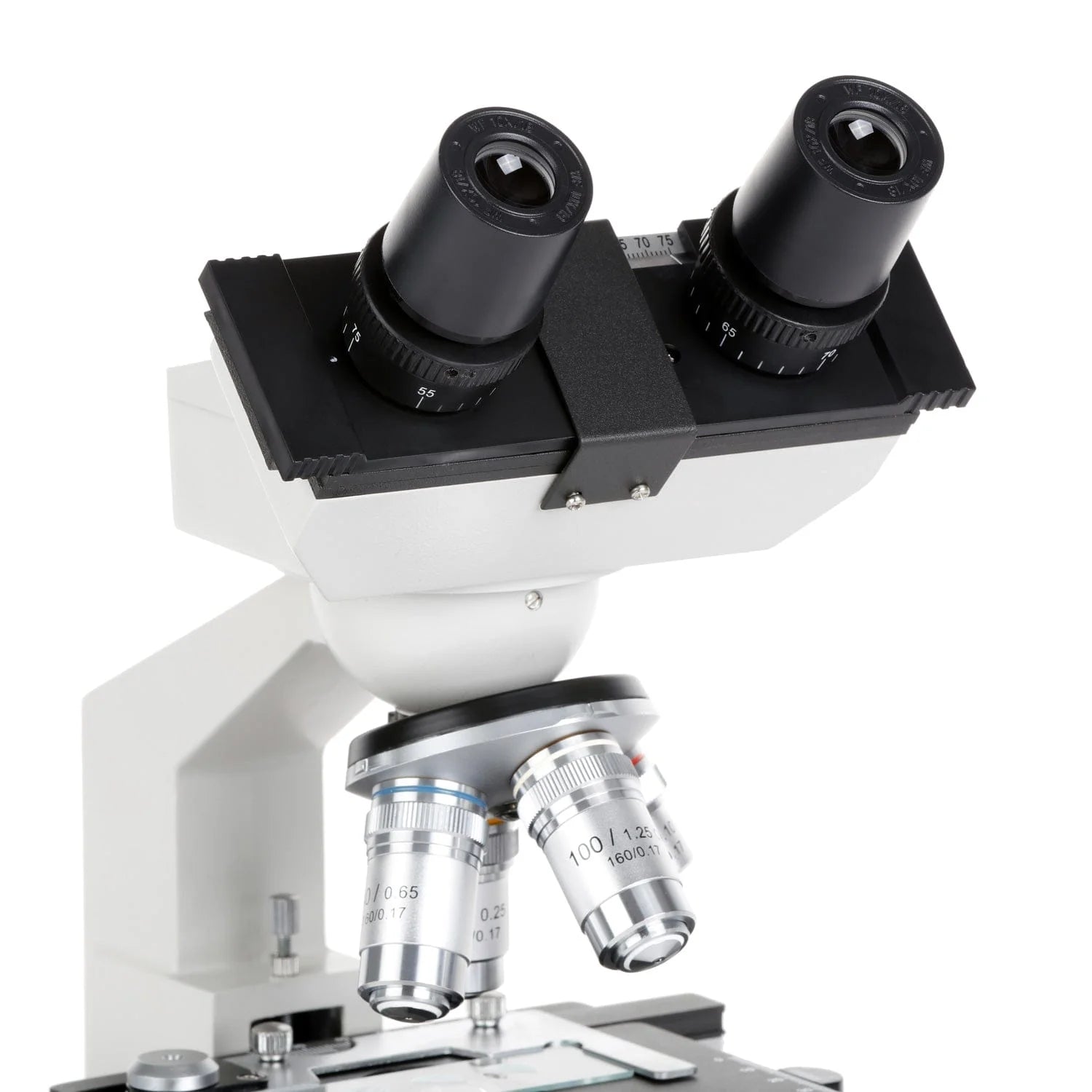

Viewing Head Binocular head, 45° inclined, 360° swivelling
Interpupillary Distance Sliding adjustment, 55–75 mm
Diopter Adjustment Adjustable on both eyepiece tubes
Nosepiece Revolving quadruple nosepiece
Objectives Achromatic DIN 4x/0.10, 160/0.17
Achromatic DIN 10x/0.25, 160/0.17
Achromatic DIN 40x/0.65, 160/0.17, spring-loaded
Achromatic DIN 100x/1.25, 160/0.17, spring-loaded, oil immersion
Eyepieces Included 1 pair WF10x/18 widefield eyepieces
1 pair WF20x widefield eyepieces
Eyepiece Mount Size 23.2 mm
Condenser Abbe condenser, NA 1.25, with iris diaphragm and rack-and-pinion height adjustment
Focus System Coaxial coarse and fine focusing knobs on both sides, with rack stop
Stage Type Double-layer mechanical stage
Stage Size 115 x 125 mm
X-Y Travel Range 70 x 30 mm
Illumination Transmitted LED illumination, variable intensity
Construction All-metal mechanical components
Power Supply AC/DC adapter, 100–240V input
NZ Power Compatibility Electrically suitable for New Zealand 230–240V / 50Hz mains. Official North American listings show a US Type-A wall plug, so NZ stock supplied with AU/NZ plug adapter.
Microscope Dimensions 230 x 180 x 330 mm
Net Weight 3.25 kg
Package Weight 4 kg

Eyepiece & Magnification Details

Eyepiece Magnification Field of View Mount Size
Widefield WF10x 10x 18 mm 23.2 mm
Widefield WF20x 20x 10 mm 23.2 mm

Objective With 10x Eyepieces With 20x Eyepieces
4x 40x 80x
10x 100x 200x
40x 400x 800x
100x oil 1000x 2000x

What’s in the Box

Included Item Details
Binocular microscope body M82ES microscope with double-layer mechanical stage and LED transmitted illumination
Objective set 4x, 10x, 40x spring, 100x spring oil objective lenses
WF10x eyepieces 1 pair included
WF20x eyepieces 1 pair included
Immersion oil 1 bottle included for 100x oil objective use
AC power adapter Included NZ Plug
Dust cover Included
Colour filter Included
