Omax Super Large Microscope Table Stand with Focusing Rack D/76mm

SKU: A605

Omax Super Large Microscope Table Stand with Focusing Rack D/76mm - Jacobs Digital

Our Price

$547.46

$547.46

Green truck Usually Ships in 1-2 Weeks An order for this can be placed with our supplier, and usually ships within the specified timeframe.



Loading

10000

54746

Shipping Quote

When will I receive it?

About this product

  • Super large table stand for stereo microscopes
  • Metal base plate
  • 3inch (76mm) focus mount with a vertical travel of 1inch up and down
  • 1-1/4inch (32mm) microscope crossing diameter of pillar
  • 11-1/2inch ( 290mm) microscope high pillar
  •

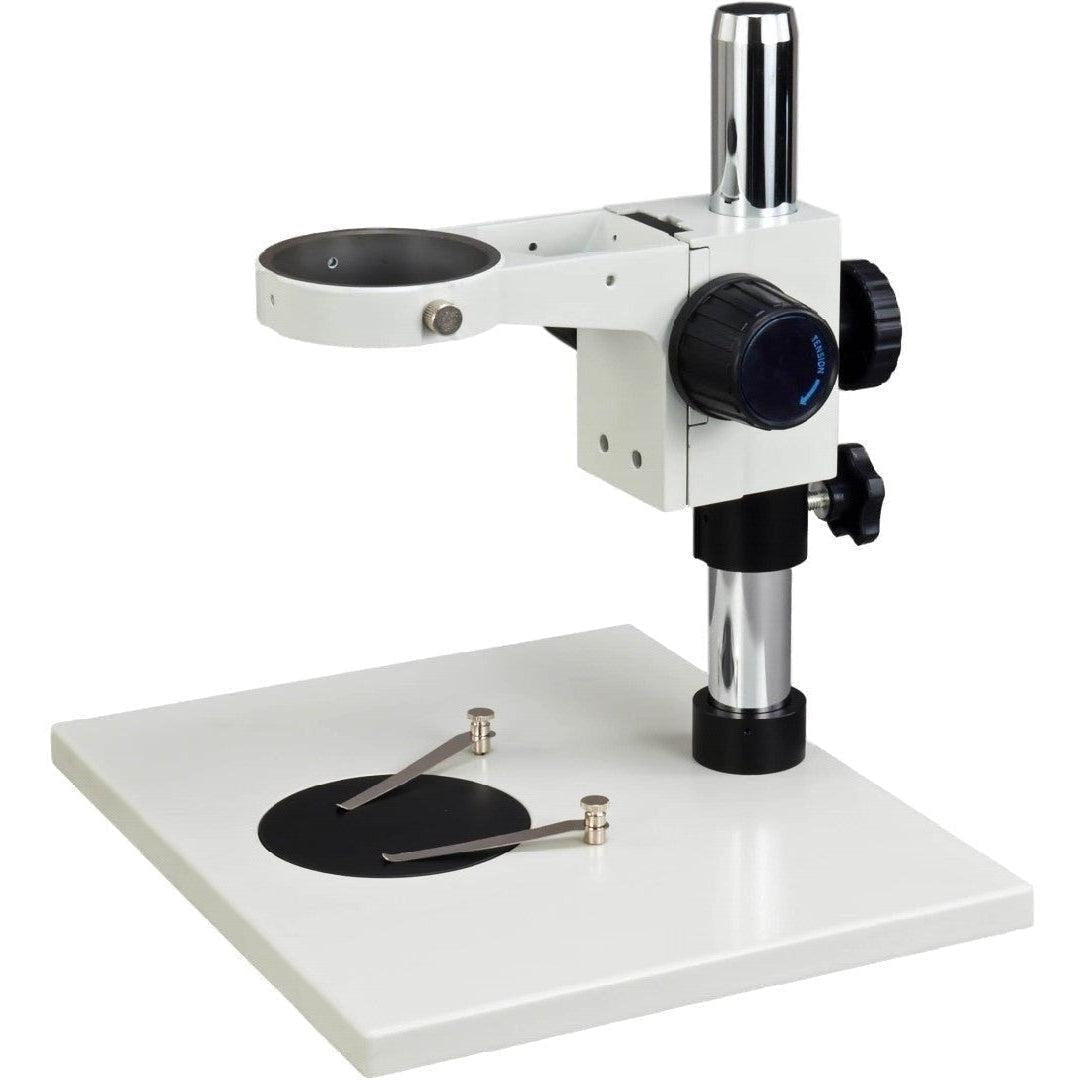

    This is a super large microscope table stand for stereo microscopes. It comes with a "F" focusing rack and one 100mm diameter reversible black and white stage plate and two stage clips. Focusing holder has coarse focusing mechanism, pinion and tool-free adjustable tension. The focusing mount can fit 3" (76mm) microscope body. Metal base plate provides large working area.


    Features:
    Super large table stand for stereo microscopes
    Metal base plate
    3" (76mm) focus mount with a vertical travel of 1" up and down
    1-1/4" (32mm) microscope crossing diameter of pillar
    11-1/2" ( 290mm) microscope high pillar

    Specifications:
    Model: A605
    Focus mount diameter for microscope body: 3" (76mm) standard
    Focusing vertical travel: ±1"
    Height of pillar: 11-1/2" (290mm)
    Diameter of pillar: 1-1/4" (32mm)
    White/black plastic stage plate: 4" (100mm) in diameter
    Microscope base dimension: 12-5/8" x 10-1/4" x 3/4" (320mm x 260mm x 20mm)
    Net weight: 7 lbs 6 oz (3.4 kg)
    Two shipping package: 7 lbs (3 kg) & (5 lbs) 2 kg


    Packing List:
    A set of microscope table stand
    Focusing rack
