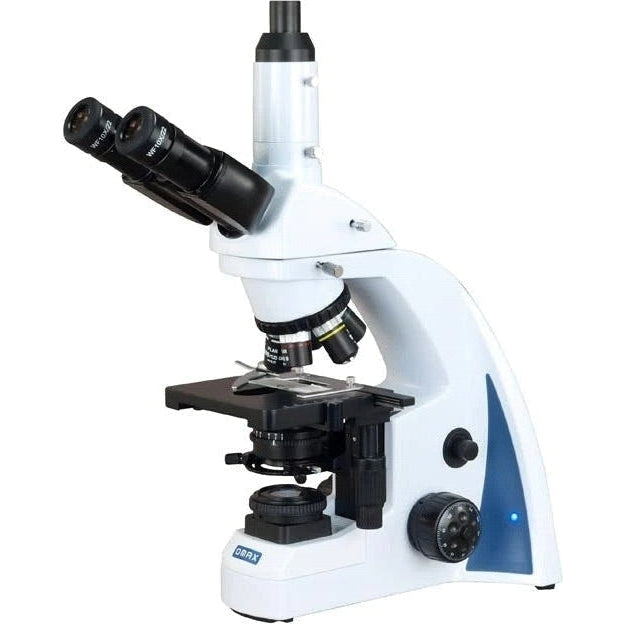

OMAX 40x-3000x Infinity PLAN Trinocular LED Kohler Siedentopf Microscope with Quintuple Nosepiece

About this product

This superior-quality OMAX microscope is designed for advanced life science research. The advanced microscope features a five high quality PLAN infinity achromatic objectives [4X, 10X, 20X, 40X(s), 100X(s,oil)], siedentopf trinocular viewing head with adjustable photo tube, body frame, reversed revolving quintuple nosepiece, large double layer mechanical stage with scale, brighter, whiter, and more even illumination due to LED variable intensity kohler light system and advanced NA1.25 condenser with iris control for great light control. The microscope also features wide-field focusable eyepieces (WF10X/22 and WF30X), offering ten-level magnifications from 40X to 3000X.
This microscope is ideal for clinical offices, veterinary labs, and research labs.

Features:

• Trinocular siedentopf viewing head with adjustable interpupillary distance
• Five PLAN infinity objectives: 4X, 10X, 20X, 40X(S), 100X(S, Oil)
• Double layer mechanical stage with NA1.25 Abbe condenser
• Variable intensity transmitted LED Kohler Illumination
• Sturdy metal frame and reversed revolving quintuple nosepiece

Specifications:

• Model: MQ8333V
• Total magnification: 40X-100X-120X-200X-300X-400X-600X-1000X-1200X-3000X
• Eyepieces: focusable WF10X/22 and WF30X
• Objectives: PLAN infinity 4X/0.10 ∞/-, 10X/0.25 ∞/0.17, 20X/0.40 ∞/0.17, 40X/0.65 ∞/0.17 (spring), 100X/1.25 ∞/0.17 (spring, oil)
• Viewing head: trinocular siedentopf 30°inclined 360°rotatable
• Adjustable photo tube
• Interpupillary: adjustment 2-3/16"~2-15/16" (55mm-75mm)
• Diopter: adjustable on left eyepiece tube
• Nosepiece: reversed revolving quintuple nosepiece
• A lever to switch between beam spilt for photo port and 100% to eyepieces when photo tube is not in use
• Stage: Double layer X-Y mechanical stage with scales, size 180mmx130mm (7-1/8"x5-1/8"), translation range 78mmx46mm (3"x1-13/16")
• A specially designed back slot on the microscope stand for easy hand holding and carrying
• Illumination: transmitted, kohler,LED lamp, intensity adjustable
• Focus: coaxial coarse and fine focus knobs on both sides with tension control
• Stage upward stopper protects objective and slides
• Condenser: NA1.25 condenser with iris aperture diaphragm, condenser center adjustable
• Color filters: green & blue, 44.8mm in diameter, for transmitted light
• Power supply: AC 100-240V, 50/60Hz, US and Canada plug version
• Dimension: 50cm x 41cm x 20cm (19-3/4" x 16" x 8")
• Net weight: 17 lbs 6 oz (7.9 kg)
• Shipping package: 22 lbs (10 kg)

Packing List:

• Trinocular microscope siedentopf head
• Photo tube
• Microscope stand
• Five PLAN infinity objectives: 4X, 10X, 20X, 40X, 100X
• A pair of eyepieces WF10X/22
• A pair of eyepieces WF30X
• A bottle of immersion oil
• Color filters: green & blue
• Dust cover
• Extra fuse
• Tension wrench
