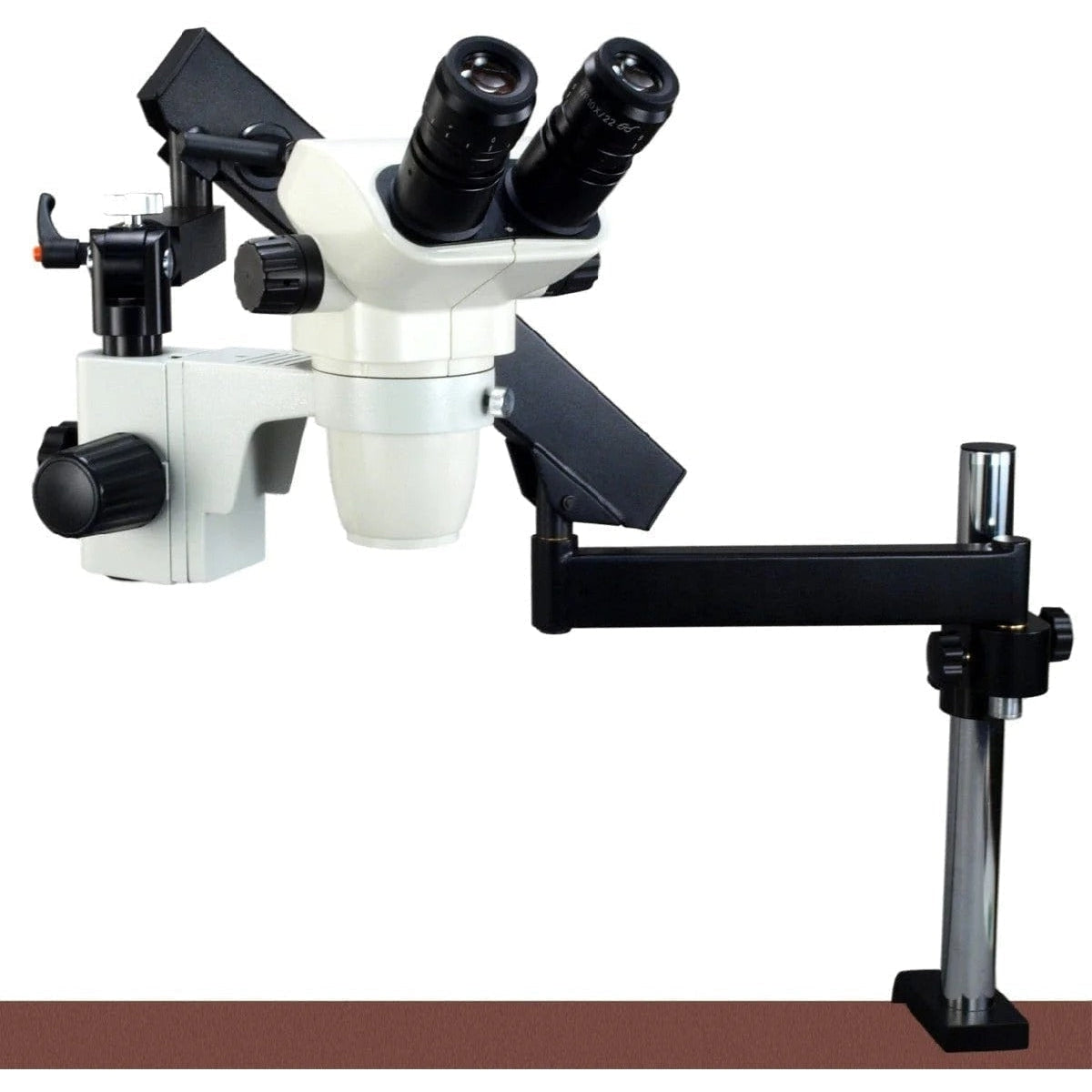

Omax 2x-45x Zoom Binocular Stereo Microscope w/Articulating Arm Stand & 0.5x Barlow Lens

About this product

• High quality optical glass elements
• 10X high eyepoint widefield eyepieces
• Zoom magnification from 2X to 45X
• 0.3X auxiliary lens gives larger field of view and longer working distance
• Sturdy articulating arm boom stand provides large working space

• High quality optical glass elements
• 10X high eyepoint widefield eyepieces
• Zoom magnification from 2X to 45X
• 0.3X auxiliary lens gives larger field of view and longer working distance
• Sturdy articulating arm boom stand provides large working space

Specifications:

• Model: W42DF1-6D3
• Total magnification: 2X - 45X
• Microscope body
  - Binocular, 360° rotatable viewing head
  - 45° inclined ocular tubes
  - Interpupillary distance adjustable: 54 - 75mm (2-1/8" - 2-15/16")
  - Inner diameter of ocular tube: 30mm (1-3/16")
  - Mounting size for auxiliary lens: 48mm female thread (M48X0.75)

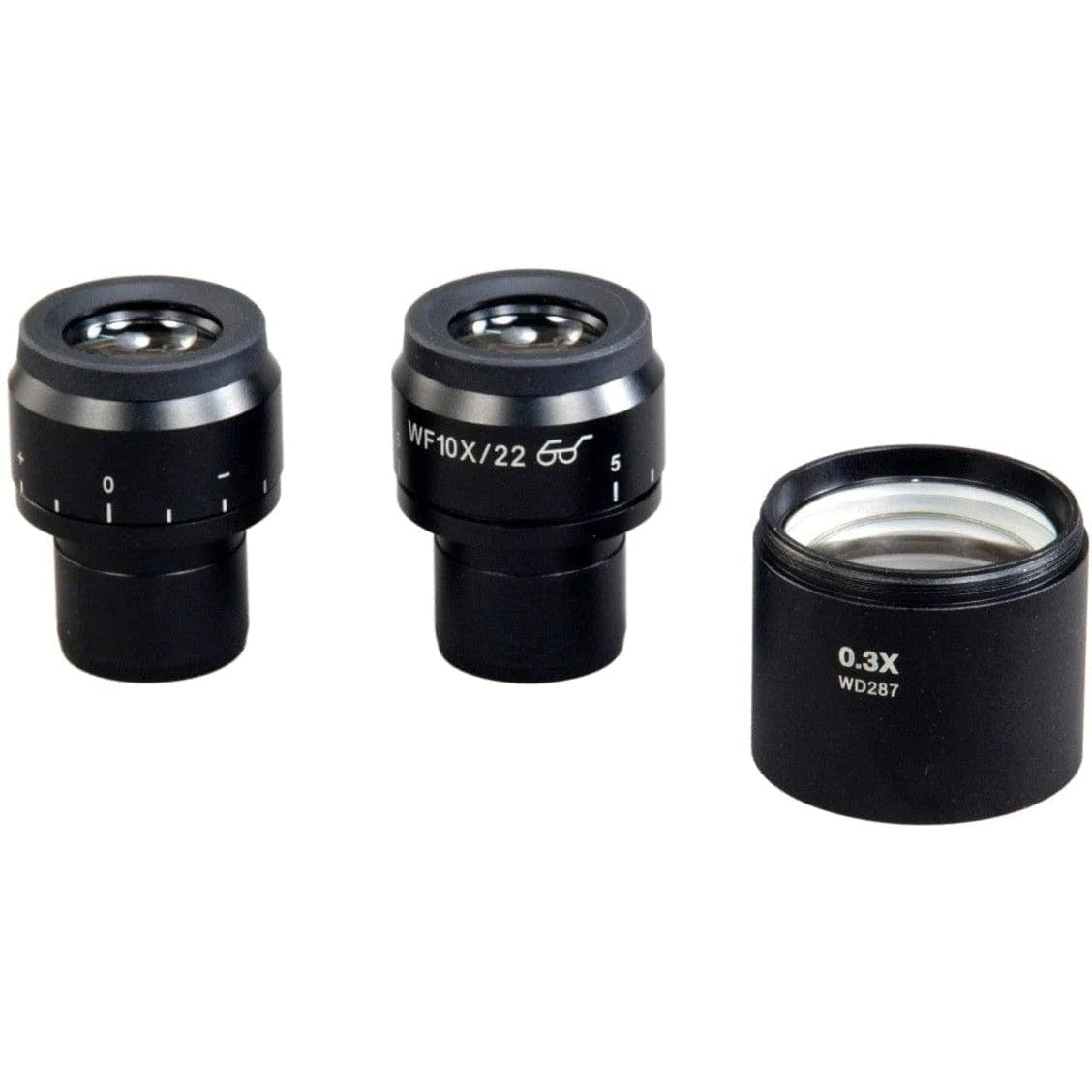

• Eyepiece
  - A pair of high eyepoint widefield WF10X/22, diopter adjustable

• Objective
  - Zoom 0.67X ~ 4.5X
  - Zoom ratio 6.7:1
• Auxiliary lens
  - 0.5X magnification
  - Top 48mm male thread
  - Bottom 48mm female thread

• Working distance
  - 105mm (4-1/8") with no auxiliary lens
  - 268mm (10-9/16") with 0.3X auxiliary lens
• Field of view
  - Max. 33mm (1-5/16") with no auxiliary lens
  - Max. 110mm (4-5/16") with 0.3X auxiliary lens

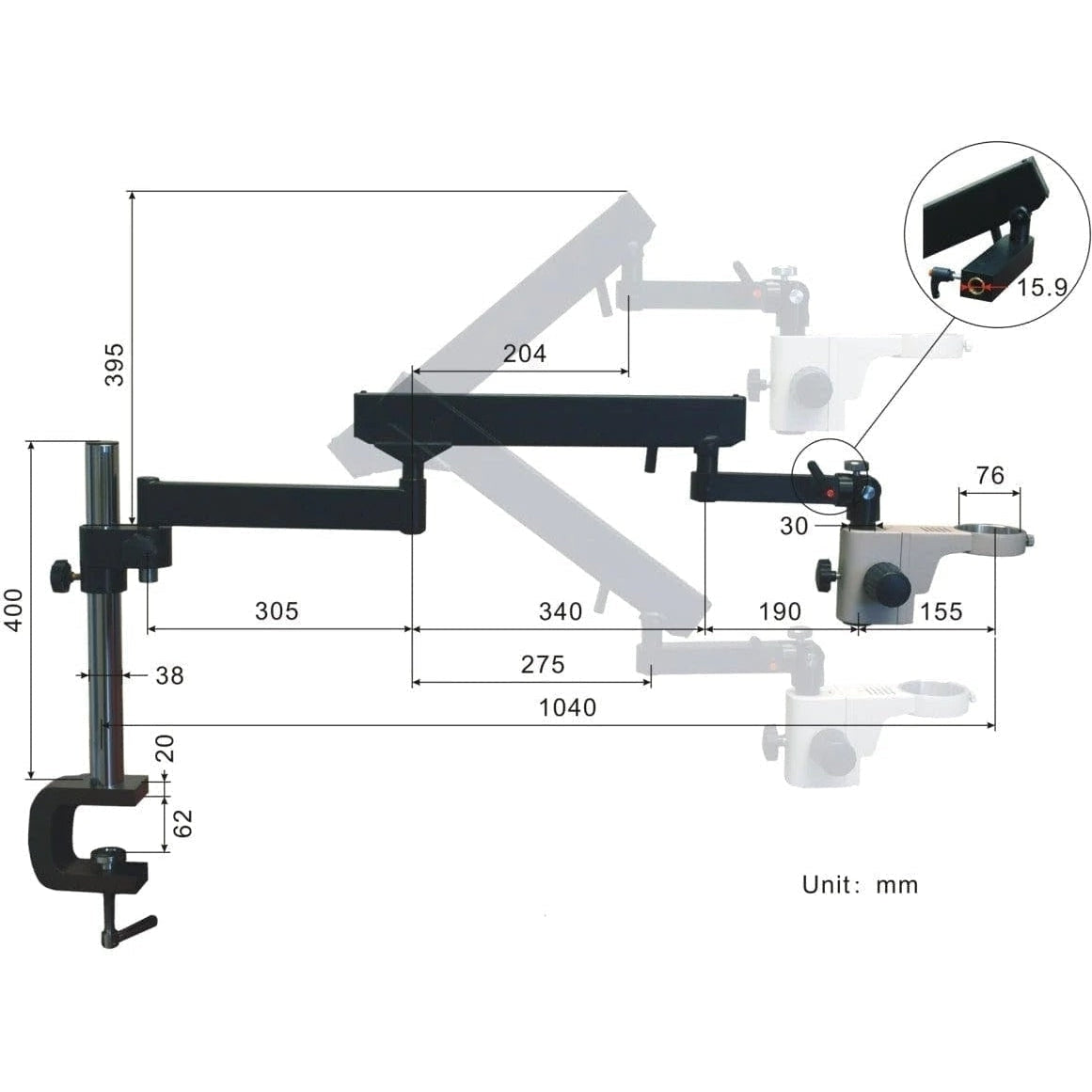

• Articulating arm boom stand
  - Table clamp: Max. opening 62mm (2-7/16")
  - Articulating arm: Spring loaded for easy operating, multi-arm provides more flexibility
  - 360° rotating horizontally
  - Radius of working area: Max. 1040mm ( 41" )
  - Diameter of microscope body holder: 76mm ( 3" )
  - Focus block: rack and pinion adjustment, range 55mm (2-5/32")
• Net weight
  - 13.6 kg ( 29 lb 15 oz)


Packing List:

• Binocular stereo microscope body
• A pair of WF10X/22 eyepieces
• Dust cover
• A 0.3X auxiliary lens
• A full set of articulating arm boom stand
