OMAX 40x-2500x w/ Built-In 3.0mp Digital Compound Microscope

SKU: MD827Z30 7502510

OMAX 40x-2500x w/ Built-In 3.0mp Digital Compound Microscope-Microscope-Jacobs Photo and Digital

OMAX 40x-2500x w/ Built-In 3.0mp Digital Compound Microscope

SKU: MD827Z30 7502510

Learn more about this type of product

When will I receive it?

Have a question about this product?

Print this page

Our Price

or 12 months interest free


or 6 easy payments of $211.50


or 4 easy payments of $317.25



incoming: false available: true

About this product

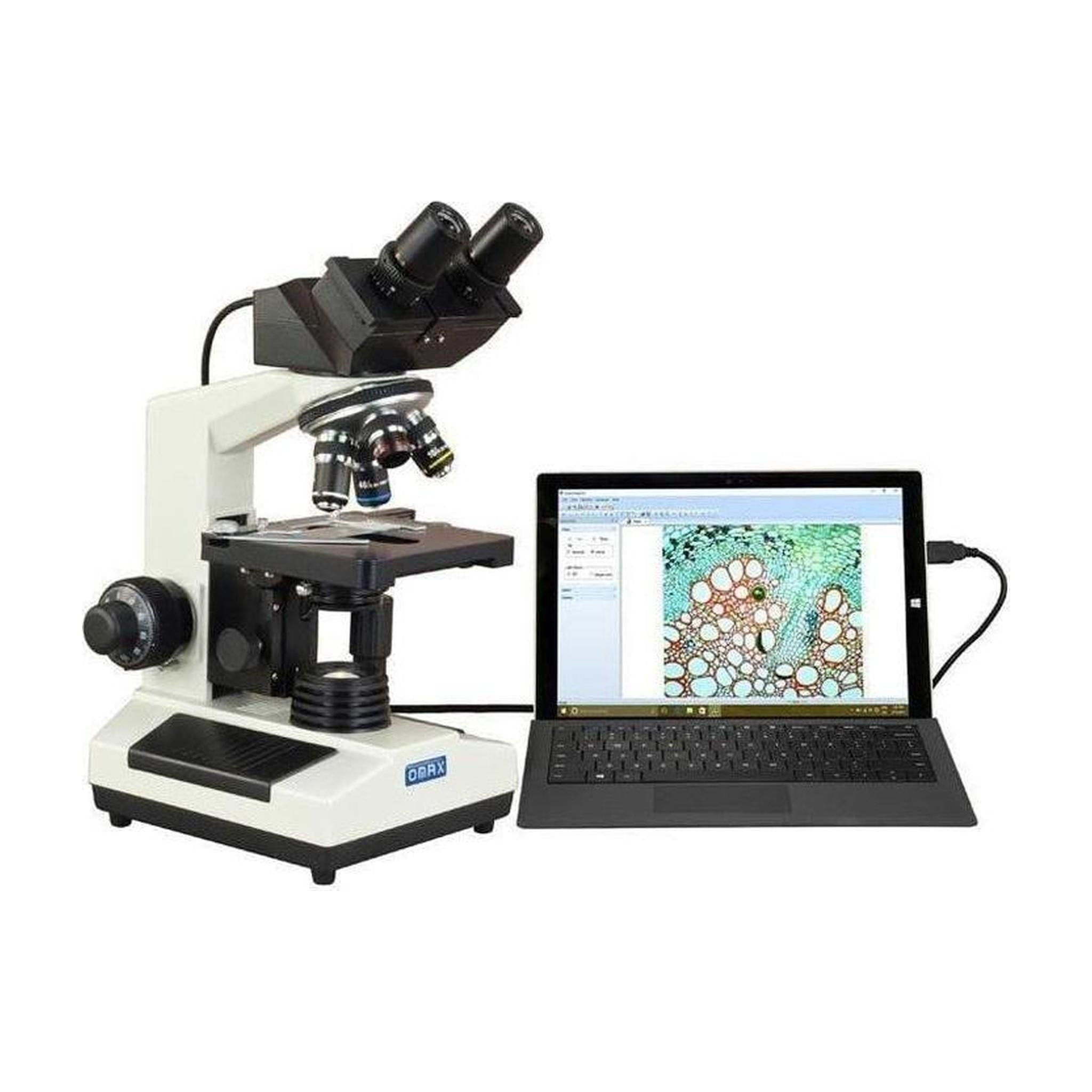

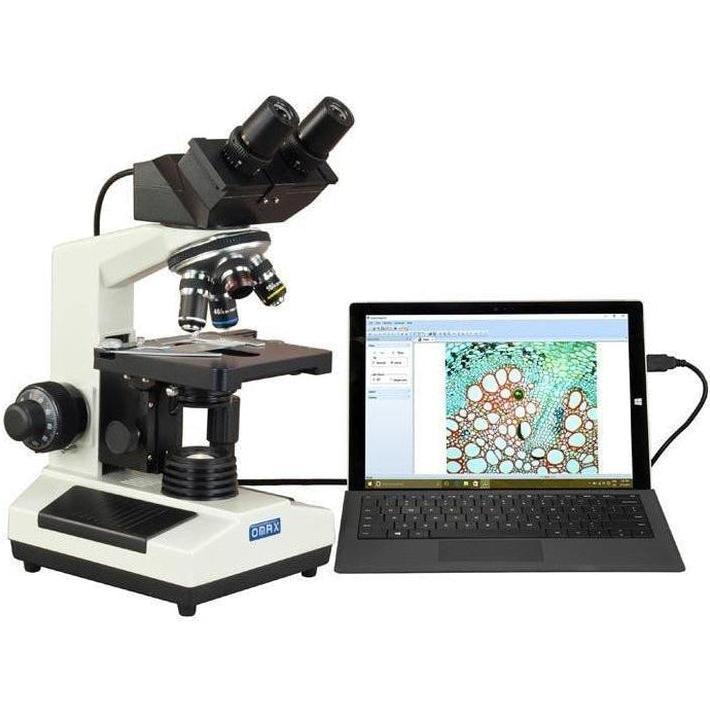

This digital compound binocular biological microscope allows for viewing through the eyepieces and use of the digital camera simultaneously, no need to compromise. It includes a built-in 3.0 mp digital camera binocular viewing head with advanced software, revolving quadruple nosepiece, four DIN achromatic optics objectives, double layer mechanical stage with scale, Abbe NA1.25 condenser with iris diaphragm, variable intensity halogen transmitted illumination system.

It offers six magnification levels out of the box between 40X and 2500X. The 2048 x 1536 pixels USB digital imaging system can capture both video and stills. The included software compatible with Windows can also be used to make measurements.


  • Built-in 2048x1536 pixels (3.0MP) USB digital camera with advanced software applications
  • Double-layer mechanical stage with NA1.25 Abbe condenser
  • Coaxial coarse and fine focus knobs
  • Digital binocular viewing head with adjustable diopter interpupillary distance
  • Sturdy metal framework and glass optics


  • Total magnification: 40x-100x-250x-400x-1000x-2500x
  • Eyepieces: wide field WF10X/18 and WF25X
  • Objective: achromatic DIN 4x, 10x, 40x(S), 100x(S, Oil)
  • Viewing head: black, digital 45øInclined 360øswiveling binocular
  • Sliding adjustable interpupillary distance: 2-3/16" ~ 2-15/16"(55~75mm)
  • Ocular diopter adjustable on both eyetubes
  • Built-in 2048x1536 pixel (3.0MP) USB high resolution digital camera
  • Nosepiece: revolving quadruple
  • Stage: mechanical double layer size 5-1/2" x 5-1/2" (140mm x 140mm)
  • Stage x-y stroke (travel range): 3" x 2" (75mm x 50mm)
  • Focus adjustment: Coaxial coarse & fine knobs on both sides
  • Focusing knob can be locked for observation & transportation
  • Rubber cover on the fine focus knob
  • Condenser & diaphragm: NA1.25 Abbe condenser with iris aperture diaphragm
  • Black palm rest on the base
  • Transmitted (lower) illuminator: 6V/20W halogen, intensity adjustable
  • Power supply: AC 100V~240V 0.2/0.1A 50/60Hz worldwide range (NZ, US and Canada plug)
  • Dimension: 7-7/8 " x 10-1/4" x 15-3/8" (20cm x 26cm x 39cm)
  • Net weight: 12 lbs (5.45 kg)
  • Shipping package: 15 lbs (7 kg)

Packing List:

  • Digital binocular microscope head
  • Microscope stand
  • 4 objectives: 4x, 10x, 40x, 100x
  • A pair of WF10X/18
  • A pair of WF25X
  • A bottle of Immersion oil
  • Power cord (NZ)
  • Dust cover
  • Color filters
  • Extra halogen bulb (6V/20W)
  • Extra fuses
  • Mirror
  • CD (camera driver and software)
  • USB2.0 cable
