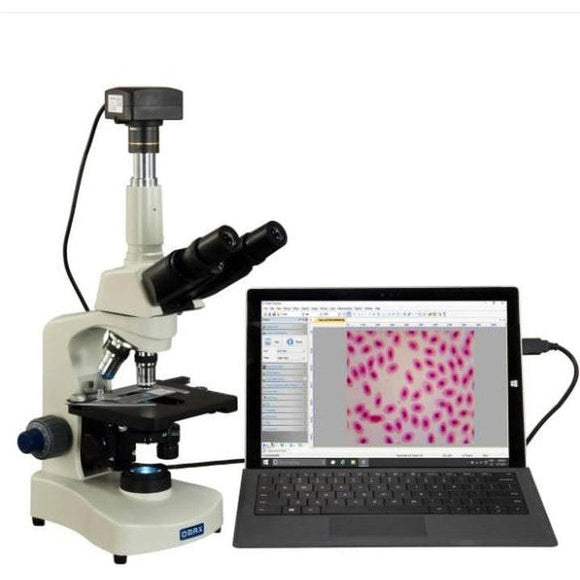

Omax 40-2500x Trinocular Phase Contrast Microscope w/ 5mp camera

SKU: M8311Z-PHD-C50U3

Omax 40-2500x Trinocular Phase Contrast Microscope w/ 5mp camera
×

Omax 40-2500x Trinocular Phase Contrast Microscope w/ 5mp camera

SKU: M8311Z-PHD-C50U3

Learn more about this type of product


When will I receive it?

Have a question about this product?


Print this page

Our Price

or 12 months interest free

Gem

or 6 easy payments of $414.83

Laybuy

or 4 easy payments of $622.25

Afterpay

Loading

About this product

  • Super speed 5MP USB 3.0 digital camera with 0.5X reduction lens and 0.01mm calibration slide
  • Phase-contrast microscope system for viewing live cell cycle
  • One NA1.25 phase contrast condenser with three (10X, 40X, and 100X) condenser annular plates
  • Replaceable 3W LED transmitted light with adjustable intensity
  • Large double layer mechanical stage and coaxial coarse and fine focus knobs

    The trinocular compound Siedentopf LED microscope provides a phase-contrast microscope system & brightfield microscope system and a super speed 5MP USB 3.0 imaging digital system. The phase-contrast microscope comes with LED illumination with variable intensity, Abbe NA1.25 condenser with iris diaphragm, 5MP USB 3.0 camera and a complete set of phase contrast kit. The compound microscope features an optical system for observing images through eyepieces and an adjustable trinocular port. It offers six levels of brightfield magnification from 40X to 2500X. The phase-contrast microscope can improve the images of transparent and colourless objects, which are hard to see or invisible in an ordinary microscope. The 2560x1922 pixels USB 3.0 digital imaging system captures still microscope images and live video on a computer. The included software is compatible with Windows, Mac OS X and Linux operating systems (see version information below). The Windows software can also be used to make measurements. This phase contrast compound microscopy is widely used in clinical, biological, research and schools, especially for observing live cells.

    FEATURES:

    • Super speed 5MP USB 3.0 digital camera with 0.5X reduction lens and 0.01mm calibration slide
    • Phase-contrast microscope system for viewing live cell cycle
    • One NA1.25 phase contrast condenser with three (10X, 40X, and 100X) condenser annular plates
    • Replaceable 3W LED transmitted light with adjustable intensity
    • Large double layer mechanical stage and coaxial coarse & fine focus knobs

    SPECIFICATIONS:

    • Total magnification for brightfield: 40X-100X-250X-400X-1000X-2500X
    • Total magnification for phase contrast: 100X-250X-400X-1000X-2500X
    • Eyepieces: widefield WF10X/18 and WF25X
    • Brightfield objectives: achromatic DIN 4X, 10X, 40X (S), 100X (S, Oil)
    • Phase contrast objectives (in phase contrast kit): achromatic PH10X, PH40X (S), PH100X (S, Oil)
    • View head: 30°Inclined 360°rotatable trinocular Siedentopf
    • Interpupillary: hinge adjustment 1-7/8" ~ 2-15/16" (48mm ~ 75mm)
    • Diopter: adjustable on left eyepiece tube
    • Nosepiece: revolving, quadruple, reversed
    • Stage: X-Y mechanical stage with scales, range 3" x 1-9/16" (78mm x 40mm), dimension 5-1/2" x 4-1/4" (140mm x 110mm)
    • Focus: coaxial coarse and fine focus knobs on both sides, rack and pinion adjustment, with tension control and stop
    • Illumination: transmitted replaceable 3W LED light, intensity adjustable
    • Condenser: Abbe NA1.25 with iris aperture diaphragm and filter holder, rack & pinion adjustment
    • Phase contrast kit:
      - NA1.25 condenser
      - Three separated condenser annular plates: 10X, 40X, 100X
      -
       Three-phase contrast objectives: 10X, 40X, 100X
      -
       Each phase contrast condenser can be centred individually
      -
      37mm mounting size in diameter
      - Centering telescope: 23.2mm
    • Power supply: AC 100V ~240V 50/60Hz (US and Canada plug)
    • Solid metal base and stand
    • Digital camera:
      - True color 2560x1922 pixels (5M pixels)
      - Super speed USB 3.0 connection
      - 0.5X reduction lens to get a larger field of view
      - 0.01 mm calibration slide: 1mm/100 division
      - Frame speed: 14.2fps at 2560x1922, 38.3fps at 1280x960, 101.2fps at 640x480
      - Software compatible with Windows, Mac OS X and Linux operating systems
      - Capturing microscope images, recording live video, measuring lengths, angles, areas, editing images
      - USB 3.0 cable included
    • Dimension of microscope: 12" x 8" x 19-11/16" (31cm x 20cm x 50cm)
    • Dimension of phase contrast kit: 10-7/8" x 7-1/16" x 5-3/4" (26.5cm x 18cm x 14.5cm)
    • Shipping packages: 20 lb (9 kg) & 5 lb (2 kg)



    PACKING LIST:

    • One trinocular siedentopf microscope head
    • One phototube for digital cameras
    • One microscope stand and base
    • Four objectives: 4X, 10X, 40X, and 100X
    • A pair of eyepieces WF10X
    • A pair of eyepieces WF25X
    • One bottle of immersion oil
    • One power cord (NZ, US and Canada standard)
    • One focus tension adjustment wrench
    • One dust cover
    • Colour filter: green
    • Extra fuse (in the fuse holder of the microscope)
    • Phase contrast kit:
      - 1 centring telescopic eyepiece
      - 3 phase contrast objectives: 10X, 40X, and 100X
      - 3 separated phase-contrast plates for 10X, 40X, and 100X light passing
      - 1 NA1.25 phase contrast condenser
      - 1 green filter
      - 1 aluminium phase-contrast storage box
    • Camera:
      - 5MP USB 3.0 digital camera
      - 0.5X reduction lens
      - 1 CD including driver, software and user's instruction
      - 0.01mm calibration slide (stage micrometer)
      - USB 3.0 cable
