Omax 40x-2000x Infinity Darkfield Trinocular Microscope w/ 10mp Camera

SKU: M8333S-BDK-C100U3

Omax 40x-2000x Infinity Darkfield Trinocular Microscope w/ 10mp USB 3.0 Camera-Microscope-Jacobs Photo and Digital
×

Click the image to enlarge

Omax 40x-2000x Infinity Darkfield Trinocular Microscope w/ 10mp Camera

SKU: M8333S-BDK-C100U3

Our Price


×

Pickups and Delivery

In-store pickup

We don't have this item in our store right now. Please enquire for availability.

If you come to pick up your order please bring photo ID, if someone else is picking it up on your behalf please contact us prior to pickup.

Delivery estimates

Once your order has been picked up by the courier please allow 2 working days for North Island addresses, for the South Island allow 3 working days. Rural deliveries and extra-large items may take several additional days.

Shipping costs

Shipping costs are automatically calculated during checkout. The price of shipping varies based on the delivery location. Select items may be be eligible for free shipping.

Delivery of oversize items

Oversize items such as very large telescopes may only be available via pickup from a depot or a business address. For a list of available depots, click here

Security

To ensure the safe delivery of your order we require a signature with all parcels. Some exceptions may be made if you give the courier company authority to leave parcels at your preferred address.

About this product

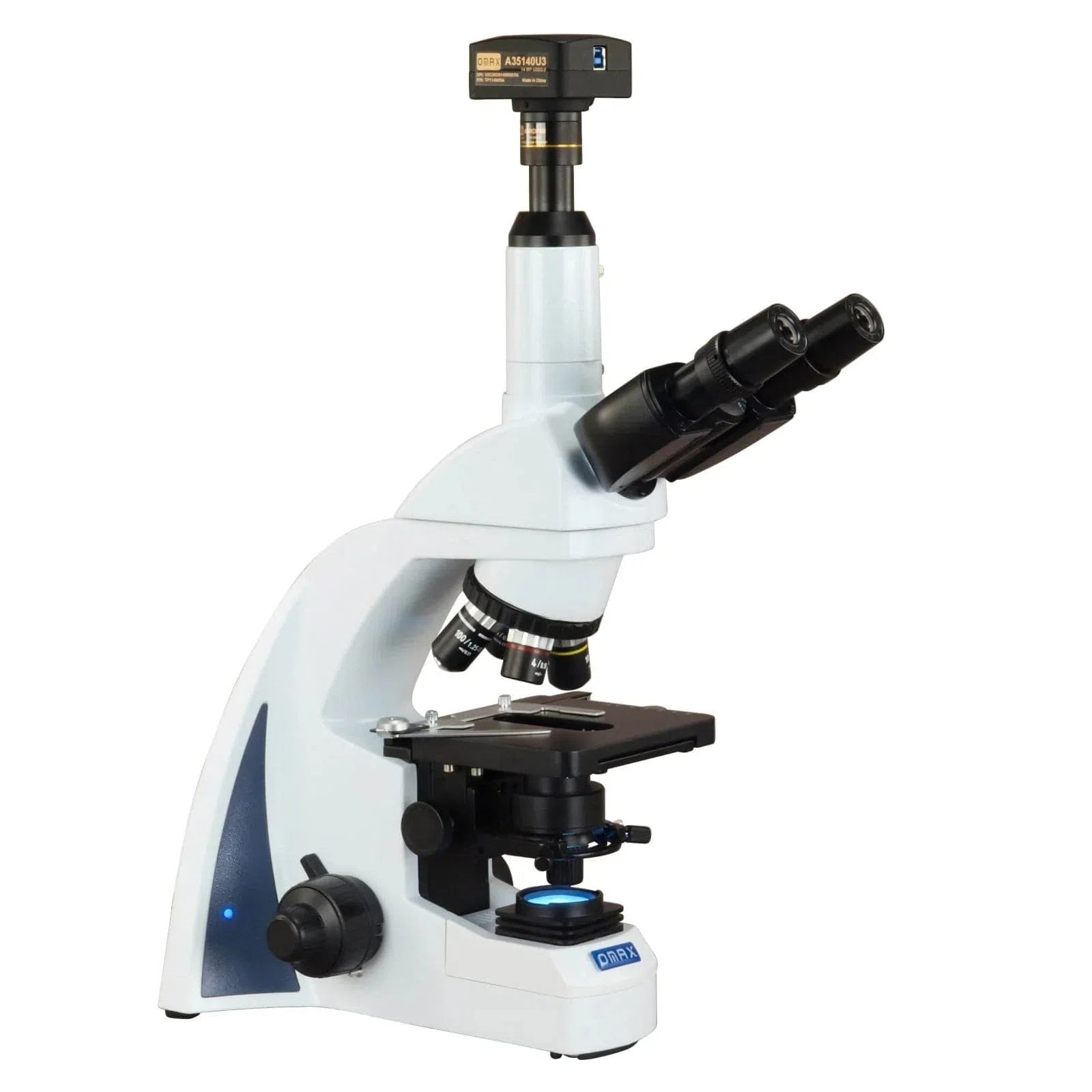

This superior quality OMAX darkfield microscope is designed for advanced life science research using the darkfield low contrast microscopy technique and includes a super speed 10MP USB 3.0 digital microscope camera. The advanced microscope features a four high-quality infinity PLAN achromatic objectives [4X, 10X, 40X(s), 100X(s, oil)], Siedentopf trinocular viewing head with adjustable phototube, body frame, reversed revolving quadruple nosepiece, large double layer mechanical stage with scale, brighter & whiter illumination due to 3W LED variable intensity light, an NA1.36-1.25 oil darkfield condenser, and advanced NA1.25 condenser with iris control for incredible light control. The camera includes software that allows for live preview and capture options on a computer (see compatibility and full features below). In combination with its WF10X/18 and WF20X eyepieces, the microscope offers eight level magnifications from 40X to 2000X. This microscope is ideal for clinical offices, veterinary labs, and research labs, and excels in the task of live blood analysis.

Manual Link


Features:

  • 10MP super speed USB 3.0 digital microscope camera with software
  • NA1.36-1.25 oil darkfield condenser provides contrast to some low-contrast specimens without needing stain
  • Trinocular Siedentopf viewing head with adjustable interpupillary distance
  • 4 PLAN infinity achromatic objectives 4X, 10X, 40X(S), 100X(S, Oil)
  • Variable intensity transmitted 3W LED lamp and coaxial coarse and fine focus adjustment on both sides

Specifications:

  • Total magnification: 40X-80X-100X-200X-400X-800X-1000X-2000X
  • Eyepieces: wide field WF10X/18 and WF20X
  • Objectives: PLAN infinity achromatic 4X/0.10 /-, 10X/0.25 /0.17, 40X/0.65 /0.17 (spring), 100X/1.25 /0.17 (spring, oil)
  • Viewing head: trinocular Siedentopf 30øInclined 360ørotatable
  • Adjustable photo tube
  • Interpupillary: adjustment 2-3/16"~2-15/16" (55mm-75mm)
  • Diopter: adjustable on left eyepiece tube
  • Nosepiece: reversed revolving quadruple nosepiece
  • A lever to switch between beam spilt for photo port and 100% to eyepieces when phototube is not in use
  • Stage: Double layer X-Y mechanical stage with scales, size 140mmx110mm (5-1/2"x4-1/4"), translation range 78mmx46mm (3"x1-13/16")
  • A specially designed back slot on the microscope stand for easy hand-holding and carrying
  • Illumination: transmitted, 3W LED lamp, intensity adjustable
  • Focus: coaxial coarse and fine focus knobs on both sides with tension control
  • Stage upward stopper protects the objective and slides

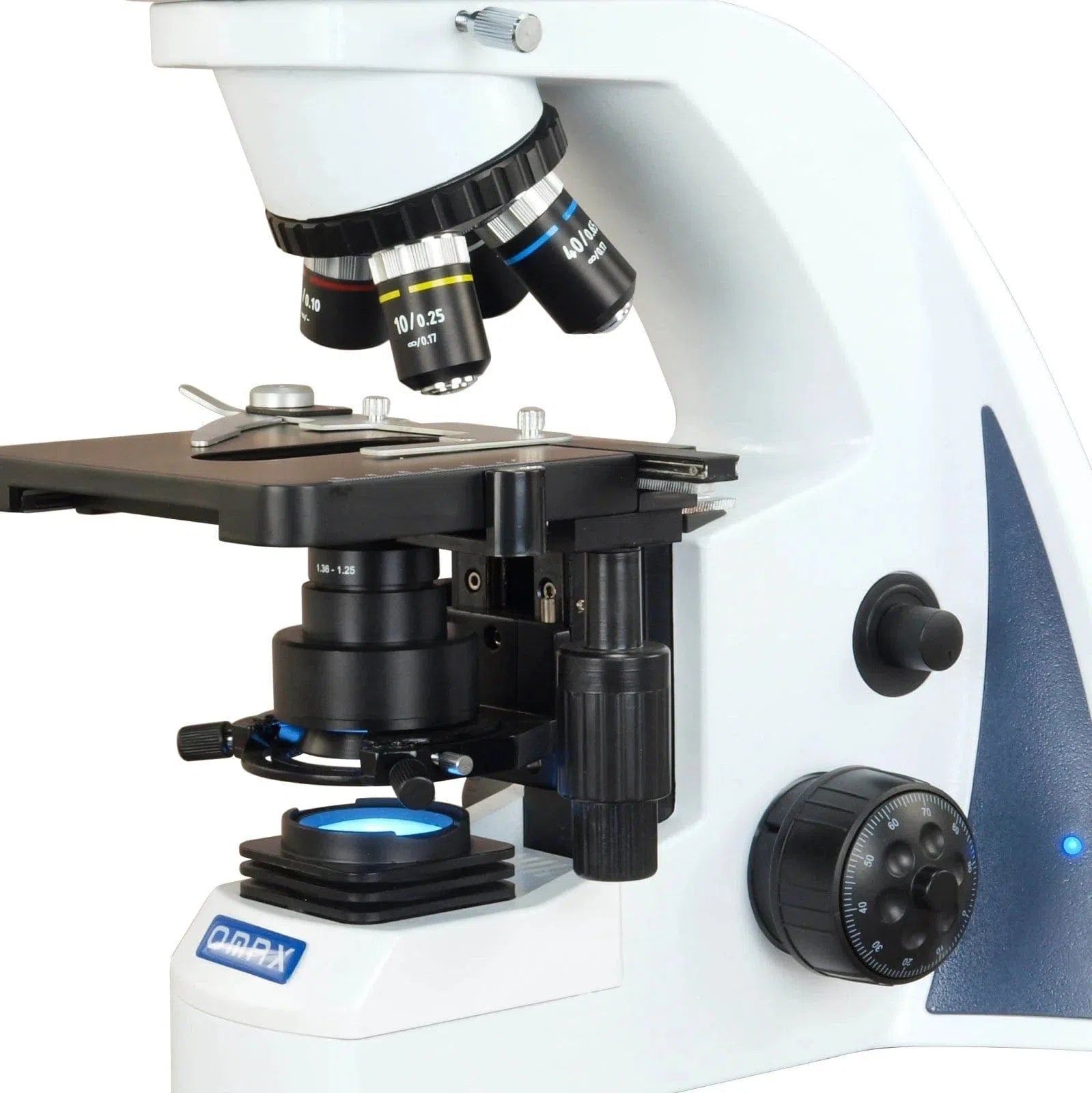

  • Brightfield condenser: NA1.25 condenser with iris aperture diaphragm, condenser center adjustable
  • Darkfield condenser: NA1.36-1.25, compatible with dry and oil objectives
  • Color filter: green, 45mm in diameter, for transmitted light, Blue.
  • Power supply: AC 100-240V, 50/60Hz,NZ plug version
  • Digital microscope camera:
  • - True color 3584x2748 pixels (10M pixels)
  • - Super speed USB 3.0 connection
  • - 0.5X reduction lens to get larger field of view
  • - 0.01 mm calibration slide: 1mm/100 division
  • - Frame speed: 7.2fps at 3584x2746, 25fps at 1792x1372
  • - Software compatible with Windows, Mac OS X and Linux operating systems

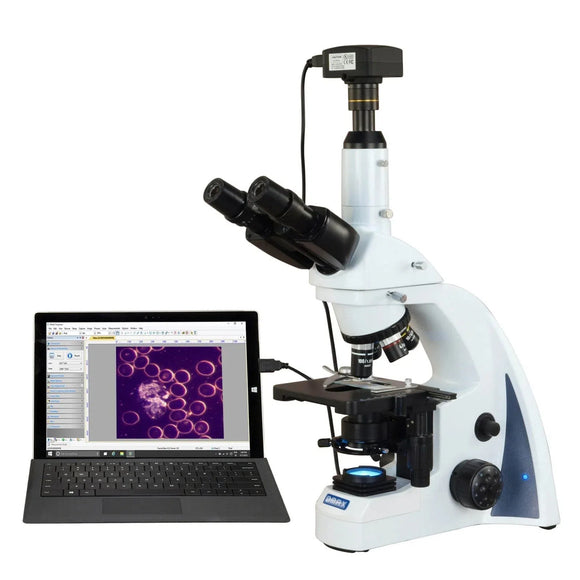

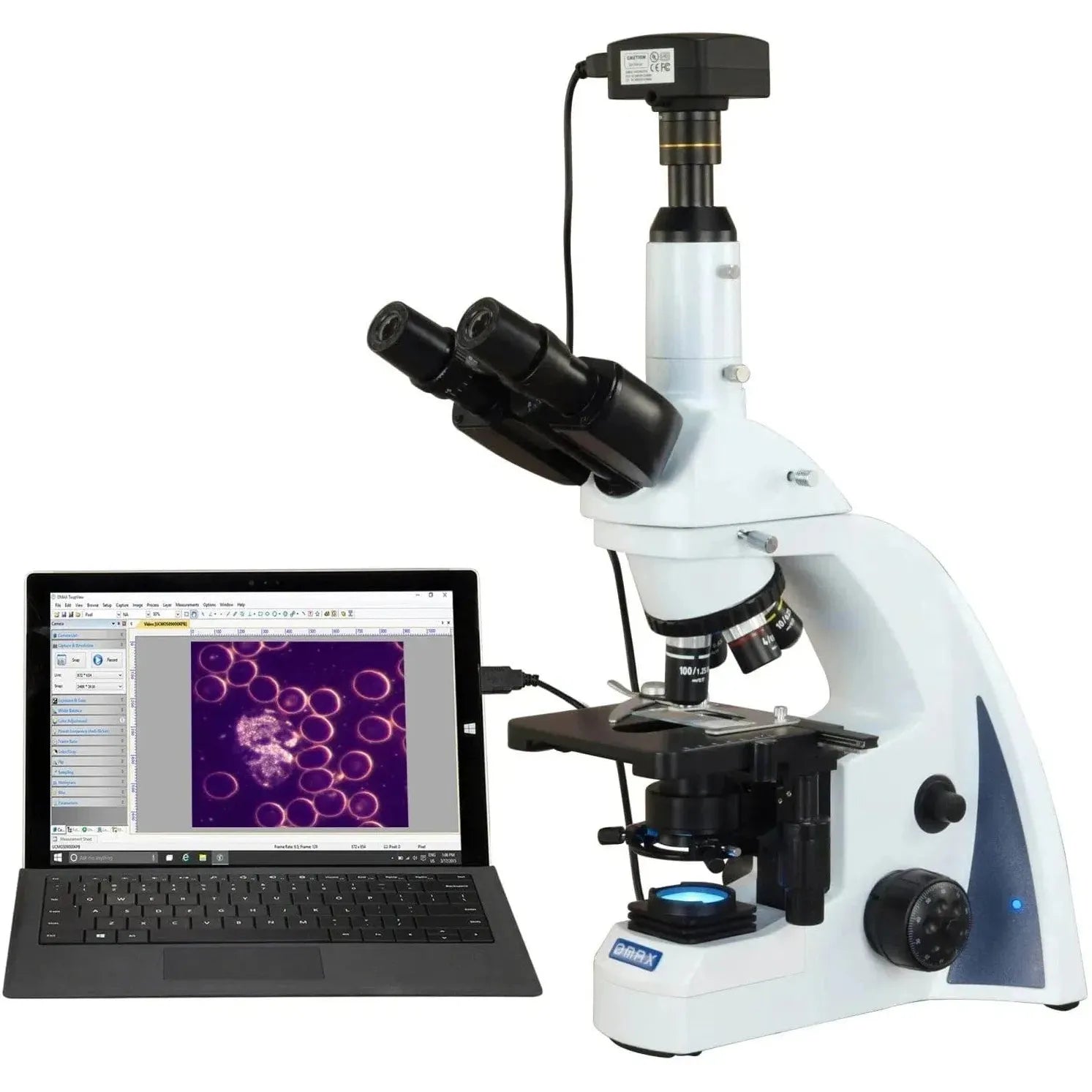

  • - Capturing microscope images, recording live video, measuring lengths, angles, areas, editing images
  • - USB 3.0 cable included
  • Dimension: 50cm x 41cm x 20cm (19-3/4" x 16" x 8")
  • Net weight: 17 lbs (7.7 kg)
  • Shipping package: 22 lbs (10 kg)

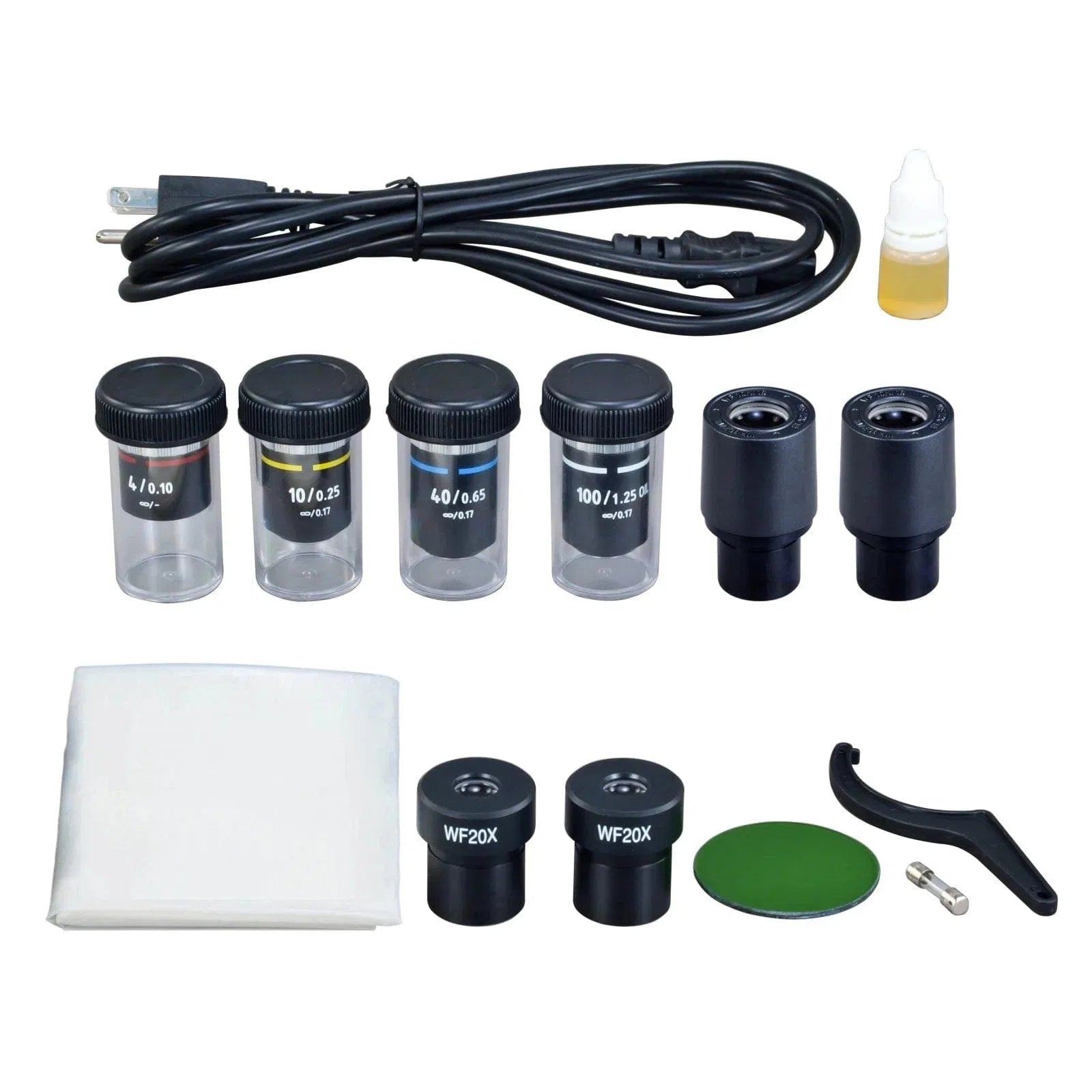

Packing List:

  • Trinocular microscope Siedentopf head
  • Photo tube
  • Microscope stand
  • 4 PLAN INFINITY objectives: 4X, 10X, 40X, 100X
  • A pair of eyepieces WF10X/18
  • A pair of eyepieces WF20X
  • A bottle of immersion oil
  • Dry Infinity darkfield condenser
  • Color filter: Green, Blue
  • Dust cover
  • Power cord (NZ)
  • Extra fuse
  • Tension wrench
  • Camera:
    -10MP USB 3.0 digital camera
    -0.5X reduction lens
    -1 CD including driver, software and user's instruction (Mac or PC)
    -0.01mm calibration slide (stage micrometer)
    -USB 3.0 cable
