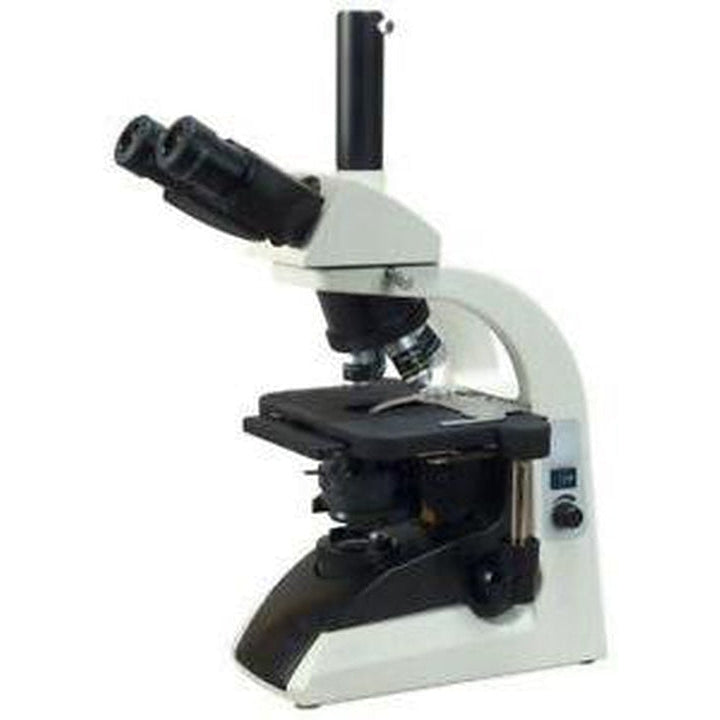

Omax Infinity Trinocular Compound 40x-1500x Microscope

SKU: m9332 8816834

Omax Infinity Trinocular Compound 40x-1500x Microscope-Jacobs Photo and Digital
Omax Infinity Trinocular Compound 40x-1500x Microscope-Jacobs Photo and Digital
×

Omax Infinity Trinocular Compound 40x-1500x Microscope

SKU: m9332 8816834

Learn more about this type of product


When will I receive it?

Have a question about this product?


Print this page

Our Price

or 12 months interest free

Gem

or 6 easy payments of $358.33

Laybuy

or 4 easy payments of $537.50

Afterpay

Loading

About this product

This microscope is designed for professionals. The M9332 microscope features a large double-layer mechanical stage, two pairs of 10X and 15X super widefield eyepieces, and four high-quality infinity-corrected plan objectives. A 20W Halogen light provides bright illumination. Reverse nosepiece makes it easy to access the slide and helps to protect the objectives from damage or smear. The large double-layer mechanical stage can hold two slides and is specially designed that no translational guide sticks out anymore, safe and neat.

Packing List:

  • Microscope body
  • Microscope viewing head
  • Photo tube
  • A pair of 10X eyepieces
  • A pair of 15X eyepieces
  • 4 DIN objectives: 4X, 10X, 40X and 100X
  • Immersion oil
  • Colour filter
  • Power cord
  • Dust cover
  • Extra bulb
  • 2 Allen keys
Total Magnification 40X, 60X, 100X, 150X, 400X, 600X, 1000X and 1500X
Eyepieces

A pair of widefield 10X/20 (diopter adjustable)
A pair of widefield 15X/16 (diopter adjustable)

Objectives

Infinity corrected, plan, achromatic objectives
4X/0.10 (∞/-), 10X/0.25 (∞/-), 40X/0.65 (∞/0.17, spring), 100X/1.25 (∞/0.17, spring, oil)

Viewing Head Trinocular, 30° Inclined, 360° rotatable
Hinged interpupillary distance adjustment: 50 mm - 75 mm
Nosepiece Reverse, revolving, quadruple

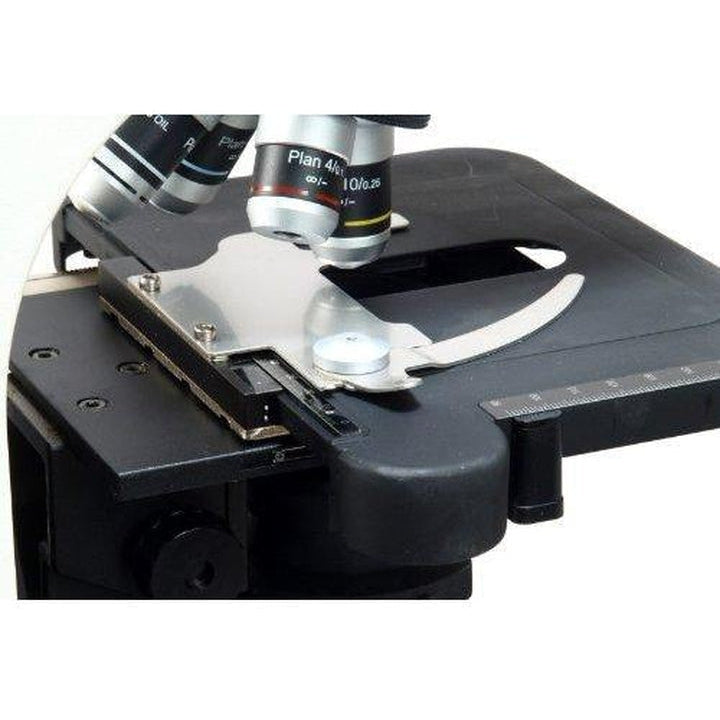

Stage

Double-layer mechanical stage
Range 2-1/16" x 3" (53 mm x 78 mm)
Dimension 7-3/8" x 5-5/16" (188 mm x 135mm)

Condenser

Abbe NA1.25 w/ iris diaphragm and filter holder
Rack & pinion adjustment

Aperture
Diaphragm
Iris diaphragm, attached on the condenser
Focusing Mechanism

Coaxial coarse and fine focusing knobs on left side.
Fine focusing knob on right side.
Tool-free tension adjustment

Illumination

Transmitted light, 12V/20W Halogen bulb
Light center adjustable
Variable intensity

Power Supply

100-240V, 50/60Hz

Dimension 12-3/4" x 9" x 18-3/4" (35 cm x 23 cm x 47.7 cm)
Net weight 15 lb 15 oz (7.25 kg)
